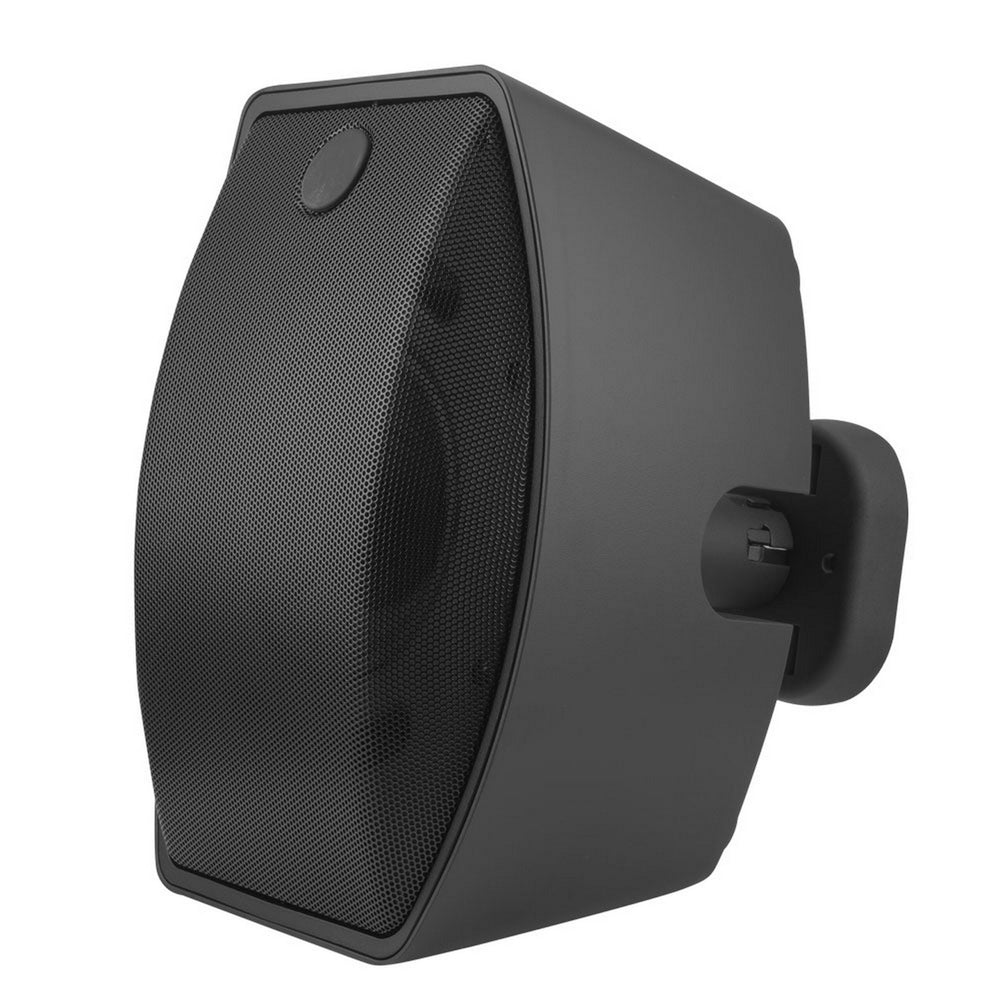

SoundTube IPD-SM500I-II-BK 5.25-Inch IP-Addressable Dante Addressable, Surface Mount Speaker, Black
Dante-enabled surface-mount speaker incorporating one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware for the IPD-SM500i-II is included and features SoundTube's proprietary Stealth bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.
Technical Specifications
Manufacturer's Category
STNet IP-Addressable and Dante Series
Depth
10.48 in / 266.3 mm
Height
11.4 in / 289.56 mm
Width/Diameter
8.36 in / 212.26 mm
Shipping Weight
8.85 lbs / 4.01 kg
Carton Height
12.25 in / 311.15 mm
Carton Length
13.25 in / 336.55 mm
Carton Width
10.75 in / 273.05 mm
Certifications
CE, RoHS, UL2043
Enclosure Properties
ABS
Included Accessories
Mounting Hardware, Safety Cable, Terminal Weather Boot
Optional Accessories
Black Grille (GRL-SM500-II-BK)|10" Safety Cable (AC-SM-SC10)|Black Mounting Bracket (AC-SM5-II-WP-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-S-BK)
Source Inputs
RJ45 Ethernet Port
Crossover Frequency
3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
4.6 and 9.8
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
5.6 dB and 9.9 dB
Frequency Response (+/- 10 dB)
60 Hz - 22 kHz
Frequency Response (+/- 3 dB)
86 Hz - 22 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
0.98 in / 25 mm
Low Pass Crossover
12 dB per octave 2nd order
Magnetically Boosted
No
Network Type: High Pass
12 dB per octave 2nd order
Tweeter Driver
1" Convex Aluminum w/ BroadBeam Waveguide
Woofer Driver
5.25" Polypropylene Cone w/ Butyl Rubber Surround
