SoundTube Q-12A Omnidirectional Loudspeaker, White

SoundTube | SKU: SOUNT-SSQ12AWH
$2,55800



Estimated Shipping Widget will be displayed here!


Condition: New

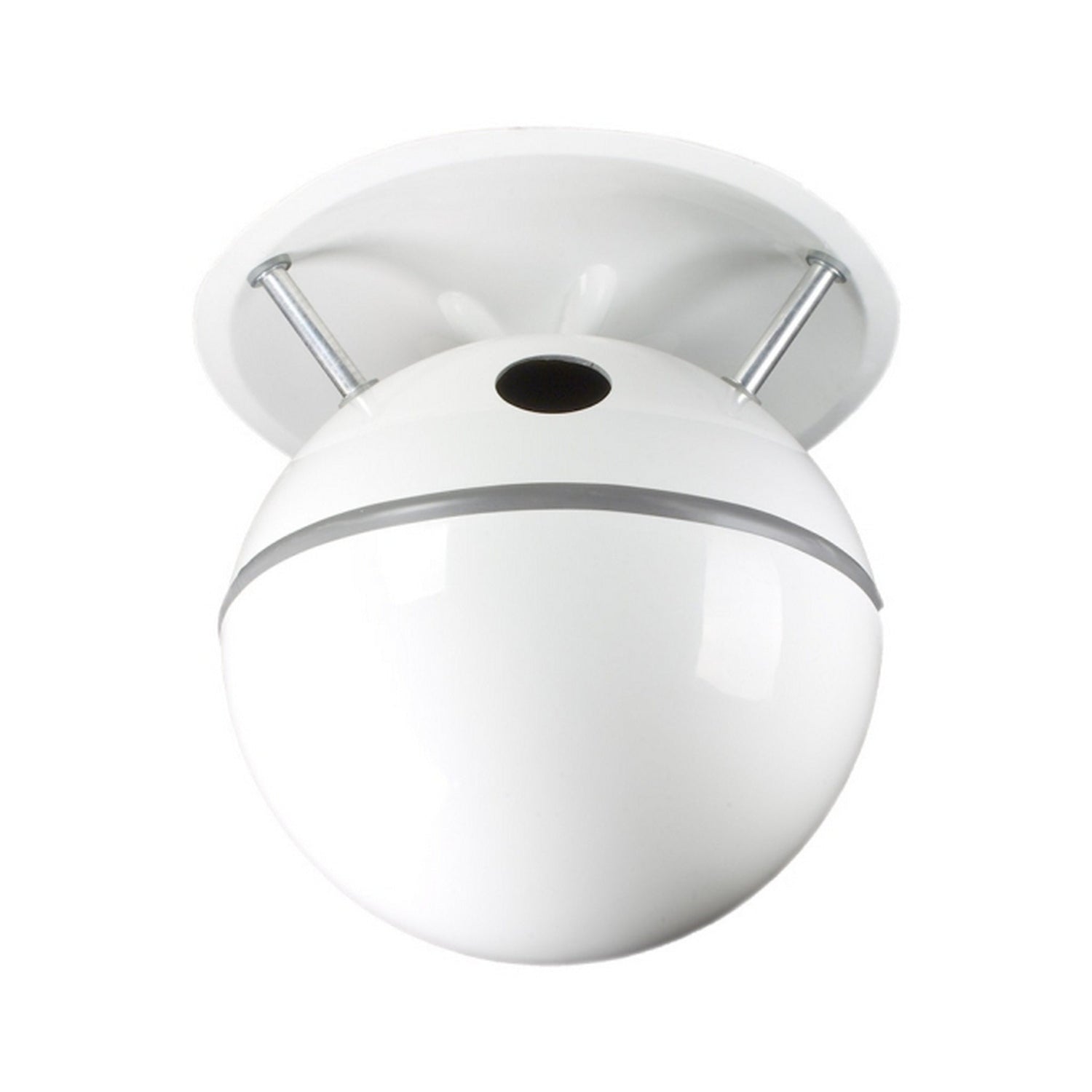

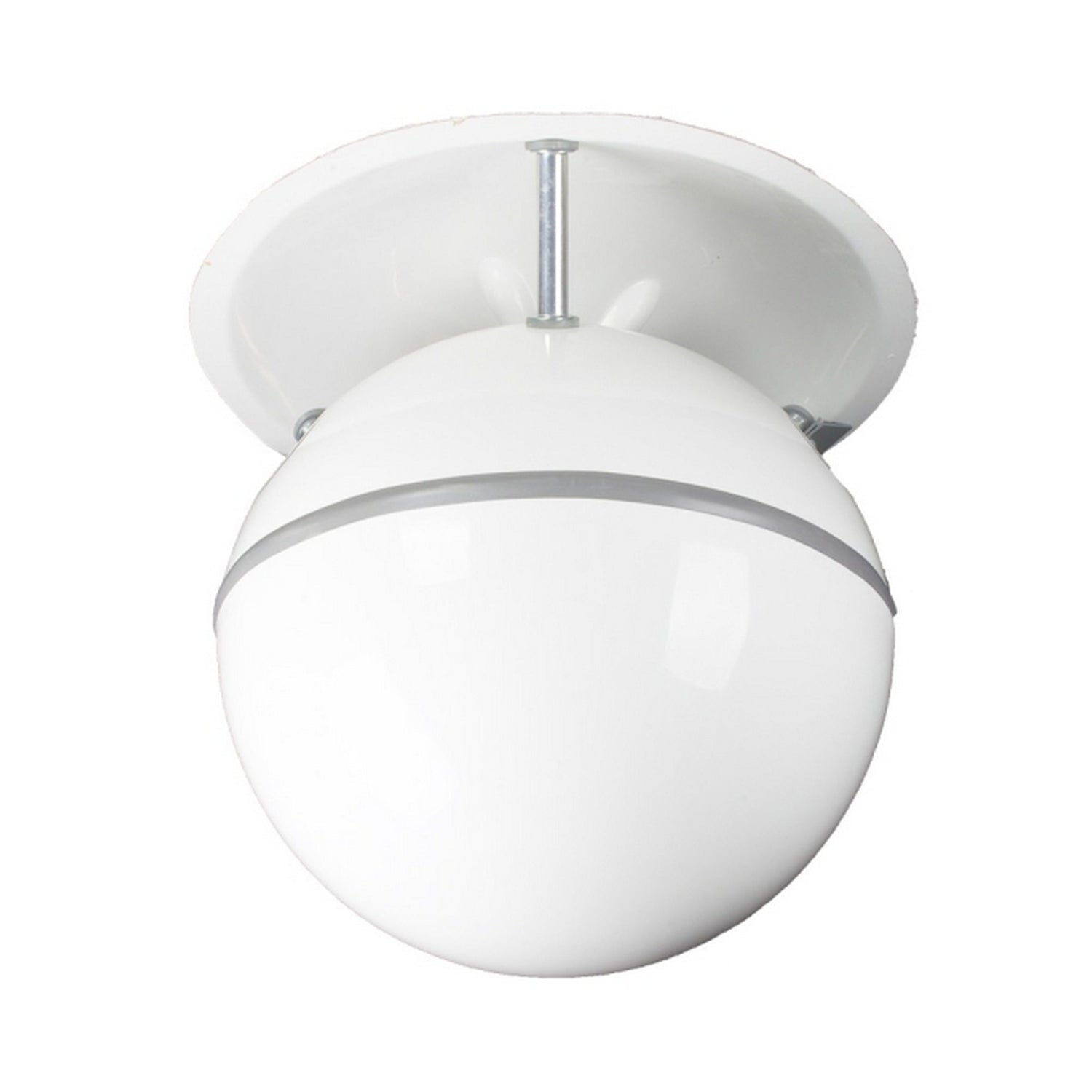

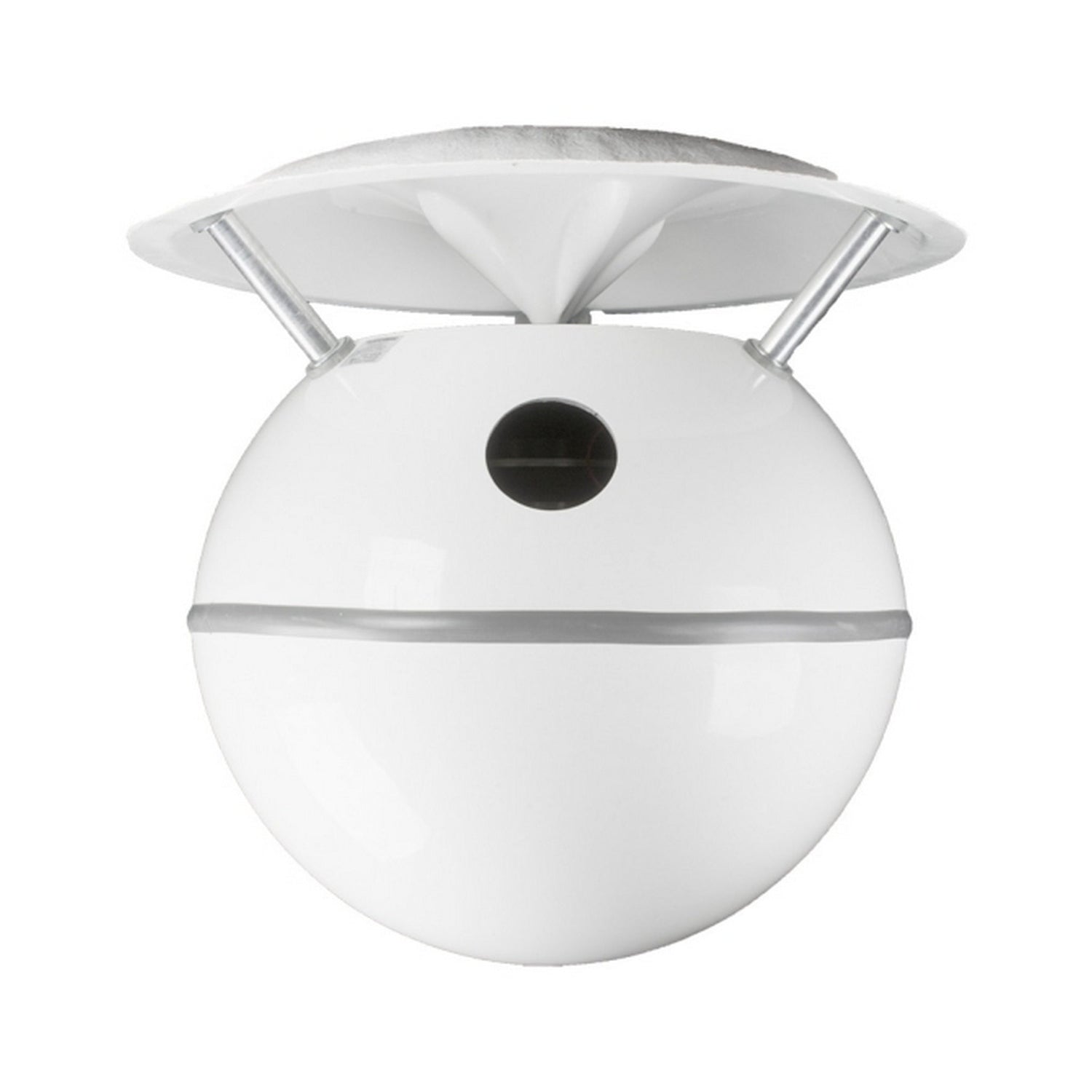

SoundTube Q-12A Omnidirectional Loudspeaker, White

The Soundsphere Q-12A delivers exceptionally high sound pressure levels with uniform 360° dispersion, making it ideal for gymnasiums, arenas, industrial facilities, and other large indoor spaces where clear voice paging and high-fidelity music are required. Its patent-pending Poly-exponential Incidence Reflector enhances efficiency and smooth frequency response.

Featuring a 12″ treated-paper coaxial woofer and a 2″ titanium-diaphragm compression driver, the Q-12A provides 97 dB sensitivity (1 W/1 m) and up to 121 dB SPL at 250 W (1 m). Wire-lead tap connections allow integration into 25 V/70.7 V/100 V constant-voltage systems.

Key Features

  • Dispersion: Omnidirectional 360° with Poly-exponential Reflector
  • Drivers: 12″ true coaxial woofer; 2″ titanium compression driver
  • Power Handling: 250 W RMS; 500 W program
  • Sensitivity: 97 dB @ 1 W/1 m; 97 dB @ 2.83 V/1 m
  • Max SPL: 121 dB @ 250 W/1 m
  • Impedance: 8 Ω nominal
  • Inputs: Wire-lead tap selector for 25 V/70.7 V/100 V
  • Enclosure: Fiberglass sphere in textured white
  • Mounting: Hanging kit or mounting bracket (optional accessory)
  • Certifications: CCC, CE, RoHS; TAA and BAA compliant

Technical Specifications

  • Frequency Response (±10 dB): 65 Hz – 15 kHz
  • Crossover Frequency: 1.5 kHz (High-pass, second order)
  • Low Frequency Voice Coil: 2.99 in (76 mm)
  • Network Type: High-pass second-order
  • Tap Selector: Wire-lead for constant-voltage taps
  • Source Inputs: Wire leads
