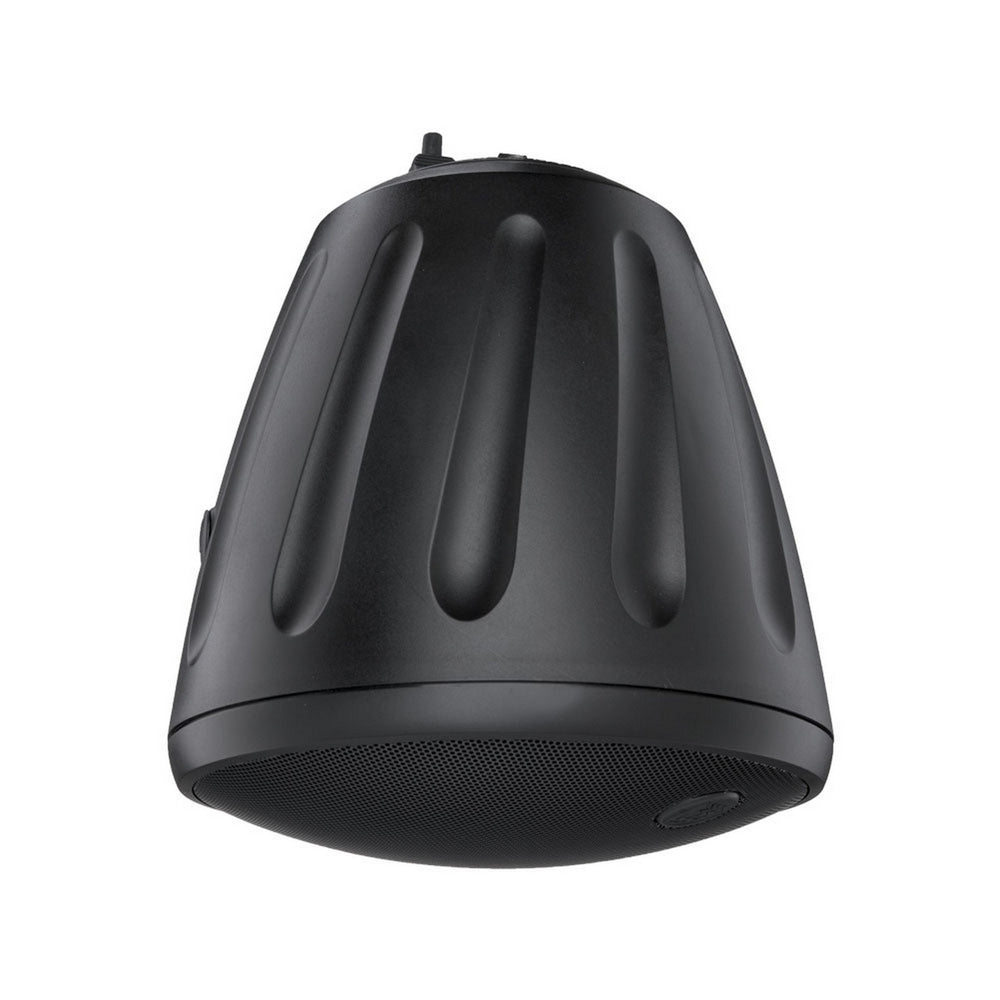

SoundTube RS1001I-II-T-BK 10-Inch Hanging Speaker, Black with Transformer
SoundTube RS1001I-II-T-BK 10-Inch Hanging Speaker, Black with Trans...
Free Shipping
SoundTube RS1001I-II-T-BK 10-Inch Hanging Speaker, Black with Transformer
The RS1001i is a 10-inch open-ceiling or surface mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10-inch polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (38 Hz 450 Hz, - 10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClamp self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1001i-II-T includes a five-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.
Technical Specifications
Height
17.23 in / 437.6 mm
Width/Diameter
14.82 in / 376.4 mm
Shipping Weight
30.2 lbs / 13.7 kg
Carton Height
19.5 in / 495.3 mm
Carton Length
18 in / 457.2 mm
Carton Width
18 in / 457.2 mm
Certifications
CE, RoHS, UL1480A, UL2239
Enclosure Properties
ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume
1288.3 cu in / 21111.45 cu cm
Included Accessories
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Optional Accessories
Black Grille (GRL-RS800-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM8-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Source Inputs
4 Pin 5.08mm Euroblock
Crossover Frequency
100.0 Hz
Frequency Response (+/- 10 dB)
38 Hz - 450 Hz
Frequency Response (+/- 3 dB)
53 Hz - 175 Hz
Grille Properties
Powder-Coated, Steel
Low Frequency Voice Coil
1.38 in / 35 mm
Low Pass Crossover
6dB per octave 1st order
Magnetically Boosted
No
Max. Continuous Power RMS
150W
Max. Program Power
300 W
Minimum Impedance (Ohm)
5.1 OHM
Nominal Impedance (Ohm)
4 OHM
Subwoofer Driver
10" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M
83 dB
Sensitivity dB @ 2.83V/1M
86 dB
Tap Selector
Rotary Switch
Transformer Options
25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps (25V/70.0V/100V)
19W/150W/150W
