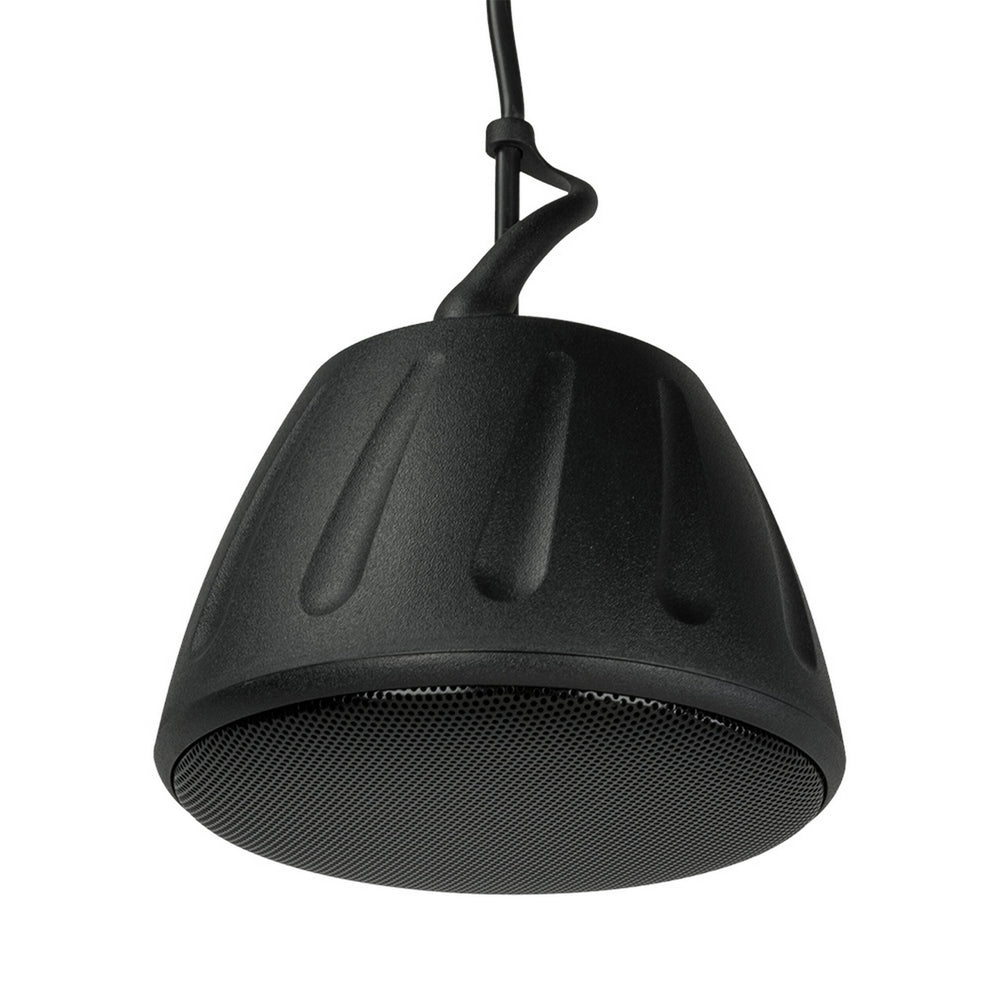

SoundTube RS31-EZ-T-BK 3-Inch Hanging Speaker, Black with Transformer
SoundTube RS31-EZ-T-BK 3-Inch Hanging Speaker, Black with Transformer
Free Shipping
SoundTube RS31-EZ-T-BK 3-Inch Hanging Speaker, Black with Transformer
The RS31-EZ-T is a premium full-range 3 inch pendant-mount speaker, with a polypropylene driver and butyl rubber surround and includes a 20-watt transform (transformer does not include 8 ohm bypass). The RS31-EZ incorporates the ultra-low profile ZeroReflection ABS enclosure (4.35 inch diameter by 4.35 inch height without stabilizing arm) and a 10ft length of speaker signal/hanging cable for on-ceiling applications. The RS31-EZ-T also includes a ceiling cap with a diameter of 5" and a middle depth of 2". The mounting plate arms inside the cover measure 4.75" x 4.5" and the transformer is 1.125" x 1.625" with a depth of 1.5". The speaker components have been weatherized for indoor/outdoor applications. Mounting element, cover plate, and 10ft speaker signal/hanging cable are included. Includes a 20-watt transformer. Transformer does not include 8 ohm bypass.
Technical Specifications
Height
4.94 in / 125.4 mm
Width/Diameter
4.35 in / 110.5 mm
Shipping Weight
3 lbs / 1.36 kg
Carton Height
6.75 in / 171.45 mm
Carton Length
10 in / 254 mm
Carton Width
6.75 in / 171.45 mm
Certifications
CE, RoHS, UL1480A
Enclosure Properties
ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume
60 cu in / 983.22 cu cm
Included Accessories
Cover Plate, Hanging Hardware, Wire Nuts
Optional Accessories
Black Grille (GRL-RS31-BK)|Black Split Loom Tubing (AC-SLT-10-BK)
Source Inputs
Terminal Strip
Coverage Angle (-6dB @ 2kHz)
45
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
4.9 and 7.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
5.1dB and 8.5dB
Frequency Response (+/- 10 dB)
120 Hz - 22 kHz
Frequency Response (+/- 3 dB)
170 Hz - 14 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
0.75 in / 19 mm
Magnetically Boosted
No
Max. Continuous Power RMS
20W
Max. Program Power
40 W
Mounting Depth
3.81 in / 96.8 mm
Nominal Impedance (Ohm)
8 OHM
Fullrange Driver
3" Polypropylene driver with butyl rubber surround
Sensitivity dB @ 1W/1M
85 dB
Sensitivity dB @ 2.83V/1M
85 dB
Tap Selector
Terminal Block
Transformer Options
25 / 70.7 / 100 V
