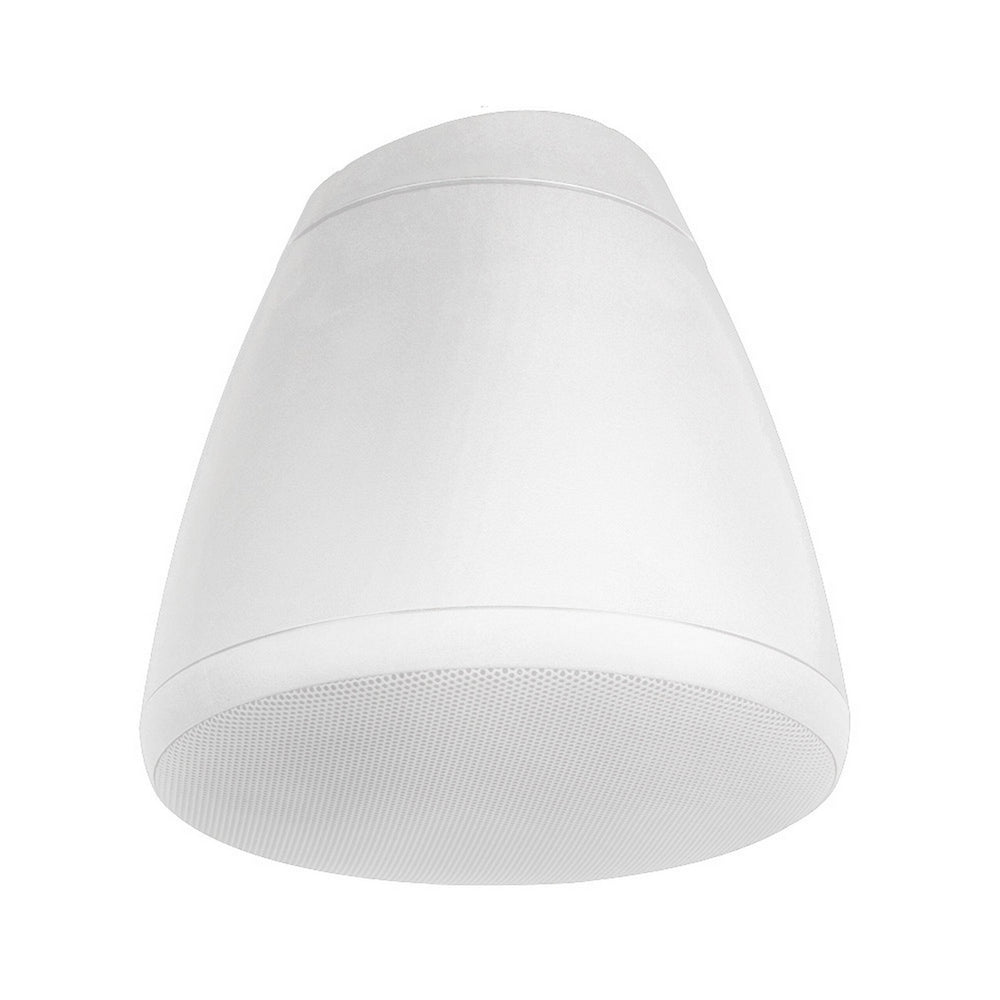

SoundTube RS82-EZ-WH 8-Inch Hanging Speaker, White

The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ring technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.

Technical Specifications

Height
12.9 in / 327.7 mm
Width/Diameter
12.83 in / 325.9 mm
Shipping Weight
15.15 lbs / 6.87 kg
Carton Height
15.75 in / 400.05 mm
Carton Length
15 in / 381 mm
Carton Width
14.5 in / 368.3 mm
Certifications
CE, RoHS, UL1480A
Enclosure Properties
Ported, Reinforced ABS
Included Accessories
Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional Accessories
Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Source Inputs
4 Pin Ceramic Terminal
Crossover Frequency
2.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
6.7 and 6.0
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
6.7db and 7.8dB
Frequency Response (+/- 10 dB)
80 Hz - 22 kHz
Frequency Response (+/- 3 dB)
100 Hz - 22 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
1 in / 25.4 mm
Low Pass Crossover
6 dB per octave 1st order
Magnetically Boosted
No
Max. Continuous Power RMS
64W
Max. Program Power
128 W
Minimum Impedance (Ohm)
16 OHM
Network Type: High Pass
6 dB per octave 1st order
Nominal Impedance (Ohm)
16 OHM
Tweeter Driver
1" Silk Dome w/ BroadBeam Ring
Woofer Driver
8" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M
92 dB
Sensitivity dB @ 2.83V/1M
89 dB
Tap Selector
Rotary Switch
Transformer Options
25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps (25V/70.0V/100V)
8W/64W/64W
