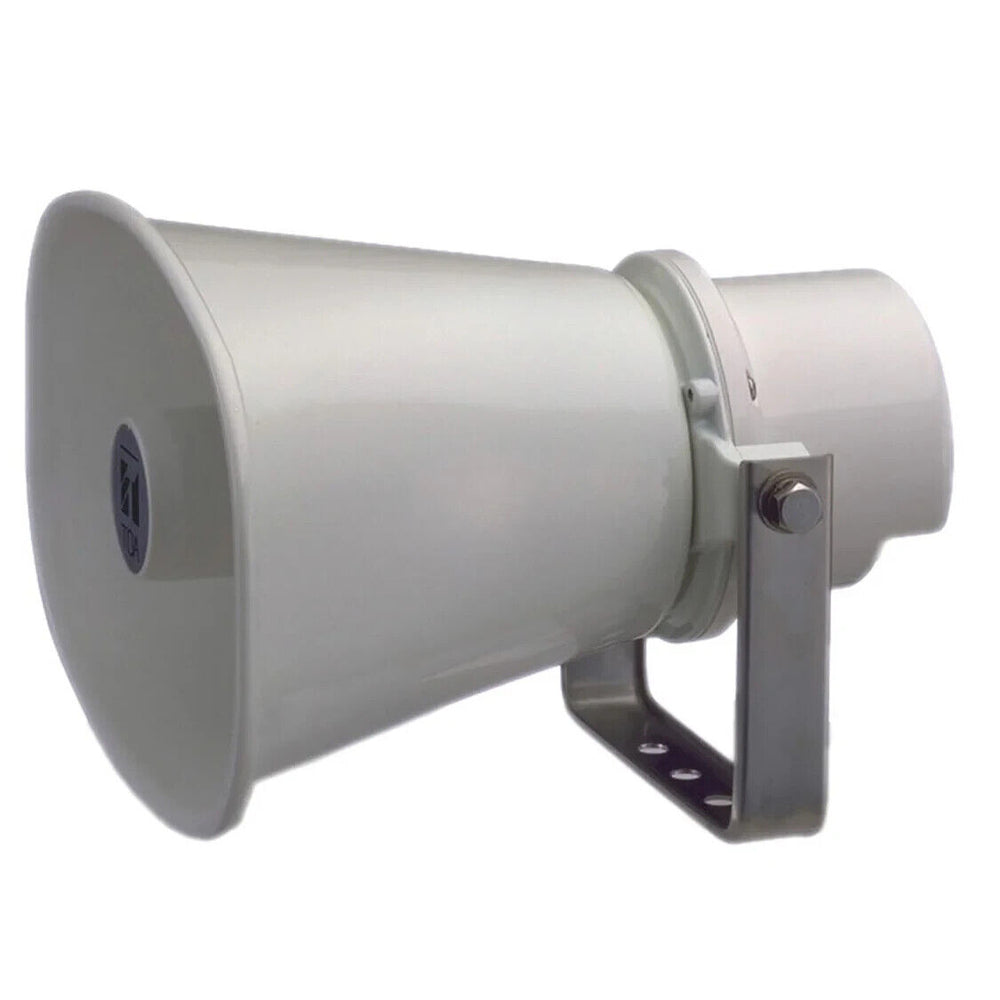

TOA SC-615 15 Watt Paging Horn Speaker
The SC-615 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
Technical Specifications
Rated Input
15 W (Mobile Mount use: 10 W)
Rated Impedance
8 ohm
Sound Pressure Level
112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response
280 Hz - 12.5 kHz
Dust/Water Protection
IP65
Polarity
Hot: Black , Com: White
Operating Temperature
-20 deg to +55 deg C (must be free from dew condensation)
Finish
Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions
222 (W) Ć 179 (H) Ć 234 (D) mm
Weight
1.1 kg
Option
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
