TOA Electronics SC-615T | 15 Watt Paging Horn Speaker 25/70.7 V Transformer
TOA Electronics SC-615T | 15 Watt Paging Horn Speaker 25/70.7 V Tra...
Free Shipping

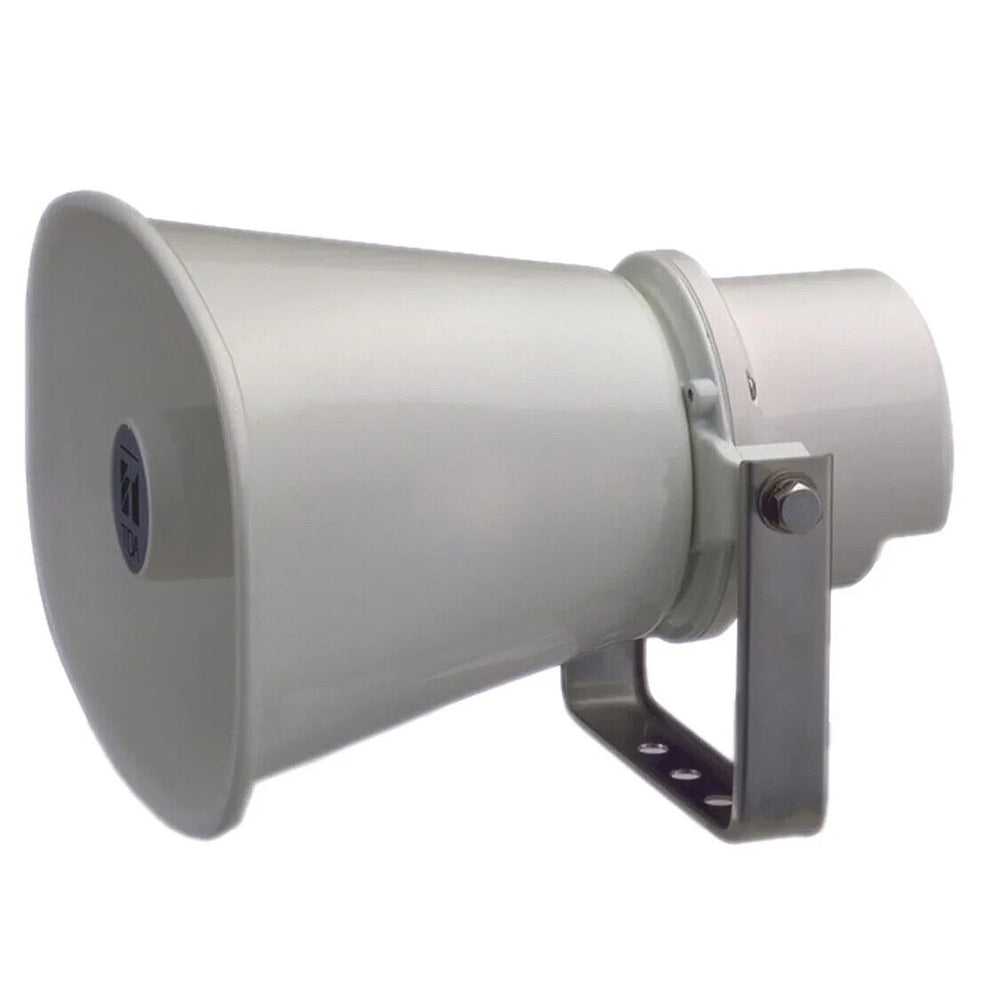

TOA SC-615T 15 Watt Paging Horn Speaker 25/70.7 V Transformer
The SC_615T is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with power coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.
Technical Specifications
Rated Input
15 W
Line Voltage
70 V line or 25 V line
Rated Impedance
70 V line: 330 ohm (15 W), 650 ohm (7.5 W), 1.3 k ohm (3.8 W)
25 V line: 42 ohm (15 W), 83 ohm (7.5 W), 330 ohm (1.9 W), 650 ohm (1 W), 1.3 k ohm (0.5 W)
Sound Pressure Level
112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response
280 Hz - 12.5 kHz
Sensitivity When Used as Microphone (0 dB=1 mW/10 dynes/cm2)
-22 dB at 1 kHz
Dust/Water Protection
IP65
Polarity
Hot: black, Com: white
Operating Temperature
-20 deg to + 55 deg C (must be free from dew condensation)
Finish
Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless teel
Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions
222 (W) x 179 (H) x 234 (D) mm
Weight
1.3 kg
Option
Swivel bracket: YS-151S (Can be used instead of the supplied bracket)
