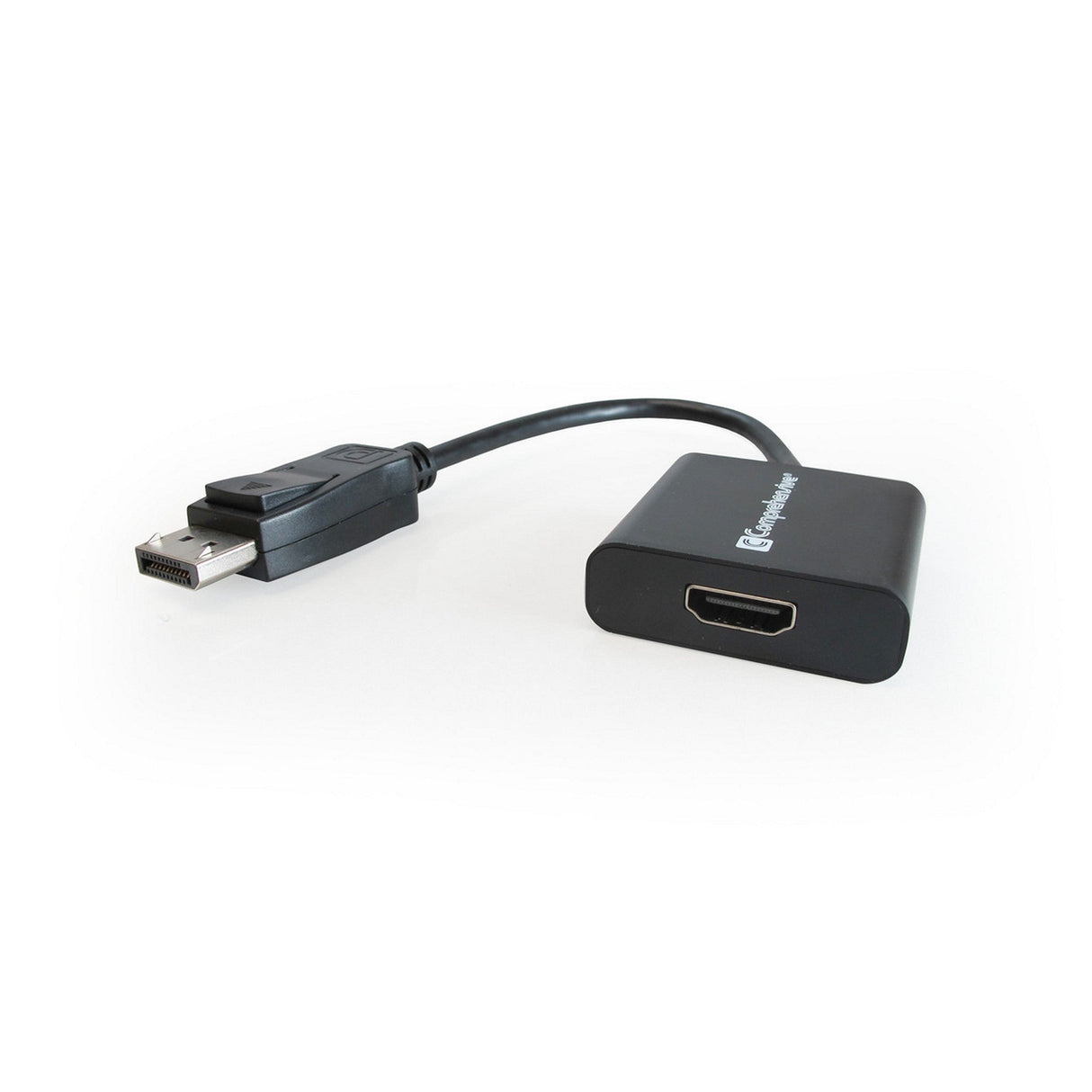

Comprehensive DP2HDJA DisplayPort Male to HDMI Female Active Adapter Cable
Comprehensive DP2HDJA DisplayPort Male to HDMI Female Active Adapter Cable
Keep your existing display while using a DisplayPort source. With the DP2HDJA (DisplayPort to HDMI) active adapter you can connect your DisplayPort source to an HDMI display. This adapter supports resolutions up to 3840 x 2160 and allows you to take full advantage of your HDMI capable display.
Key Features
- Display resolution up to: 3840 x 2160, 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
- Supports DisplayPort 1.1a input and HDMI 1.3b output
- Supports HDMI highest video resolution 4K @ 30Hz and 1080p
- Supports HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- Supports HDMI 12bit per channel (36bit all channel) deep color
- Power supply: +3.3V (From DisplayPort)
- RoHS Compliant
- Lifetime Warranty
Technical Specifications
Performance Grade
Good
Connector Type 1
DisplayPort Male Input
Connector Type 2
HDMI Female Output
Resolution
Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 4K @ 30Hz and 1080p
Versions Supported
Mini DisplayPort 1.1a input and HDMI1.3b output
HDMI Bandwidth
Supports HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
HDMI Deep Color
Supports HDMI 12bit per channel (36bit all channel) deep color
HDMI Audio
Supports LPCM audio as well as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD
Power requirements
Powered from DisplayPort source
Construction
The DP to HDMI adapter uses an integrated chip to provide an active digital to analog conversion
Weight Lbs
0.2
RoHS Compliant
Yes
Warranty
Lifetime
