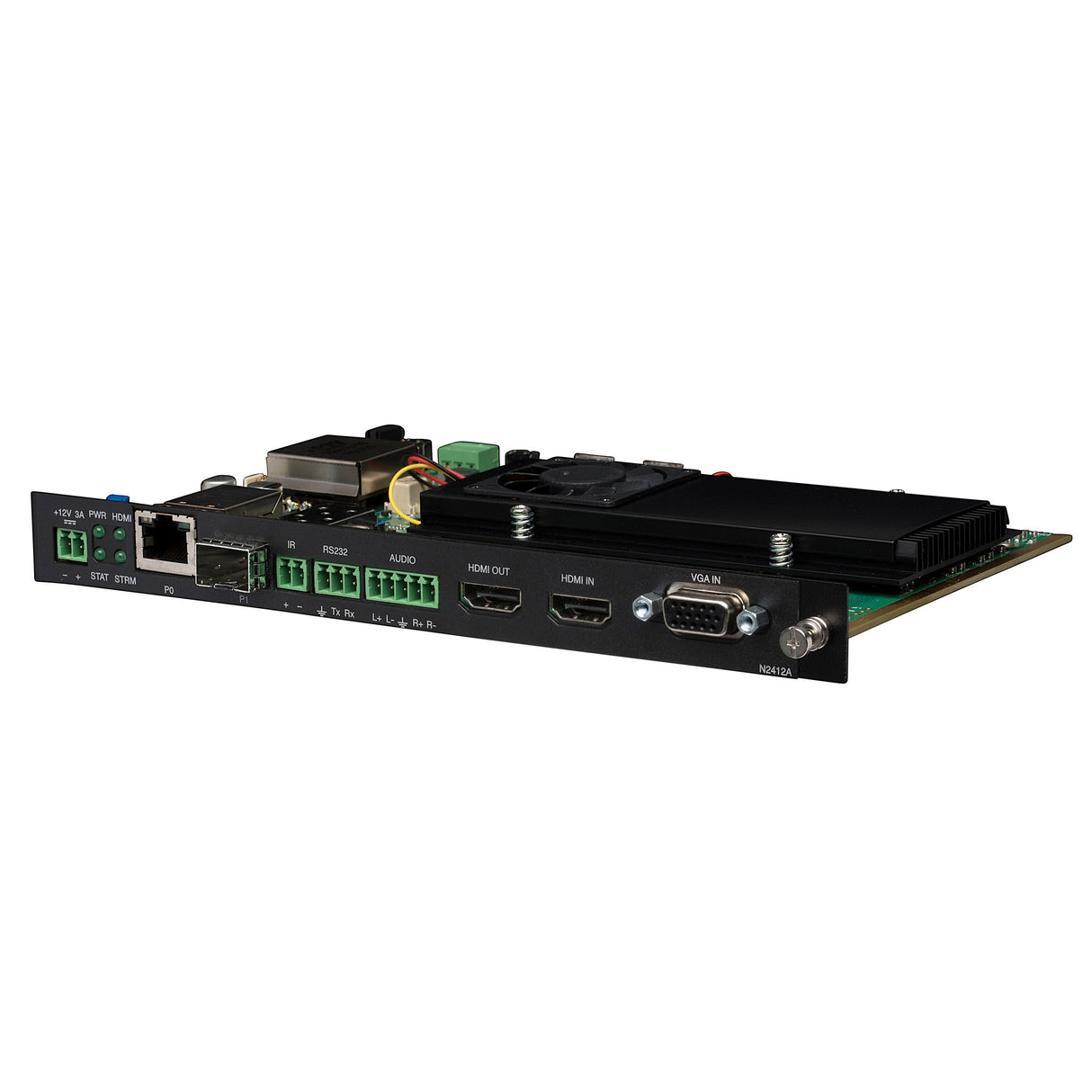

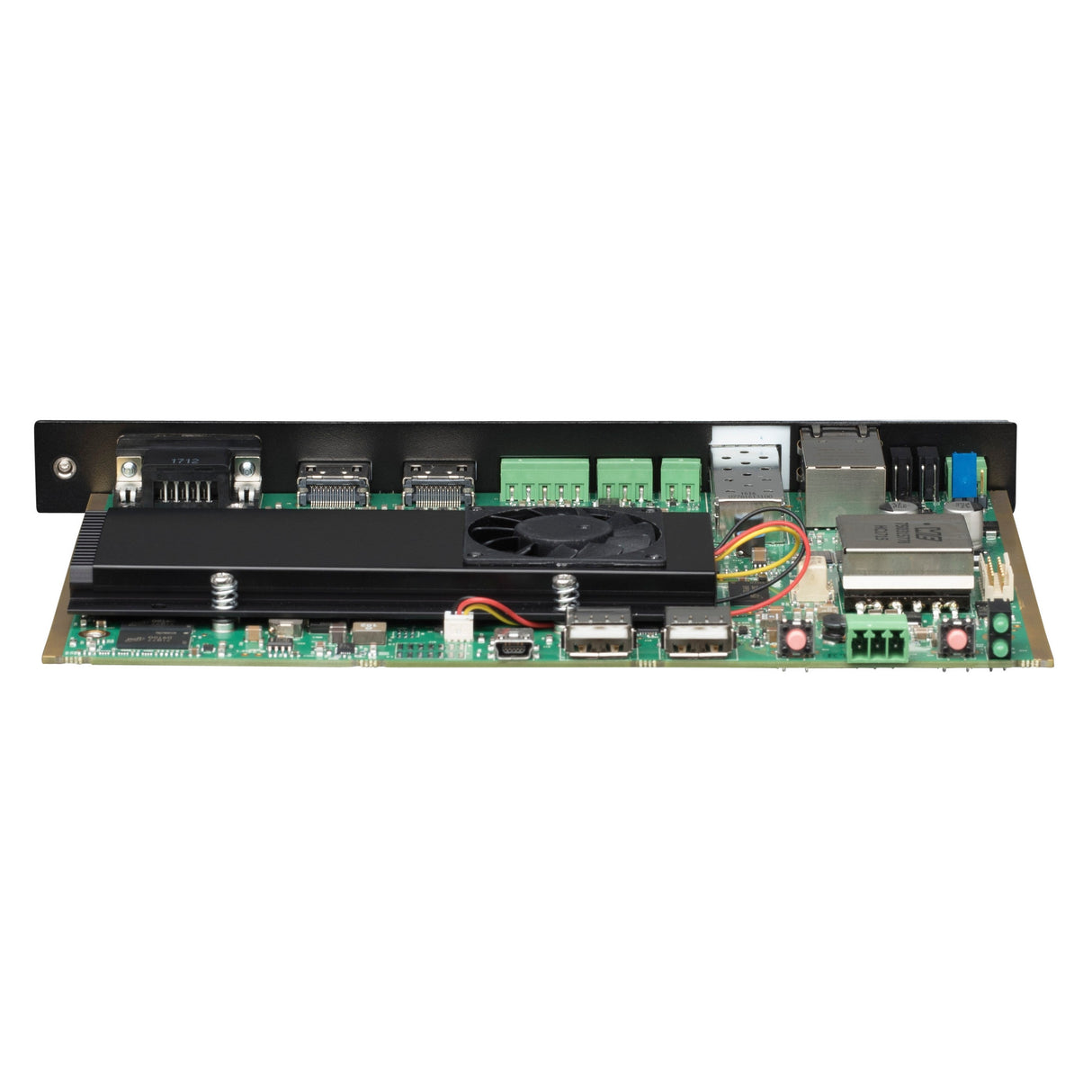

AMX NMX-ENC-N2412A-C JPEG 2000 4K60 4:4:4 and HDR Video Over IP Encoder Card with PoE

AMX NMX-ENC-N2412A-C JPEG 2000 4K60 4:4:4 and HDR Video Over IP Encoder Card with PoE

Utilizing JPEG2000 encoding, the N2400 Series encoders and decoders are able to deliver cinema quality video with sub-frame latency. These products support 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR allowing end users to realize the full potential of their source and display devices. To preserve the security of the network, N2400 supports enterprise security features such as Active Directory integration and 802.1X support. Operating on standard 1 Gbps networks and requiring only POE+ power, the N2400 encoders and decoders provide the most scalable 4K60 4:4:4 solution.

Key Features

• 4K60 4:4:4 Support - The N2400 Series can be used to support today’s 4K content without modifying the color space or reducing the frame rate.
• High Dynamic Range (HDR) Support - Support for HDR10
• HDMI 2.0 and HDCP 2.2 Support - By incorporating HDMI 2.0 and HDCP 2.2, the N2400 Series products are compatible with all the latest 4K sources and displays.
• Advanced Security including Active Directory, 802.1x, SSL/TLS and HTTPS - Satisfies enterprise network security requirements
• Operates over Gigabit Ethernet - Distribute video over cost effective Gigabit Ethernet switches using the category cable already installed in a location. This also allows for greater switching scalability compared to a solution that depends on 10 GbE.
• Sub-Frame Latency - N2400 Series encoders and decoders are able to deliver cinema quality video with less than a single frame of latency.
• PoE+ Powered - The N2400 Series can operate using standard PoE+ power from the network switch, simplifying installation and reducing installation cost.
• Native NetLinx - Simplifies integration with AMX control to reduce cost of installation

Technical Specifications

Video Inputs
HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/YUV DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
Video Outputs
Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Resolution Support
HDMI and DVI (Progressive)
Pixel clock between 27 MHz - 600 MHz
Minimum resolution of 720x480p
Maximum horizontal resolution of 4096 or a vertical resolution of 2160
Common acceptable resolutions include: 720x480@60Hz (480p60), 1024x768p60, 1280x720@60Hz (720p60), 1600x1200@60Hz, 1920x1080@60Hz (1080p60), 2560x1440@60Hz (QHD60), 3840x2160@30Hz (UHD30 aka 4K30), 3440x1440@50Hz, 3440x1440@60Hz, 3840x1080@60Hz, 4096x2160@30Hz (DCI 4K30), 3840x2160@60Hz (aka 4K UHD or 4K60), 4096x2160@60Hz (DCI 4K)
VGA
640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 848x480@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60)
Component
480p, 576p, 720p50, 720p60, 1080p24, 1080i50, 1080i60, 1080p30, 1080p50, 1080p60
Input resolutions supported @60Hz refresh rates are also supported @59.94Hz
Audio Inputs
Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
Audio Outputs
Network PCM and AES67 audio over Ethernet via RJ45
Ports

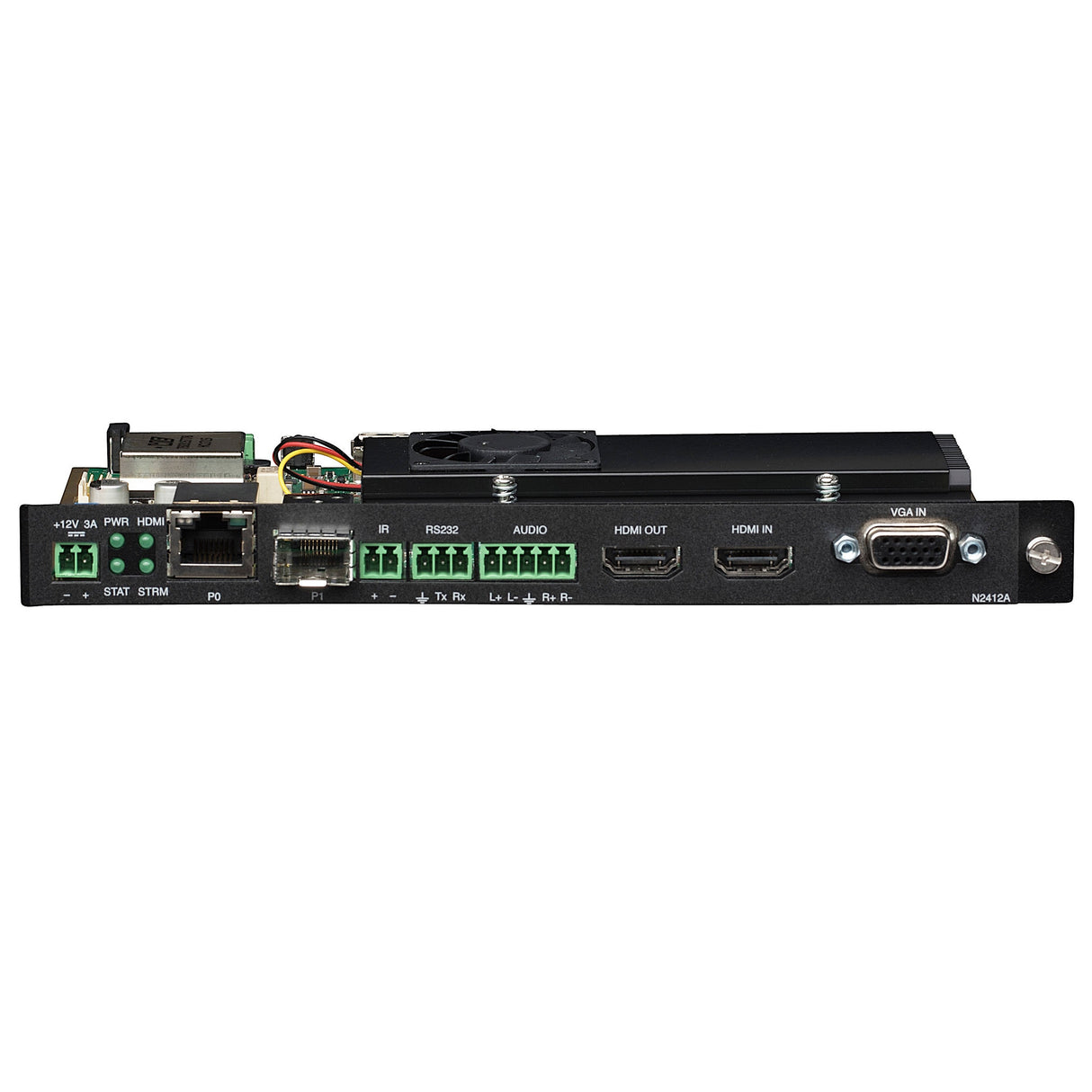

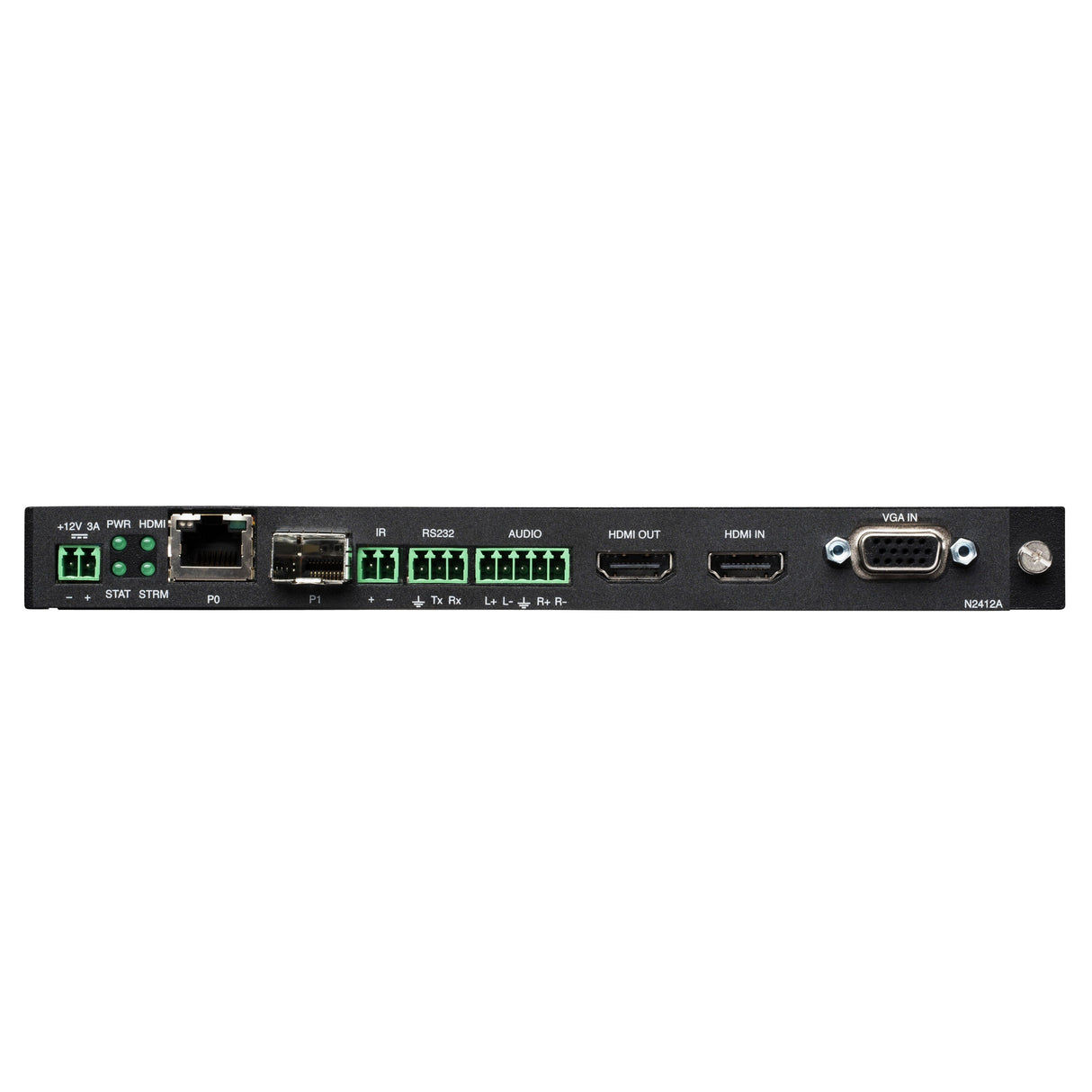

+12V 3A DC power input, (P0) Gigabit Ethernet port with POE+ support, (P1) 1G SFP port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video input, DB15 analog video input, HDMI video output, USB Mini B control input (front panel), 2 USB Type A control inputs (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental
Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~102 BTU/hr
Regulatory Compliance
FCC, CE, UL and NTRL
FG Numbers
FGN2412A-CD
