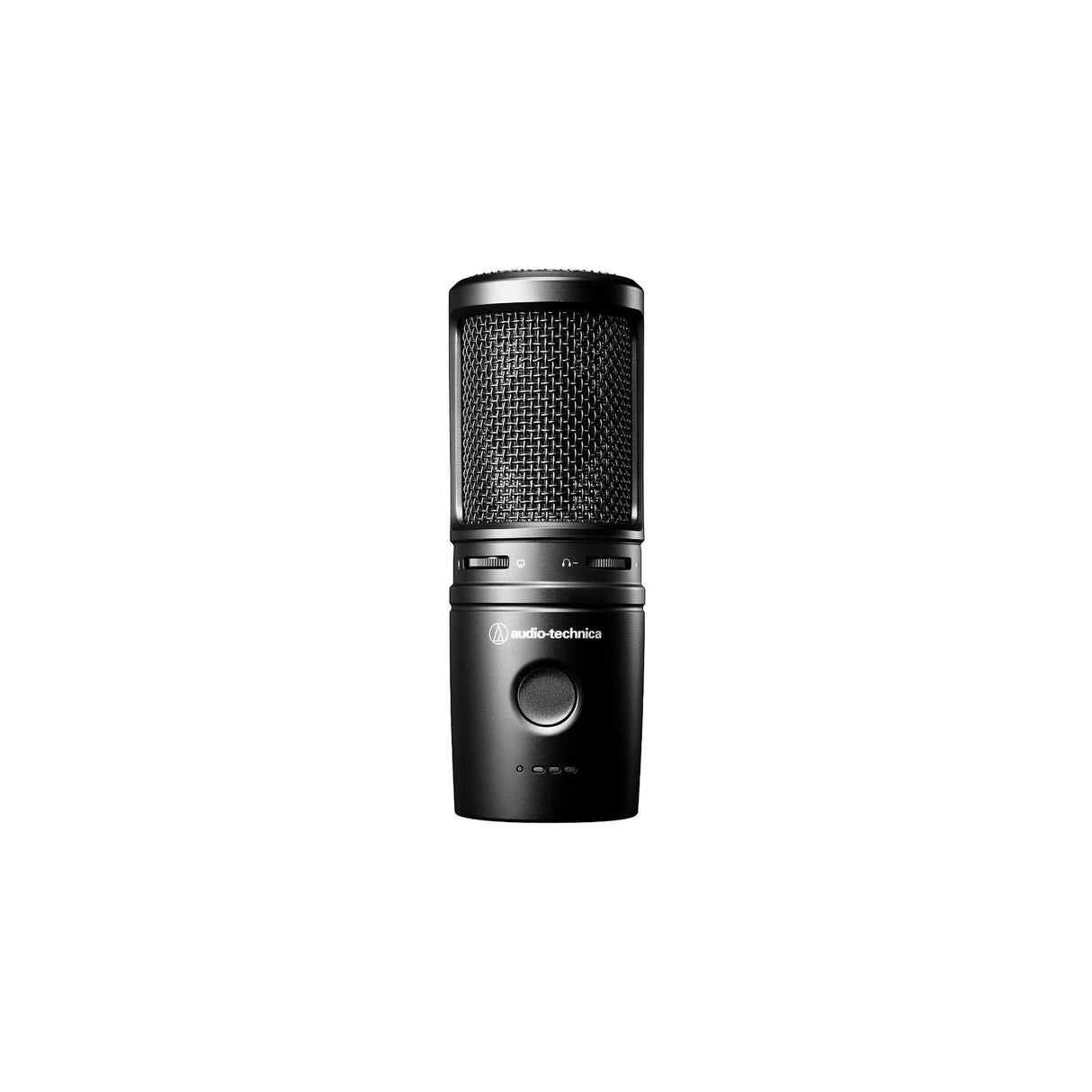

Audio-Technica AT2020USB-XP Side-Address Cardioid Condenser USB Microphone

Audio-Technica AT2020USB-XP Side-Address Cardioid Condenser USB Microphone

The Audio-Technica AT2020USB-XP provides streamers, podcasters, and other content creators with a convenient and professional microphone solution. Building upon the award-winning sound of the original AT2020, the AT2020USB-XP is loaded with studio-quality features and onboard digital technology. It ensures the focus remains on your chosen sound source with its cardioid directional pick-up and noise reduction capabilities, making it ideal for various recording environments.

When it comes to creating captivating content, high-quality audio is crucial. The AT2020USB-XP comes equipped with a high-resolution A/D converter that supports up to a 24-bit/192 kHz sampling rate, providing crystal-clear and natural sound reproduction. It also features a built-in headphone jack and volume control for direct monitoring of the microphone signal without any delay. Additionally, the mix control functionality allows you to seamlessly blend the microphone’s audio with audio from your computer.

This microphone boasts a touch-sensitive mute button for easily managing breaks or unexpected interruptions. The AT2020USB-XP also offers a USB-C output and includes a USB-C to USB-A cable and USB-A to USB-C adapter for maximum compatibility. Custom accessories such as a pop filter, a 3/8”-16 to 5/8”-27 threaded adapter, and a custom microphone desk stand ensure you have everything needed for a stable and secure setup.

Key Features

• USB microphone with smooth, extended freq. response ideally suited for streaming, podcasting, and other content creation
• Directional (cardioid) pickup keeps the focus on your voice or other desired sound source
• Noise reduction switch allows you to select three different levels of noise reduction, or none
• Automatic gain control can be switched on to maintain consistent mic output level
• Headphone jack with high-output amplifier and volume control enables real-time monitoring with excellent sound quality
• Mix control allows the microphone signal to be blended with computer audio
• Soft-touch capacitive mute button lets you quickly and silently mute audio at the microphone
• High-resolution A/D converter with up to 24-bit/192 kHz recording sampling rate provides extremely clear, natural sound reproduction
• Two-state LED indicator ring lights blue when mic is powered on and lights red when it is muted
• Accessories included: custom desk stand, clip-on pop filter, 3/8”-16 to 5/8”-27 threaded adapter, 2.0 m (6.6') USB-C to USB-A cable, USB-A to USB-C adapter

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 20-20,000 Hz
• Power Requirements: USB power (5 VDC)
• Bit Depth: 16 bit/24 bit
• Sample Rate: 44.1 kHz/48 kHz/88.2 kHz/96 kHz/192 kHz
• Controls: Headphone level control, Mix control, Mute, Auto gain control, Noise-reduction
• Weight: About 375 g (13 oz)
• Dimensions: 142 mm (5.6”) long, 52 mm (2.0”) maximum body diameter
• Output Connector: USB Type-C
• Headphone Output Power: 110 mW (at 1 kHz, 1% T.H.D., 32 ohms)
• Headphone Jack: 3.5 mm (1/8”) stereo mini-jack
• System Requirements: USB 2.0 compliant
• Supported OS: Windows 10, Windows 11; macOS Catalina, macOS Big Sur, macOS Monterey, macOS Ventura

Package Contents

• Stand (AT8702)
• Pop filter
• 3/8”-16 to 5/8”-27 threaded adapter
• USB cable (about 2.0 m (6.6'), USB Type-C to USB Type-A)
• USB conversion adapter (USB-Type-A to USB Type-C)
