Audio-Technica AT4022 Omnidirectional Studio Instrument Condenser Microphone

Audio-Technica AT4022 Omnidirectional Studio Instrument Condenser Microphone

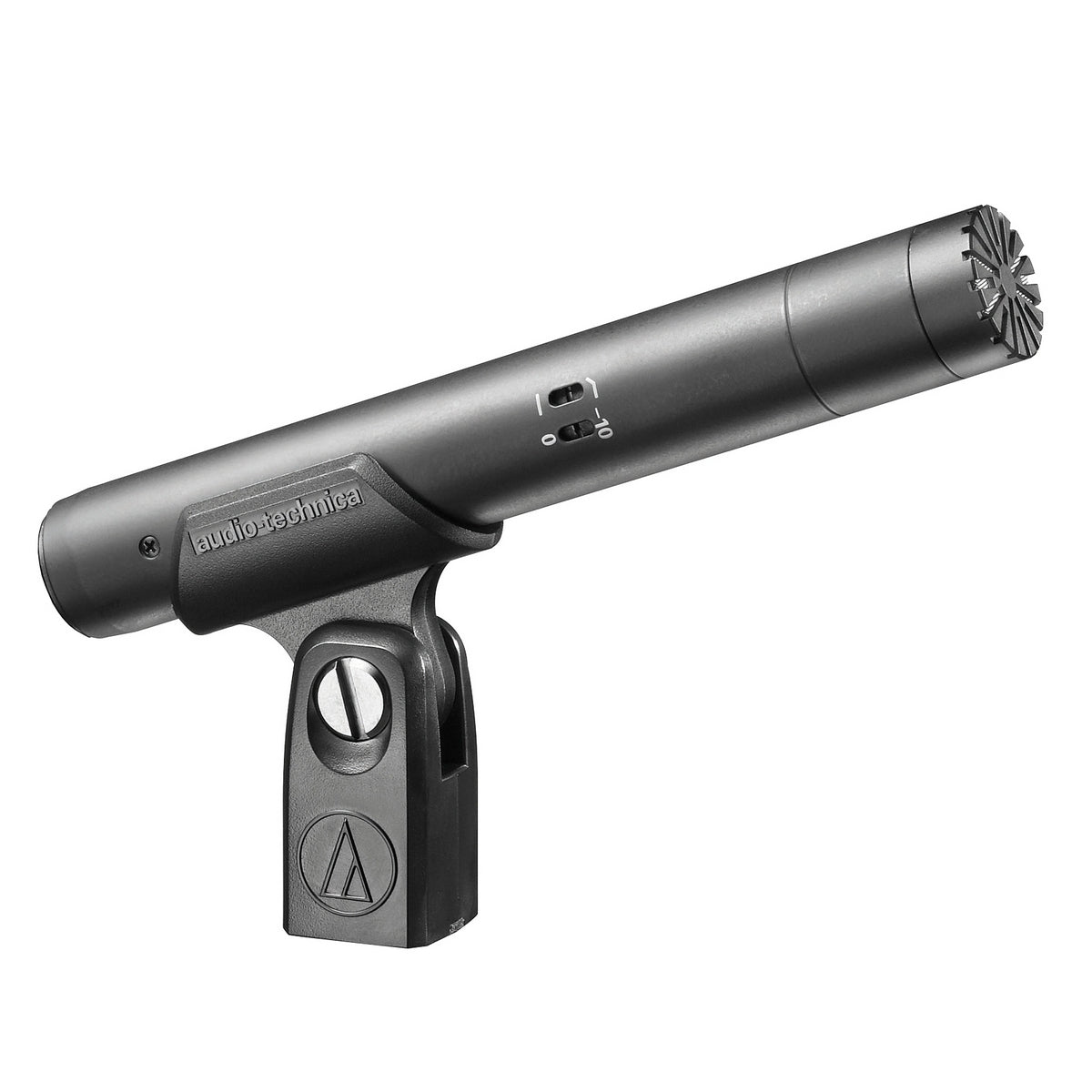

The low-profile Audio-Technica AT4022 Omnidirectional Condenser Microphone is a top-tier choice for recording piano, acoustic guitar, and various other acoustic instruments. Designed for both studio and live applications, this microphone boasts a flat, extended frequency response and a dynamic range that handles high SPLs (Sound Pressure Levels) with remarkable ease. Its omnidirectional polar pattern ensures the microphone captures the atmosphere and acoustics of the recording environment, offering a neutral sound free from proximity effects.

This microphone features a low-mass diaphragm, enhancing transient response and minimizing handling and mechanical noise. With its ability to accurately reproduce low-frequency sounds, the AT4022 is an exceptional fit for critical recordings requiring high fidelity. The useful switchable 80 Hz hi-pass filter and a 10 dB pad add versatility, making it adaptable to various recording contexts.

The robust construction and outstanding performance make the AT4022 ideal for use with digital recording equipment. Its low self-noise level ensures that even the most subtle tones are captured with clarity, making it an essential tool for sound engineers and musicians aiming for the highest quality recordings.

Key Features

• Outstanding performance and rugged construction, ideal for critical studio and live applications
• High SPL handling and wide dynamic range
• Flat, extended frequency response
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Omnidirectional polar pattern provides maximum ambient pickup
• Low self-noise perfectly suited for digital recording equipment
• Exceptional reproduction of low-frequency sounds
• Low-mass element for superb transient response

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
• Impedance: 250 ohms
• Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
• Noise: 13 dB SPL
• Dynamic Range (typical): 133 dB, 1 kHz at Max SPL
• Signal-To-Noise Ratio: 81 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.0 mA typical
• Switches: Flat, roll-off; 10 dB pad
• Weight: 124 g (4.4 oz)
• Dimensions: 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type

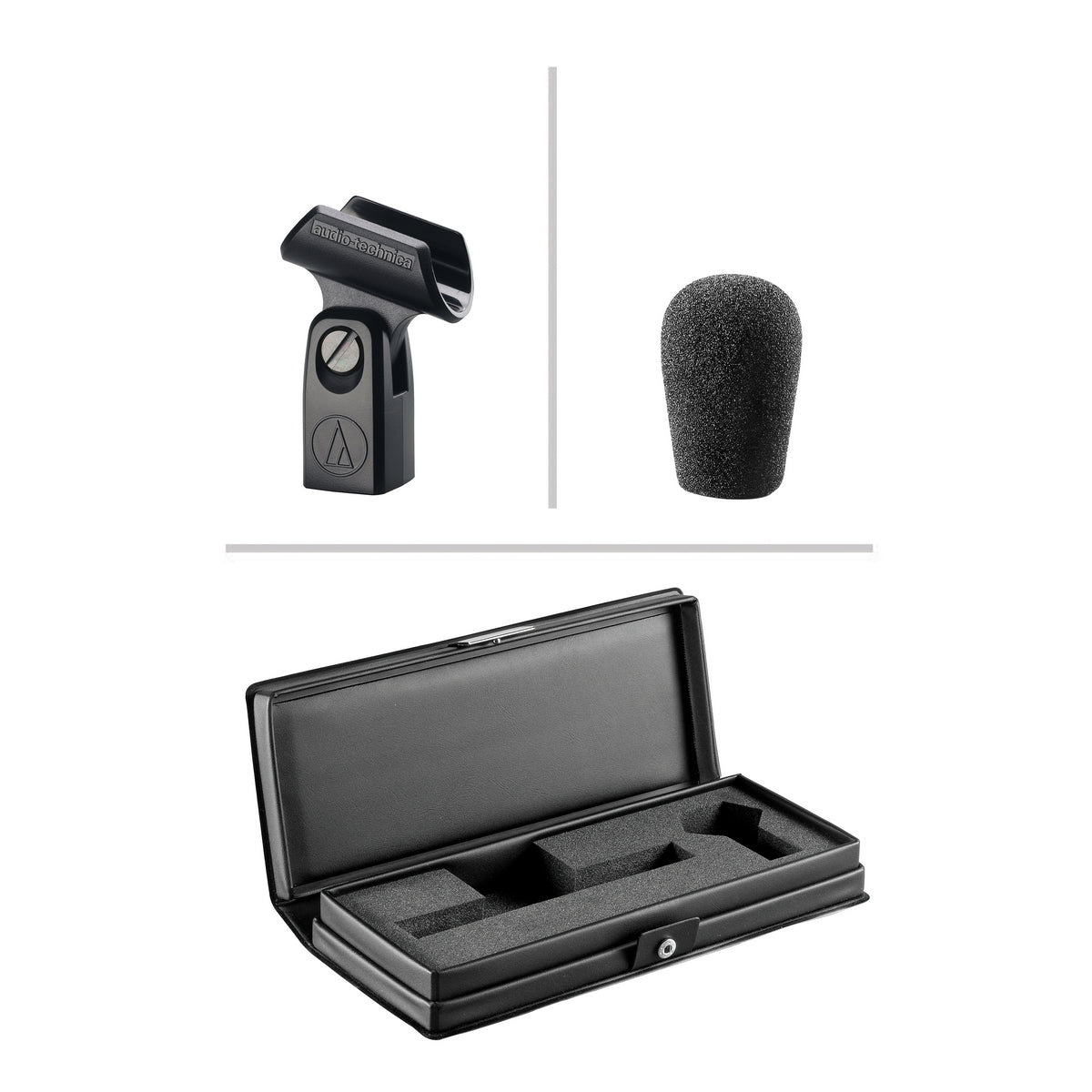

Package Contents

• AT8405a stand clamp for 5/8"-27 threaded stands
• Windscreen
• Protective carrying case
