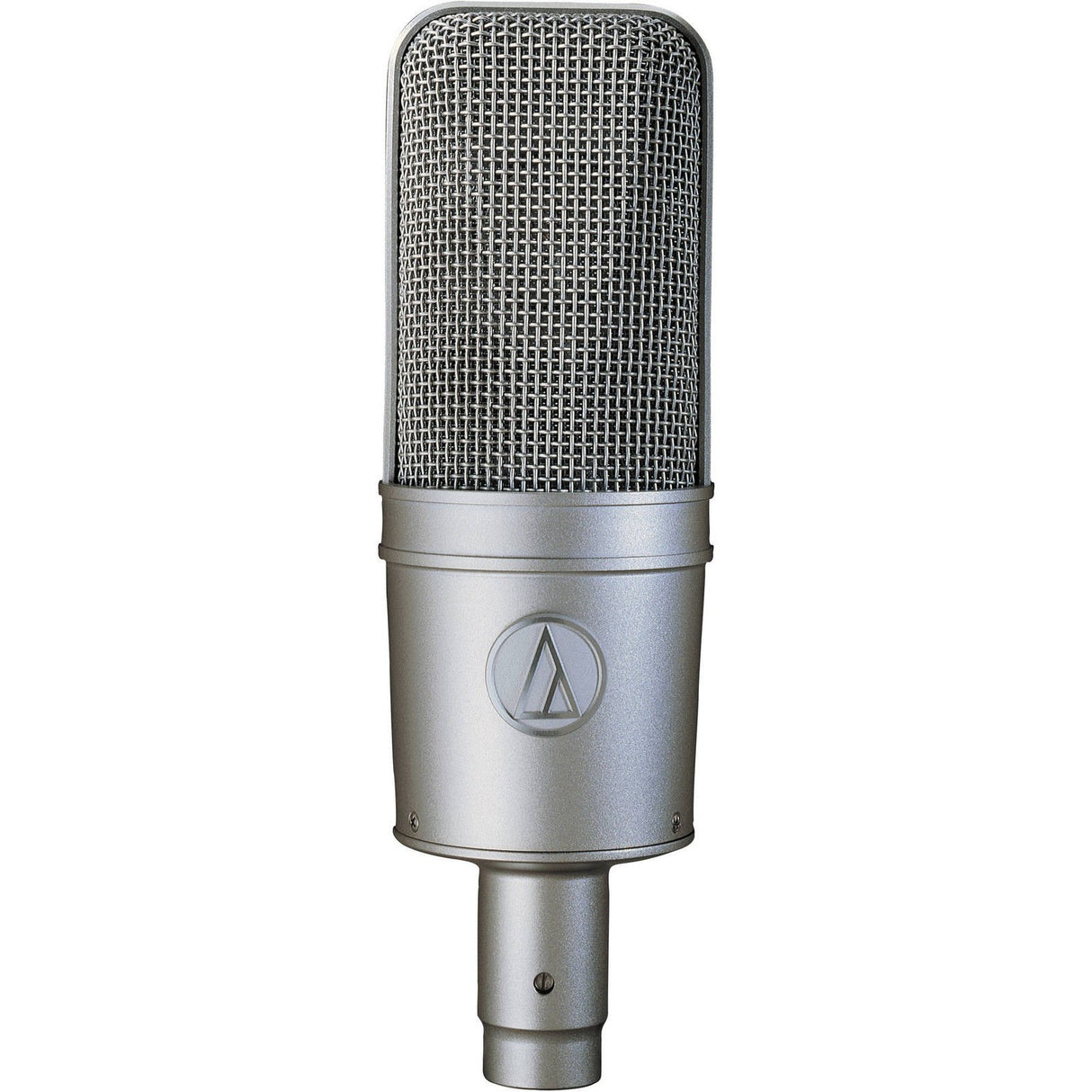

Audio-Technica AT4047/SV Cardioid Studio Vocal Instrument Condenser Microphone

Audio-Technica AT4047/SV Cardioid Studio Vocal Instrument Condenser Microphone

The Audio-Technica AT4047/SV Cardioid Studio Vocal Instrument Condenser Microphone offers a rich, warm sound that is reminiscent of classic F.E.T. studio microphones. Despite its vintage-inspired sound, this microphone incorporates state-of-the-art technology. Designed with a dual-diaphragm capsule, it ensures precise polar pattern definition across the full frequency range. This versatile microphone is ideal for a range of applications including vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voiceovers. Whether you are in a professional studio or working on live sound and broadcast projects, the AT4047/SV exceeds expectations with its wide dynamic range, incredibly low self-noise, and high SPL capability.

Audio-Technica takes pride in the precision and quality of their products, and the AT4047/SV is no exception. The cardioid polar pattern reduces the pickup of sounds from the sides and rear, improving isolation of the desired sound source. Its transformer-coupled output and specially-tuned element provide sonic characteristics closely aligning with early F.E.T. studio microphone designs. Additionally, the microphone features a vintage silver-matte finish, adding an aesthetic appeal to its robust functionality.

Incorporated with modern surface-mount electronics, the AT4047/SV complies with Audio-Technica's stringent standards for consistency and reliability. Users will also appreciate its switchable 80 Hz hi-pass filter and 10 dB pad, allowing further customization to suit various recording environments and requirements. Precision-machined, nickel-plated brass, acoustic element baffle further enhances element stability and optimal sensitivity, ensuring consistent and high-quality audio output.

Key Features

• Designed for critical studio, live sound, and broadcast applications
• Transformer-coupled output and specially-tuned element reminiscent of early F.E.T. studio microphones
• Exceptionally low self-noise and wide dynamic range
• High SPL capability
• Dual-diaphragm capsule design for precise polar pattern definition
• Precision-machined, nickel-plated brass acoustic element baffle
• Vintage silver-matte finish
• Symmetrical housing minimizes unwanted internal reflections
• State-of-the-art surface-mount electronics for consistency and reliability
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Custom shock mount for superior isolation

Specifications

• Element: Externally-polarized (DC bias) condenser
• Polar Pattern: Cardioid
• Frequency Response: 20-18,000 Hz
• Low Frequency Roll-off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa
• Impedance: 250 ohms
• Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
• Noise: 9 dB SPL
• Dynamic Range (typical): 140 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 85 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.0 mA typical
• Switches: Flat, roll-off; 10 dB pad (nominal)
• Weight: 14.5 oz (410 g)
• Dimensions: 6.69 in (170.0 mm) long, 2.10 in (53.4 mm) maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
• Accessories Furnished: AT8449/SV shock mount for 5/8 in-27 threaded stands; microphone dust cover; protective carrying case
• Audio-Technica Case Style: R1

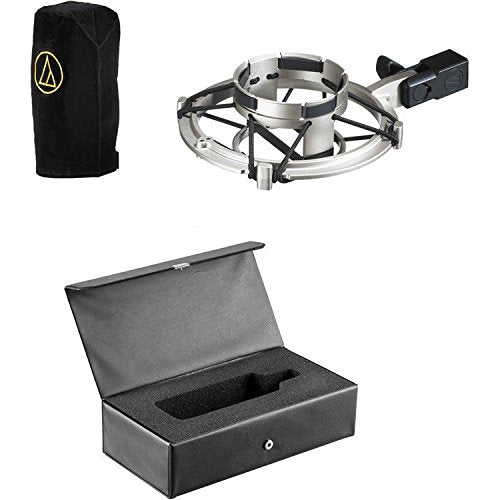

Package Contents

• Audio-Technica AT4047/SV Cardioid Studio Vocal Instrument Condenser Microphone
• AT8449/SV shock mount
• Microphone dust cover
• Protective carrying case
