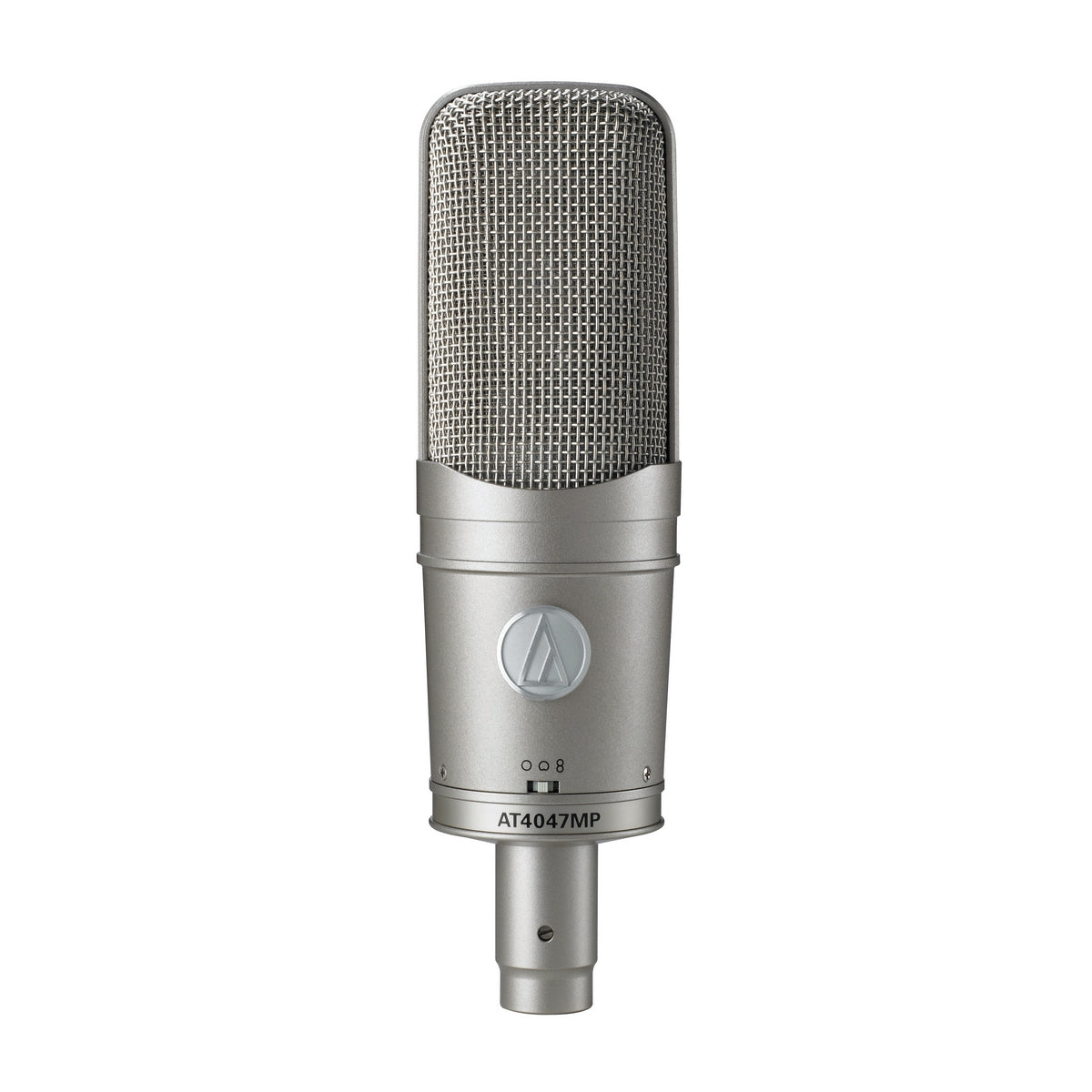

Audio-Technica AT4047MP Multi-Pattern Vocal Instrument Condenser Microphone

Audio-Technica AT4047MP Multi-Pattern Vocal Instrument Condenser Microphone

The Audio-Technica AT4047MP offers a unique combination of vintage sound and modern technology in a versatile multi-pattern design. Featuring selectable omnidirectional, cardioid, and figure-of-eight polar patterns, this microphone is crafted to meet the critical acoustic requirements of professional recording, broadcast, and sound reinforcement. The transform-coupled output and specially tuned element deliver sonic characteristics reminiscent of early F.E.T. studio microphone designs. With its wide dynamic range, incredibly low self-noise, and high SPL capability, the AT4047MP is an exceptional choice for capturing vocals, strings, acoustic guitars, instrument ensembles, small vocal groups, and voiceovers.

Engineered to provide precise polar pattern definition across its full frequency range, the AT4047MP features a dual-diaphragm capsule design. The precision-machined, nickel-plated brass, acoustic element baffle enhances element stability and optimal sensitivity, while the open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections. Additionally, its vintage silver-matte finish enhances both the microphone and its custom shock mount, offering superior isolation. Certified by the Music Engineering and Technology Alliance (METAlliance), the AT4047MP stands out as a reliable and sophisticated tool for any audio professional.

Key Features

• Three switchable polar patterns: cardioid, omnidirectional, and figure-of-eight
• Engineered for professional recording, broadcast, and sound reinforcement
• Transform-coupled output with sonic characteristics reminiscent of early F.E.T. studio microphones
• Exceptionally low self-noise and high SPL capability

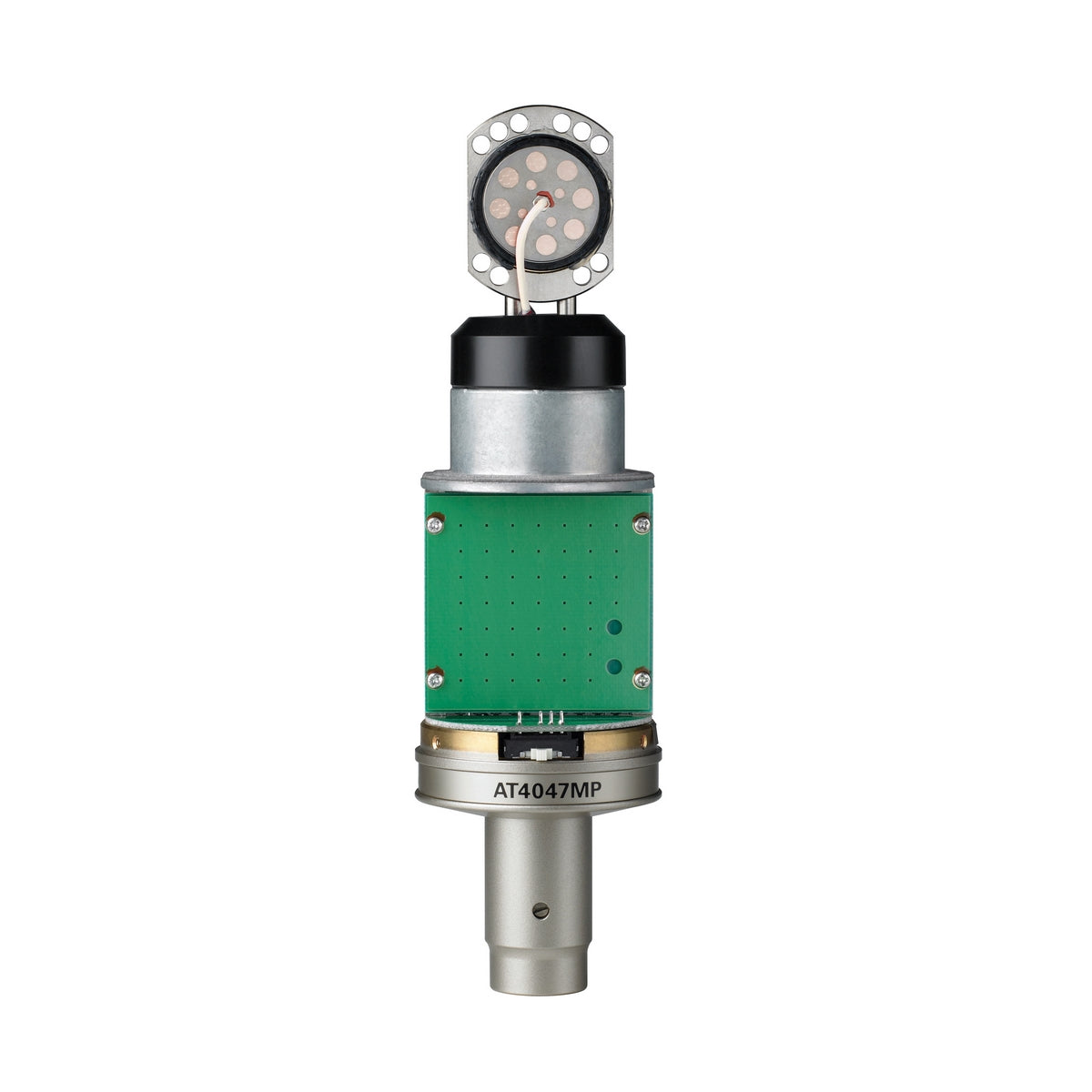

• Dual-diaphragm capsule design for precise polar pattern definition
• Vintage silver-matte finish and symmetrical housing assembly
• Custom shock mount for superior isolation
• Integral 80 Hz high-pass filter switch and 10 dB pad switch
• Certified by the Music Engineering and Technology Alliance (METAlliance)

Specifications

• Element: Externally-polarized (DC bias) condenser
• Polar Patterns: Cardioid, Omnidirectional, Figure-of-eight
• Frequency Response: 20-18,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -42 dB (7.9 mV), re 1V at 1 Pa
• Impedance: 100 ohms
• Maximum Input Sound Level: 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
• Noise: 14 dB
• Dynamic Range (typical): 141 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.4 mA typical
• Switches: Polar selection; Flat, roll-off; 10 dB pad (nominal)
• Weight: 524 g (18.5 oz)
• Dimensions: 188.0 mm (7.40") long, 53.4 mm (2.10") maximum body diameter
• Output Connectors: Integral 3-pin XLRM-type

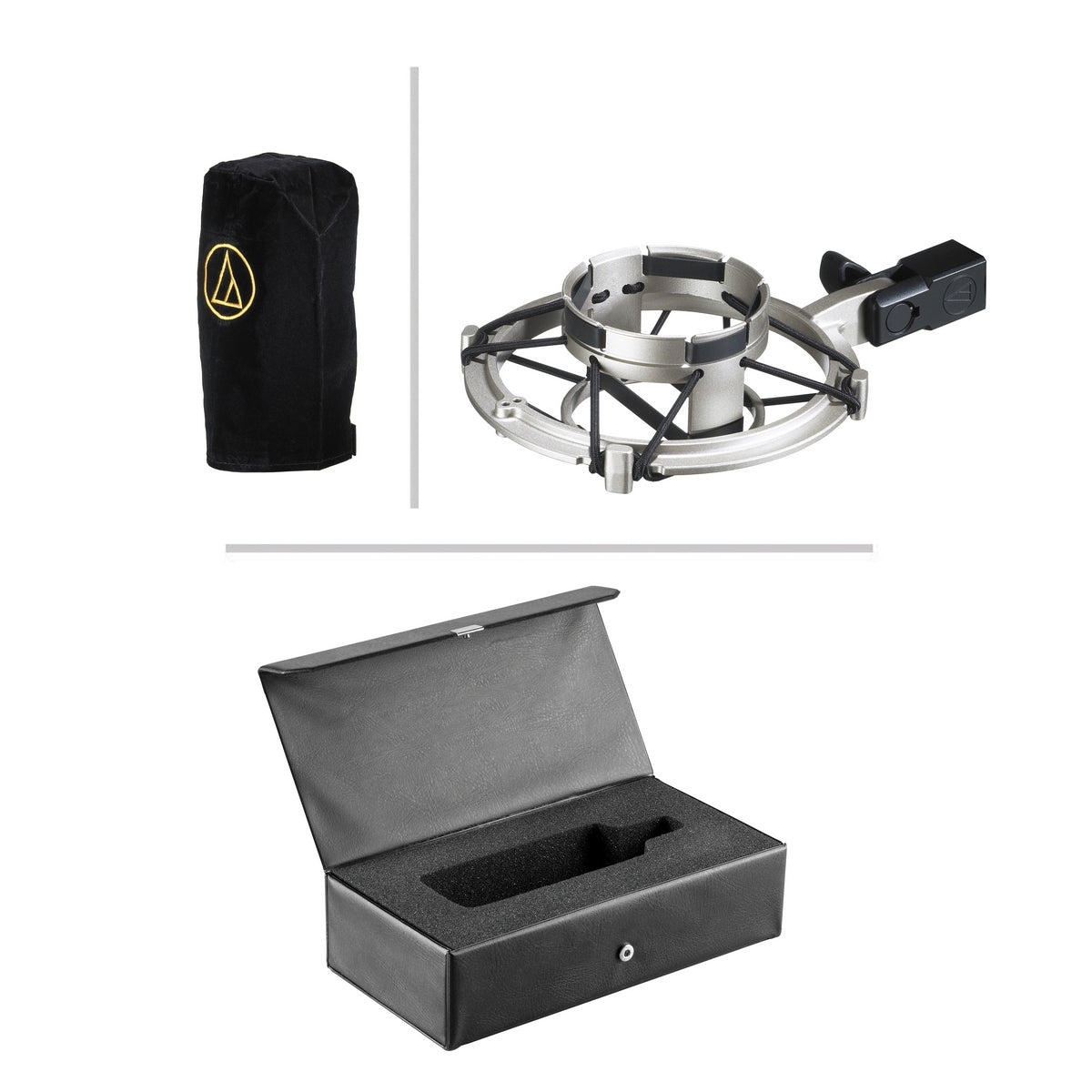

Package Contents

• AT4047MP Multi-Pattern Condenser Microphone
• AT8449/SV shock mount for 5/8"-27 threaded stands
• Microphone dust cover
• Protective carrying case
