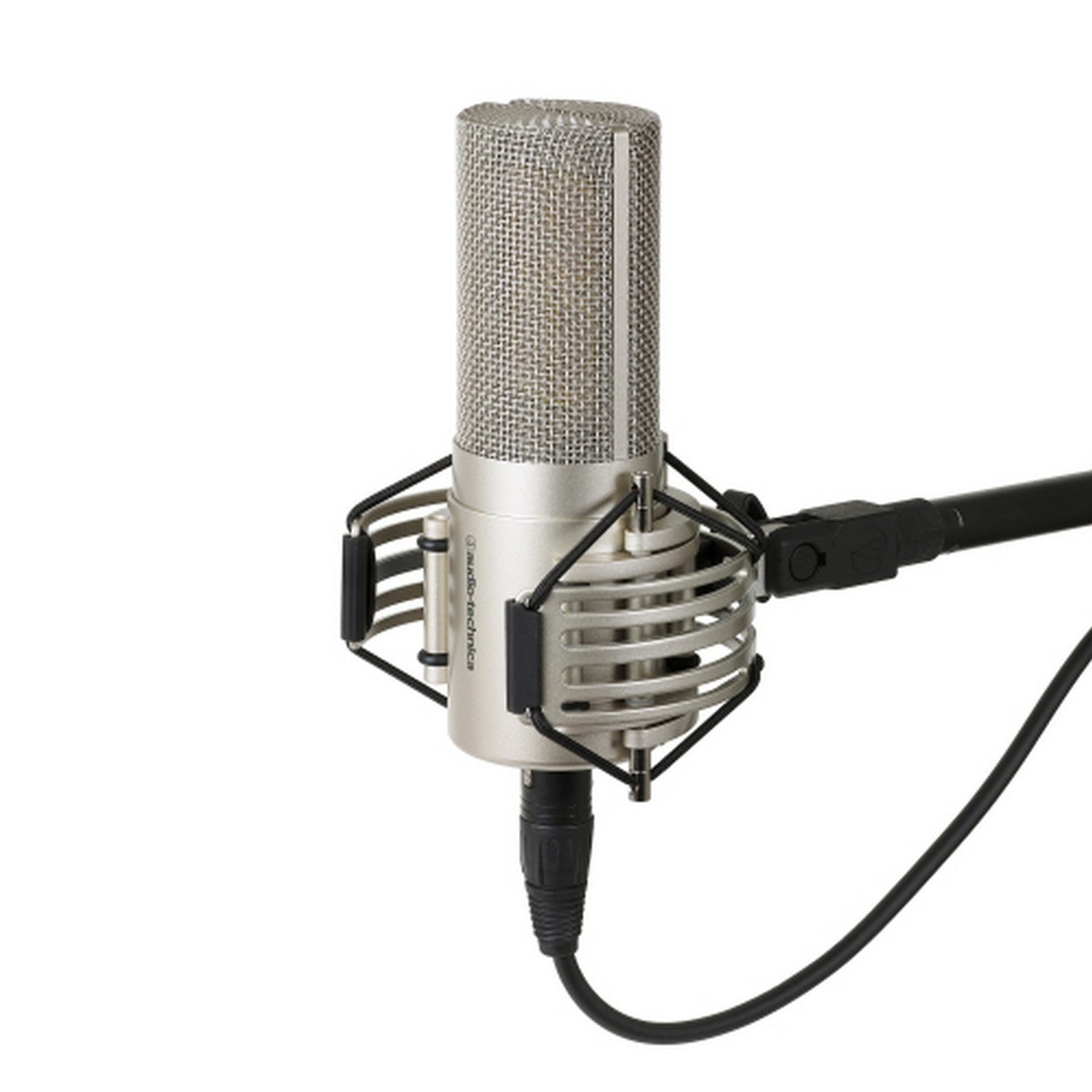

Audio-Technica AT5047 Cardioid Condenser Microphone
The Audio-Technica AT5047 Cardioid Condenser Microphone is a premier studio microphone designed to deliver exceptional audio quality for both vocal and instrumental recordings. Featuring an extraordinarily wide dynamic range—the greatest among all Audio-Technica microphones—this microphone is engineered to capture the full, expressive character of any sound source, ranging from the subtle caress of drum brushes to powerful vocal performances. Its transformer-coupled output ensures a stable relationship between the mic and a mic preamp or console input, even at extreme sound pressure levels (SPL), making it a versatile choice for professional studios.
With four rectangular diaphragms that function together, the AT5047 provides a combined surface area twice that of a standard one-inch circular diaphragm. Each component is carefully selected and optimized for maximum performance and compatibility with both standalone microphone preamps and console inputs. Additionally, the microphone includes advanced internal shock mounting to decouple the capsule from the microphone body, ensuring that handling noise is minimized. Housed in elegant, durable aluminum and brass, the AT5047 not only performs exceptionally but also stands as a testament to quality craftsmanship.
Key Features
- Exceptionally wide dynamic range captures the full, expressive character of instruments and voices.
- Four rectangular diaphragms (2 micron) provide a combined surface area twice that of a standard one-inch circular diaphragm.
- Discrete components carefully selected and optimized for maximum performance and compatibility with standalone microphone preamps and console inputs.
- Transformer-coupled output provides consistent load impedance and smooth sonic character.
- Hand-assembled and inspected to ensure 100% quality control.
- Advanced internal shock mounting decouples the capsule from the microphone body, minimizing handling noise.
- Elegant, durable housing made of aluminum and brass.
- Comes with an advanced-design custom AT8480 shock mount for superior isolation.
- Includes a custom hard-shell carrying case with die-cut foam compartments for protection during storage and transport.
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser.
- Polar Pattern: Cardioid.
- Frequency Response: 20 - 20,000 Hz.
- Open Circuit Sensitivity: -29 dB (35.5 mV) re 1V at 1 Pa.
- Impedance: 150 ohms.
- Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.
- Noise: 6 dB SPL.
- Dynamic Range (typical): 142 dB, 1 kHz at Max SPL.
- Signal-to-Noise Ratio: 88 dB, 1 kHz at 1 Pa.
- Phantom Power Requirements: 48V DC, 2.7 mA typical.
- Weight: 592 g (20.9 oz).
- Dimensions: 165.3 mm (6.51'') long, 57.0 mm (2.24'') maximum body diameter.
- Output Connector: Integral 3-pin XLRM-type.
- Audio-Technica Case Style: R10.
Package Contents
- AT5047 Cardioid Condenser Microphone.
- AT8480 shock mount for 5/8"-27 threaded stands.
- 3/8" to 5/8" stand adapter.
- Protective carrying case.
