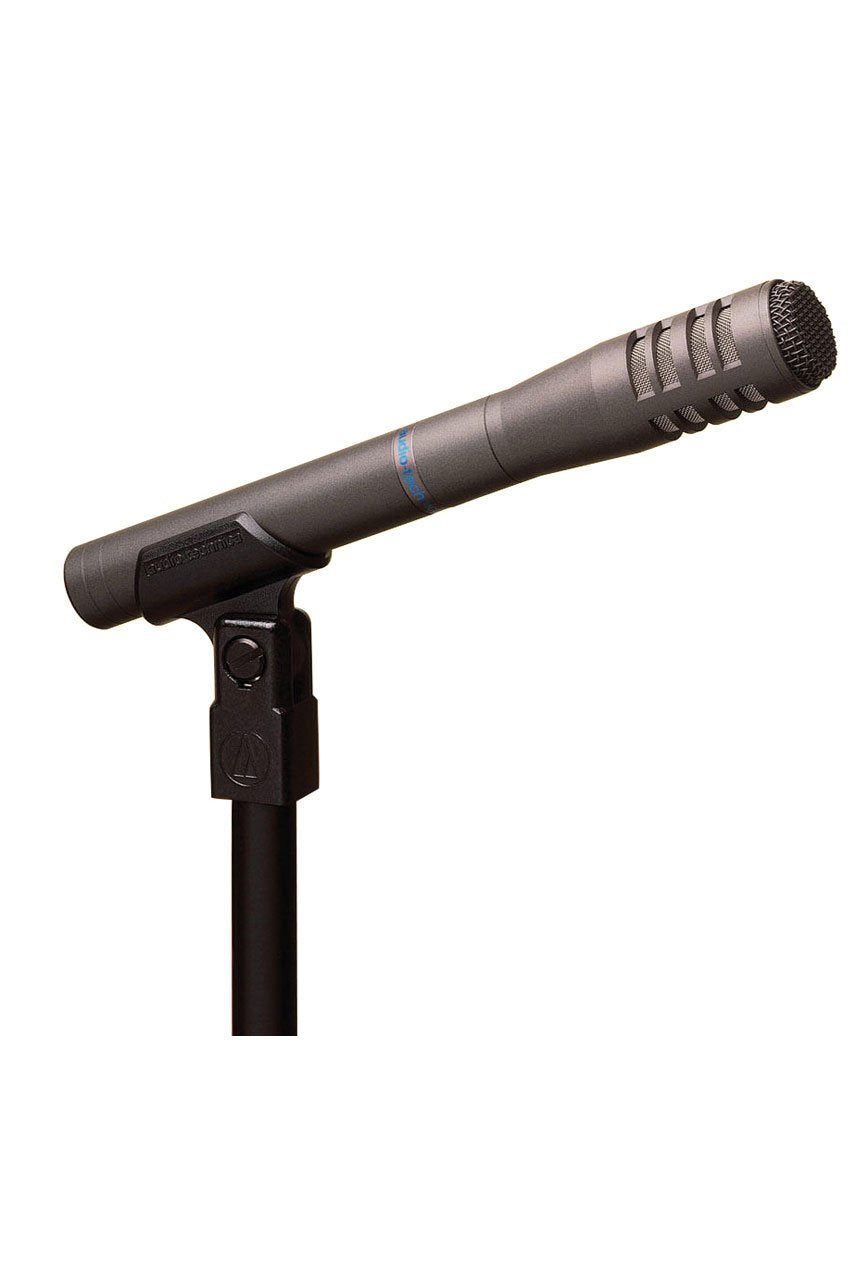

Audio-Technica AT8033 Cardioid Condenser Studio Stage Microphone

Audio-Technica AT8033 Cardioid Condenser Studio Stage Microphone

The Audio-Technica AT8033 Cardioid Condenser Studio Stage Microphone is a versatile and all-purpose microphone that excels in both studio and stage applications. Designed for general audio acquisition, it is ideal for handheld interviews, acoustic guitar, percussion, overheads, vocals, and more. The microphone boasts a high-SPL capability and a wide frequency response, making it a reliable choice for professional audio recording and live performances.

One of the standout features of the AT8033 is its cardioid polar pattern, which significantly reduces the pickup of sounds from the sides and rear, thereby improving the isolation of the desired sound source. This ensures clarity and precision in audio recording, making it an excellent choice for various environments. Additionally, the microphone operates on both battery and phantom power, offering flexibility and convenience for different recording setups. Its RoHS compliance guarantees that it is free from all substances specified in the EU directive on hazardous substances, making it a safe and environmentally friendly option.

Key Features

• All-purpose condenser microphone ideal for handheld interviews and general audio acquisition
• Excels in both studio and stage applications
• Outstanding linearity both on- and off-axis
• Features high SPL capability and wide frequency response
• Operates on battery or phantom power
• RoHS compliant, free from all substances specified in the EU directive on hazardous substances

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 30-20,000 Hz
• Low Frequency Roll-off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Phantom: -44 dB (6.3 mV) re 1V at 1 Pa, Battery: -45 dB (5.6 mV) re 1V at 1 Pa
• Impedance: Phantom: 250 ohms, Battery: 300 ohms
• Maximum Input Sound Level: Phantom: 137 dB SPL, 1 kHz at 1% T.H.D., Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Phantom: 113 dB, 1 kHz at Max SPL, Battery: 99 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 70 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Battery Type: 1.5V AA/UM3
• Battery Current / Life: 0.4 mA / 1200 hours typical (alkaline)
• Switch: Flat, roll-off
• Weight: 159 g (5.6 oz)
• Dimensions: 194.2 mm (7.65") long, 26.0 mm (1.02") head diameter
• Output Connector: Integral 3-pin XLRM-type

Package Contents

• AT8405a stand clamp for 5/8"-27 threaded stands
• 5/8"-27 to 3/8"-16 threaded adapter
• AT8136 windscreen
• Battery
• Soft protective pouch
