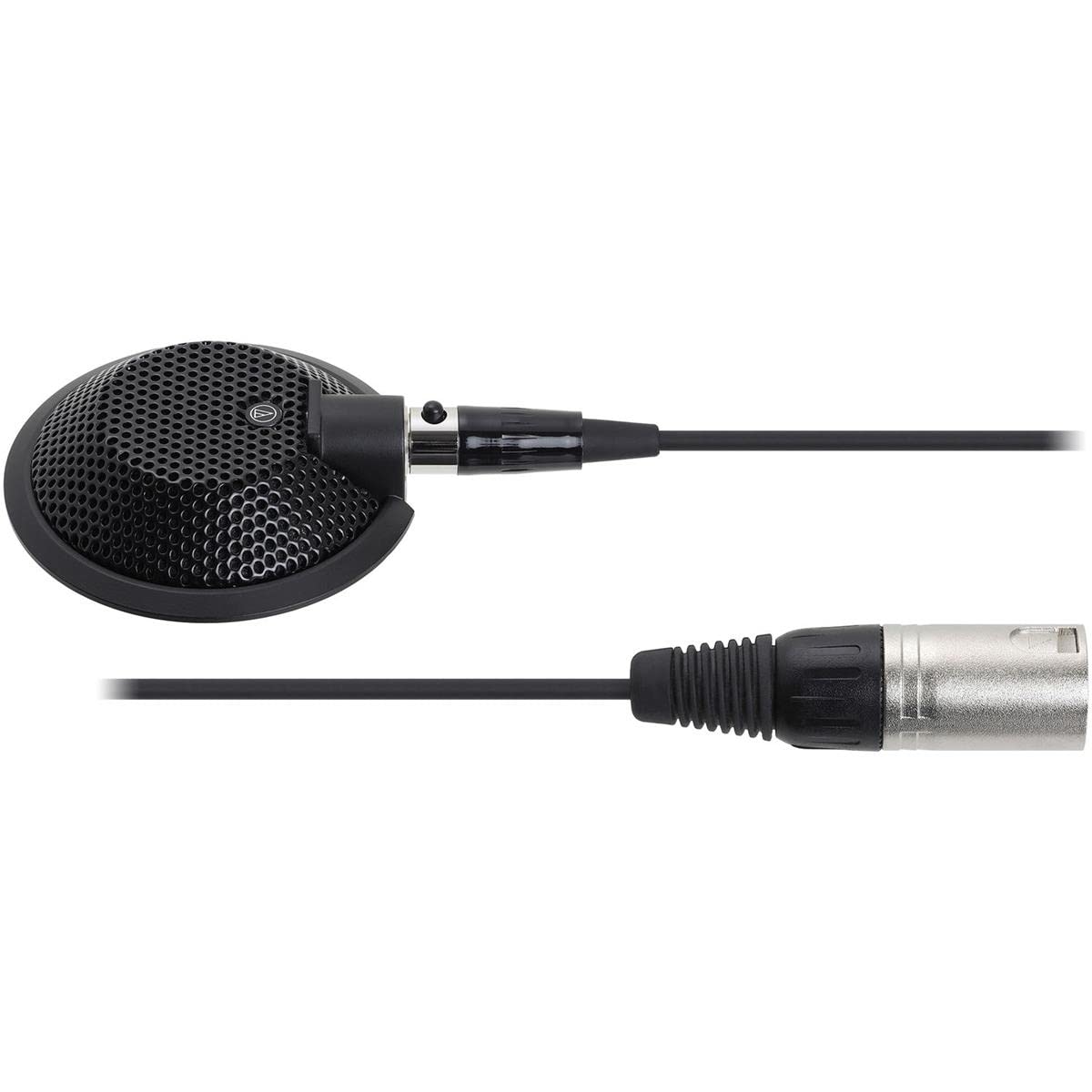

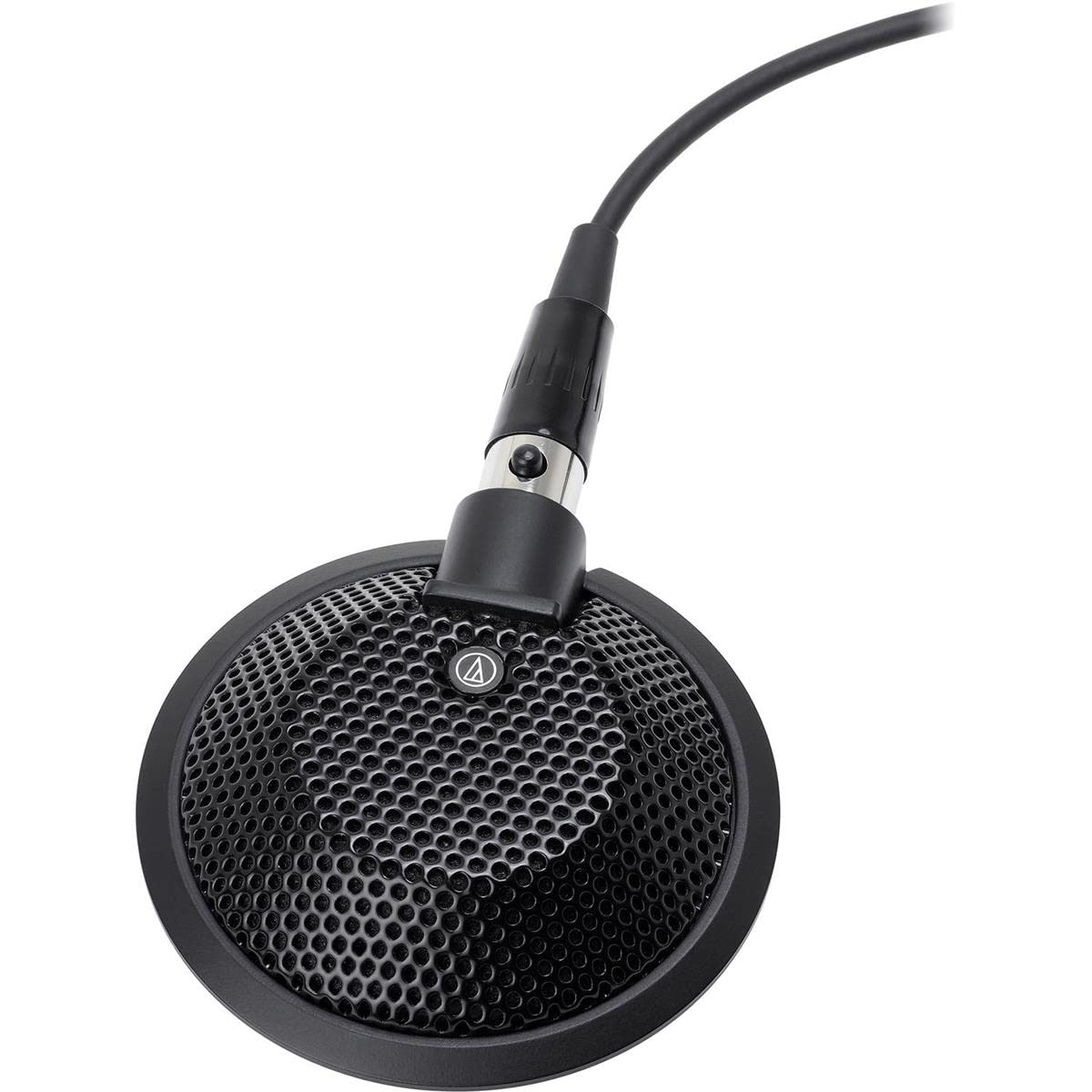

Audio-Technica U841R Omnidirectional Condenser Boundary Microphone

Audio-Technica U841R Omnidirectional Condenser Boundary Microphone

The Audio-Technica U841R Omnidirectional Condenser Boundary Microphone is a high-quality, highly intelligible audio solution designed for various surface-mount applications. Its super-compact and low-profile design ensures minimal visibility, making it perfect for environments where discretion is key. The microphone boasts exceptional audio reproduction, characterized by its clear and high-output performance, thanks to its small-diameter omnidirectional capsule near the boundary, which eliminates phase distortion.

Equipped with Audio-Technica's exclusive UniGuard RFI-shielding technology, the U841R offers outstanding rejection of radio frequency interference (RFI), which ensures uninterrupted and high-quality sound transmission. Additionally, this unit features self-contained electronics, removing the need for any external power modules and simplifying installation and use.

The heavy die-cast case and non-slip silicon foam bottom pads are designed to minimize the coupling of surface vibrations to the microphone, ensuring steady and consistent audio capture. Whether for conferences, broadcast studios, or any other professional audio applications, the Audio-Technica U841R is a reliable choice that delivers premium audio clarity.

Key Features

• Designed for surface-mount applications where highly intelligible sound quality is required
• Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
• Superior off-axis rejection for maximum gain before feedback
• UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Self-contained electronics eliminate need for external power module
• Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
• Low-profile design with low-reflectance finish for minimum visibility

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional in hemisphere above mounting surface
• Frequency Response: 40-20,000 Hz
• Open Circuit Sensitivity: -35 dB (17.7 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: 130 dB, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): 105 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 69 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Weight (Microphone): 84 g (3.0 oz)
• Dimensions (Microphone): 65.0 mm (2.56") diameter, 15.1 mm (0.59") maximum height
• Output Connector: TB3M-type
• Cable: 7.6 m (25.0') long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors

Package Contents

• Audio-Technica U841R Omnidirectional Condenser Boundary Microphone
• Soft protective pouch
