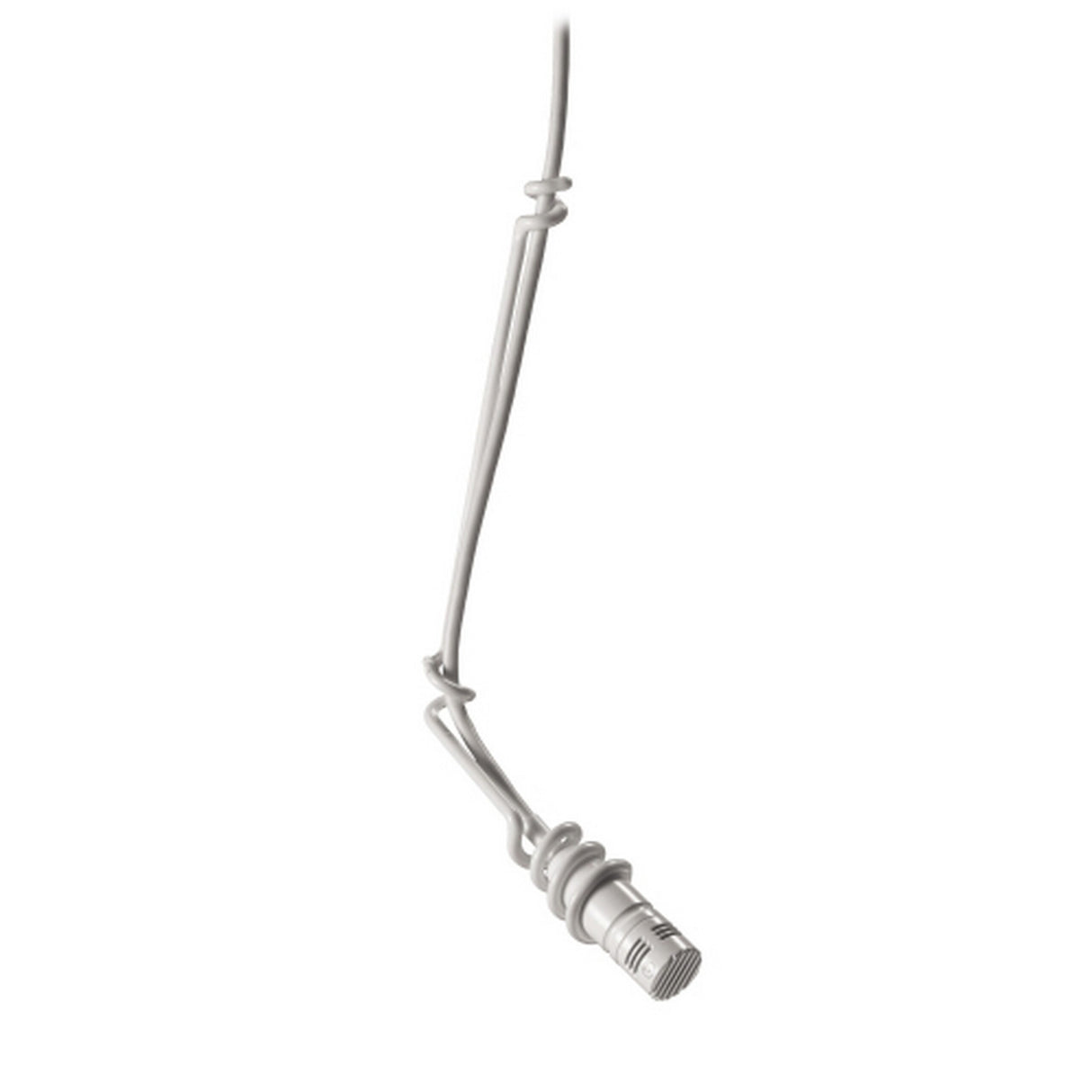

Audio-Technica U853PMW Cardioid Condenser Hanging Microphone, White

Audio-Technica U853PMW Cardioid Condenser Hanging Microphone, White

The Audio-Technica U853PMW Cardioid Condenser Hanging Microphone in white is a professional-grade, phantom-powered microphone designed for permanent installations. Ideal for choirs, instrumental groups, and theater stages, this microphone offers exceptional sound quality and performance. Featuring UniGuard RFI-shielding technology and a low-profile design, the U853PMW easily blends into various settings while delivering superior off-axis rejection for maximum gain before feedback.

The microphone is equipped with a wall/ceiling plate power module, allowing for seamless integration into standard metal U.S. single gang electrical boxes, making it perfect for fixed installations. With an interchangeable element system, the U853PMW can adapt to cardioid, hypercardioid, omnidirectional, and UniLine line cardioid polar patterns, providing maximum flexibility. Additionally, an 80 Hz low-cut UniSteep filter reduces low-frequency ambient noise without affecting vocal clarity, ensuring top-notch audio reproduction.

Key Features

• Designed for suspension over choirs, instrumental groups, and theater stages
• Wall/ceiling plate power module permits permanent installation in a standard metal U.S. single gang electrical box
• Superior off-axis rejection for maximum gain before feedback
• UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference
• UniSteep filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Accepts interchangeable elements to permit different polar patterns
• Low-profile design with low-reflectance finish for minimal visibility

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 30-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -39 dB (11.2 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: 128 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): 102 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 4 mA typical
• Switches: Flat, roll-off; 0 dB/+10 dB gain setting
• Weight (Microphone): 0.5 oz (14 g)
• Weight (Power Module): 3.4 oz (97 g)
• Dimensions (Microphone): 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
• Dimensions (Power Module): 2.80" (71.0 mm) W x 4.55" (115.5 mm) H x 1.42" (36.0 mm) D

Package Contents

• Audio-Technica U853PMW Cardioid Condenser Hanging Microphone
• Wall/Ceiling Plate Power Module
