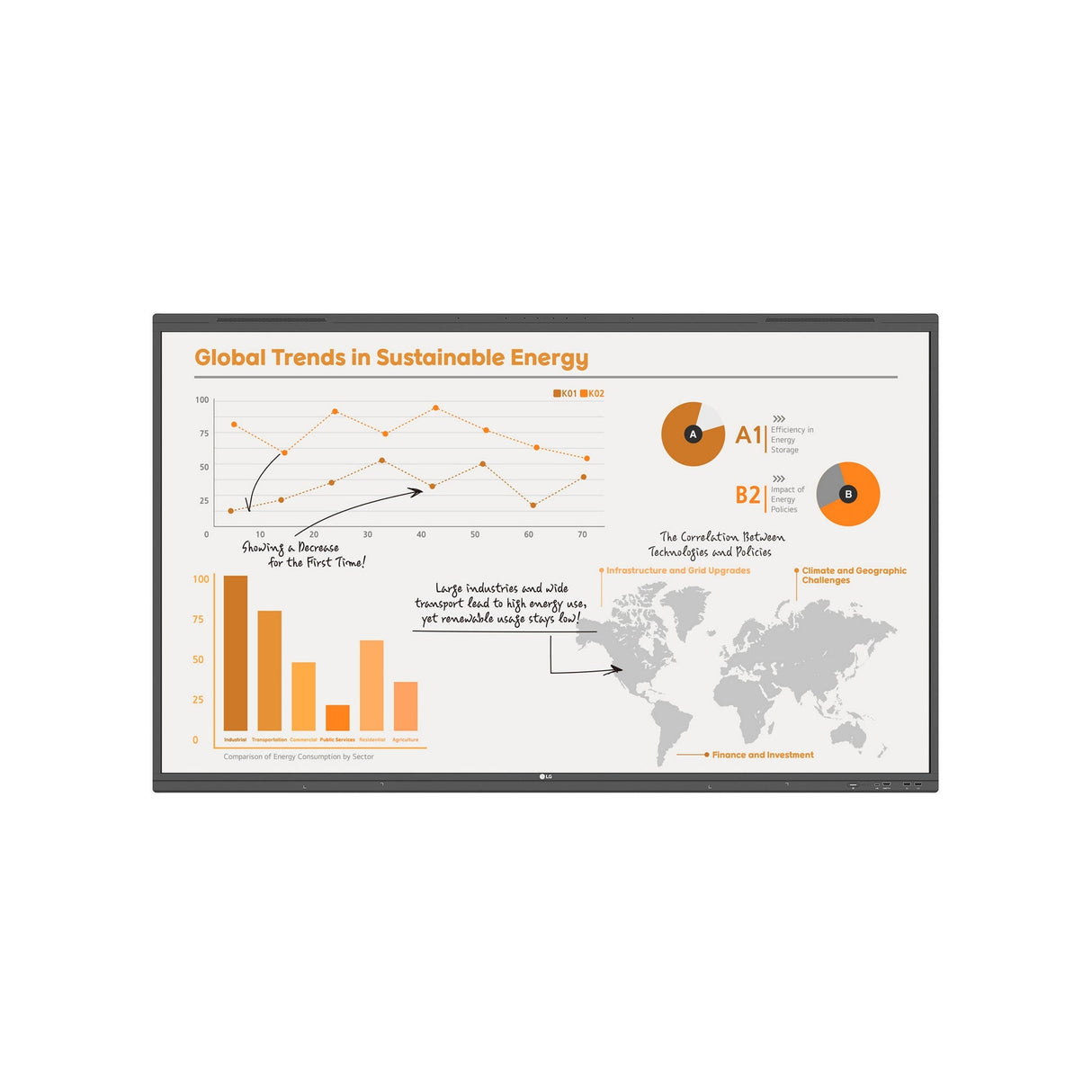

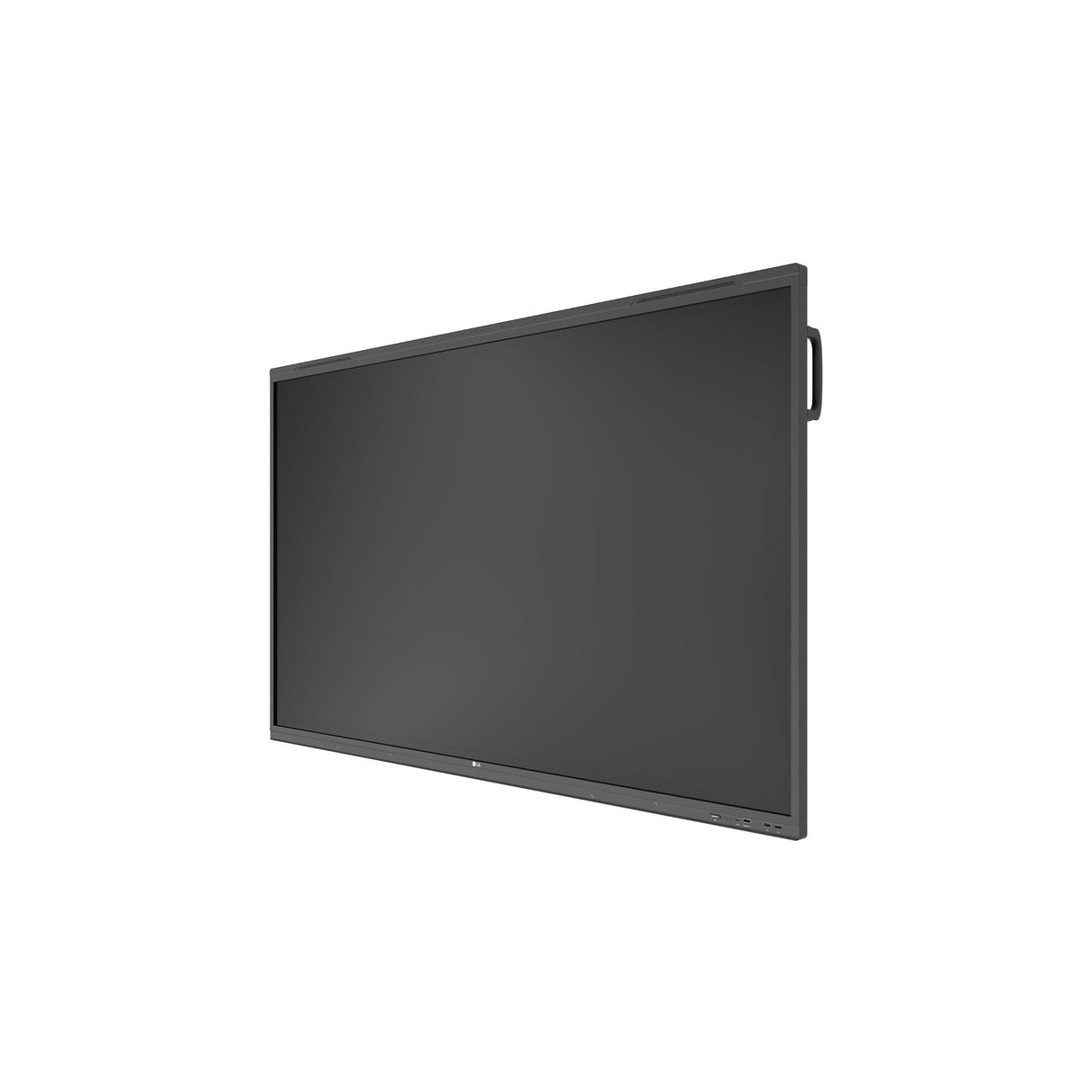

LG 75TR3PN-B CreateBoard Pro 4K Interactive Smart Board, 75-Inch

LG 75TR3PN-B CreateBoard Pro 4K Interactive Smart Boar, 75-Inch

The LG 75TR3PN-B CreateBoard Pro 75-inch 4K interactive smart board combines UHD resolution, Android 13, Google Mobile Services, built-in AI, 50-point touch, and integrated camera and microphone features for modern classrooms, training spaces, and collaborative meeting rooms.

This 75-inch CreateBoard Pro is built for educators, presenters, IT teams, and business users who need an interactive display for classrooms, a 4K smart board for meetings, or a touchscreen collaboration display with built-in productivity tools. Users can write, draw, zoom, rotate, screen share, and present content directly from the display.

With LG CreateBoard Share, LG ConnectedCare DMS, an OPS-compatible slot, Wi-Fi, Bluetooth, HDMI, DisplayPort, USB-C, LAN control, and built-in microphone support, the 75TR3PN-B fits professional AV environments that require flexible device connectivity, centralized management, and reliable daily operation.

LG CreateBoard Pro Interactive Display Key Features

• 75-Inch 4K UHD Display: 3840 x 2160 resolution provides crisp detail for lessons, presentations, digital whiteboarding, and shared visual content.
• 50-Point Multi-Touch: Enhanced touch capability lets multiple users write, gesture, and interact with the display at the same time.
• Google Mobile Services: Google-authorized operation gives users access to supported Google services and app-based workflows.
• Built-In AI Helper: ELGi AI supports recognition, prediction, translation, text reading, and navigation assistance for productivity-focused use.
• Integrated Camera and Microphone: Built-in webcam and 8-microphone array help support lecture capture, hybrid classes, and video collaboration.
• Quad Speaker Design: Built-in speaker system provides stronger room audio for lessons, videos, meetings, and shared media playback.
• OPS Slot Compatibility: Built-in OPS support allows compatible slot-in computers to expand the display with additional PC-based workflows.
• Wireless Screen Sharing: LG CreateBoard Share supports wireless presentation and collaboration from compatible user devices.

75TR3PN-B Technical Specifications

• Product Type: CreateBoard Pro smart board
• Model: 75TR3PN-B
• Screen Size: 75"
• Panel Technology: IPS
• Backlight Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 UHD
• Refresh Rate: 60Hz
• Brightness: 400 nits typical
• Contrast Ratio: 4,000:1
• Dynamic Contrast Ratio: 5,000:1
• Color Gamut: NTSC 72%
• Color Depth: 10-bit, 8-bit + FRC
• Viewing Angle: 178° x 178°
• Response Time: 8ms gray-to-gray
• Surface Treatment: 25% haze
• Operation Hours: 16 hours per day, 7 days per week
• Lifetime: Up to 50,000 hours
• Orientation: Landscape
• Operating System: Android 13
• Processor: Octa-core A76 x 4 + A55 x 4
• Graphics: Mali G52MP2
• Storage: 64GB
• Internal Memory: 8GB
• Touch Points: 50 points maximum
• Touch Interface: USB 2.0
• Touch Object Size: 0.08" diameter or larger
• Touch Accuracy: ±0.04" typical
• Writing Height: 0.04" or less
• Protection Glass Thickness: 0.13"
• Protection Glass Transmission: 88%
• Protective Glass: Tempered safety glass with chemical strengthening
• HDMI Inputs: 4, HDCP 2.3
• DisplayPort Input: 1, HDCP 2.3 / 1.3
• Audio Input: 1 x 3.5mm
• RS-232C Input: 1 x 3.5mm 4-pin
• RJ45 LAN Input: 1
• USB Type-A Inputs: 7 total, 4 x USB 3.0 and 3 x USB 2.0
• USB Type-C Inputs: 2
• HDMI Output: 1
• Touch USB Ports: 2
• RJ45 LAN Output: 1
• Bluetooth: 5.0
• Built-In Wi-Fi: 802.11 a/b/g/n/ac
• Built-In Speakers: Yes
• Built-In Microphone: 8-microphone array
• Built-In Webcam: Yes
• Screen Share: LG CreateBoard Share
• Built-In Software: LG ConnectedCare DMS, LG CreateBoard Share
• Smart Energy Saving: Yes
• Wake on LAN: Yes
• HDMI-CEC: Yes
• Booting Logo Image: Yes
• Network Ready: Yes
• Picture-in-Picture: Yes, 1 external source
• Auto Brightness Sensor: Yes
• Power Indicator: Yes
• OPS Compatibility: Yes
• OPS Power Built-In: Yes
• Operating System Support: Windows 10, Windows 8, Windows 7, Android
• Power Supply: 100-240V, 50/60Hz
• Power Type: Built-in power
• Typical Power Consumption: 210W
• Maximum Power Consumption: 450W
• DPM Power Consumption: Less than 0.5W
• Power Off Consumption: Less than 0.5W
• BTU Heat Generation: 1092 BTU/hr typical, 1808 BTU/hr maximum
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 10% to 90%
• Bezel Color: Black
• Bezel Width: Top 1.35", right 0.61", left 0.61", bottom 1.46"
• Handles: Yes
• VESA Mount Interface: 31.5" x 15.7"
• Display Dimensions: 67.28" x 40.59" x 3.38"
• Display Weight: 113.31 lbs
• Shipping Dimensions: 73.34" x 45.19" x 8.85"
• Shipping Weight: 133.82 lbs
• FCC Regulatory Rating: EMC Class A
• Energy Star: Yes
• Assembled In: China
• Optional Accessories: WM-L000S wall mount, ST-000F floor stand, ST-860F floor stand

What's In the Box

• LG 75TR3PN-B CreateBoard Pro 75-Inch 4K Interactive Smart Board
• Power cord, 9.8 ft
• USB Type-A to Type-B cable, 16.4 ft
• USB Type-C to Type-C cable, 5.9 ft
• HDMI cable, 9.8 ft
• 2 x writing pens
• User manual
• Quick setup guide
• Carton box
• Remote controller with 2 batteries
• Wi-Fi module
