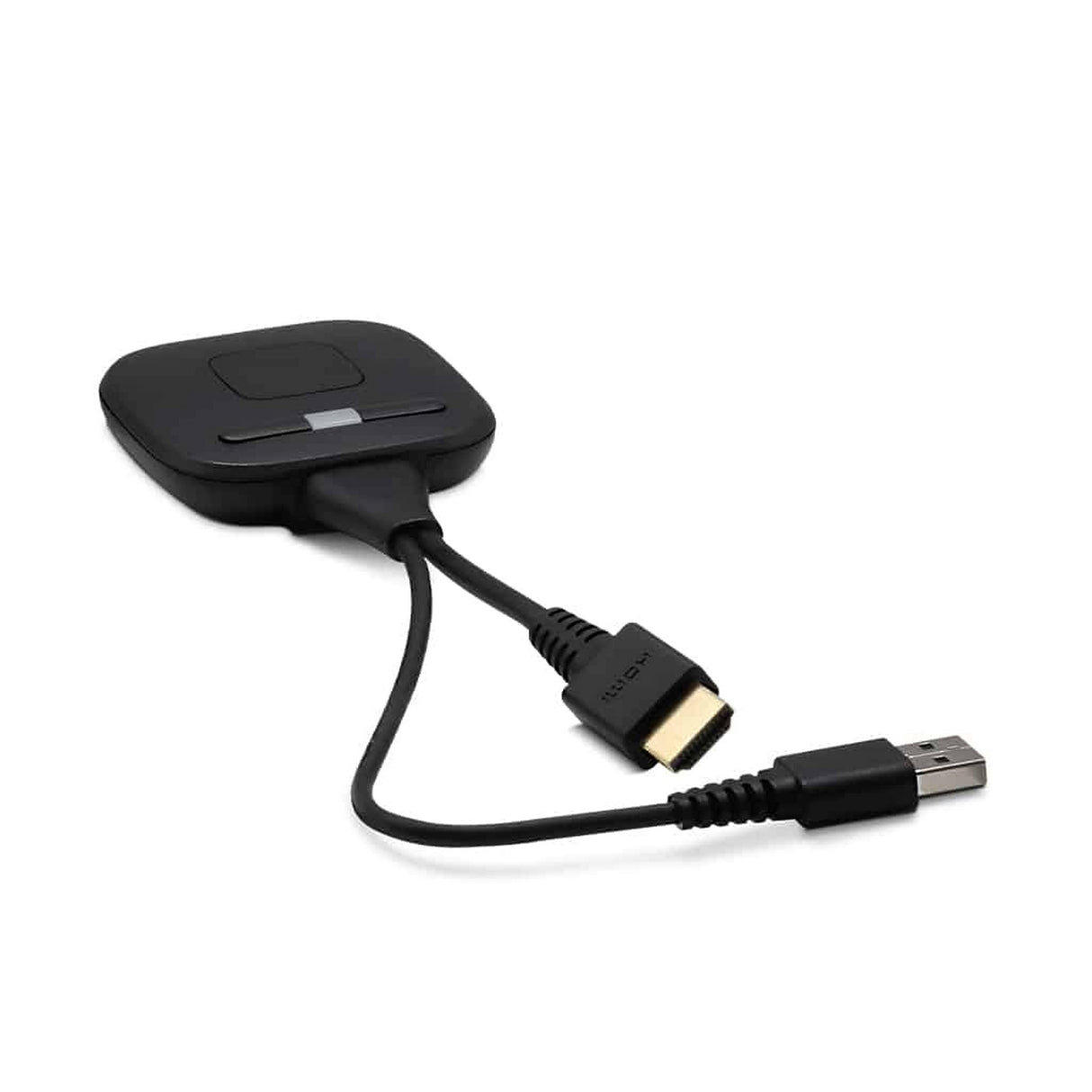

MuxLab 500880 MuxMeet Share Dongle-H2
MuxLab 500880 is a wireless HDMI share dongle designed for conference room and collaborative presentation environments. It enables users to wirelessly transmit their computer desktop to a compatible sharing base for meetings and teaching workflows. This makes it ideal for meeting rooms and classrooms where quick, cable-free content sharing is required.
The dongle connects to Windows and Mac based laptops and transmits desktop video and audio over a wireless network. A programmable button allows users to start or stop sharing and supports configurable control functions. Wireless operation supports mirror and extended desktop modes for flexible presentation use.
In real-world use, the device supports simple and intuitive sharing with minimal setup. Status LEDs provide clear visual feedback during operation. This enables efficient collaboration without adapters or complex configuration.
Key Features
- Wireless HDMI Sharing: Enables wireless transmission of desktop video and audio to a compatible Share Base.
- One Button Operation: Supports push-button start and stop of content sharing.
- 4K Video Support: Supports desktop transmission resolutions up to 4K.
- Windows and Mac Compatibility: Designed for use with Windows and Mac based laptops.
- Status LED Indicator: Provides visual indication of power and sharing status.
Technical Specifications
Environment
Custom audio-video systems in a structured cabling environment.
Application
Head-end installations, conference room, remote teaching
Standard
HDMI 1.4
HDCP 1.4
Video Resolution
3840x2160@30Hz
2540x1440@60Hz
1920x1080@60Hz
1280x720@60Hz
Audio Input
HDMI PCM 2CH
Latency
100ms
Wireless Protocol
WiFi IEEE 802.11 a
WiFi IEEE 802.11 g
WiFi IEEE 802.11 n
WiFi IEEE 802.11 ac
WiFi IEEE 802.11 ax
Frequency Band
2.4GHz and 5GHz
WiFi Antenna
MIMO 2x2
Data Rate in Wireless
Up to 1200Mbps
HDMI Port
1 x HDMI Type A 19 pin male with Pig tail
USB Port
1 x USB A male with Pig tail
Status Led
Bi color LED off no power green powered and red sharing activated
Power Supply
USB 5V
Power Consumption
2.5W maximum
Temperature
Operating: 20Ā° to 45Ā°C
Storage: -20Ā° to 60Ā°C
Humidity
Up to 90% non-condensing
Dimensions
3.54" x 2.56" x 0.51"
90 mm x 65 mm x 13 mm (Excluding pig-tail of 200 mm maximum)
Weight
0.22 (100g)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 Years
