MuxLab 500881 MuxMeet Share Dongle-U2
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

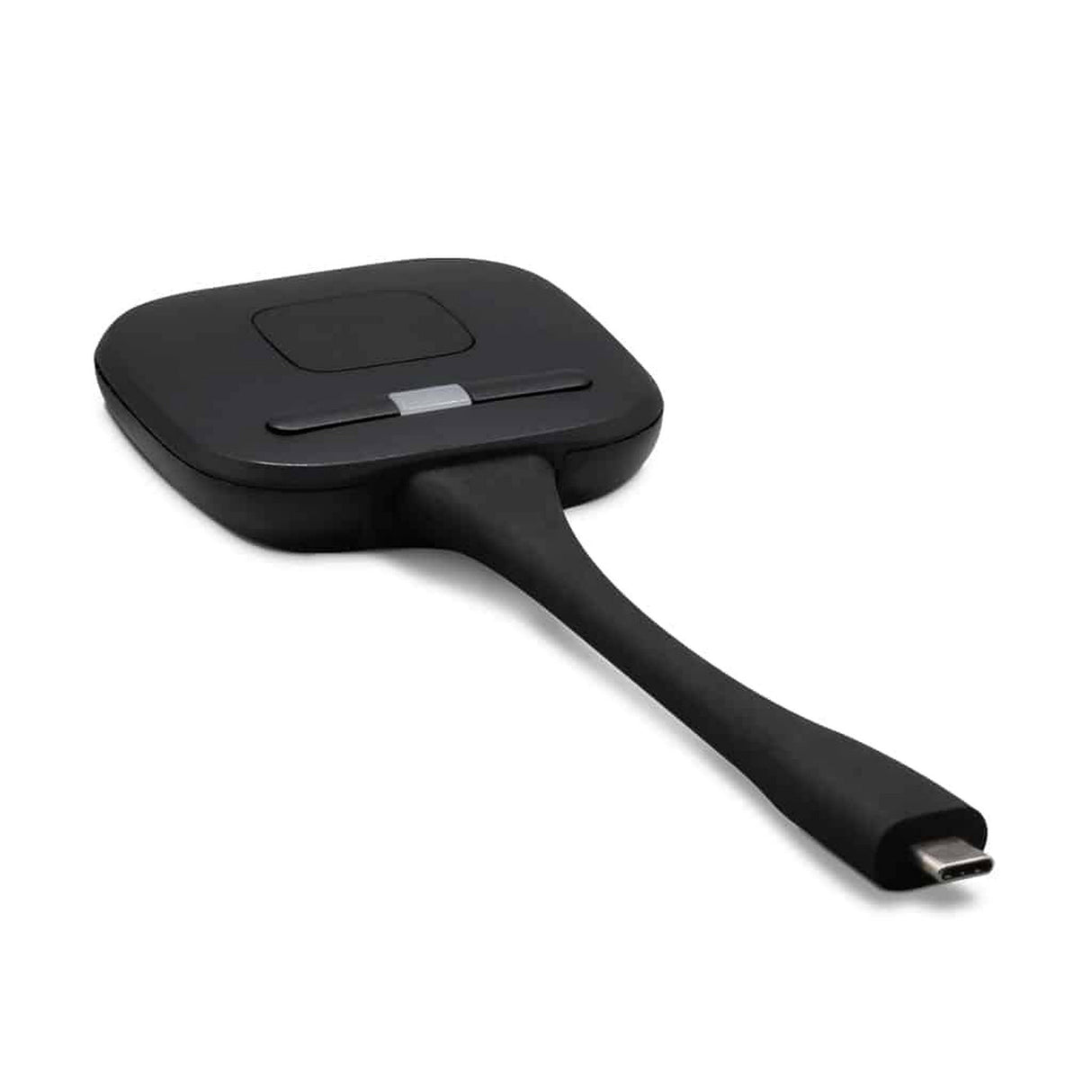

MuxLab 500881 MuxMeet Share Dongle-U2
MuxLab 500881 is a USB-C wireless share dongle designed for conference room and collaborative presentation environments. It enables users to wirelessly transmit their computer desktop to a compatible sharing base for meetings and remote teaching workflows. This makes it ideal for meeting rooms and classrooms where quick, cable-free content sharing is required.
The dongle connects to Windows and Mac based laptops through USB-C and supports wireless desktop transmission using standard wireless protocols. A programmable push button allows users to start or stop sharing and perform configurable control actions. Wireless operation supports both mirror and extended desktop modes.
In real-world use, the device provides simple and intuitive content sharing with minimal setup. Status LEDs provide clear visual feedback for power and sharing states. This supports efficient collaboration without additional adapters or software.
Key Features
- USB-C Wireless Sharing: Enables wireless desktop sharing from USB-C equipped laptops.
- One Button Operation: Supports push-button start and stop of content transmission.
- 4K Video Support: Supports desktop transmission resolutions up to 4K.
- Windows and Mac Compatibility: Designed for use with Windows and Mac based systems.
- Status LED Indicator: Provides visual indication of power and sharing status.
Technical Specifications
Environment
Custom audio-video systems in a structured cabling environment.
Application
Head-end installations, conference room, remote teaching
Standard
DP 1.2
USB 2.0
Video Resolution
3840x2160@30Hz
2540x1440@60Hz
1920x1080@60Hz
1280x720@60Hz
Audio Input
HDMI PCM 2CH
Latency
<100ms
Wireless Protocol
WiFi IEEE 802.11 a
WiFi IEEE 802.11 g
WiFi IEEE 802.11 n
WiFi IEEE 802.11 ac
WiFi IEEE 802.11 ax
Frequency Band
2.4GHz and 5GHz
WiFi Antenna
MIMO 2x2
Data Rate in Wireless
Up to 1200Mbps
USB Port
1 x USB-C 24 Pin male with Pig-tail
Status Led
Bi color LED off no power green powered and red sharing activated
Power Supply
USB-C 5V
Power Consumption
3.0W maximum
Temperature
Operating: 20Ā° to 45Ā°C
Storage: -20Ā° to 60Ā°C
Humidity
Up to 90% non-condensing
Dimensions
90 mm x 65 mm x 13 mm (Excluding pig-tail of 110 mm)
Weight
100 g
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 Years
