Vaddio 999-82000-000 QuickCAT Universal Suspended Ceiling Camera Mount, White

Professional Ceiling Camera Mounting Solution

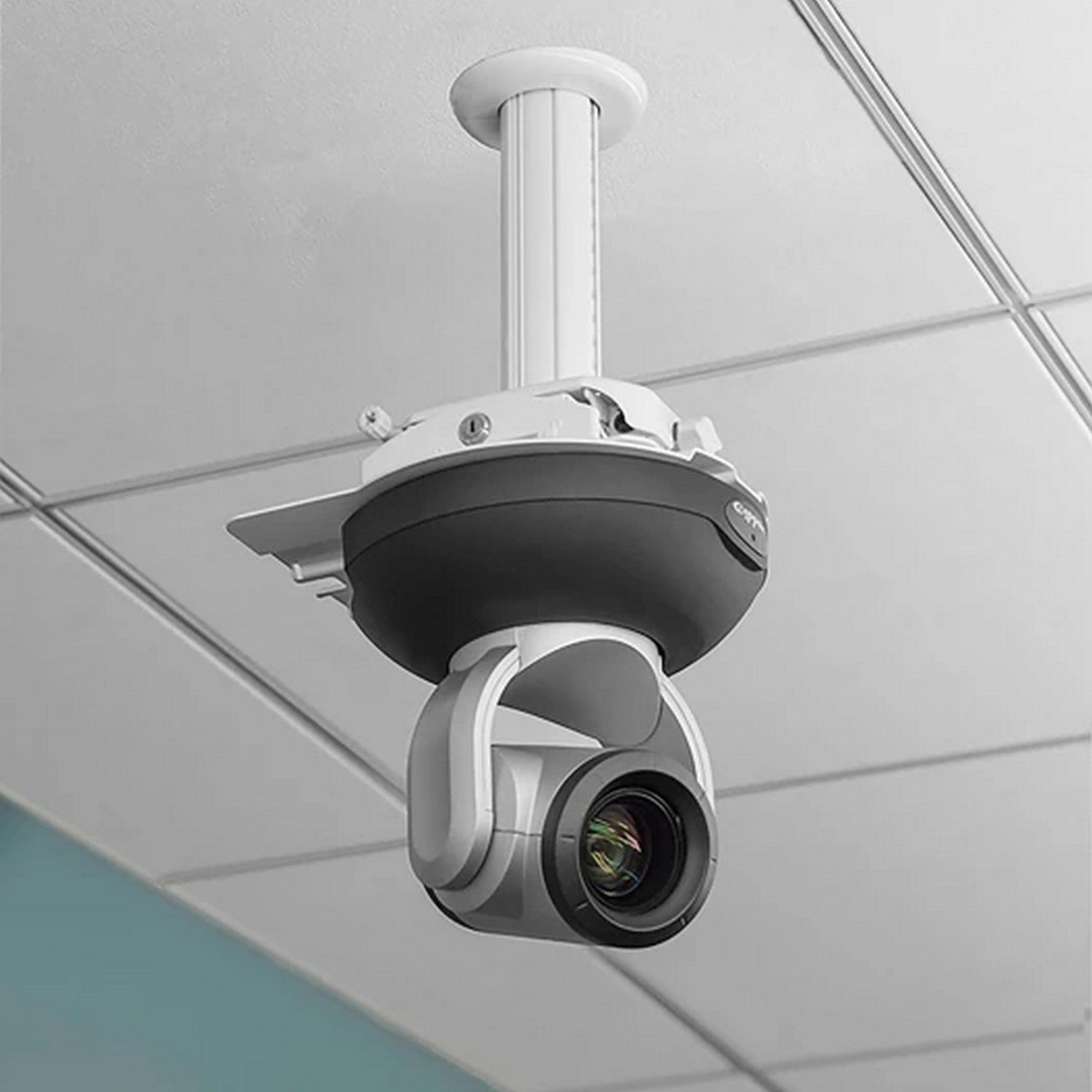

The Vaddio QuickCAT Universal Suspended Ceiling Camera Mount is engineered for fast, secure, and adjustable mounting of PTZ and fixed cameras in various ceiling grid types, including 2x2, 2x4, and irregular grids. With a load capacity of up to 35 lbs, it is ideal for professional AV applications using Vaddio, Sony, Panasonic, or Cisco cameras. Its clean white finish blends seamlessly into modern interiors, offering a discreet yet robust support solution.

This mount features 12 inches of vertical height adjustment, full 360° camera rotation, and tool-free leveling, giving installers unmatched flexibility. The innovative Q-Lock mechanism provides quick camera release, while the integrated key lock enhances security. Designed with an adjustable tile bridge that compensates for irregular grids, the QuickCAT mount can be installed flush with or above the ceiling tile for a tailored appearance.

Key Features

• Compatibility: Supports most invertible pro AV cameras, including Vaddio, Sony, Panasonic, and Cisco models.
• Adjustability: Offers 0 to 12 inches of height adjustment and full 360° rotation for optimal camera positioning.
• Installation: Features an adjustable tile bridge suitable for various ceiling grid types, including irregular grids.
• Security: Includes a key lock system to secure the camera in place.
• Ease of Use: Equipped with a Q-Lock quick-release lever for simple camera attachment and removal.

Technical Specifications

• Dimensions: 24.9" (Depth) x 19.8" (Height) x 7.3" (Width)
• Weight: Approximately 13 lbs
• Color: White
• Maximum Load Capacity: 35 lbs
• Certifications: CE, FCC, TAA Compliant

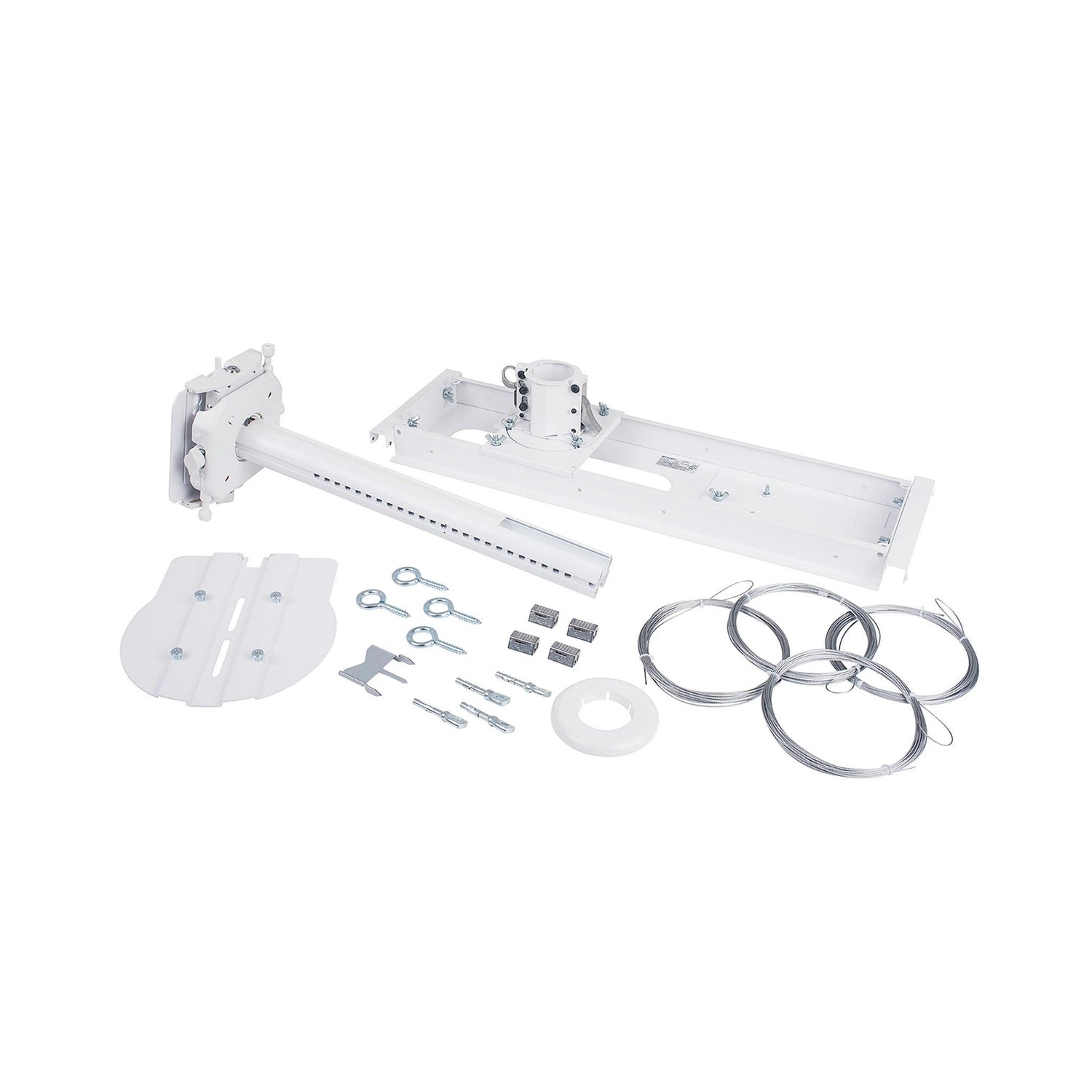

What's Included in the Box

• Tile Bridge
• Camera Interface Mount Plate
• Column Assembly with Trim Ring
• Camera Mount Plate
• Support Wires and Anchoring Hardware
• Ceiling Tile Cutter
