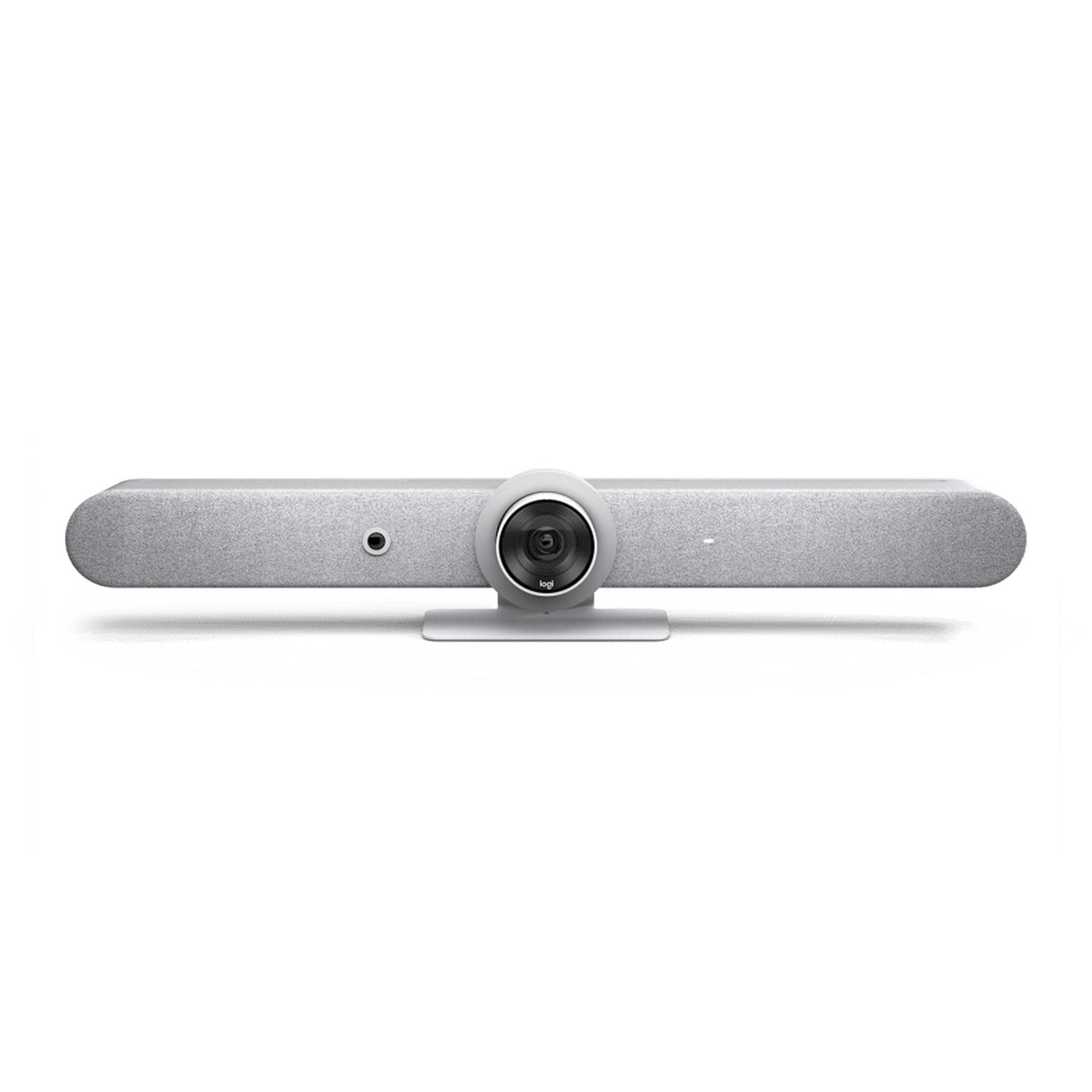

Logitech Rally Bar All-In-One Video Conferencing, White

Connect via USB to virtually any PC or Mac with no additional software needed. Start your meeting with just one touch, seamlessly connecting Rally Bar to your preconfigured room solution. Upgrade the meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy. Using AI, human perception, and motorized PTZ, Rally Bar adapts to meeting dynamics and keeps the camera on the action. Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard. Auto-level loud and soft voices - while suppressing unwanted noise - with AI-based RightSound technology that improves over time. Easily accommodate larger groups and spaces, starting with a 4.57 m mic pickup range and the option to extend up to three Rally mic pods (varies by environment).Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimize RightSight auto-framing and camera control.

Technical Specifications

DIMENSIONS
Height
6.46 in (164 mm)
Width
2.99 ft (910 mm)
Depth
5.14 in (130.5 mm) 2Camera adds 0.73 in (8.8 mm) to the depth.
Lens Depth
0.73 in (18.5 mm)
Weight
15.6 lbs (7.08 kg)
Camera
Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan
Motorized -25
Tilt
Motorized -15
Zoom
15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal field of view (dFoV)
90
Horizontal Field of View
82.1
Vertical Field of View
52.2
Total Room Coverage
132.1 Horizontal x 82.2 Vertical
Speakers
Drivers
2x 70 mm / 2.7 in
Output
90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at meter
Sensitivity
90+/-3dB SPL at 1W, meter
THD
1kHz < 2%
Speaker Sampling Rate
48 kHz
Microphones
Frequency response
90Hz - 16kHz
Sensitivity
>-36dBFS +/-1 dB @ 1Pa
Microphone data rate output
48 kHz
Pickup Range
15 ft / 4.5 m
Beamforming Elements
Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression
AI filter
Add-on Mics
Supports up to 3 additional Rally Mic Pods for larger conference rooms
RightSense Technologies
RightLight
Renders natural skin tones for each participant.
RightSight
Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound
Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
HDMI Out
2
HDMI In
1
USB 3.0
3x Type A, 1x Type C
Network
0.04oz (1 g)0/100/1G Ethernet
WiFi
802.11a/b/g/n/ac (MIMO)
External Mic Input
Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control
Bluetooth Low Energy
Power & Cables
Power supply
Auto-sensing
Operating Voltage/Power
100-240V, 19V, 4.74A
Power Supply Dimensions
5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
DC Cable
5 ft (1.5 m)
AC Cable
3.28 gy (1 m)
HDMI 1.4 Cable
7 ft (2 m)
USB A to USB C 3.0 Cable
2.2 m/7.2 ft
Environmental
Operating Temperature
0 to 40C
Storage Temperature
-40 to 70 C
Humidity
10 to 95%
BTU/hr
57 idle, 64 in meeting
Security
Full Disk Encryption
AES-128
Data Encryption
Symmetric Keys, PKI
Device Identity
Protected by device attestation
Device Access
Authenticated using API
Key Protection
Arm TrustZone, RPMP
PACKAGE CONTENTS
Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation
