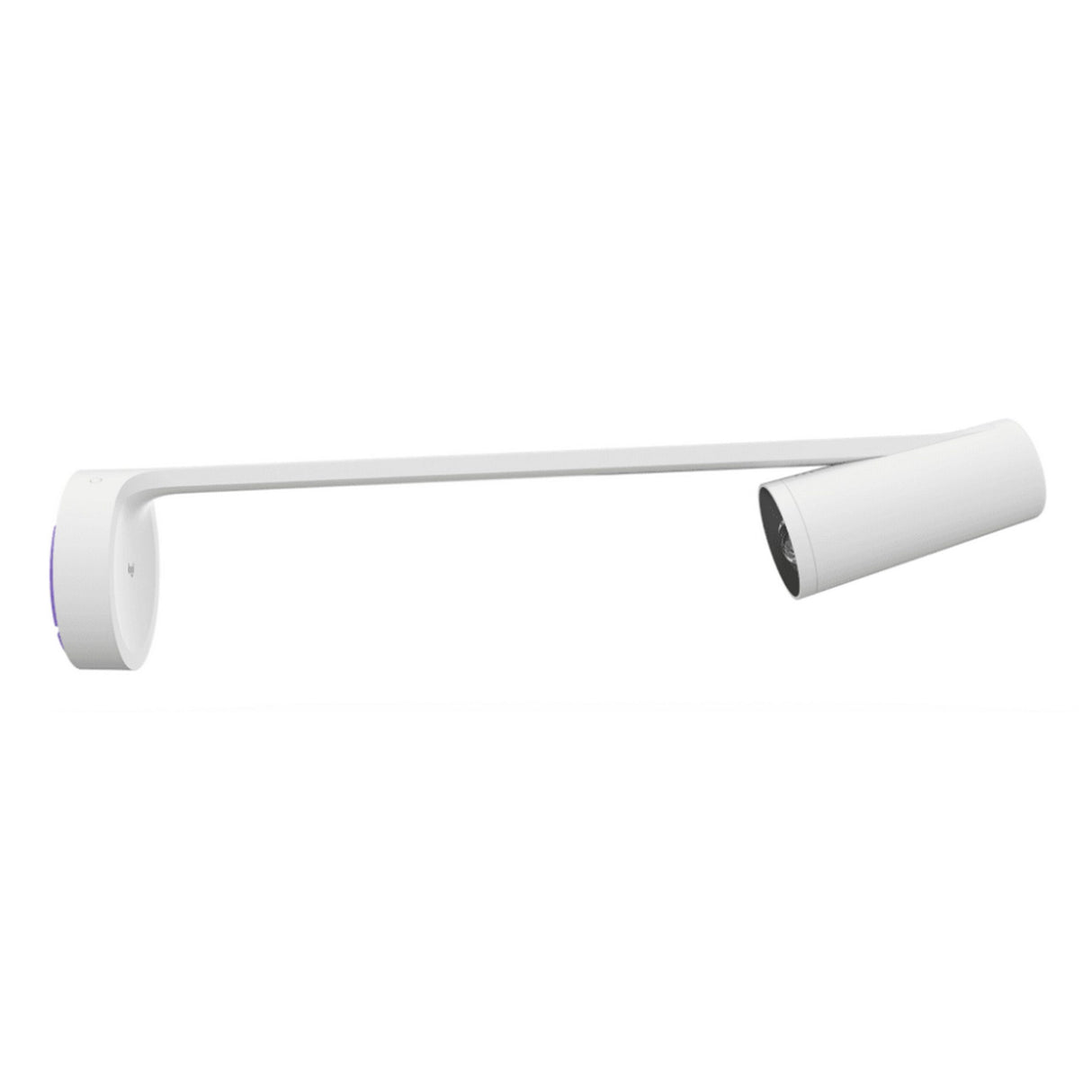

Logitech Scribe Whiteboard Camera for Video Conferencing Rooms

Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams Rooms, Zoom Rooms, and other leading video conferencing services. With built-in AI and a custom lens, Scribe broadcasts whiteboard content into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table. Scribe’s wireless share button makes sharing whiteboards into video meetings quick and easy. You can also initiate sharing with your meeting room touch controller, like Logitech Tap.

Technical Specifications

DIMENSIONS
Camera
Height
5.87 in (149 mm)
Width
4.69 in (119 mm)
Depth
22.56 in (573 mm)
Weight
2.43 lb (1.1 kg)
Share Button
Height
0.50 in (12.7 mm)
Diameter
2.83 in (71.8 mm)
Weight
3.81 oz (108 g)
Power Injector
Height
3.58 in (91 mm)
Width
2.37 in (60.2 mm)
Depth
1.43 in (36.3 mm)
Dongle Transceiver
Height
0.89 in (22.5 mm)
Width
1.22 in (31 mm)
Depth
3.30 in (83.7 mm)
Cable length
1.64 ft (500 mm)
Included Cabling (x2)
Length
5 m (16.4 ft)
SYSTEM REQUIREMENTS
Whiteboard
Maximum Whiteboard Dimensions
Height
4 ft (1.2 m)
Width
6 ft (2 m)
Certifications & Compatibility
Integrates with Microsoft Teams Rooms on Windows and Zoom Rooms (Windows or macOS) as a whiteboard content camera
Compatible with virtually any video conferencing application as a USB-connected camera
Camera
Output Resolution
1080p at 15 fps
Built-In AI
Broadcasts AI-enhanced image stream into video meetings
Share Button
Power
2 x CR2032 battery
Adhesive-backed mounting
Share button support may vary by video conferencing service provider.
Interfaces
Camera
Category Cable Port
Share Button
Bluetooth Low Energy
Power & Cables
Power supply
100-240V auto-switching power supply with international adaptor set
Cable Type
Cat5e SF/UTP AWG26 or higher
Environmental
Operating Temperature
0-40°C
Storage Temperature
-40-70°C
Humidity
10-95%
Security
Full Disk Encryption
AES-128
Device Management
Logitech Sync
PACKAGE CONTENTS
Camera
Share Button
Dongle Transceiver
100-240v Power Supply with International Adaptor Set
16.4 ft (5.0 m) Cat5e Cables x 2
Cable Clips x 2
Camera Installation Kit
Documentation
