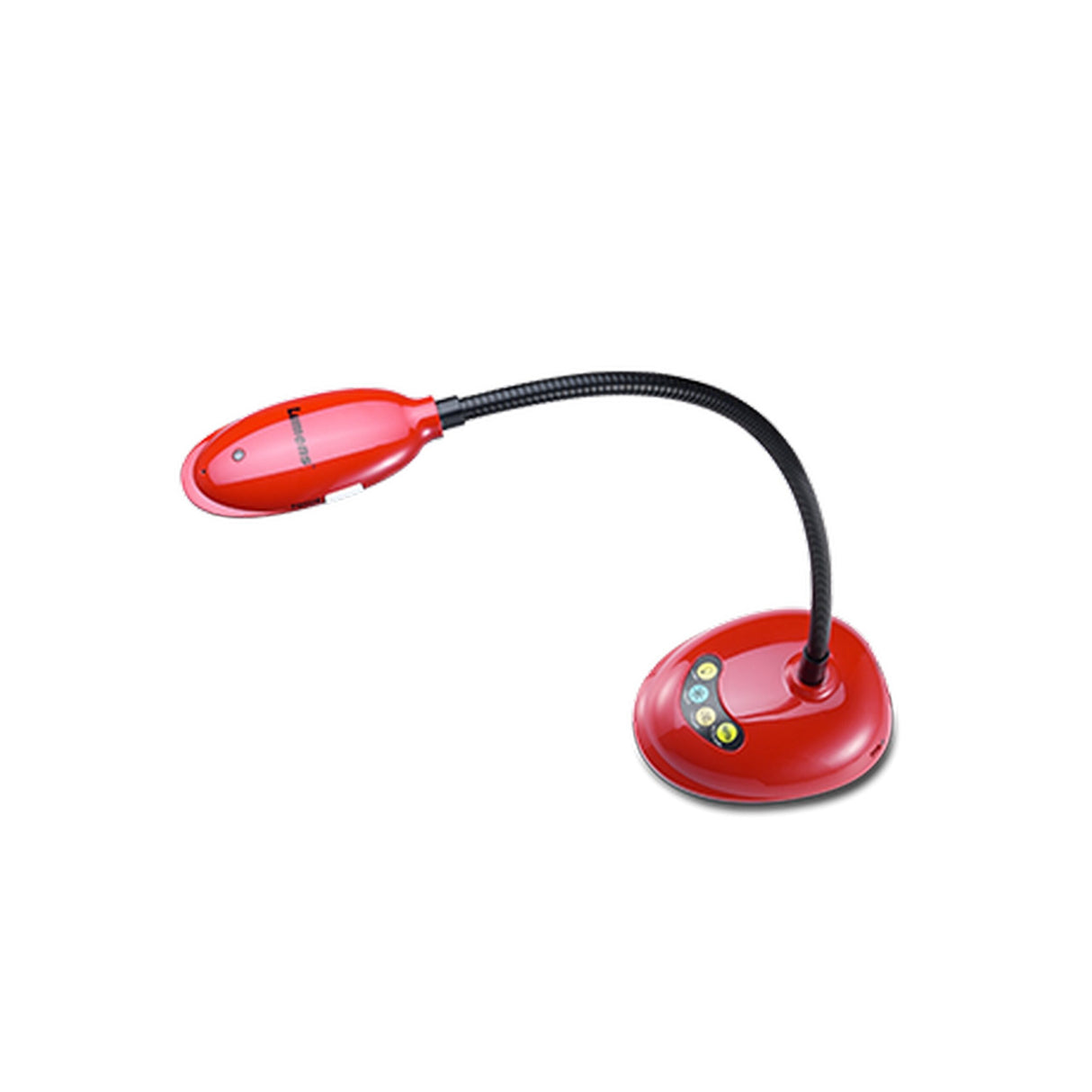

Lumens DC132U HD/2K USB Document Camera
Lumens DC132U HD/2K USB Document Camera
Free Shipping
Lumens DC132U HD/2K USB Document Camera
2-in-1 Camera Solution
Twist the gooseneck to any angle to view a document, face the presenter or angle towards the class for a live video conference.
Excellent Image Quality
DC132U produces professional-quality images with vivid colors. It outputs 1080p or even 2K video with image and video recording up-to 30 frames per second. The DC132U is ideal for use in education and training.
One-touch Optimization (Auto-Tune)
At the touch of a button, the camera quickly achieves accurate focus, color balance and image exposure.
Imaging Flexibility
The camera can capture documents and objects larger than A3. Adjust the position of the camera for close-up or wide-angle imaging. Zoom into the image using the provided Ladibug software.
Macro Close-Up
Take extreme close-ups (4cm minimum distance) and capture detailed images of small objects such as insects.
5 Year Warranty
Lumens offers a 5-year warranty with all its products as standard.
Key Features
- 1080 HD / 2048 QXGA resolution
- USB plug & play
- 16x total zoom (via software)
- Shooting area (18.8ā x 14.1ā) larger than A3
- Macro shooting from 4cm
- 5 Year Warranty
Technical Specifications
Sensor
1/3ā 3M CMOS
Total Pixels
3.3MP
Total Zoom
16x
Digital Zoom
16x (via Software)
Mechanical Zoom
8x
Output Resolution
2048x1536, 1600x1200,1920x1080,
1280x720, 1024x768, 800x600,
640x480
Frame Rate
1080p / 720p 30fps
Close-up
4 cm
Shooting Area Max.
480x360 mm
(18.8ā x 14.1ā)
Sharpness
MTF 1100 Line
Focus Mode
Auto / Manual
Image Rotation
0 Degrees / 180 Degrees / Flip / Mirror
Lamp
LED Lamp on Camera Head
Arm
Joint-Free Gooseneck
Power Supplied
USB Bus Power
Output
USB 2.0
Control
USB
USB Image Transmission
USB 2.0 (480 Mbps)
Driver
UVC / UAC
USB Video Format
MJPEG
Built-in Microphone
Yes
Auto Tune
Yes, One Button for Optimization Image
Video / Audio Recording
Yes (via Software)
Image Mode
Photo / Text
Freeze
Yes
Mask / Spotlight
Yes (via Software)
Image Capture
Single or Continuous Capturing (Via Software)
Ladibug Software
Support Windows 11, 10, 7
Mac OS X, Chrome OS
Anti-Theft
Kensington Anti-Theft Lock Device
VESA Mount
Yes, 75mm x 75mm
Included Accessories
USB 2.0 cable
Power Consumption
2.25W (Max.)
Dimensions: (WxHxD)
Folded: 106 x 280 x 136 mm (4.2ā x 11ā x 5.4ā)
Open: 106 x 380 x 350 mm (4.2ā x 15ā x 13.8ā)
Weight
2.65 lbs (1.2 Kg)
