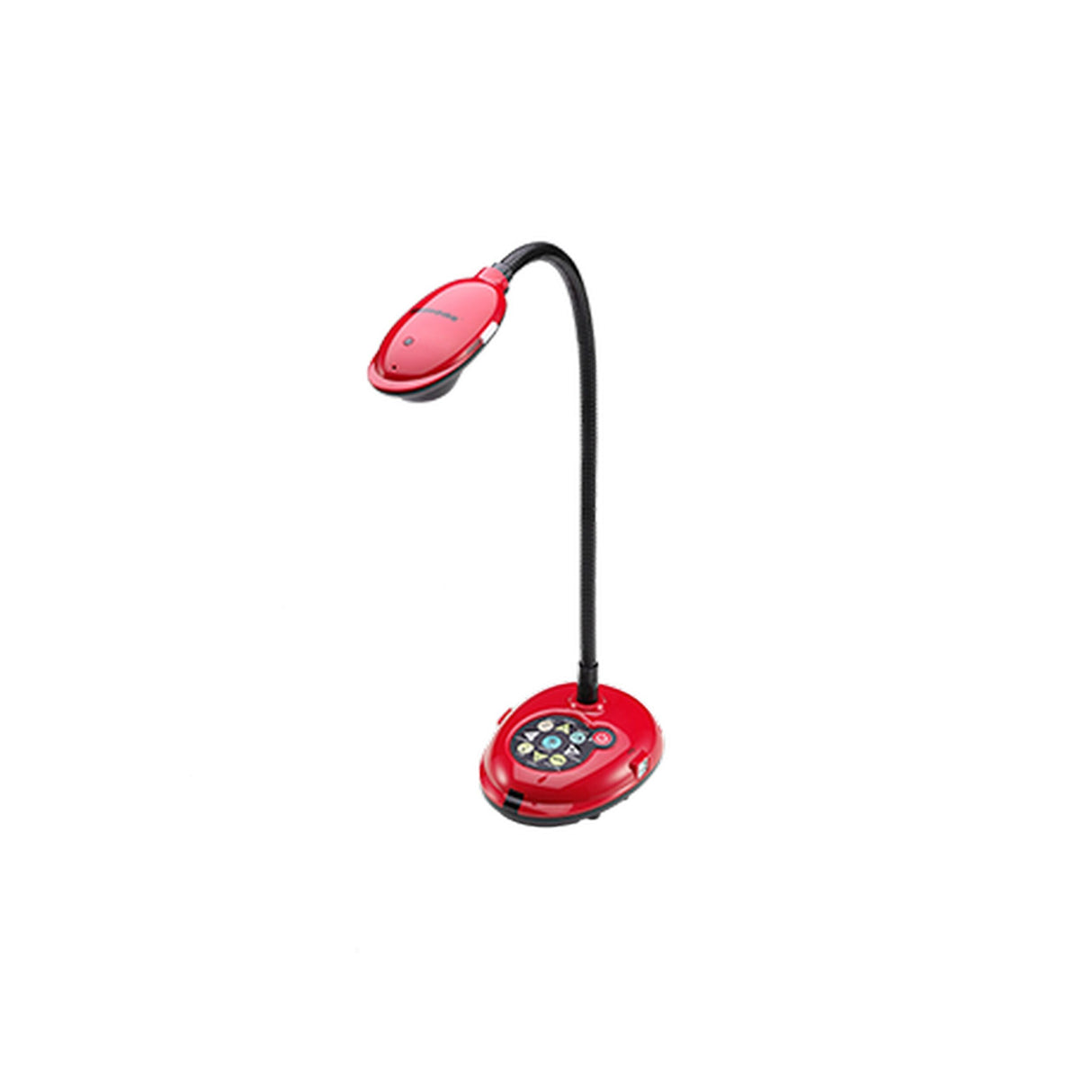

Lumens Ladibug DC172 4K Document Camera
Lumens Ladibug DC172 4K Document Camera
Free Shipping
Lumens Ladibug DC172 4K Document Camera
The Lumens DC172 Ladibug document camera provides ultra-clear 4K 30fps output resolution, supports 1080p, 720p and XGA resolutions. It can demonstrate remarkable detailed images of any object in real-time without delays and enhance the interaction between instructor and students.
Key Features
- 4K,1080p, 720P, and XGA output resolution
- Rotate 90/180/270 degrees, and flip/mirror
- HDMI output and pass through up to 4K resolution
- Image annotation and menu operation by mouse
- Supports USB Flash Drive for capture and video recording
Technical Specifications
Image Sensor
1/3" 13M CMOS Color Image Sensor
Output Resolution
XGA, 720p, 1080p, 4K (2160p)
Frame Rate
XGA / 720p / 1080p : 60fps
2160p : 30fps
Close-up
5 cm
Zoom
2x for 1080p (1920x1080)
3x for 720p (1280x720)
2.8x for XGA (1024x768)
Digital Zoom
30x
Mechanical Zoom
6.8x
Shooting Area Max.
420mm x 316mm (16.5"x12.4")
Lamp
LED lamp on camera head
Arm
Joint-free Gooseneck
Power
External Power Supply, 100-240 VAC
Input
HDMI x1
Output
HDMI x1, USB 2.0
Control
USB
Built-in Microphone
Yes
Memory Slot
USB Flash Drive (up to 256GB)
Built-in Memory
100 pictures
Auto Tune
Yes, one button for optimization image
Focus Mode
Auto / Manual
Image Mode
Photo, Text, Film, Slide, Microscope
Image Rotation
0Ā° / 90Ā° / 180Ā° / 270Ā° / Flip / Mirror
Standalone AV Recording
Yes
Video/Audio Recording
One touch button records image and sound synchronously
HDMI pass-through
Active pass-through, up to 2160p 60 Hz
Onboard annotation
Yes
Freeze
Yes
Pan
Yes
PIP
Yes
Mask / Spotlight
Yes
Lock Down Mode
Yes
Auto Erase
Yes
USB Image Transmission
USB 2.0 (480 Mbps) high speed transmission
Image Capture
Single or continuous capturing
Driver
UVC / UAC
Free Lumens Software
Supports PC Windows 10, 8, 7, Mac OS X, Chrome OS
Anti-Theft
Kensington anti-theft lock device
VESA Mount
Yes
Included Accessories
Power adapter, power cable, USB cable, HDMI cable, Microscope adapter
Power Consumption
8W (Maximum)
Dimensions: (LxWxH)
Folded : 236x106x280 mm
Open : 350x106x380 mm
Weight
2.8 lbs (1.3 Kg)
