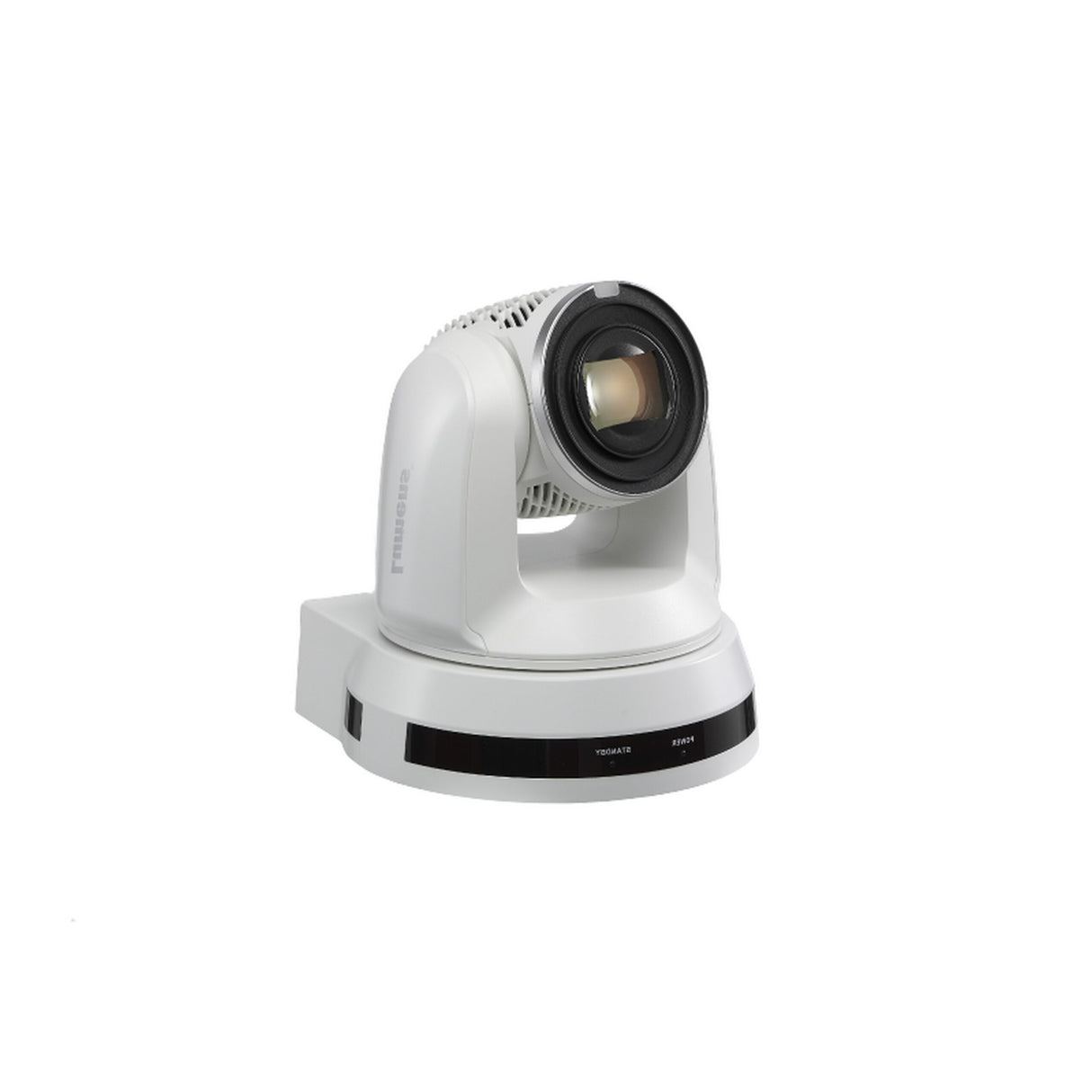

Lumens VC-A61PW 4K UHD PTZ IP Camera with 30x Optical Zoom, White
Lumens VC-A61PW 4K UHD PTZ IP Camera with 30x Optical Zoom, White
Free Shipping
Lumens VC-A61PW 4K UHD PTZ IP Camera with 30x Optical Zoom, White
4K and 1080p resolution choices make the VC-A61P more flexible for different shooting purposes. With its 4K UHD ultra-clear video quality, you can enjoy detailed, crystal-clear views even in the low light. The VC-A61P comes equipped with HDMI, 3G-SDI, and Ethernet multiple output interface that can ease your installation. With triple stream technology, the VC-A61P provides H.265 / H.264 multiple streams that tailored for your network environment.
Key Features
- 4K UHD 30fps and 1080P 60fps video signal output format
- 30x optical zoom, 68 degrees Horizontal Field of View
- Triple stream video, output format H.264 / H.265
- Supports PoE (Power over Ethernet) using network cables to supply power
- Ethernet, HDMI and 3G-SDI synchronous image outputs
- Audio input supports AAC / G.711 encoding with 44.1K / 48K sampling frequency
Technical Specifications
Sensor
1/2.5" 8MP CMOS
Video Format
Resultion : 4K*/1080p/720p
Frame Rate : 59.94/50/29.97/25
*So far 4K can only support 29.97/25
3D NR
Yes
Video Output (HD) Interface
3G-SDI, HDMI,Ethernet
Optical Zoom
30x
Horizontal Viewing Angle
68
Panning Angle
+170 ~ -170
Panning Speed
300/sec
Tilting Angle
+90 ~ -30
Tilting Speed
300/sec
Aperture
F1.6 ~ F3.4
Focal Length
4.6mm ~ 135mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto, Manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
Image Flip
Yes
Preset Positions
256
Multiple Video Stream
H.265 4K 30fps
H.264 1080p 60fps
H.264 640x360 30fps
Audio Compression Format
G.711 / AAC
Camera Control Interface
RS-232 / RS-422 / Ethernet
Camera Control Protocol
VISCA / PELCO D / ONVIF
Tally Light
Yes
PoE
PoE+ (IEEE802.3at)
Video Stream
RTSP / RTMP / MPEG-TS
Video Compression
H.265 / H.264
Audio Input
Line In/MIC In , Phone Jack 3.5mm x1
Audio Output
Ethernet / SDI / HDMI
IR pass-through
Yes
IR receiver
Yes
IR remote control
Yes
DC In
12V +/- 20%
Power consumption
16W
Weight
2 kg (4.4 lbs)
Dimensions: (LxWxH)
174 x 186 x 187 mm (6.9” x 7.3” x 7.3”)
Package Contents
Instruction for installation
Remote Control
Power Cord
Power Adapter
RS-422 Connector
Metal Plate A
Metal Plate B
M3 Screws
