Contemporary Research QIP-SDI HDMI IPTV Encoder

The dual-program QIP-SDI HDMI, with one SDI and one HDMI input, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, the QMOD-SDI HDMI can output the content as two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, and NTSC video sources.

Key Features

• HD-SDI input, 3G Level A 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES, AAC and AC-3 audio
• HDMI input (non-encrypted), 480p to 1080p, embedded PCM audio, pass-through AAC and AC-3
• Two Composite/CC video inputs for encoding, captioning, or EAS use
• Two analog Stereo and two SPDIF coax audio inputs
• Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
• Converts stereo and PCM to stereo AAC or MP12, passes through or AC-3 and AAC
• Can create SAP dual-language audio for each program
• Accepts 608.708 embedded captioning, decodes Line 21 captioning from composite video inputs
• Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
• Dual-program operation is standard
• Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
• Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
• Updates firmware via USB and Ethernet
• Fan cooled, with adjustable speed
• Saves power and rack space using efficient design
• Includes compact switching power supply
• Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
• Meets RoHS safety and California energy standards

Technical Specifications

Physical
8.5" <216mm> wide x 1.73" <62mm> height (1RU) x 6.0" <153mm> deep
1.5 lbs <0.68kg>
+32 to 122 F operating temperature, convection cooled
Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
For HRF Half-Racks, use the RK2EZ kit to mount each tuner
Fan cooled, with adjustable speed
Scaling
Dual hardware scalers
Accepts 1080p - 480i and VGA resolutions, 29.97 - 60 Hz US and PAL refresh rates
Edge to edge presentation with zoom, shrink and X/Y axis positioning
Auto-sync or sales to fixed output resolution, 1080p scaled to 1080i
Encoding
H.264 or MPEG2 for HD, MP@ML for SD, 1080i, 720p, 480p, and 480i output resolution
MPEG 2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mps 480i, or variable bitrate
H.264 Video Encoding bitrate 5-12 Mbps, HD, 2-3 Mps 480i, or variable bitrate
PCM or analog audio output s MPEG1 Layer2 or AAC
Pass-through AAC and AC-3 aud

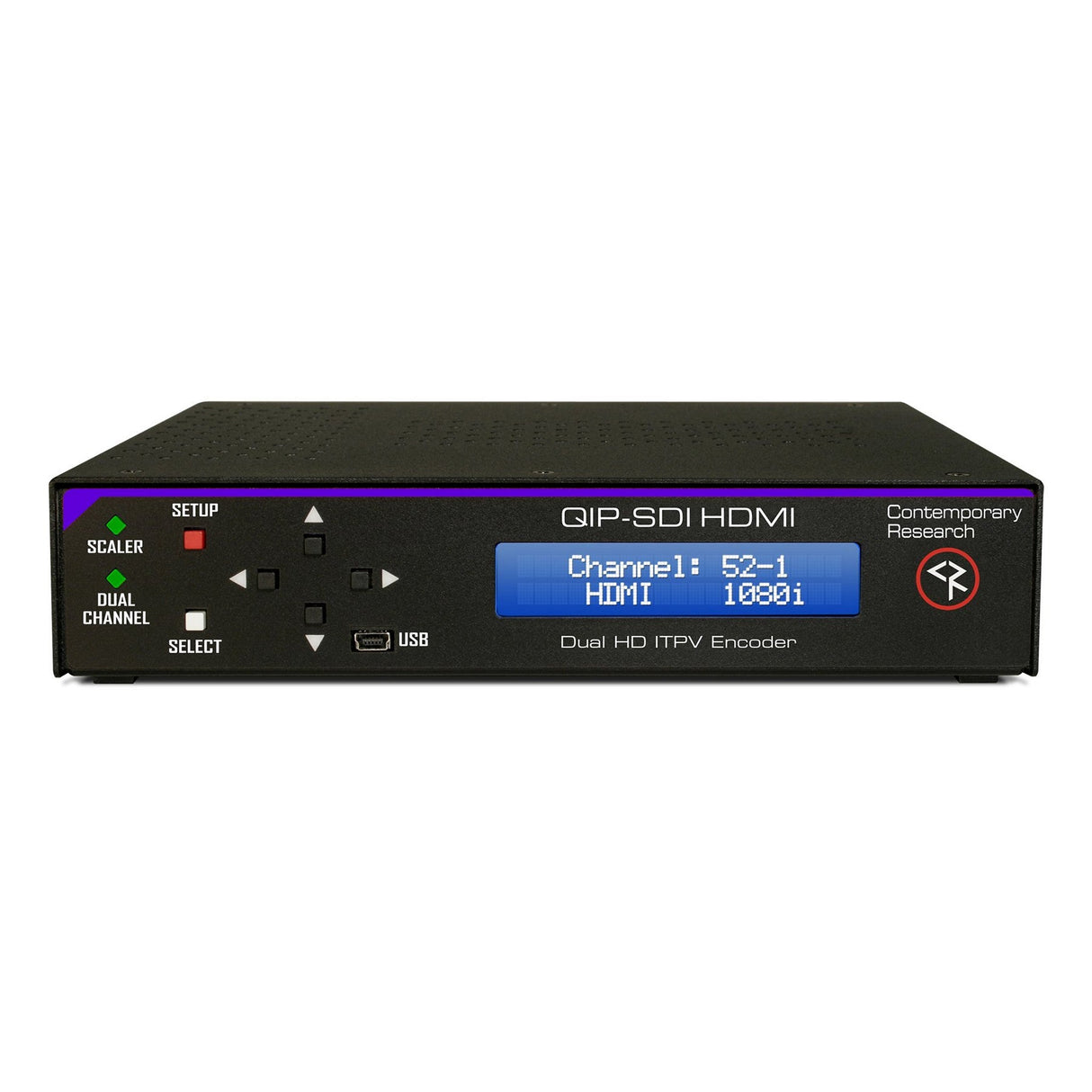

Front Panel
Select and directional buttons for menu setup
Menu LCD, Blue with 2 lines of 20 white characters each

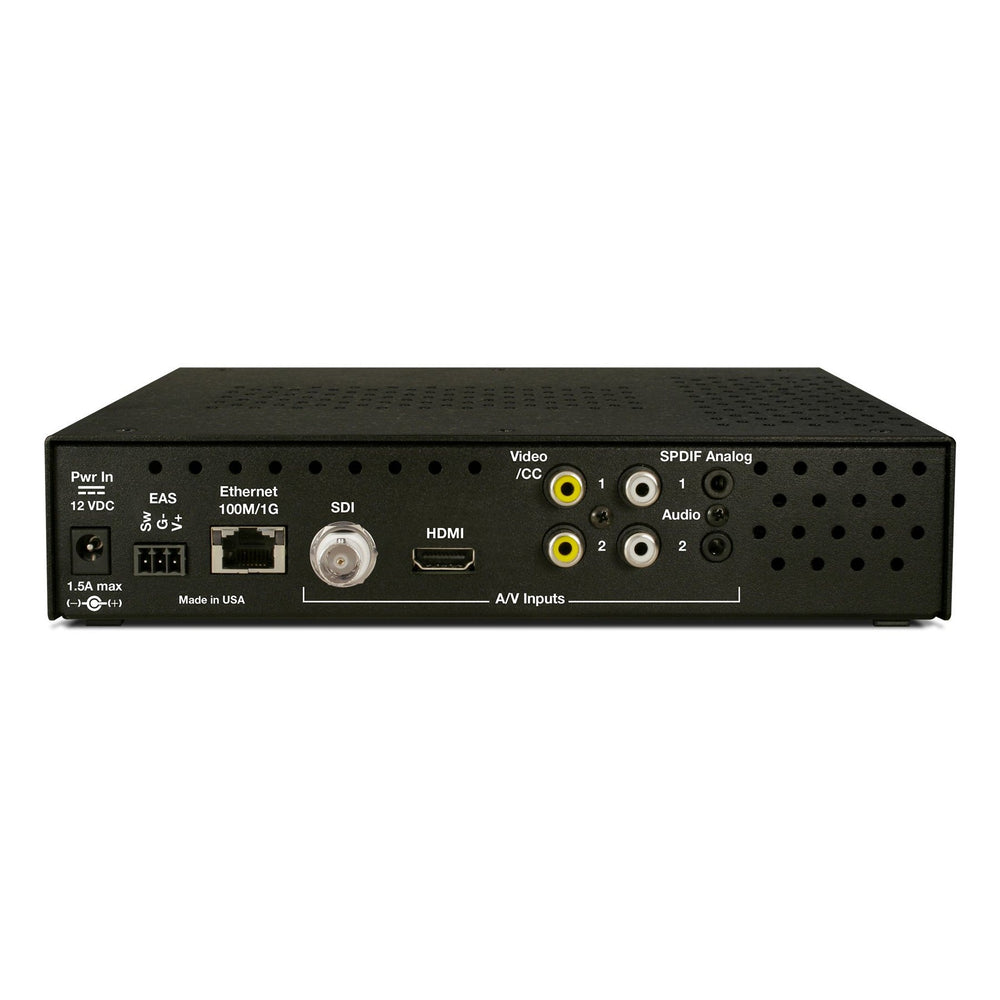

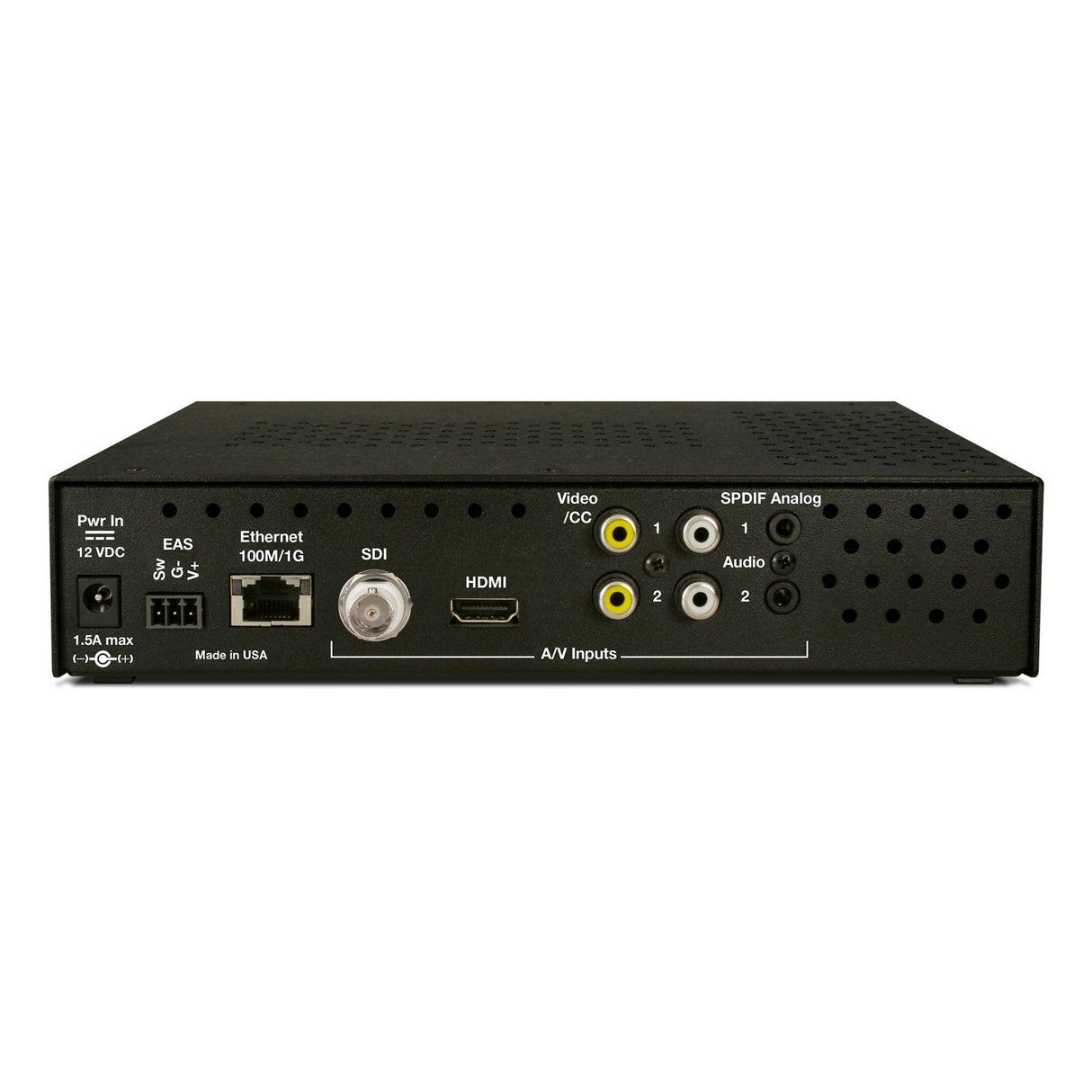

Back Panel
Power
2.1mm coaxial jack (inside center conductor positive)
1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS
3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
Ethernet
RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page
SDI Inputs
BNC Female
SD-SDI @ 270Mb/s, HD-SDI @ 1.485Gb/s, 3G SDI Level A @ 2.970Gb/s
Coax cable auto-equalizer for SD up to 460m, HD up to 230m (RG6)
Resolutions 1080p at 59.94Hz, 1080i/720p at 59.94/60Hz, or SD 480i at 29.97Hz
Video Format YCbCr 4:2:2
Accepts SDI embedded Stereo/AC-3/AAC 48KHz audio
Widescreen option for 480i
HDMI
(non-HDCP), up to 1080p, embedded PCM and AC-3 audio
Composite Video/CC Inputs
RCA female (480i), 29.97 Hz, supplies line 21 Captioning
Audio Inputs
Two coax SPDIF digital audio inputs
Analog L and R
2 stereo mini jacks
Inputs assignable to video inputs
Item Includes
QIP-SDI HDMI unit
PS12-2 Switching power supply, 2A 12 VDC, standard AC cord for power strips
