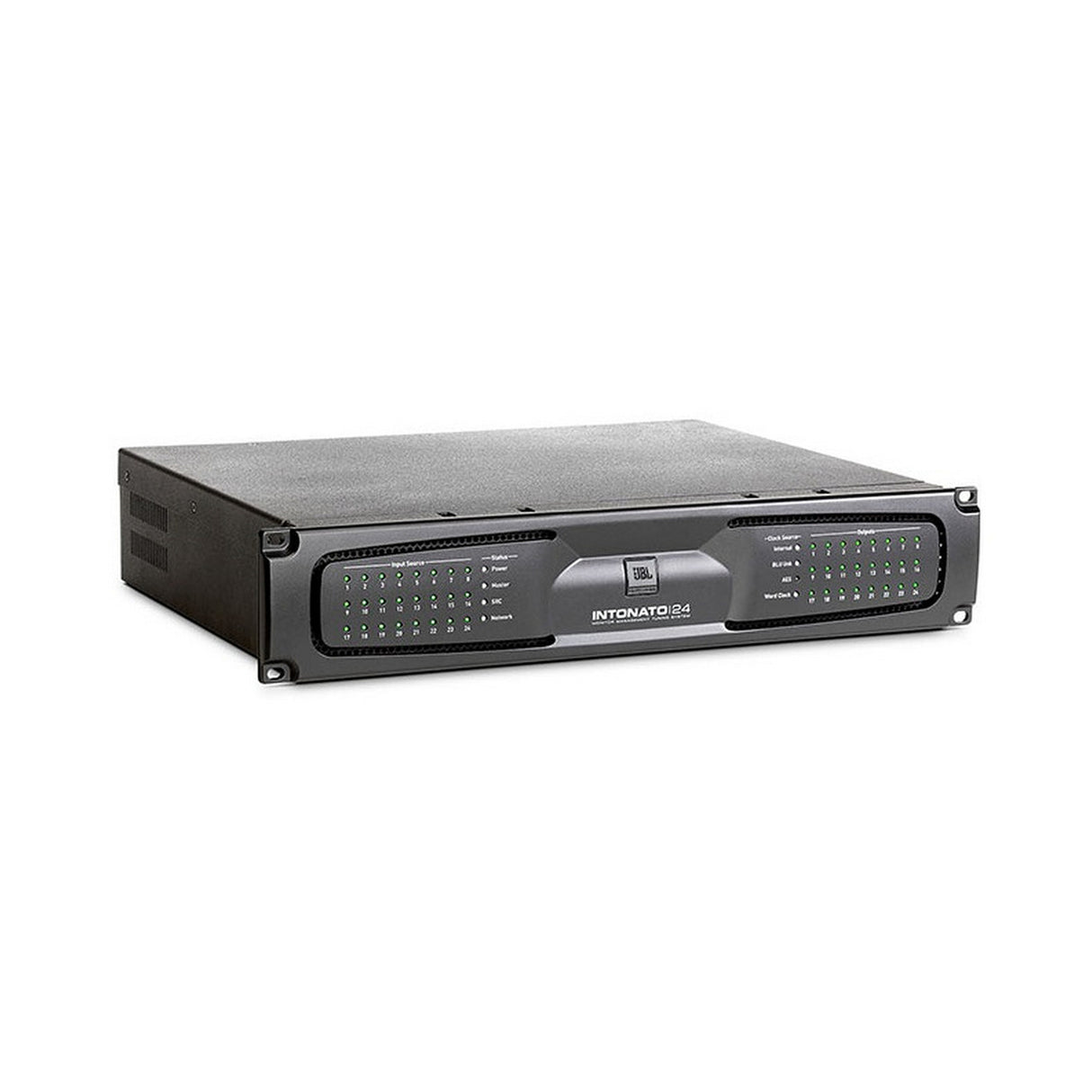

JBL Intonato 24 24 Channel Monitor Management Tuning System

JBL Intonato 24 | 24 Channel Monitor Management Tuning System

The JBL Intonato 24 Monitor Management Tuning System represents the pinnacle of professional audio control and calibration, designed to meet the needs of top-tier audio engineers and producers. This sophisticated system provides an unparalleled suite of features for automated calibration, precise tuning, and comprehensive control of up to 24 speakers. Housed in a robust 2U rack-mount enclosure, the Intonato 24 seamlessly addresses the challenge of managing complex monitoring arrangements, whether in stereo, surround, or immersive audio configurations.

Beyond mere hardware, the JBL Intonato 24 offers an integrated software solution that allows for customized routing of up to 24 analog, digital, and networked audio sources. Monitoring precision is pushed to new heights with an included calibration microphone that ensures all speakers are perfectly balanced and tuned for the most accurate mixing environment. With its advanced features and intuitive control via software or optional desktop controller, the Intonato 24 elevates control room monitoring, enabling you to work with the confidence that your audio environment is finely tuned to perfection.

Choose the JBL Intonato 24 for its exceptional ability to transform any control room into an ideal monitoring haven, living up to its name from the Latin verb 'Intonare,' meaning 'tuned,' 'matched,' and 'in tune.' This monitoring management system provides the essential tools to make every audio project sound its absolute best.

Key Features

• Compatible with all professional studio monitors
• Input connections for 24 analog, AES /EBU Inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
• Software-controlled analog input sensitivity switches, level indicators and gain trims
• Output connections include 24 analog outputs to powered speakers and power amplifiers; BLU link output allows networked connection to HARMAN Crown power amplifiers
• Selectively monitor via one or more monitoring systems of up to 24 speakers
• Volume, Mute, and Dim controls, plus individual speaker Mute and Solo
• Automated Speaker Calibration with included microphone precisely balances, tunes and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of Room EQ, Delay, Level per speaker
• Per-speaker, 8-Band User EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
• Sophisticated subwoofer integration for LFE channels and bass management
• Variable Audio/Video Sync delay allows compensation for video display latency
• Stereo Aux Out with dedicated level control, EQ and talkback system allows an independent feed to be sent to talent or a remote 'green room'
• Create, store and instantly recall project-specific configurations and speaker tunings
• Intuitive setup and control with included Macintosh, Windows and iOS/Android tablet software or optional Intonato Desktop Controller
• Low-noise fan for quiet operation

Specifications

• Input: 24 analog, AES /EBU inputs
• Networked Audio: Up to 256 channels in HARMAN BLU link or Dante format (with optional BLUDAN interface)
• Output: 24 analog outputs
• Compatibility: All professional studio monitors
• Control: Macintosh, Windows, iOS/Android tablet software or optional Intonato Desktop Controller
• Calibration: Automated with included microphone
• Additional: Software-controlled input sensitivity, level indicators, gain trims, and user EQ

Package Contents

• JBL Intonato 24 Monitor Management Tuning System
• Calibration Microphone
• Power Cable
• Software (Macintosh, Windows, iOS/Android)
• User Manual
