ADJ Pixie Driver 8000 V2 Power / Data Supply

The ADJ Pixie Driver 8000 V2 is an advanced power and data supply unit designed to enhance the performance and reliability of your lighting systems. Engineered with precision, this device is ideal for managing power distribution and data transmission to your lighting fixtures, ensuring optimal functionality and seamless integration within your setup. Whether you’re working in a small venue or a large event space, the Pixie Driver 8000 V2 provides the necessary power and data solutions with unmatched efficiency.

Featuring a durable build and state-of-the-art technology, the Pixie Driver 8000 V2 is equipped to handle the demands of high-performance lighting environments. Its robust design ensures reliable operation and minimal downtime, allowing you to focus on delivering exceptional lighting displays. The unit is easy to install and configure, making it a versatile choice for both professional and amateur lighting designers.

With its user-friendly interface and advanced features, the ADJ Pixie Driver 8000 V2 offers a comprehensive solution for managing your lighting equipment. It is engineered to support a wide range of lighting fixtures and control systems, making it a valuable addition to any lighting setup. Experience enhanced control, reliability, and performance with this top-of-the-line power and data supply unit.

Key Features

• Advanced power and data supply solution
• Reliable operation for high-performance lighting systems
• Durable construction for long-lasting performance
• Easy installation and configuration
• Supports a wide range of lighting fixtures and control systems

Technical Specifications

Dimensions
11.8" x 18.9" x 4.7" / 300.3 x 480 x 120 mm
Weight
13.4 lbs / 6.1 kg
Power Supply
AC 100-240V, 50/60Hz
Power Consumption
1,600W max
Temperature Range
-4°F to 113°F (-20°C to 45°C)

Control Features
Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120, and Pixie Curve 60
Manual RGB mode
Internal programs
Manual Dimming and Strobe Control
Full Pixel Mapping Control
Drives up to 8,160 Pixels via KlingNet, ArtNet, and sACN (1,020 Pixels per port)

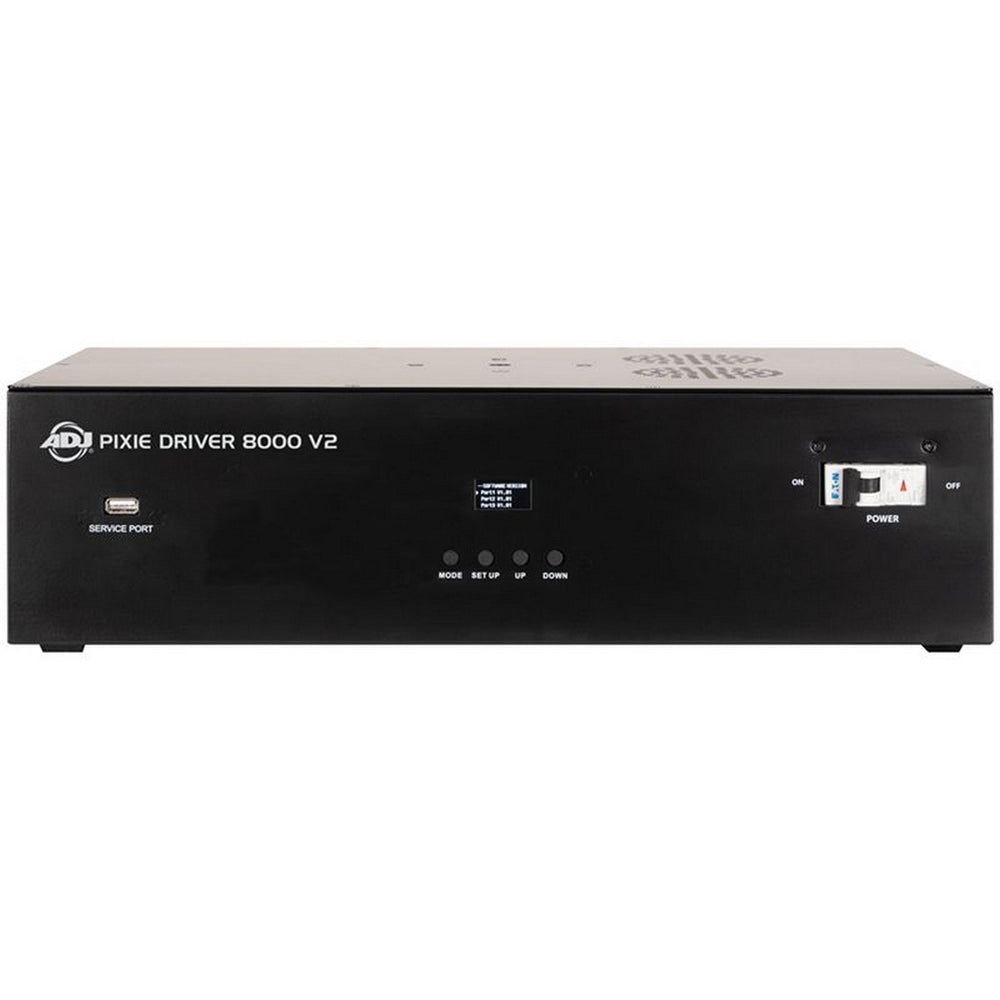

OLED screen with 4-button menu
USB port for Firmware Updates

Control Quantity
KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's, (8) Pixie Strip 120's, or (17) Pixie Curve 60's (Per port. Or any combination not exceeding 1,020 pixels per port)
ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120, or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixels per port)
sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120, or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixels per port)

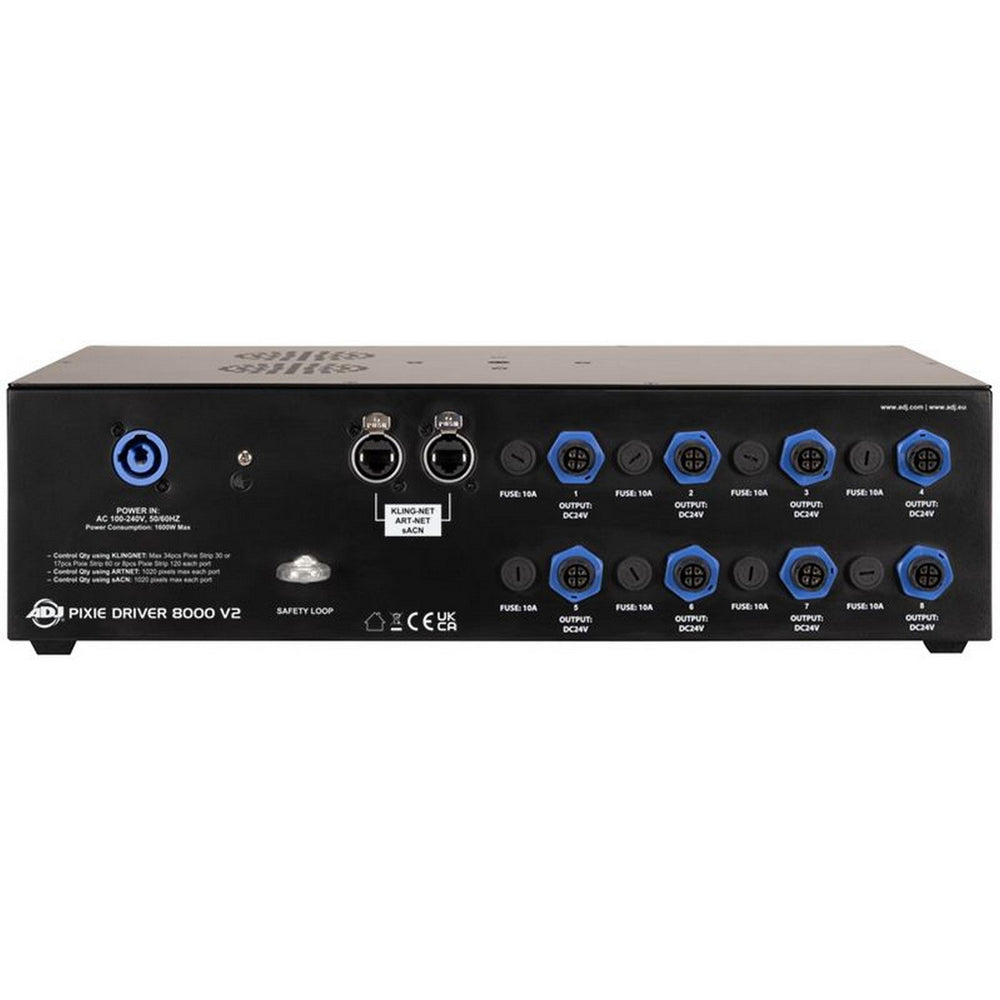

Connections
Power: PowerLock Input
Two locking RJ45 ports
Eight 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options
Bolt to add a clamp to hang from truss (clamp and truss not included)

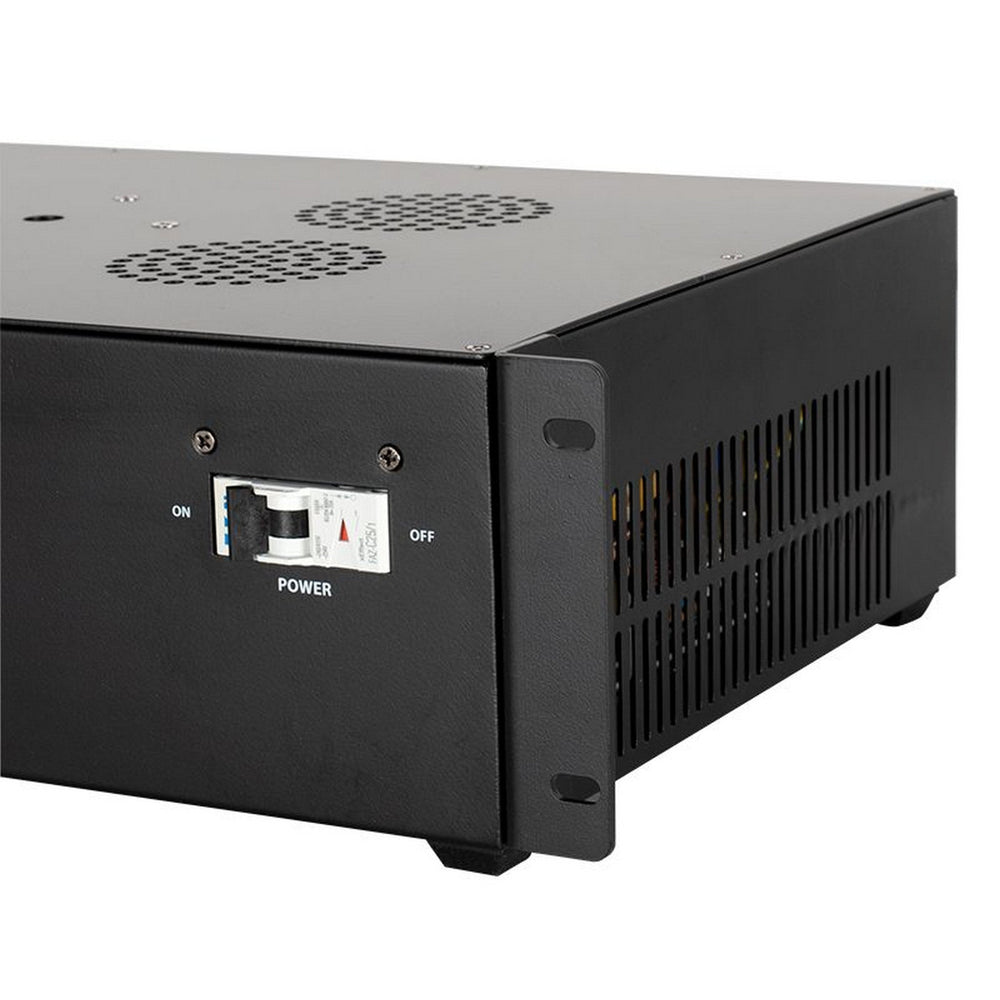

Includes 19-inch rack mount ears
Safety eye

Approvals
CE | cETLus (Pending)

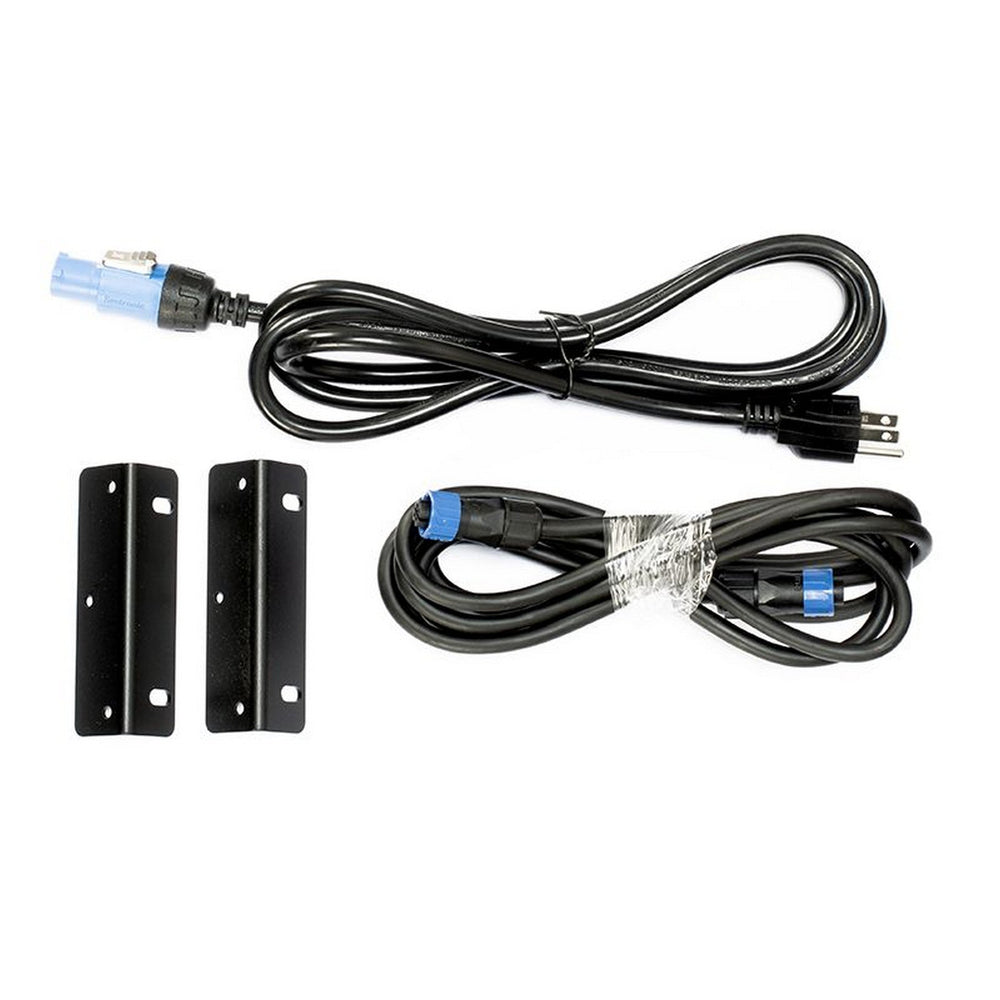

Included Accessories
(1) PIXEL BC10 (PIX339): 10', 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip.
(1) SIP20MPC (SIP293): Power Input cable
(2) 19" Rack Ears

Accessories SOLD SEPARATELY
PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
