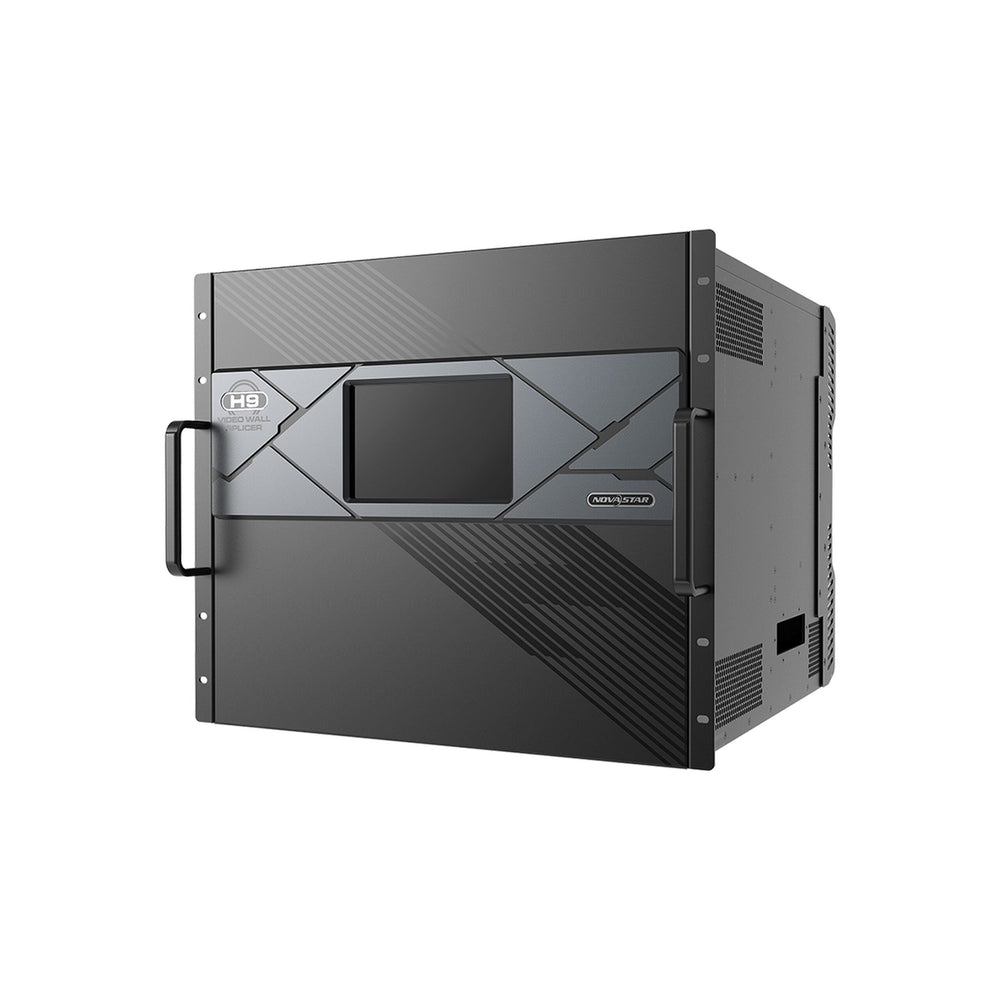

NovaStar H9 All-In-One Splicer and Controller, 9U Chassis
NovaStar H9 All-In-One Splicer and Controller, 9U Chassis
NovaStar H9 All-In-One Splicer and Controller, 9U Chassis
H Series is NovaStar's flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.
Key Features
- 9 rack space unit with control card and PS
- Multi-screen management for centralized control
- Modular plug-in component configuration
Technical Specifications
Rack space
9U
Minimum cards
1 input, 1 output
Input cards
15 max.
Input channels
60 max.
Output cards
5 (10 enhanced)
Load capacity
(4K card): 65m pixels
Max. layers
80 (160 enhanced)
In the Box
Power cord
RJ45 Ethernet cable
Grounding cable
HDMI cable
Quick start guide
Certificate of approval
Safety manual
Power
100-240VAC, 50/60Hz
Power consumption: 450W
10A-5A
Backup PS: optional
Dims & Weight
21ā x 19ā x 16ā
77.2 lb
