Cre8audio NiftyCASE Powered Modular Case with MIDI to CV
The Cre8audio NiftyCASE is a moderately sized euro rack case with HUGE possibilities! The NiftyCASE is a great place to start when building a stylish, portable eurorack system. NiftyCASE is more than just a basic eurorack case; it provides all the power and connection possibilities you could possibly ask for. NiftyCASE offers a beefy 2A of cumulative current via its +12v -12v and +5v power rails, ideal for all your modules. Connecting your NiftyCASE to computers or MIDI devices is a breeze thanks to the built-in MIDI to CV conversion. NiftyCASE takes either DIN-MIDI from any DIN-MIDI device or USB-MIDI from your computer and turns it into eurorack compatible CV, gate, mod, and clock signals. NiftyCASE's DIN-MIDI thru lets you easily daisy-chain multiple NiftyCASES and easily integrate NiftyCASE with your MIDI equipment.
Technical Specifications
Useable case area
84hp
Internal depth
55mm
Weight
1.8kg
6.8cm x 44.6cm x 18.6cm
Range of cv out 1
0-10V
Range of cv out 2
0-10V
Voltage output gate 1 - off =0 on =5off = 0 on = 4.65
Voltage output gate 2 - off =0 on =5off = 0 on = 4.65
Voltage output mod = 1-10V
Voltage output clock - off =0 on =5
Power output for modules
+12V - 1500mA peak output
-12V - 500mA peak output
+5V - 500mA peak output

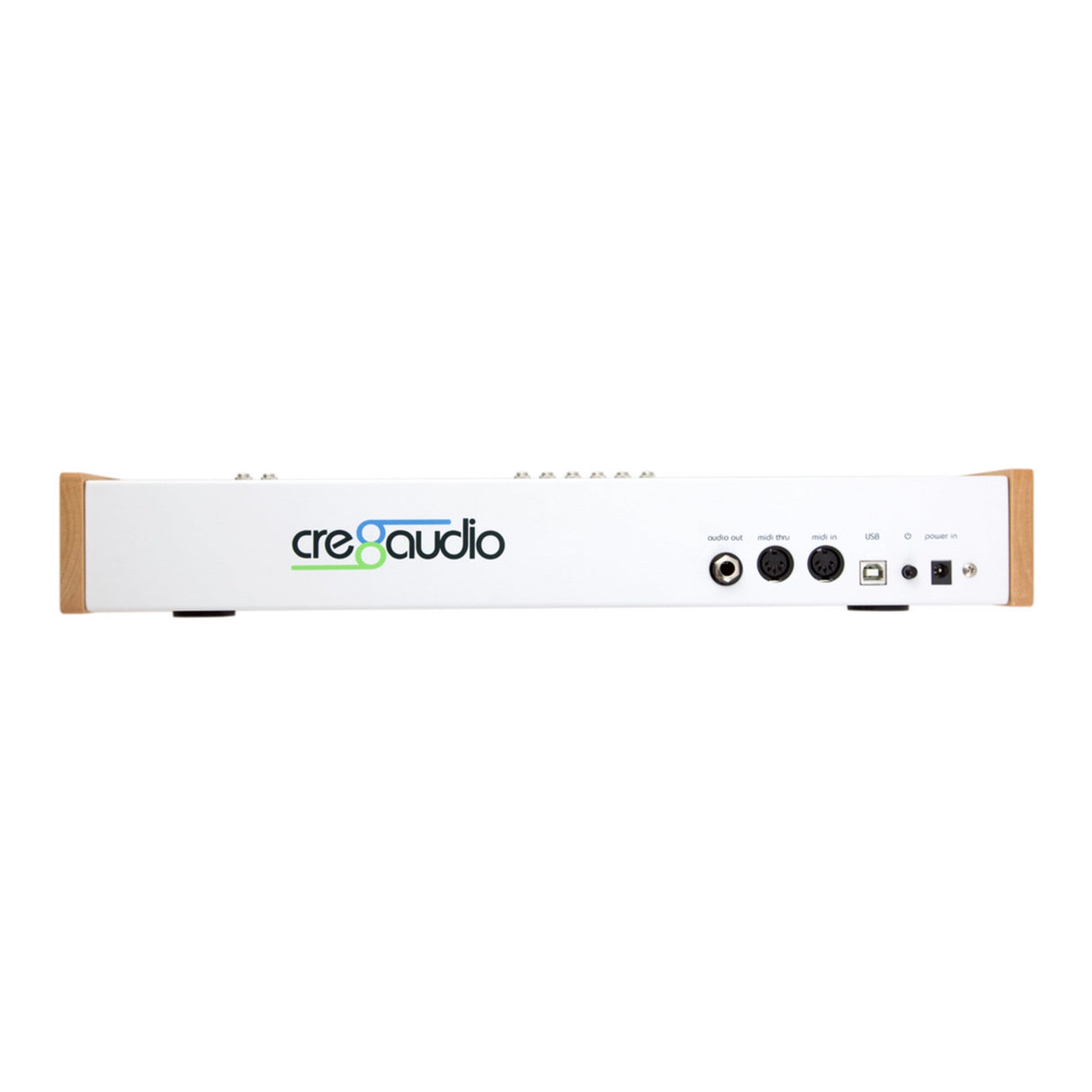

1/4” ts mono output on rear
MIDI in via USB and 5 pin Din
MIDI thru via 5 Pin Din and USB
Included in the box
NiftyCASE
NiftyCASE switching power supply with blades for NA, EU, UK, and AU
