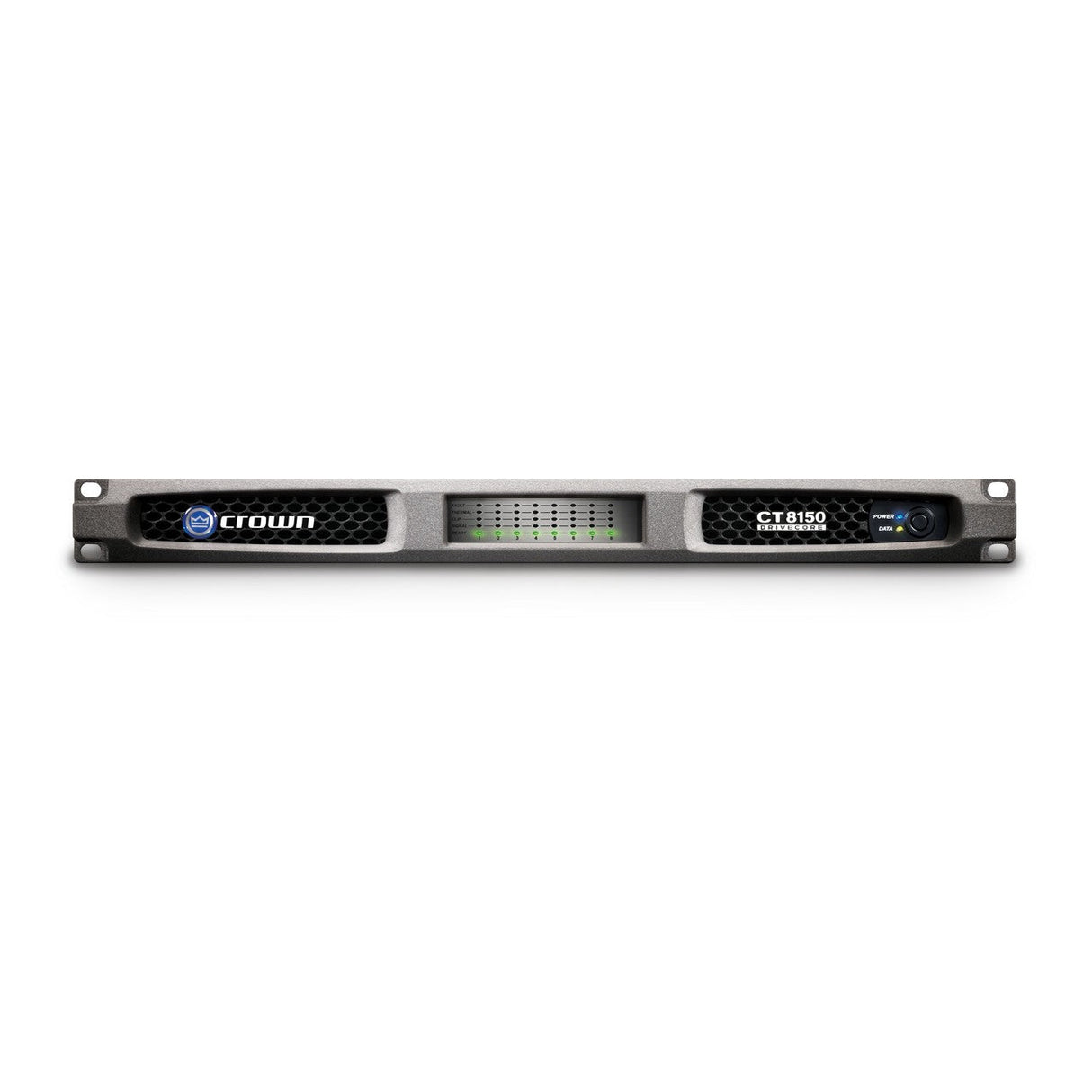

Crown CT 8150 Eight-Channel, 125 Watt Power Amplifier
Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
Key Features
- Flexible Input Routing
- Convection Cooled
- Universal Power Supply
- Integrated Life-Safety Features
- Up to 8X125W in 1U chassis with no fan
- DriveCore technology provides >90% efficiency with no compromise in performance
- Patented Feedback and Protection Circuits
- Amplifier is stable for 2 - 16 Ohm Loads
- XFMR 4/8 needed for 70V/100V Applications
Technical Specifications
Channels
8
Sensitivity
1.4 V
Rated Power Output (all channels driven)
125W per CH @ 4 ohms, 125W per CH @ 8 ohms
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)
110 dB
THD (full rated power, 20 Hz - 20 kHz)
< 0.05%
Intermodulation Distortion (from 0 dB down to -30 dB)
< 0.05%
Frequency Response (at 1W, 4/8 ohms)
+/- 0.5 dB
Crosstalk (below rated power) 20 Hz to 1 kHz
> 70 dB
Common Mode Rejection (20 Hz to 1 kHz)
> 55 dB, typically > 70 dB
Voltage Gain
27 dB
DC Offset
+/- 20mV
Idle Power Consumption (Standard Mode)
25.5W
Dimensions
1.75" x 19" x 15.19"
Weight
10lbs/4.54kg
Shipping Weight
15 lbs/6.8 kg
IEC Power Connector
15A
