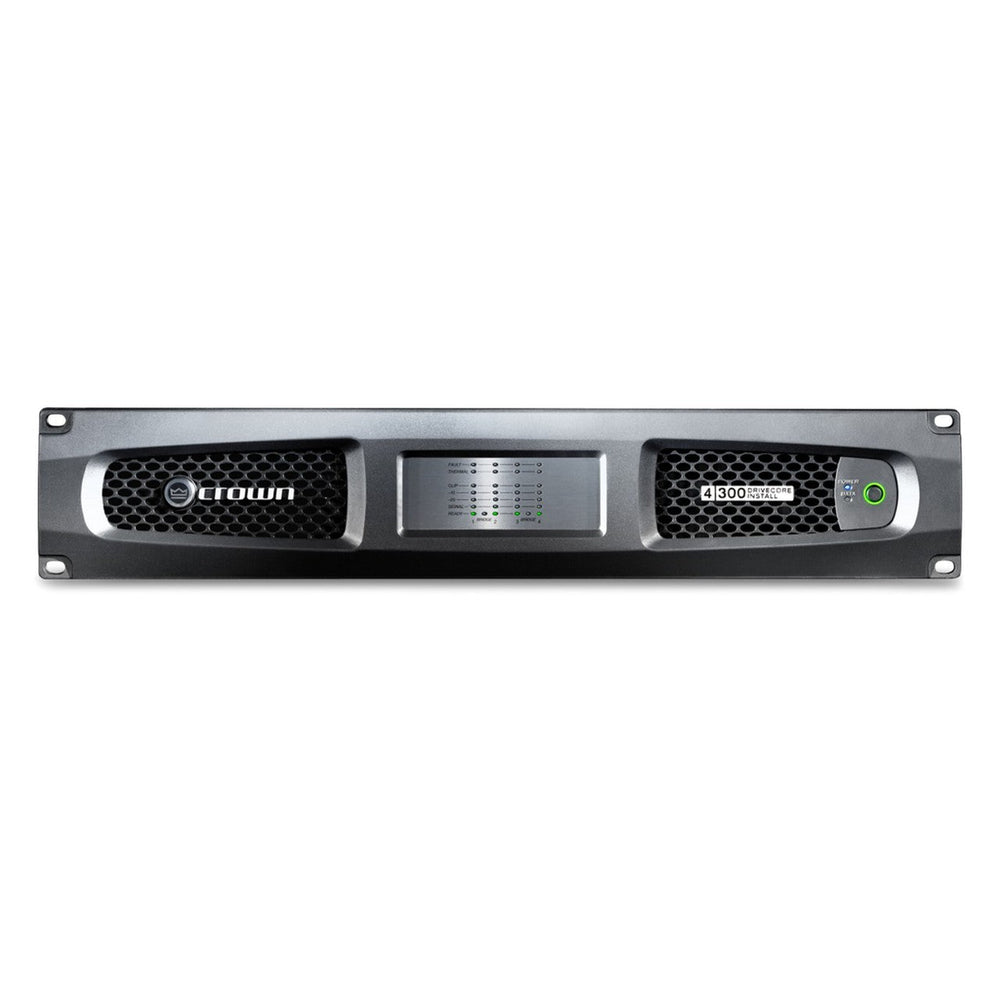

Crown DCi 4x300 4 Channel Analog Power Amplifier 300W
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Crown DCi 4x300 4 Channel Analog Power Amplifier 300W
The new DriveCore Install series amplifiers is a complete line of high-performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industrys highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
Key Features
- TRUE RACK DENSITY Power points of 300W or 600Win 2-/4-/8-channel configurations
- DIRECT DRIVE CONSTANT VOLTAGE Save money by using smaller gauge wiring to drive the speakers using either 70Vrms or 100Vrms
- CHANNEL INDEPENDENT HI-Z/LOW-Z SELECTION Drive either one or two speakers in low-Z mode, or literally hundreds of speakers in high-Z mode (70Vrms or100Vrms)
- BRIDGEABLE CHANNEL PAIRS Unlike amps from other manufacturers, the DCi Series channels are bridgeable
- REMOTE ON/OFF INTERFACE Save power by integrating the amplifier into a control system so you can easily turn it on and off
Technical Specifications
Frequency Response ( 8 Ohms, 20 Hz - 20 kHz):
+/- 0.25 dB
Signal To Noise Ratio (A-weighted):
> 108 dB
Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz):
0.35%
Voltage Gain:
34 dB
Damping Factor (20 Hz to 100 Hz):
> 1000
Input Impedance (nominal balanced, unbalanced):
10 kOhms, 5 kOhms
Maximum Input Level before Compression:
+20 dBu
Maximum Input Level before Clipping:
+26 dBu
Load Impedance (Stereo/Dual Mode):
2 - 16 Ohms; 70Vrms and 100Vrms
Load Impedance Bridge Mono:
4 - 16 Ohms; 140Vrms and 200Vrms
Cooling:
Continuously variable speed forced air, front to back airflow
Maximum Fan Noise (re dBA SPL @ 1M):
45
Required AC Mains (+/- 10%):
100V-240V ~ 50/60 Hz
Dimensions:
19 x 3.5 x 14.25(48.3cm x 8.9cm x 35.63cm)
Weight:
20.1lbs (9.12kg)
IEC Power Connector:
15A
Installation / Use Cases
- Driving multiple speakers using a 4-channel power amplifier for distributed audio systems
- Commercial installations such as retail, hospitality, and corporate spaces requiring reliable audio amplification
- Fixed AV installations needing multi-zone audio control across different areas
- Integration into rack-mounted sound systems for centralized audio management
- Professional audio environments requiring consistent amplifier performance for installed sound systems
Package Contents
- Crown DCI 4|300 4-Channel Analog Power Amplifier
Frequently Asked Questions
What is the Crown DCI 4|300 used for?
The Crown DCI 4|300 is a 4-channel power amplifier used to drive speakers in commercial and installed sound systems.
How many channels does the Crown DCI 4|300 have?
It features 4 channels for powering multiple speakers or zones.
What is the power output of the Crown DCI 4|300?
It is rated at 300 watts per channel.
Where is the Crown DCI 4|300 typically used?
It is commonly used in commercial installations such as retail stores, corporate environments, and hospitality venues.
Is the Crown DCI 4|300 suitable for multi-zone audio systems?
Yes. Its multi-channel design allows it to support audio distribution across multiple zones.
Can the Crown DCI 4|300 be rack-mounted?
Yes. It is designed for installation in rack-mounted audio systems.
