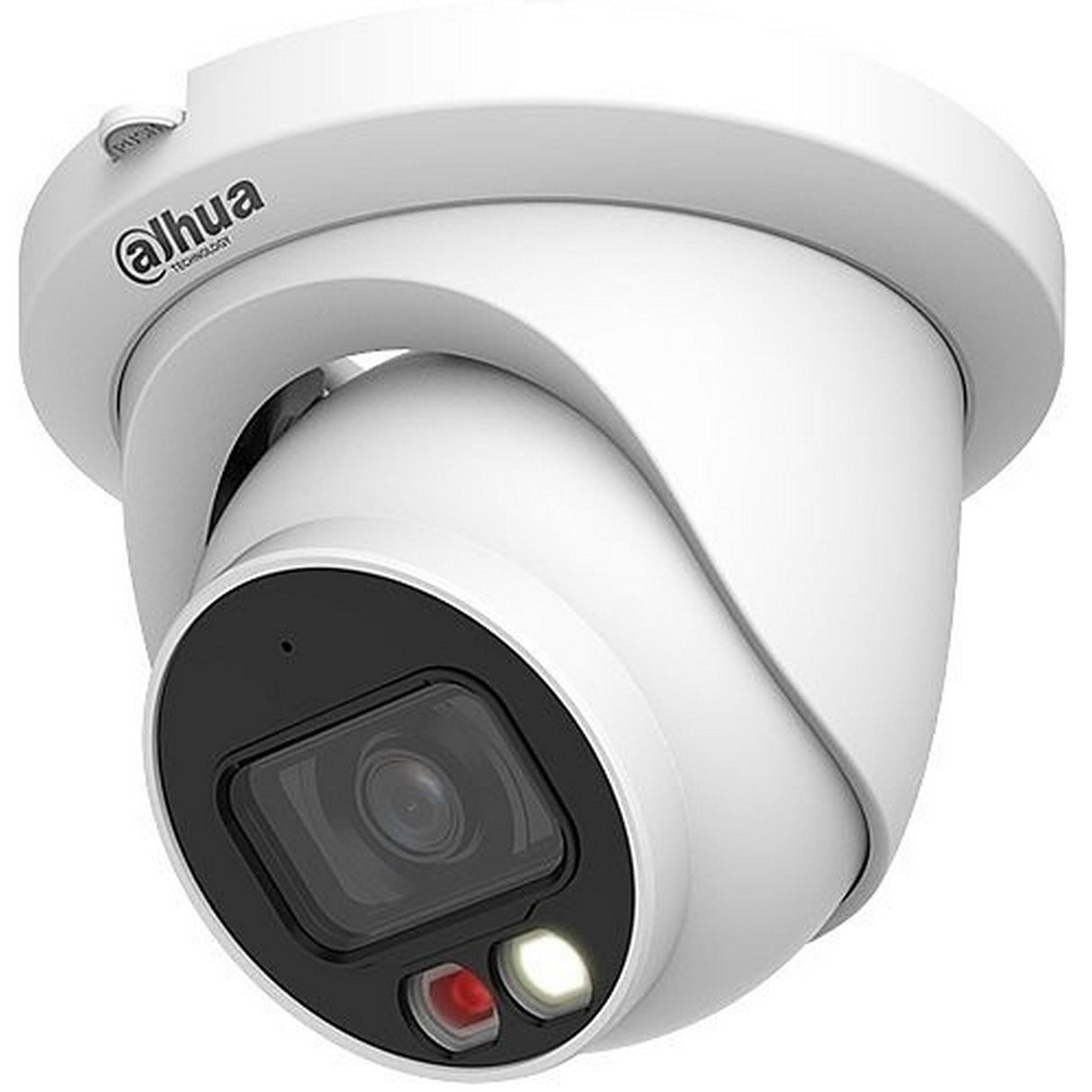

Dahua Lite-Series WizSense VU-MORE Color 4MP Turret WDR IP Camera, White

The 4MP H.265+ IR Network Camera is engineered for high-quality video surveillance, delivering exceptional image clarity and precise detection. Equipped with advanced technology, this camera offers an impressive resolution of 2688 x 1520 pixels, ensuring crystal-clear footage day or night. The camera is built for challenging environments with a robust metal casing and IP67-rated weatherproof design, making it ideal for both indoor and outdoor applications. With its powerful H.265+ video compression, it optimizes bandwidth and storage without sacrificing quality, ensuring long-lasting performance. Whether you need to monitor a perimeter, track intruders, or record vital video evidence, this camera excels in all aspects of modern surveillance.

Designed with versatility in mind, the camera boasts multiple streaming options, allowing it to deliver video in resolutions up to 4MP (2688 x 1520) while offering flexible configurations for varying bandwidth and storage needs. Equipped with a built-in microphone and support for smart features like motion detection, intelligent search, and perimeter protection, it brings cutting-edge technology to your security setup. The camera also features advanced analytics to detect human or vehicle violations through tripwire and intrusion detection methods, providing enhanced surveillance capabilities. With its warm light and infrared (IR) LED illuminators, it guarantees excellent performance even in low-light environments, ensuring visibility up to 98.43 feet (30 meters) in IR mode.

With user-friendly software support, mobile compatibility, and a variety of network protocols including ONVIF for seamless integration, this camera is a reliable choice for anyone looking to enhance their surveillance system. The camera’s ability to function under extreme conditions—from temperatures as low as –40°F to as high as 140°F—ensures continuous operation year-round. Whether you're safeguarding a commercial property, residential area, or public space, this high-performance camera offers the perfect combination of durability, flexibility, and cutting-edge features for all your security needs.

Key Features

• High-resolution 4MP (2688 x 1520) video recording
• Advanced H.265+ video compression for optimal bandwidth and storage efficiency
• Built-in microphone for audio surveillance
• IR LED and Warm Light illuminators for up to 98.43 ft (30 meters) visibility in darkness
• Smart IR and multiple image enhancement features for clear footage in low-light conditions
• IP67-rated weatherproof design for both indoor and outdoor applications
• Built-in intelligent analytics, including Perimeter Protection and Intelligent Search
• Support for ONVIF for easy integration with existing surveillance systems
• Mobile compatibility with iOS and Android devices

Technical Specifications

Camera Image Sensor: 1/3-in. CMOS
Effective Pixels: 2688 (H) × 1520 (V), 4MP
Scanning System: Progressive
RAM/ROM: 128 MB/128 MB
Electronic Shutter Speed: Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination:
    0.008 lux at F1.6 (Color, 30 IRE)
    0.0008 lux at F1.6 (B/W, 30 IRE)
    0 lux (Illuminator on)
S/N Ratio: > 56 dB
IR Distance: 98.43 ft (30 m) (IR), 49.21 ft (15 m) (Warm light)
IR On/Off Control: Auto; Manual
Illuminators: One (1) IR LED, One (1) Warm Light
Lens
Lens Type: Fixed-focal
Iris Type: Fixed
Mount Type: M12
Focal Length: 2.8 mm
Maximum Aperture: F1.6
Angle of View
    Horizontal: 95°
    Vertical: 52°
    Diagonal: 114°
Close Focus Distance: 2.95 ft (0.9 m)
DORI Distance
Detect: 208.66 ft (63.6 m)
Observe: 83.33 ft (25.4 m)
Recognize: 41.67 ft (12.7 m)
Identify: 20.99 ft (6.4 m)
Pan / Tilt / Rotation
Pan: 0° to 360°
Tilt: 0° to 78°
Rotation: 0° to 360°
Video
Compression: Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
Streaming Capability: Two (2) Streams
Resolution:
    4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296),
    1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720),
    D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
Frame Rate
    Main Stream: 2688 × 1520 at 20 fps
    Sub Stream: 704 × 480 at 20 fps
Bit Rate: H.264: 32 kbps to 6144 kbps, H.265: 12 kbps to 6144 kbps
Bit Rate Control: CBR, VBR
Day/Night: Auto (ICR); Manual
BLC Mode: BLC, HLC, WDR (120 dB)
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control: Auto, Gain Priority, Shutter Priority, Manual
Noise Reduction: 3DNR
Motion Detection: Off, On (4 Zones, Rectangle)
Region of Interest: Off, On (4 Zones)
Smart IR: Supported
Image Rotation: 0°, 90°, 180°, 270°
Mirror: Off, On
Privacy Masking: Off, On (4 Areas, Rectangle)
Audio
Built-in MIC: Yes
Audio Compression: G.711a, G.711Mu, PCM, G.726
Network
Ethernet: RJ-45 (10/100 Base-T)
Protocol: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
Interoperability: ONVIF (Profile S, Profile T), CGI, P2P, SDK, API
Maximum User Access: 6 (Total bandwidth: 36 M)
Edge Storage: FTP, SFTP
Micro SD Card Slot: Maximum 256 GB
Web Viewer: IE, Chrome, Firefox
Management Software: DSS, DMSS
Mobile Operating System: iOS, Android
Cyber Security
Configuration: Encryption, Trusted Execution, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encryption, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encryption, Generating and Importing X.509 Certification
Certifications
Safety: EN 62368-1
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B, Electromagnetic Compatibility Directive 2014/30/EU
Electrical
Power Supply: 12 VDC or PoE (802.3af)
Power Consumption:
    Basic: 1.9 W (12 VDC), 2.4 W (PoE);
    Maximum: 5.2 W (12 VDC), 5.9 W (PoE) (H.265 + Intelligence + WDR + Warm Light)
Environmental
Operating Conditions: –40°F to +140°F, Less than 95% RH
Storage Conditions: –40°F to +140°F
Ingress Protection: IP67
Construction
Casing: Metal
Dimensions: 3.97 in. × Φ4.33 in. (100.9 mm × Φ109.9 mm)
Net Weight: 0.82 lb (0.37 kg)
Gross Weight: 1.12 lb (0.51 kg)

What’s Included

• 4MP IR Network Camera
• Quick Start Guide
• Mounting Kit
• Power Adapter
