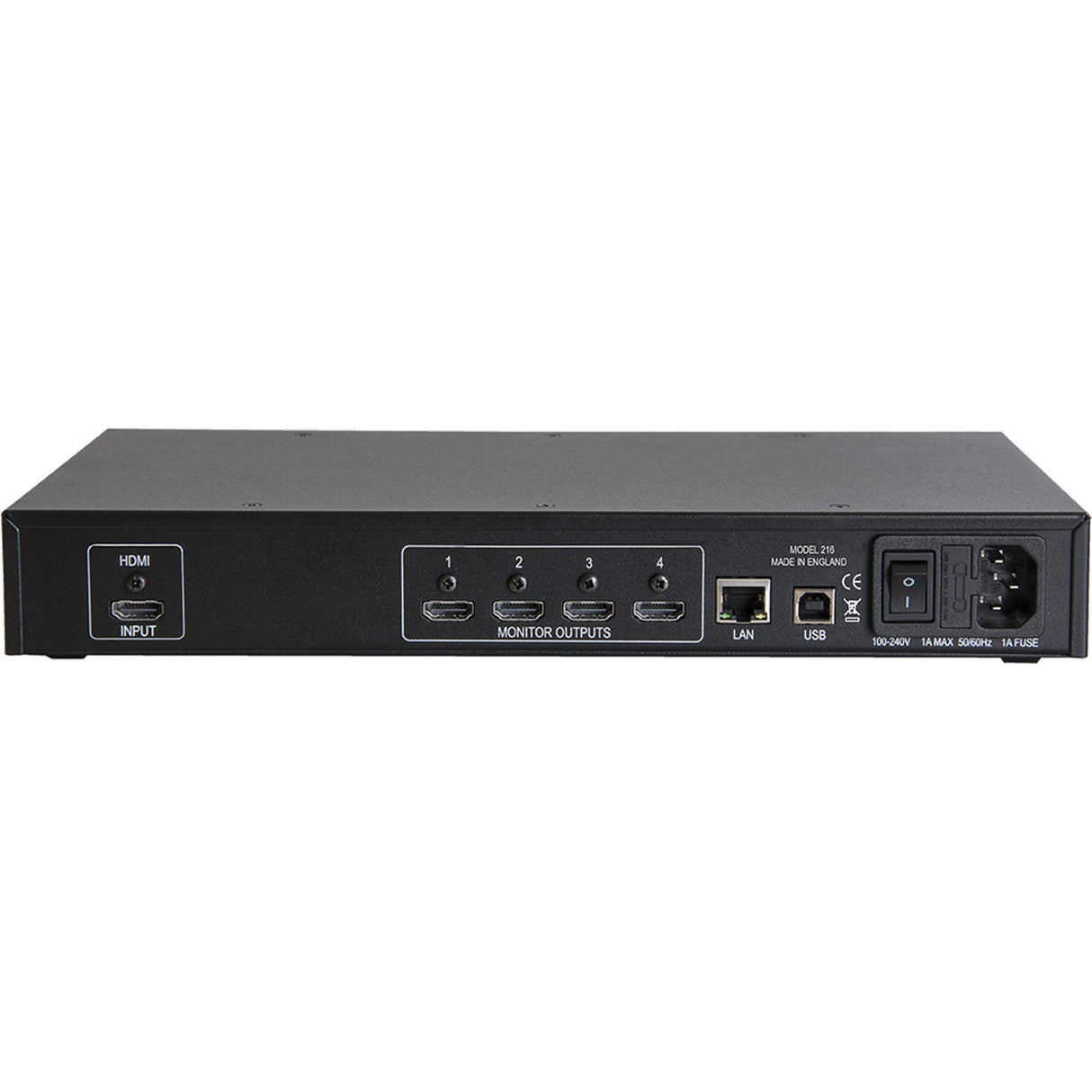

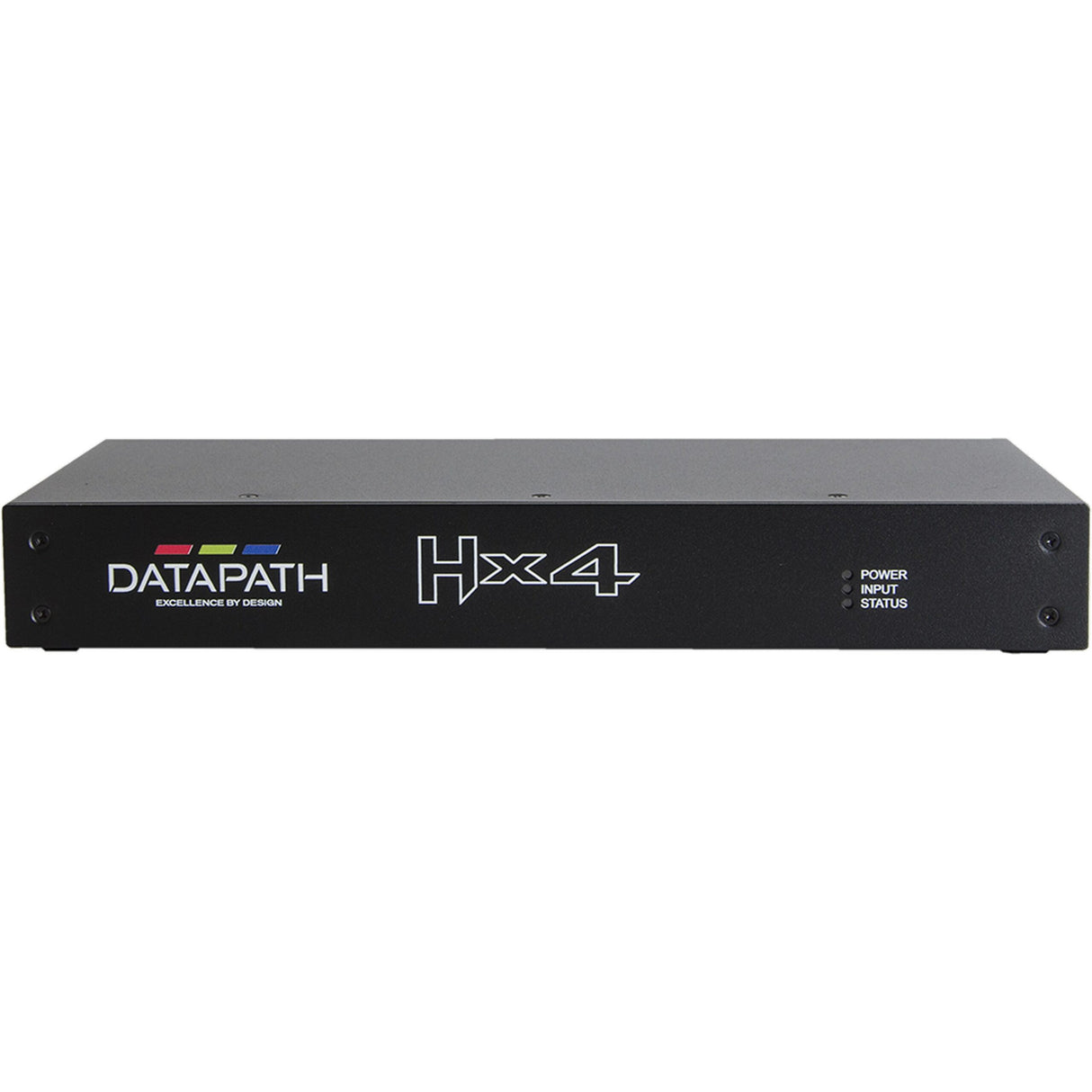

Datapath Hx4 4K 30Hz Display Controller
Datapath Hx4 4K 30Hz Display Controller
Free Shipping
Datapath Hx4 4K 30Hz Display Controller
The Datapath Hx4 is a stand-alone display wall controller with the capacity to run a single 4K HDMI source across four HD outputs in ultra-high definition. When used with the powerful Wall Designer application software, the Hx4 can represent any arrangement or configuration of the source image desired.
4K Input
The Hx4 features a HDMI 1.4 main input allowing for capture of signals up to 2160p @ 30 fps.
Up scaled HD outputs
Four HDMI outputs up scaled to full HD ensuring content is visually at the highest possible quality.
Network Connectivity
An ethernet port allow users to add the device to their networks, meaning the Hx4 can be reprogrammed from a remote location.
Key Features
- Infinite creative configurations
- One HDMI1.4 input (4K30), four HDMI1.3 (HD) outputs
- Rotate, crop, upscale, mirror and bezel correction
- HDCP support
- Gen-lock and frame-lock for tear free display
- True stand-alone operation: adapts to changes in source resolution by auto adjusting scale factors
- Network or USB interfaces allow platform independent control (Windows & MAC OS X 10.13 or later)
Technical Specifications
DIMENSIONS
316mm (l) x 172mm (w) x 42mm (h)
WEIGHT
(1.86kg)
OPERATING TEMPERATURE
0 Ā°C to 35 Ā°C /32 Ā°F to 96 Ā°F
POWER REQUIREMENTS
IEC switched and fused mains connector
100-240V, 50/60Hz / 35W
VIDEO INPUT CONNECTIONS
1x HDMI1.4 (2160p/30 or equivalent up to 297MP/s)
VIDEO OUTPUT CONNECTIONS
4 x HDMI1.3 (1080p60, 1200p60 or equivalent up to 165MP/s)*
*Outputs within 165MP/s but taller/wider than 2048 require testing
INPUT SURFACE
4K x 4K maximum
GENLOCK INPUT
HDMI Input
CONTROL INTERFACES
100Base-T Ethernet port. USB 2.0 Type B connector
FIRMWARE SUPPORT
Updates supported via USB and Ethernet connection
STORAGE
-20 Ā°C to 70 Ā°C / -4 Ā°F to 158 Ā°F
RELATIVE HUMIDITY
5%-90% non-condensing
WARRANTY
3 years
