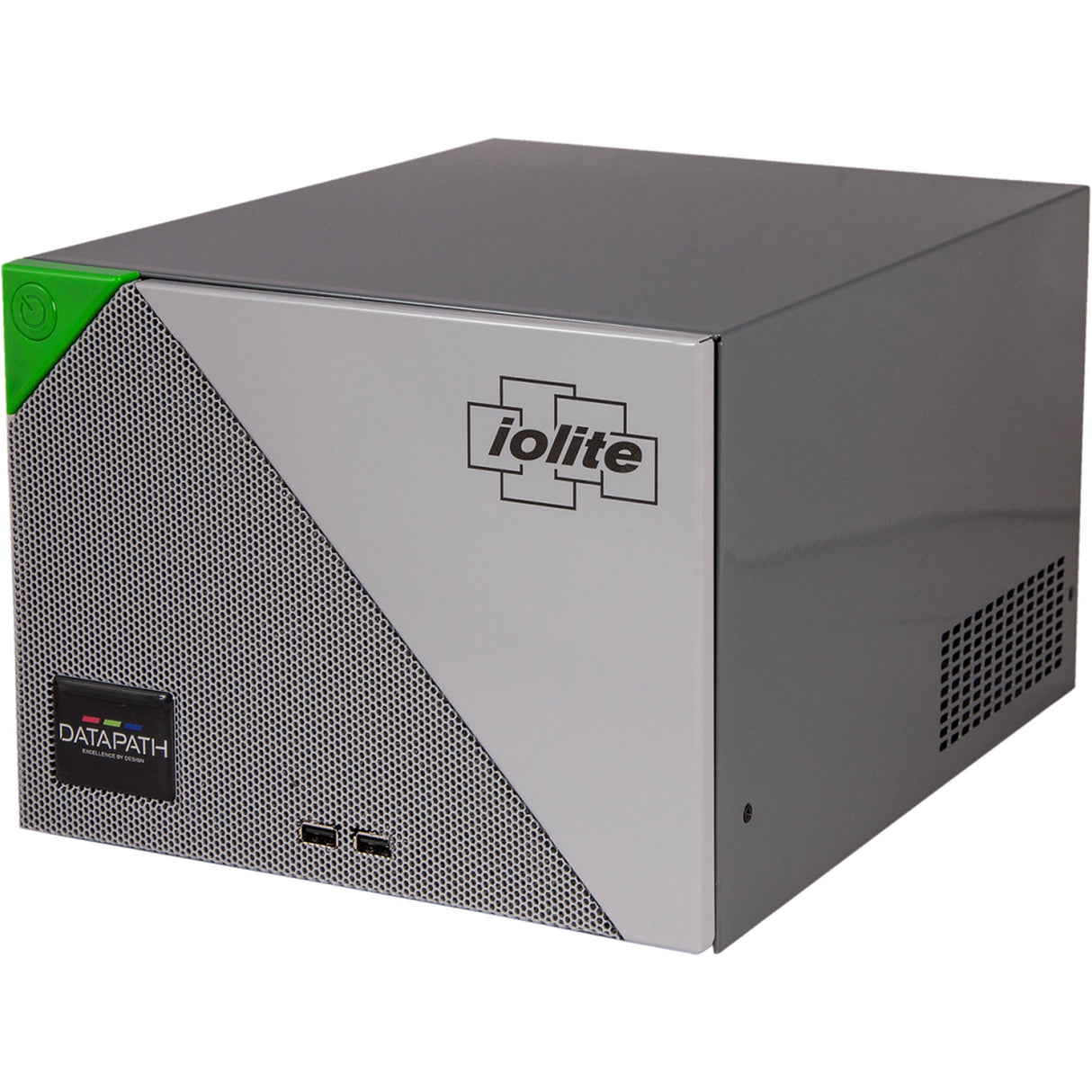

Datapath iolite 600 / 102 4 x HDMI Captures Controller with WallControl 10 Standard

iolite is an abbreviation for input/output lite, it is a full functioning compact multi input/multi output video controller/switcher. Based on the same underlying technology as the VSN series of controllers but with a much smaller footprint and cost structure.

The ability to install multiple screens and drive them from a single, simple unit has become central to businesses wanting enhanced conferencing and presentation facilities. In turn reception areas require both space for video centric informational resources, news feeds and traditional signage delivering corporate messaging in a variety of ways.

Datapath's iolite 600 is a small, quiet video system for delivering all of those requirements and more. Designed to house a number of video capture cards alongside mutli-output graphics cards and SQX IP cards the iolite 600 offers the ultimate in flexible multi-screen video deployments. The iolite is available in fixed configurations for immediate delivery or can be customised to exactly suit the project requirements.

Technical Specifications

Motherboard
SBC Mini ITX motherbroad with HDMI & DisplayPort control screen
Outputs 6 x USB 3.0 ports, 6 x USB 2.0 ports
Ethernet Intel Gigabit Ethernet port
Wifi Integrated
Processor
Standard Core i5, 6M cache, up to 3.6GHz
Optional Upgrade Core i7, 8M cache, up to 4GHz
Backplane
Datapath Express6
Six PCIe slots: five PCIe Gen2 slots x8, single PCIe Gen3 slot x8
Hard Drive
Standard Single 240GB SSD
Optional upgrade 480GB SSSD. Customers may upgrade to dual drives with RAID. Please confirm at time of ordering.
Operating System
Windows 7
Memory
Standard 8GB DDR3
Optional upgrade 16GB DDR3
Power Supply
ATX 250 watts
Dimensions
Length 320mm
Height 175mm
Width 250mm
Weight
10 - 15kg (shipped 15 - 20kg)
Compliance
FCC / CE / ROHS / UL
