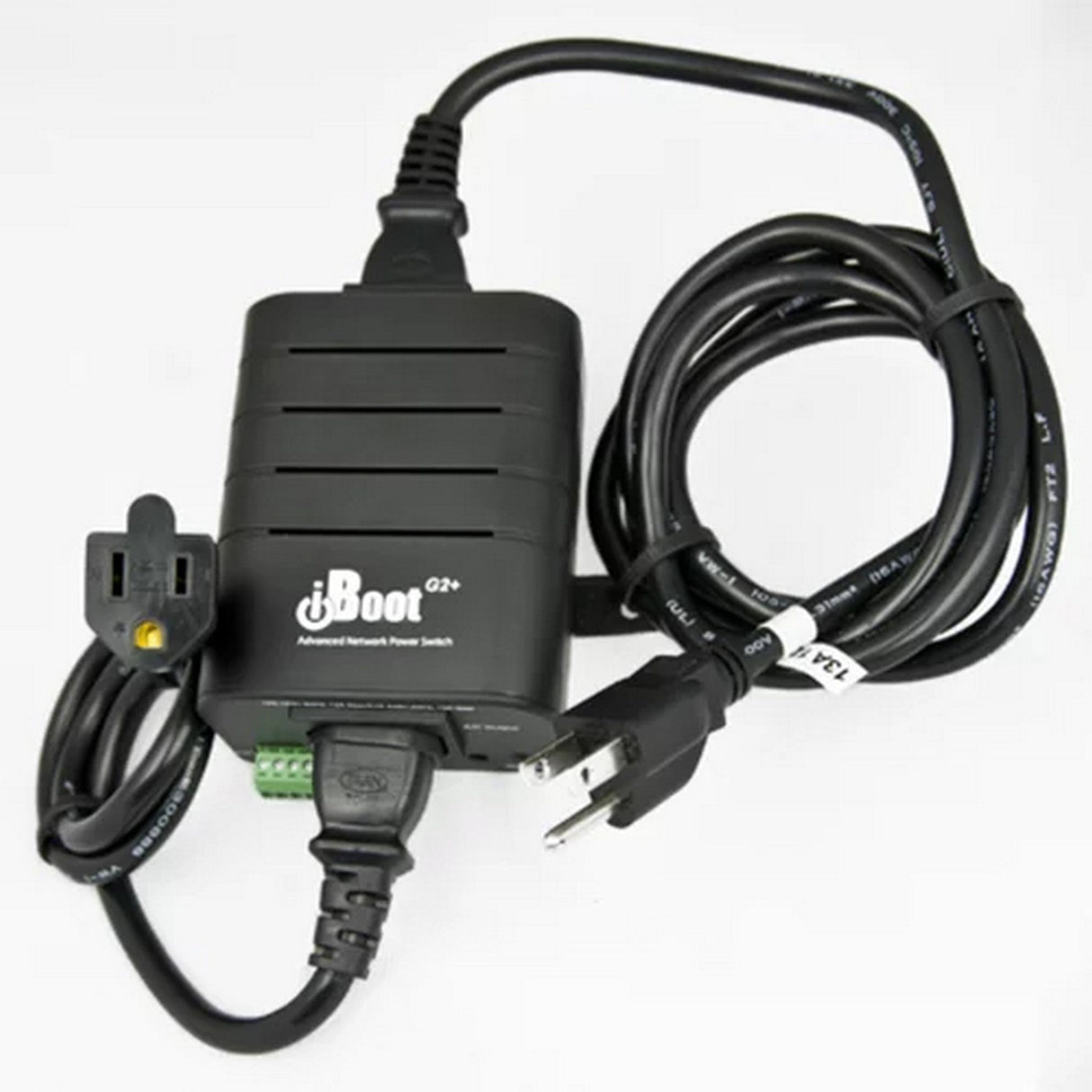

Dataprobe iBoot-G2+ Web Power Switch
Dataprobe iBoot-G2+ Web Power Switch
The Dataprobe iBoot-G2+ Web Power Switch is a cutting-edge solution designed for remote power management, offering users unparalleled control and convenience. With its intuitive web interface, this powerful device allows you to monitor and control power to your devices from anywhere in the world. Whether you're managing a server room, data center, or simply want to ensure your home electronics are always powered, the iBoot-G2+ is engineered to meet your needs.
Equipped with dual AC outlets, the iBoot-G2+ provides flexibility in powering multiple devices simultaneously. Its robust design ensures reliable operation, making it an ideal choice for both personal and professional use. The iBoot-G2+ also features advanced power monitoring capabilities, allowing users to keep track of power usage, identify issues, and optimize performance. This level of insight is critical for maintaining efficient operations and preventing unexpected downtime.
One of the standout features of the iBoot-G2+ is its ability to automatically reboot unresponsive devices. By pinging the connected device, the iBoot-G2+ can identify when a device has become unresponsive and can automatically power cycle it, thus restoring functionality without the need for physical intervention. This capability is invaluable for IT professionals and system administrators who need to ensure maximum uptime and efficiency.
Key Features
- Remote power control via web interface
- Automatic device reboot capability
- Dual AC outlets for flexible power management
- Real-time power monitoring
- Secure access with password protection
Technical Specifications
AC Input
105 ā 240 VAC Auto Ranging
AC Output
12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC
Power Connectors
Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6ā/2m
Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2ā/60cm
Network
10/100base-T, Auto sensing Uplink/Downlink. Cat 5 Cable Included 6ā/2m long. USB Mini-B Com Port 9600 8 N 1
Protocols
IP Addressable. DHCP or Static. HTTP Web Server built-in, Port Assignable. Telnet Server built-in, Port Assignable. DxP Messaging Protocol, Port Assignable. Auto-Ping TCP Protocol. Heartbeat Detector Protocol.
External I/O
Two Inputs, Two Outputs, Screw Terminal Connections:
Designator: V+ (Power Out: +12 VDC power out from the iBoot-G2+, Max current 100 mA)
Designator: I (Input: Dry Contact input or Open Collector)
Designator: G (Ground: Signal Ground for Input and Output)
Designator: O (Output: 2N3904 NPN Transistor, 100 mA Maximum)
Browser
Form Processing Browser Required: Mozilla 3.0 or IE 3.0 or greater
Security
Dual Password Protected, User and Admin
Physical
H x W x D: 2.0ā³ x 3.2ā³ x 4.2ā³ (60mm x 82mm x 107mm). Operating Temperature 32Ā°F to 122Ā°F
Reliability
MTBF: 320,000 Hours. Operating Cycles: 10,000,000 Mechanical. 100,000 at Maximum Load
Compliance
RoHS/WEEE, FCC Part 15 Class B AC Versions, UL/cUL, UL60950 Listed I.T.E File No. E225914, CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
