Dataprobe iBoot PDU Intelligent Power Distribution

The Dataprobe iBoot PDU Intelligent Power Distribution Unit is the ultimate solution for managing power in data centers, server rooms, and critical IT infrastructures. With multiple configurations available, including 4 and 8 outlet options, this advanced power distribution unit is tailored to meet a variety of power needs. Each model is designed with either 15A or 20A capabilities, ensuring you can choose the right unit to optimize your power distribution strategy.

Equipped with individually controllable outlets, the iBoot PDU allows for precise power management and remote control. Each outlet can be independently switched on and off, enabling effective rebooting, energy management, and enhanced security. This flexibility is crucial for streamlining operations and minimizing downtime across critical equipment.

The iBoot PDU features a simple web browser interface that provides complete status information and control of the outlets and groups. The integrated 1Gig Ethernet switch simplifies network wiring, reducing the need for extensive runs to the router. With multiple user access, administrators can assign specific rights and visibility to various outlets, enhancing collaborative management.

Key Features

• Independently Controllable Outlets: Switch each outlet on and off for reboot and energy management.
• Web Browser Control: User-friendly interface for comprehensive status and outlet control.
• Integrated 1Gig Ethernet Switch: Reduces network wiring and simplifies remote power management.
• Telnet/Serial CLI Control: Easily configure multiple iBoot-PDUs with a consistent Command Line Interface.
• Multiple User Management: Assign different access rights to users for enhanced security.
• Grouping of Outlets: Manage multiple outlets across clustered configurations simultaneously.
• Automation Capabilities: Monitor voltage, current, and temperature for automatic responses.
• Real-Time Event Control: Schedule automatic power actions for energy management and security.
• Landline Modem Option: Allows simple on/off control via phone calls when needed.
• Network Management: Compatible with SNMP v2c for advanced monitoring and reporting.

Technical Specifications

Model Variants

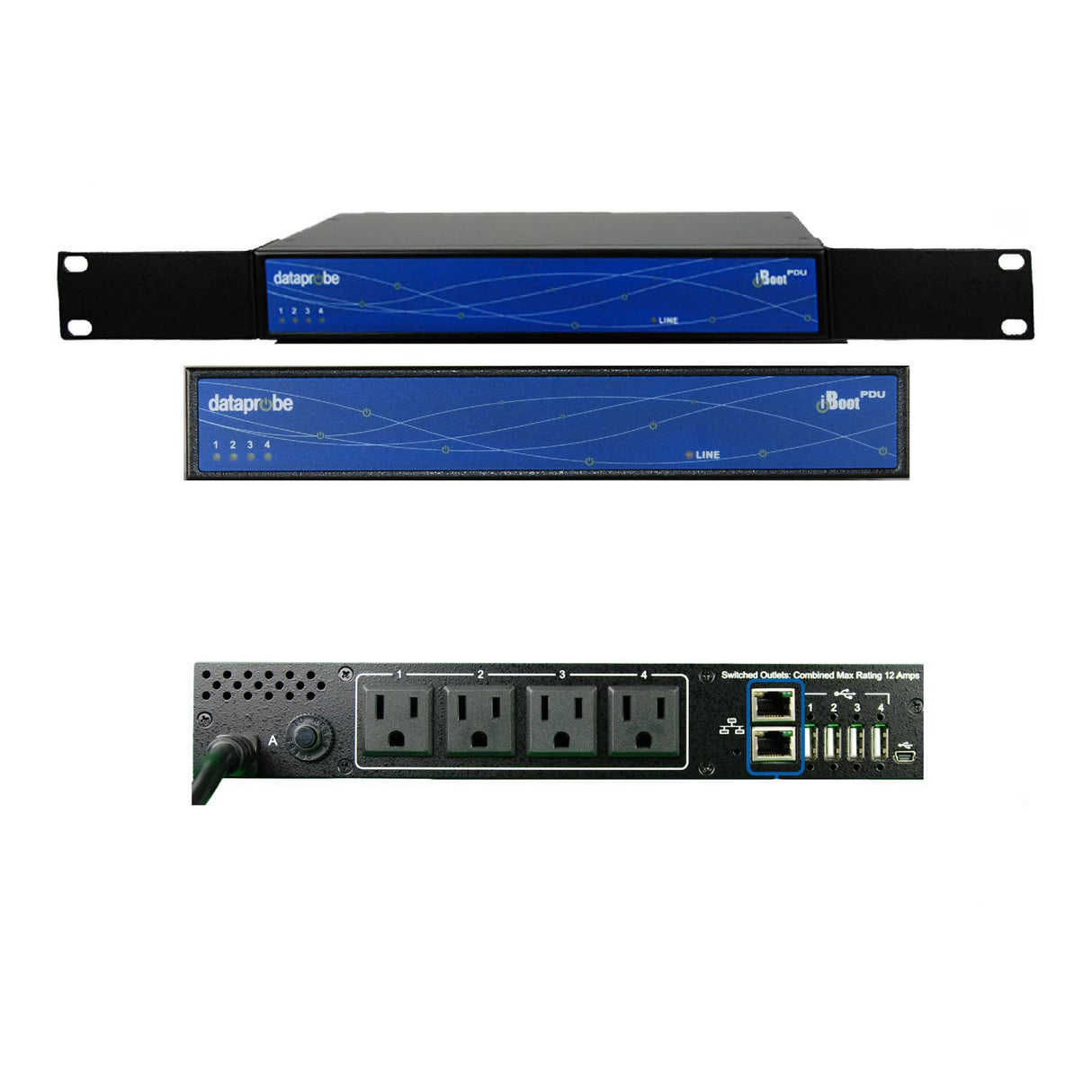

- iBoot-PDU4A-N15: Switched PDU 4 Outlet 15A
- iBoot-PDU4A-N20: Switched PDU 4 Outlet 20A
- iBoot-PDU4A-C10: Switched PDU 4 Outlet IEC 10A
- iBoot-PDU4A-C20: Switched PDU 4 Outlet IEC 20A
- iBoot-PDU4SA-N15: PDU 4 Outlet 15A w/ Switch
- iBoot-PDU4SA-C10: PDU 4 Outlet IEC 10A w/ Switch

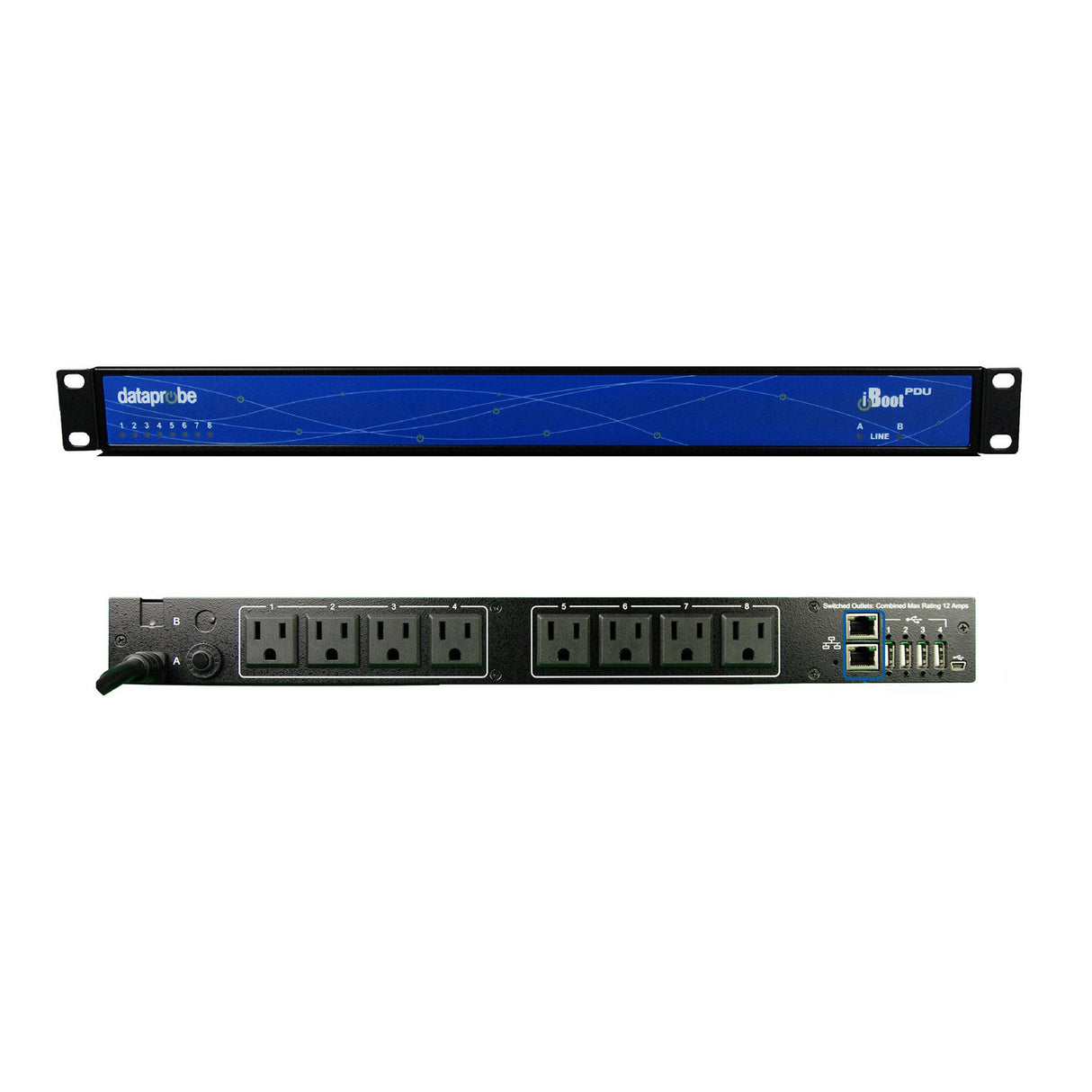

- iBoot-PDU8A-N15: Switched PDU 8 Outlet 15A
- iBoot-PDU8A-2N15: Switched PDU 8 Outlet Dual 15A
- iBoot-PDU8A-N20: Switched PDU 8 Outlet 20A
- iBoot-PDU8A-2N20: Switched PDU 8 Outlet Dual 20A
- iBoot-PDU8A-C10: Switched PDU 8 Outlet IEC 10A
- iBoot-PDU8A-2C10: Switched PDU 8 Outlet 2xIEC 10A
- iBoot-PDU8A-C20: Switched PDU 8 Outlet IEC 20A
- iBoot-PDU8A-2C20: Switched PDU 8 Outlet 2xIEC 20A
- iBoot-PDU8SA-N15: PDU 8 Outlet 15A w/ Switch
- iBoot-PDU8SA-C10: PDU 8 Outlet IEC 10A w/ Switch
Physical
Height: 1U (1.75 in / 4.5 cm)
Width: 11.0 in (27.94 cm)
Depth: 6.00 in (15.25 cm)
Weight: 4.5 lbs (2 kg)
Operating Temperature: 32°F to 149°F (0 to 65°C)
Storage Temperature: 14°F to 185°F (-10 to 85°C)
Relative Humidity: 0 to 95% Non-Condensing
Altitude: 6562 ft (2000 m) Operating
AC Input
Input Voltage: 115 VAC
15 AMP Models: NEMA 5-15 Linecord 115VAC
20 AMP Models: NEMA 5-20 Linecord 115VAC
Network
Single or Dual (S Models) 1G Ethernet
Web, Telnet, SNMP, SMTP
Port Assignable for Web and Telnet
SSL Security on Web control
USB Ports
4 x USB A ports for accessories, modem, temperature probe, etc.
1 x USB B port for serial port and external battery
Temperature Module Option
USB Dual Temperature Sensors. Sensor 2 on 1m cable.
Landline Modem Option
56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control
Switched Outlet
4 or 8 NEMA 5-15 Receptacle
12 Amps Max per Receptacle
N15 Models: 15 Amps Max Total per Linecord
N20 Models: 20 Amps Max Total per Linecord
Compliance - Safety
Complies with UL62638-1, 2nd Edition, 2014-12-01 (US)
IEC62638-1:2014 EN 62368-1:2014 + A11:2017
Complies with CAN/CSA C22.2 No. 62638-1-14, 2nd Edition, 2014-12-01 (Canada)
Compliance - Emissions
ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B
ICES-003:2016 Issue 6, Class B FCC Part 15 Class B
Compliance - Environmental
RoHS 3 Directive (EU) 2015/863 Compliant
WEEE Compliant
Rated Pollution Degree 2 (PD 2) for use in business/laboratory environments with only Non-Conductive pollution present
