Datavideo CAP-2 HDMI to USB 3.0 Capture Box

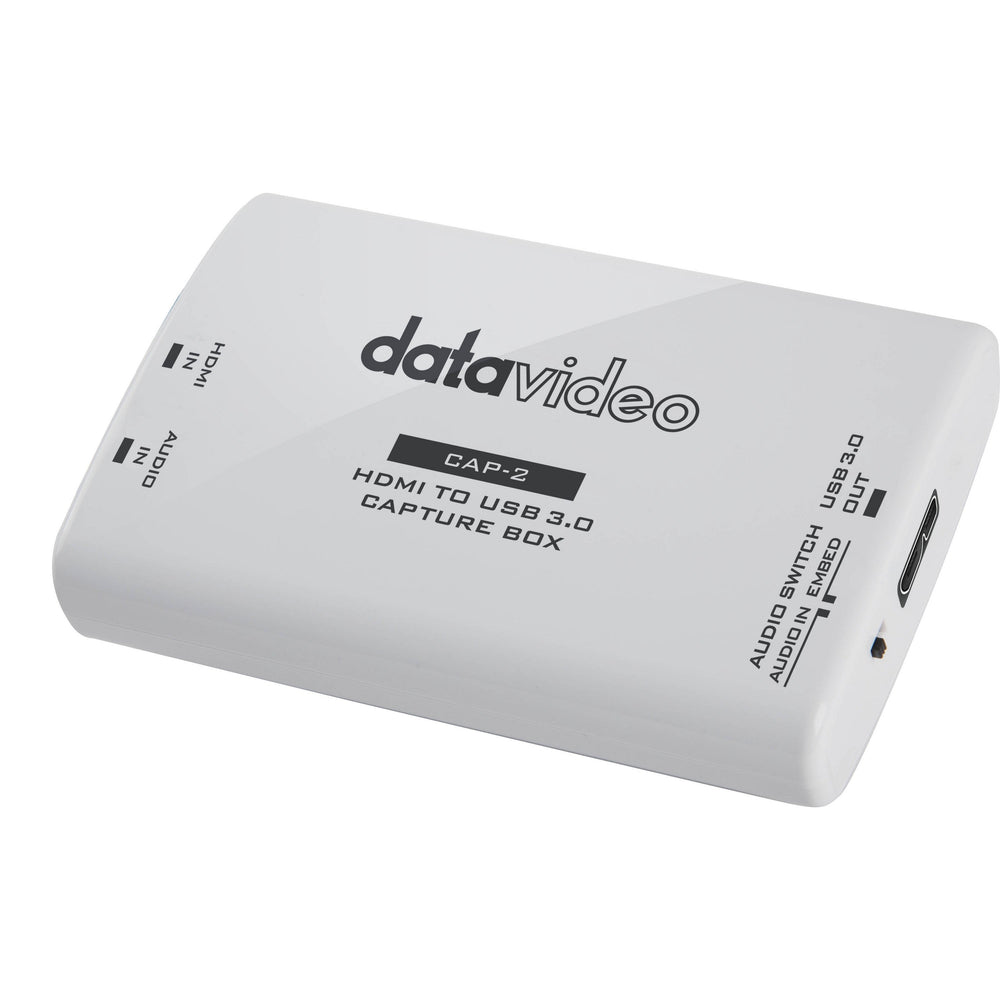

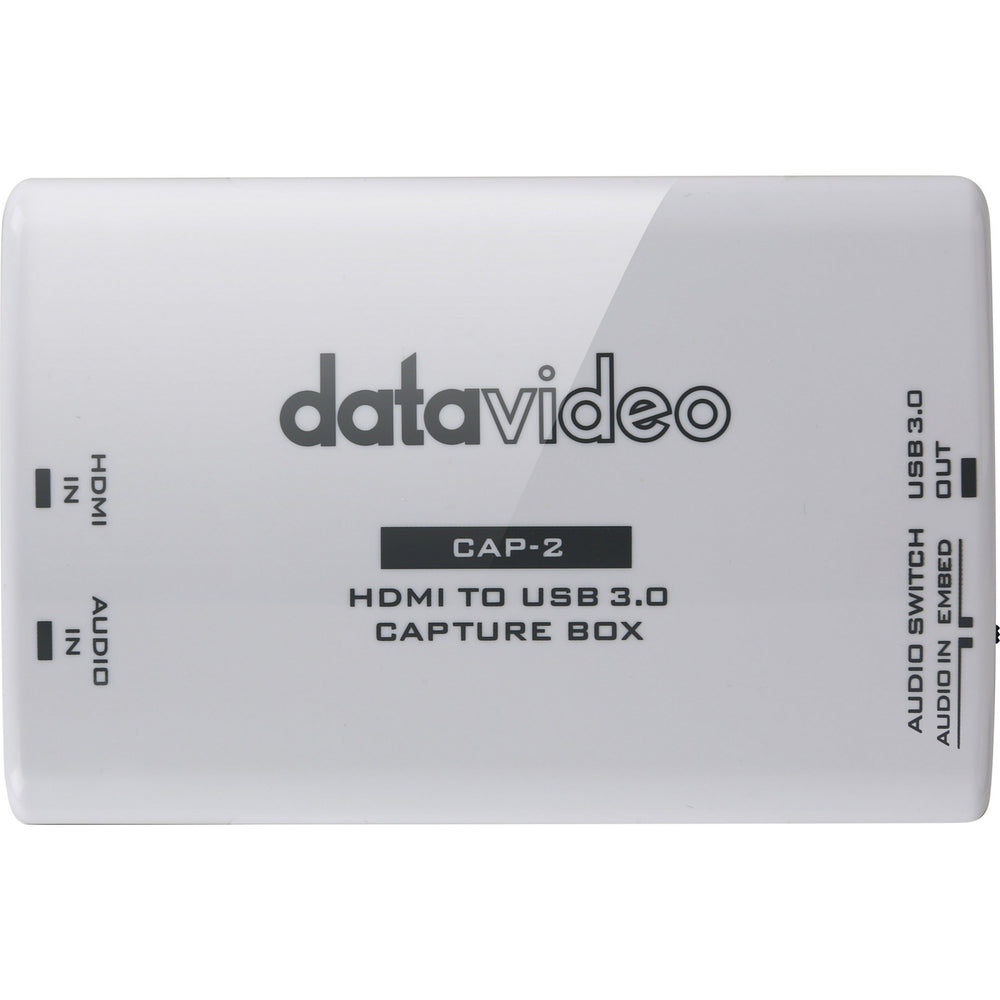

CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
USB 3.0 Interface
No external power is needed.
Plug-and-Play
Support UVC. Operations with video format (resolution and frame rate) auto-detection capability
Compatible with various operating systems
Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Technical Specifications
Input

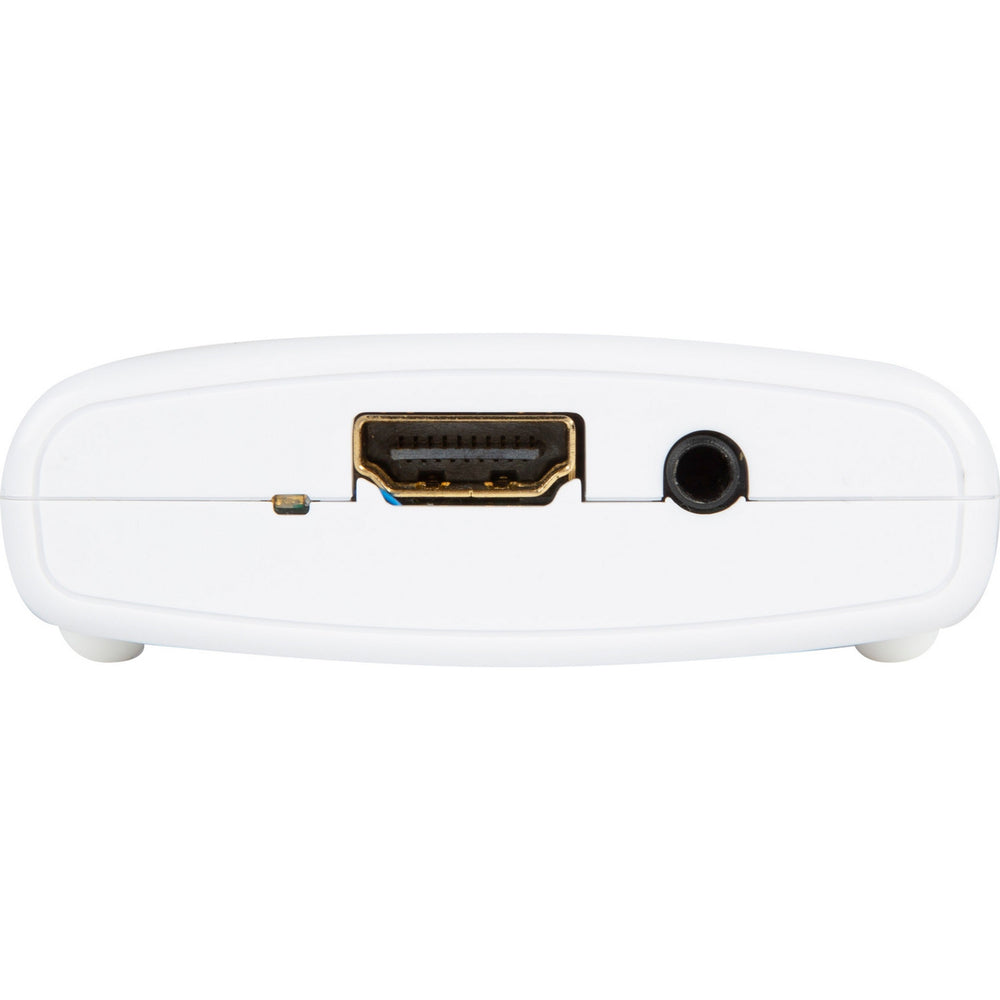

1x HDMI
Output

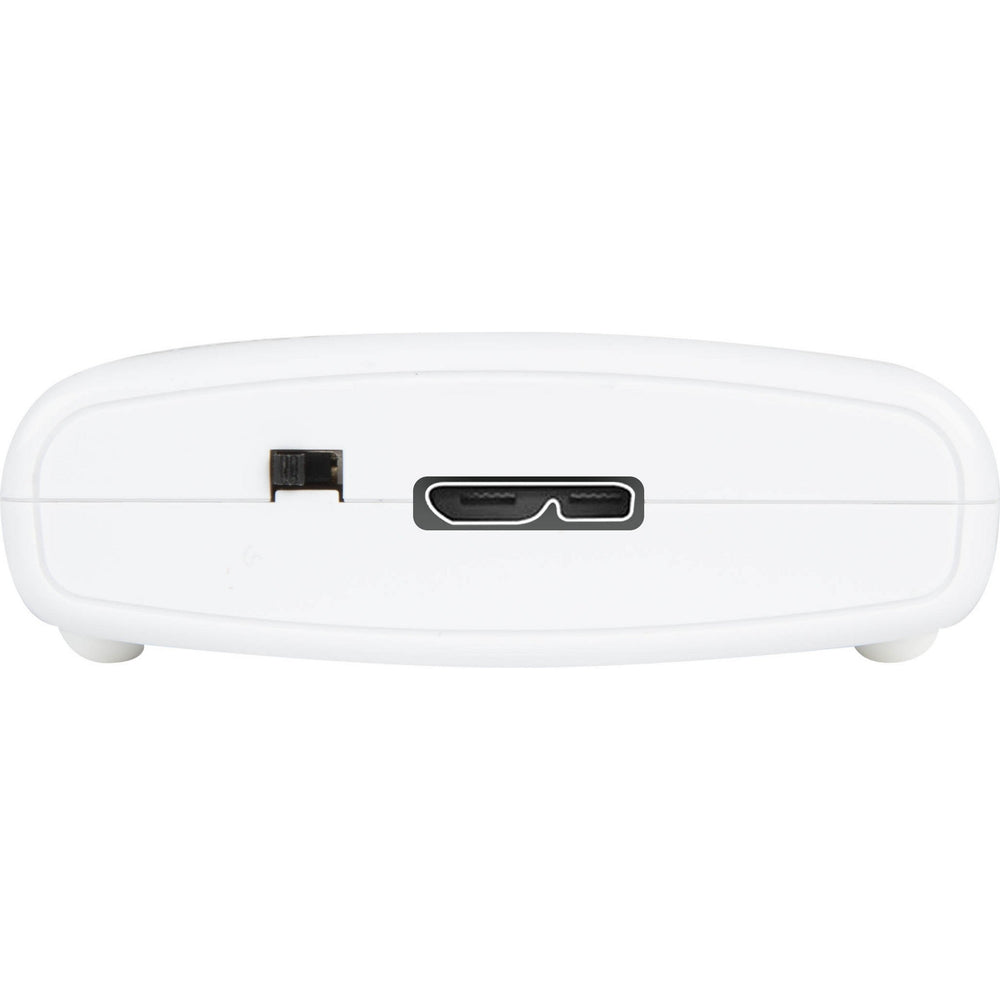

1x USB 3.0 (Micro B)
Input Video Bandwidth
150MHz (pixel clock rate)
Output Video Bandwidth
Up to 350Mbps (USB)
Supported Input Video Formats
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1680 x 1050p 60
1600 x 1200p 60
1440 x 900p 75/60
1400 x 1050p 60
1366 x 768p 60
1360 x 768p 60
1280 x 1024p 75/60
1280 x 720p 60/59.94/50
1024 x 768p 75/60
800 x 600p 75/60
720 x 576p 50
720 x 480p 60
720 x 480p 60
640 x 480p 60
Supported Output Video Formats
1920 x 1080p 60/50/30/25/24
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60
Audio Input
HDMI Embedded Audio & 3.5 mm stereo in
Audio Support
2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output
Capture Video Format
YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update
Via USB
Firmware update
USB Port
Power Consumption
2W
Operation Temperature
0~40C
Storage Temperature
-20~60C
Humidity
20~90% RH
Minimum System Requirement
Windows 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel CoreTM i5-4440 3.10GHz + NVIDIA GeForce GTX 660 or higher
Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher"
Dimension (LxDxH)
105 x 68 x 23 mm
Weight
70g
What's in the Box
1 x CAP-2
1 x Thank You Card
1 x USB 3.0 Cable
