Datavideo DAC-70 Broadcast Quality Up Down Cross Converter

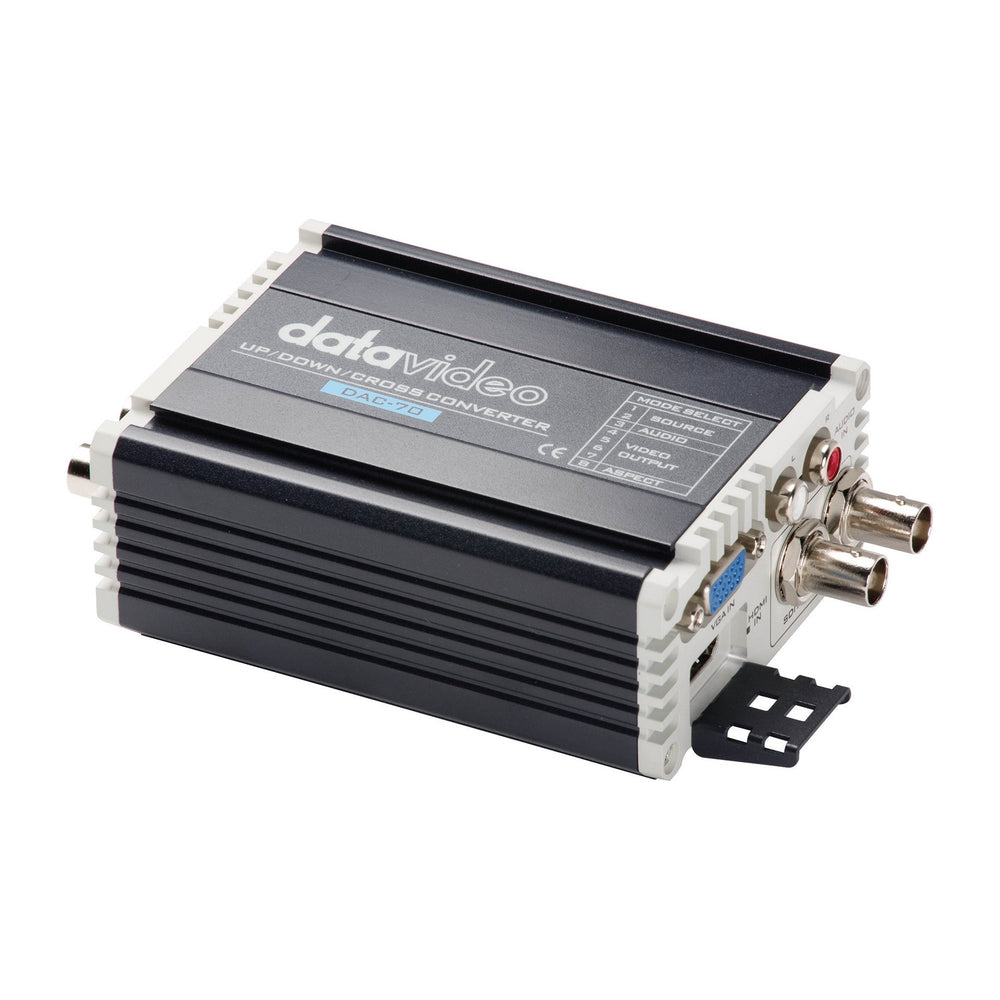

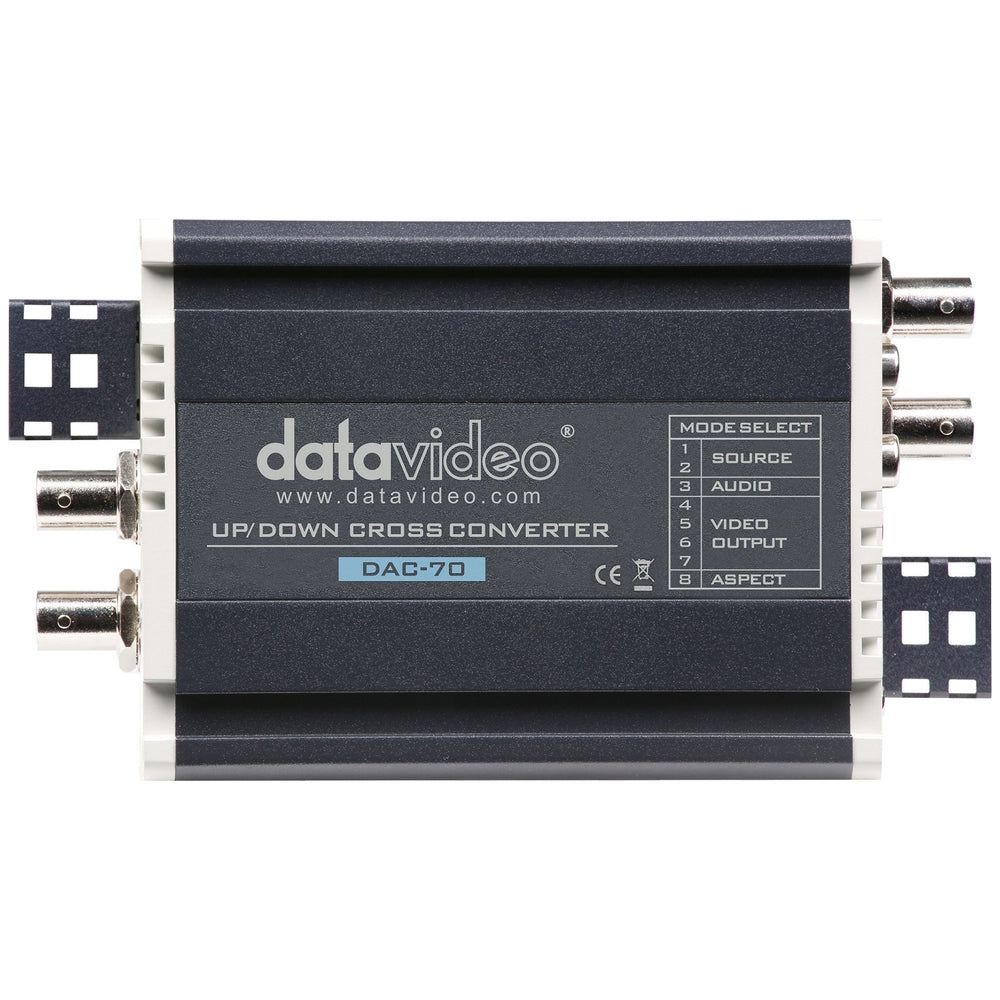

The Datavideo DAC-70 is a broadcast quality, set and forget, up-downcross converter. The unit offers simple mini switch controls and/or a flexible USB 2.0 interface. Whilst the DAC-70 case LEDs quickly confirm, DC power input, source selection and detection. The DAC-70 makes it easy to share VGA or HDMI or SDI inputs within your chosen HDMI or SDI workflow. Housed in a rugged case, the DAC-70 is tough enough to meet the knocks of fast paced set ups in ENG, studio or live production work. Built to the same dimensions as Datavideo’s range of converters, the DAC-70 can also be mounted into a standard 19” rack with a mix of other units when using the RMK-2 module.
Key Features
- 3G/HD/SD Up/Down/Cross convert

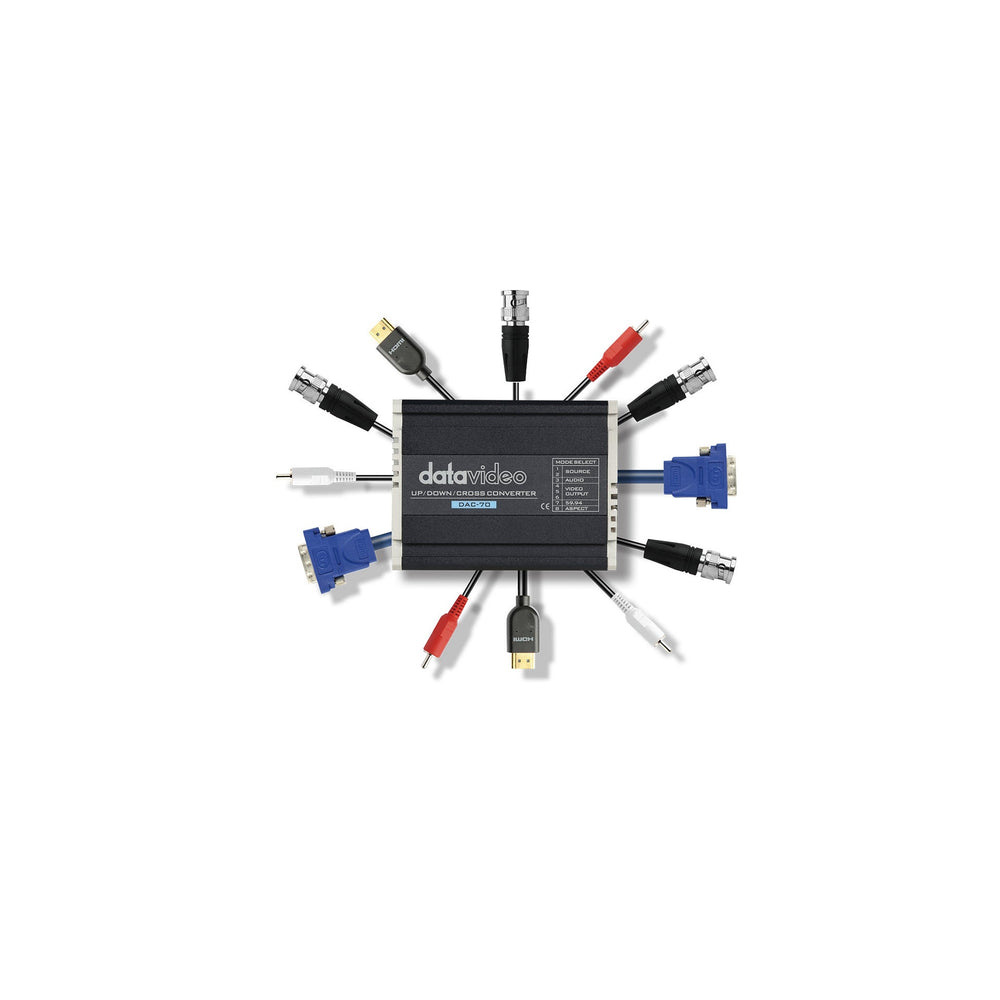

- Audio/HDMI/SDI/VGA input
- 3G/HD/SD SDI and HDMI output
- Can be rackmounted using optional RMK-2 2RU Rack solution
- DC 12V, 3.6 watt
Technical spces

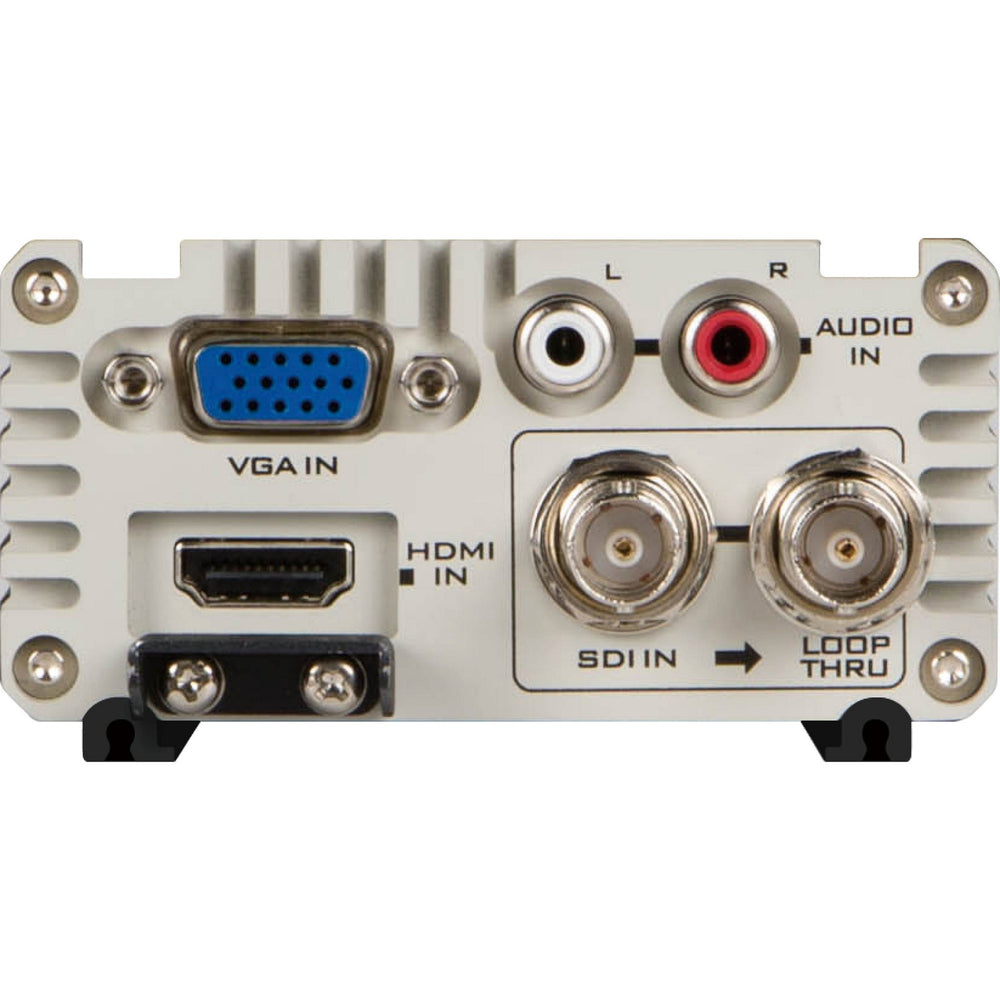

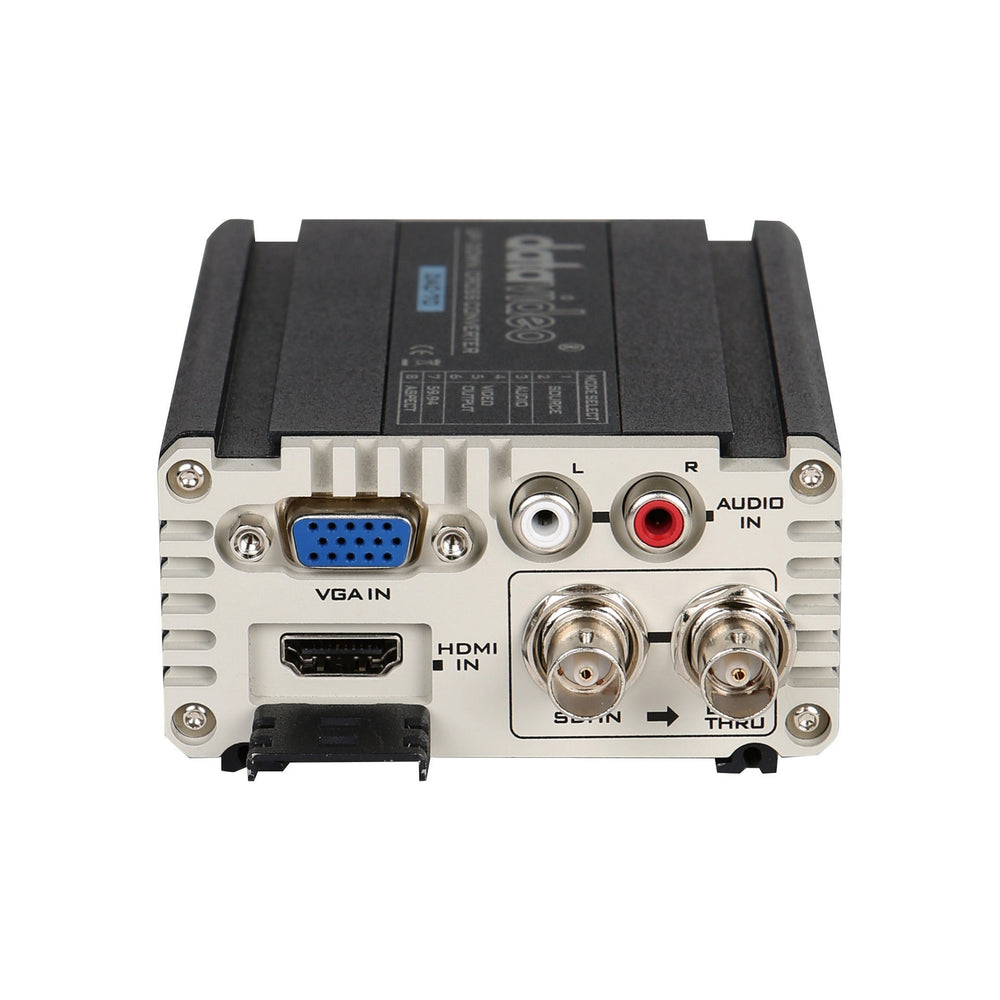

Input: VGA x 1, HDMI x 1 , HD/SD-SDI x 1, Analog Audio L/R

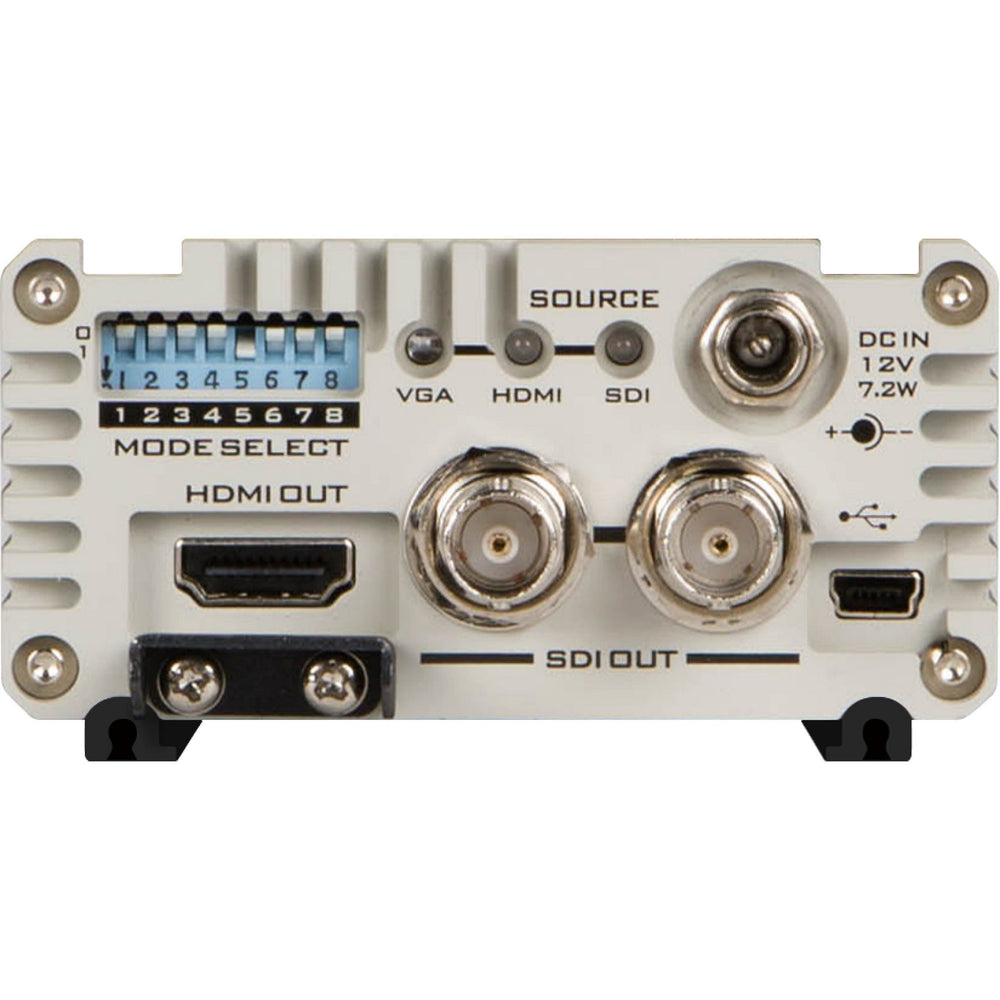

Output: SDI x 2, HDMI x 1, SDI Loop thru BNC(front panel)
Mini USB
Firmware upgrade
Aspect Mode selection

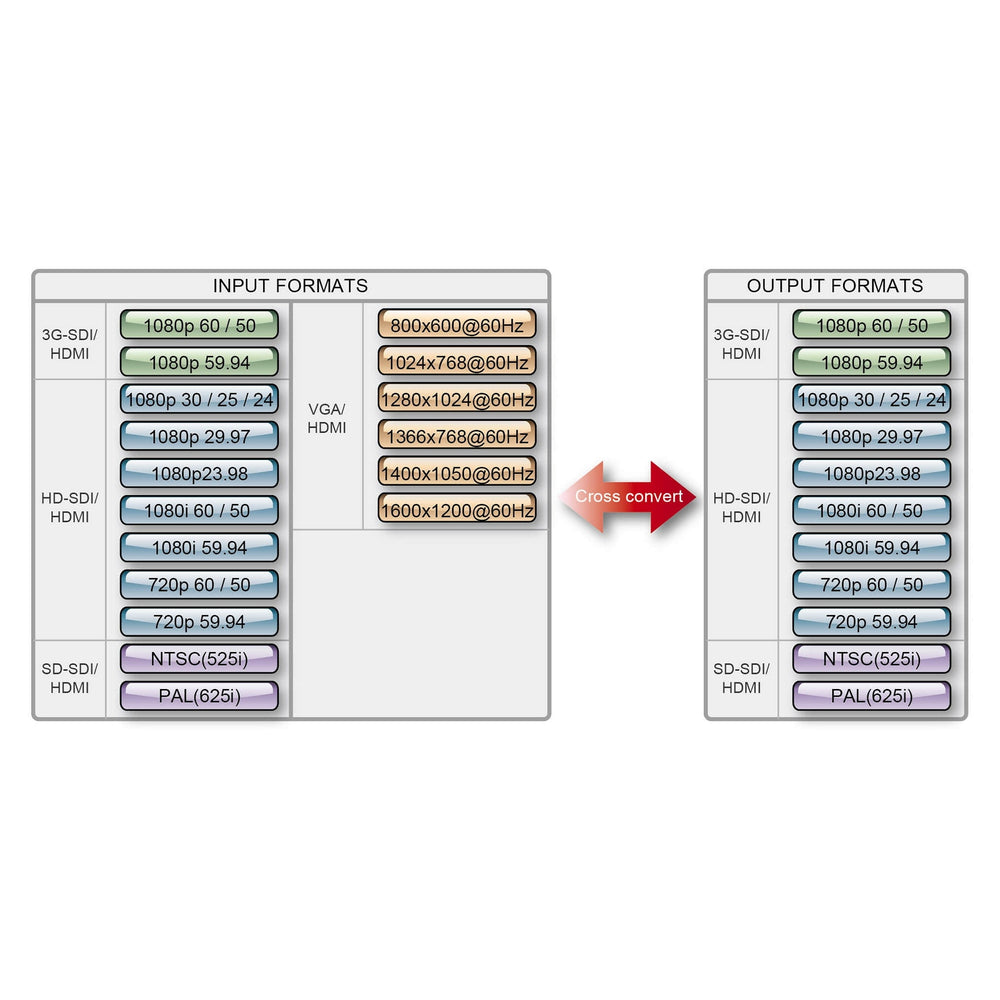

Supported Video Input Format
SDI (YUV) input
3G-SDI: 1080p60/50 1080p59.94
HD-SDI: 1080i60/50, 1080p30/25/24, 720p60/50
1080i59.94, 1080p29.97, 1080p23.98, 720p59.94
SD-SDI(YUV): 525i, 625i
HDMI(YUV/RGB): 1080p60/50, 1080i60/50, 1080p30/25/24,
720p60/50 1080p59.94, 1080i59.94, 720p59.94, 1080p29.97
1080p23.98, 480p, 576p
800x600@60Hz, 1024x768@60Hz,1280x1024@60Hz
1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz
VGA: 800x600@60Hz, 1024x768@60Hz,1280x1024@60Hz
1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz
HDMI Supports YUV / RGB color space
Supported Video Output Format
SDI / HDMI: 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30
1080i60/50 ; 720P60/50 1080i59.94 ; 720P59.94, 525i, 625i
SDI/HDMI output supports YUV 4:2:2
Supported Audio Format
Input:Analog Audio L/R : stereo audio
SDI / HDMI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio: up to 8CH, 44.1/48/96KHz, PCM
audio
Output
SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio: up to 8CH, 48KHz, PCM audio
Power Consumption: 12V/1A (7.2W)
Operating Temperature: 0~50°C <32~114°F>
Storage Temperature: -10~ +60°C
Dimension:144.8mm(L) x 85mm(W) x 45.2mm(H)
Certifications: CE / FCC
