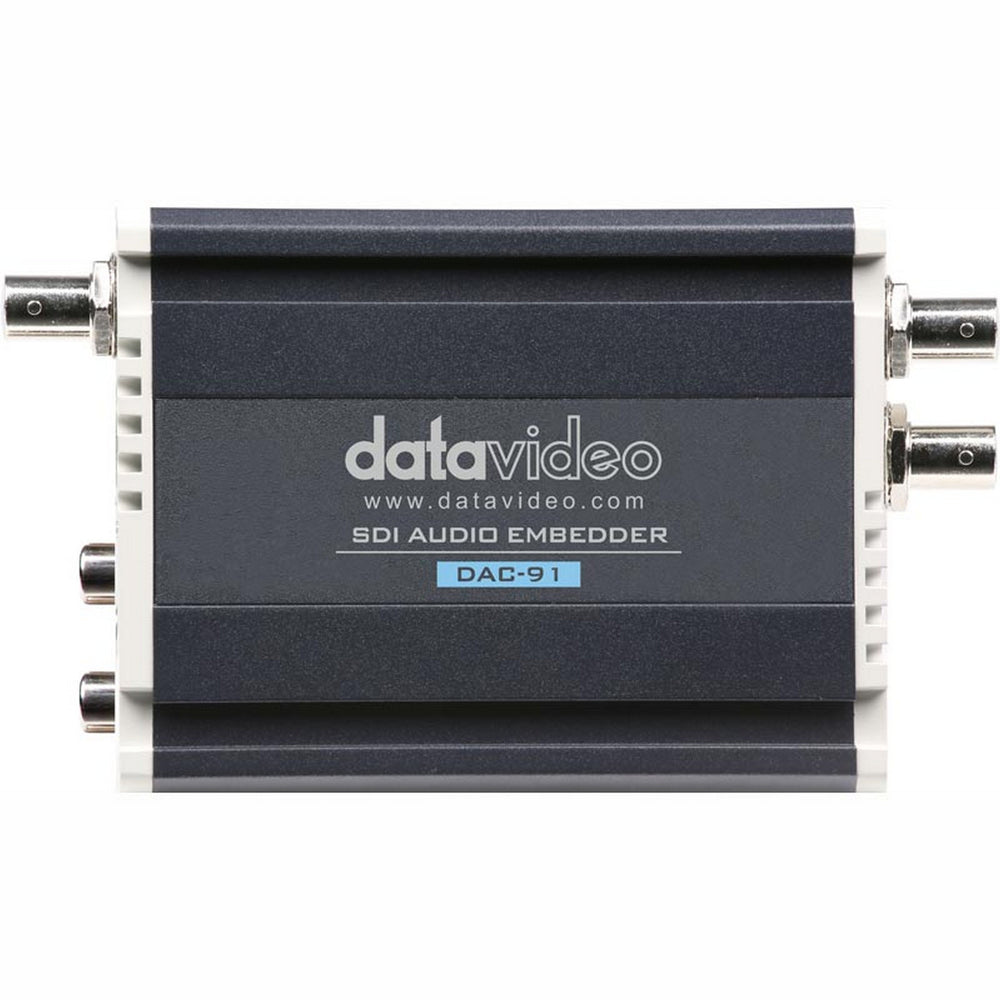

Datavideo DAC-91 SDI Audio Embedder

Datavideo | SKU: DTVD-DAC91
$36900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Datavideo DAC-91 SDI Audio Embedder

Allow users to embed 2 channels of analogue audio into SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.

Auto sets compatible formats to embed external sound sources to SDI output
Embed Audio into an SDI Signal

Supports SMPTE and EBU
Audio level indicator display
Audio level adjustment

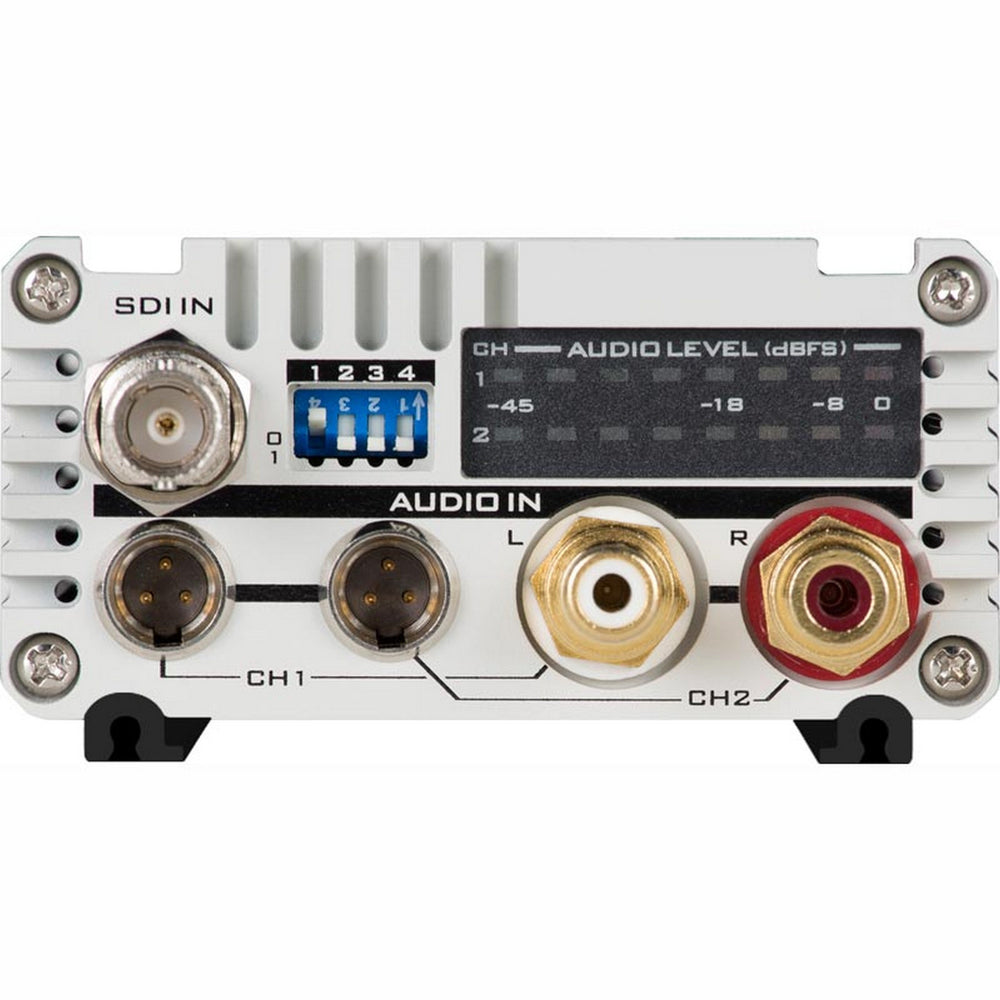

4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
The Audio box also has audio level adjustment by using the built-in DIP switches.

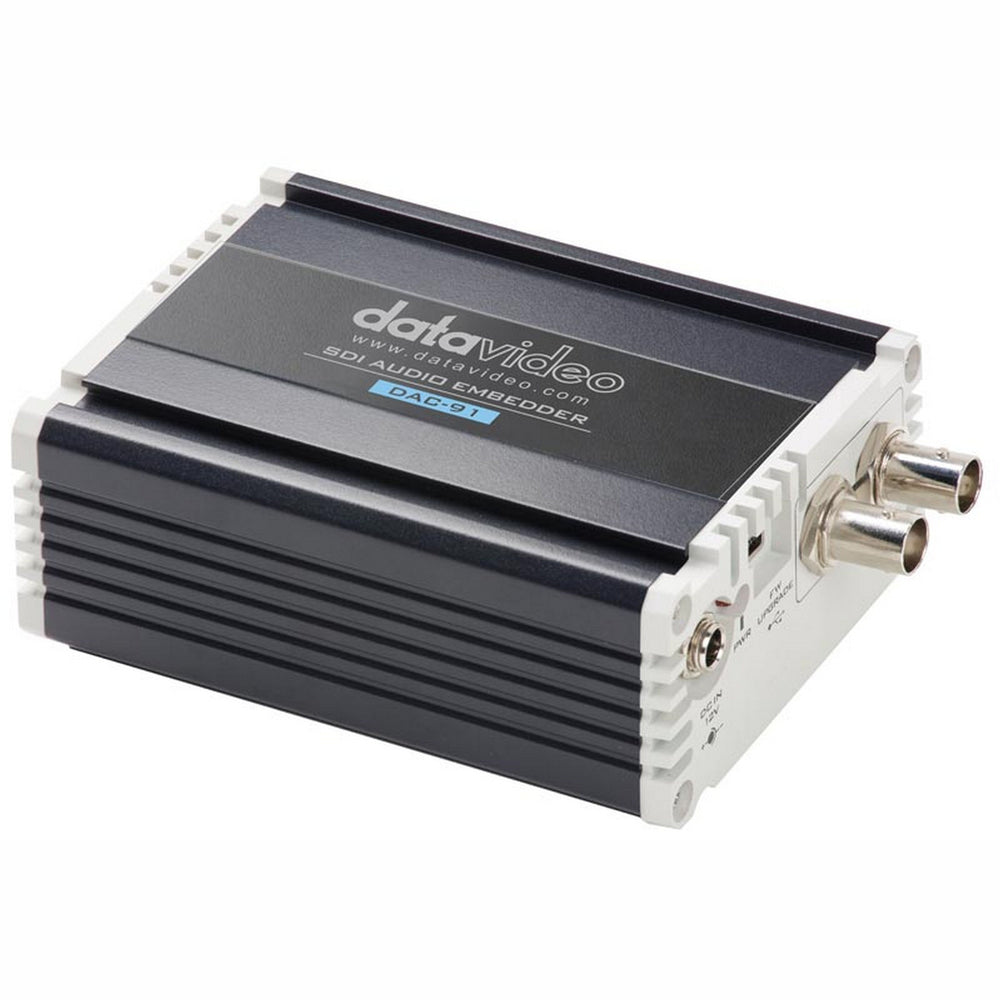

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Technical Specifications

SDI Video Input
3G/HD/SD-SDI x 1

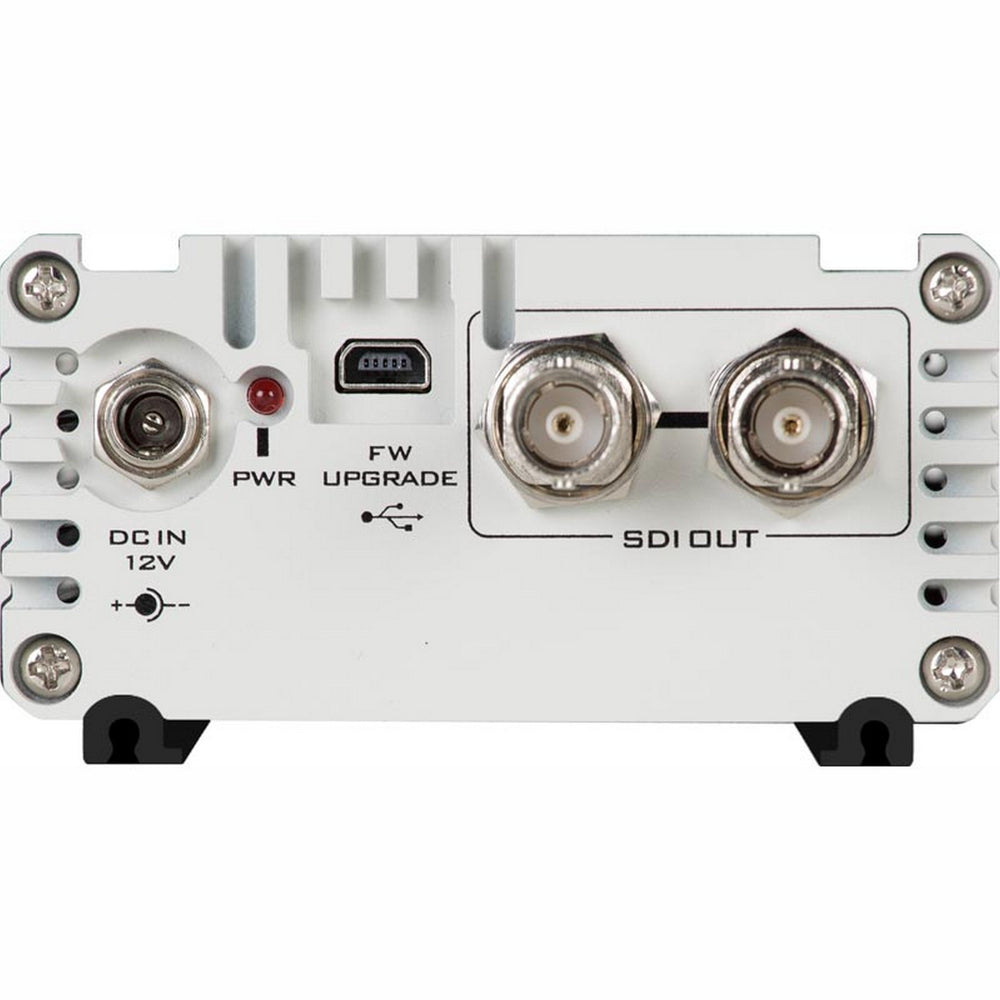

SDI Video Output
3G/HD/SD-SDI x 2
Analog Audio Input
Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2
* Mini XLR1 & RCA1 mixed to CH1
* Mini XLR2 & RCA2 mixed to CH2
Indicator
Power LED x 1 Audio Level LED : 2 rows
Updates and Configuration
Mini USB x 1
Audio Format Selection
SMPTE, EBU
Gain
Yes
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 C
Power
DC 12V, 0.5A
What's in the Box
1 x DAC-91 product
1 x AD Switch DC 12V
2 x Mini XLR to female XLR cable
1 x Thank You Card
