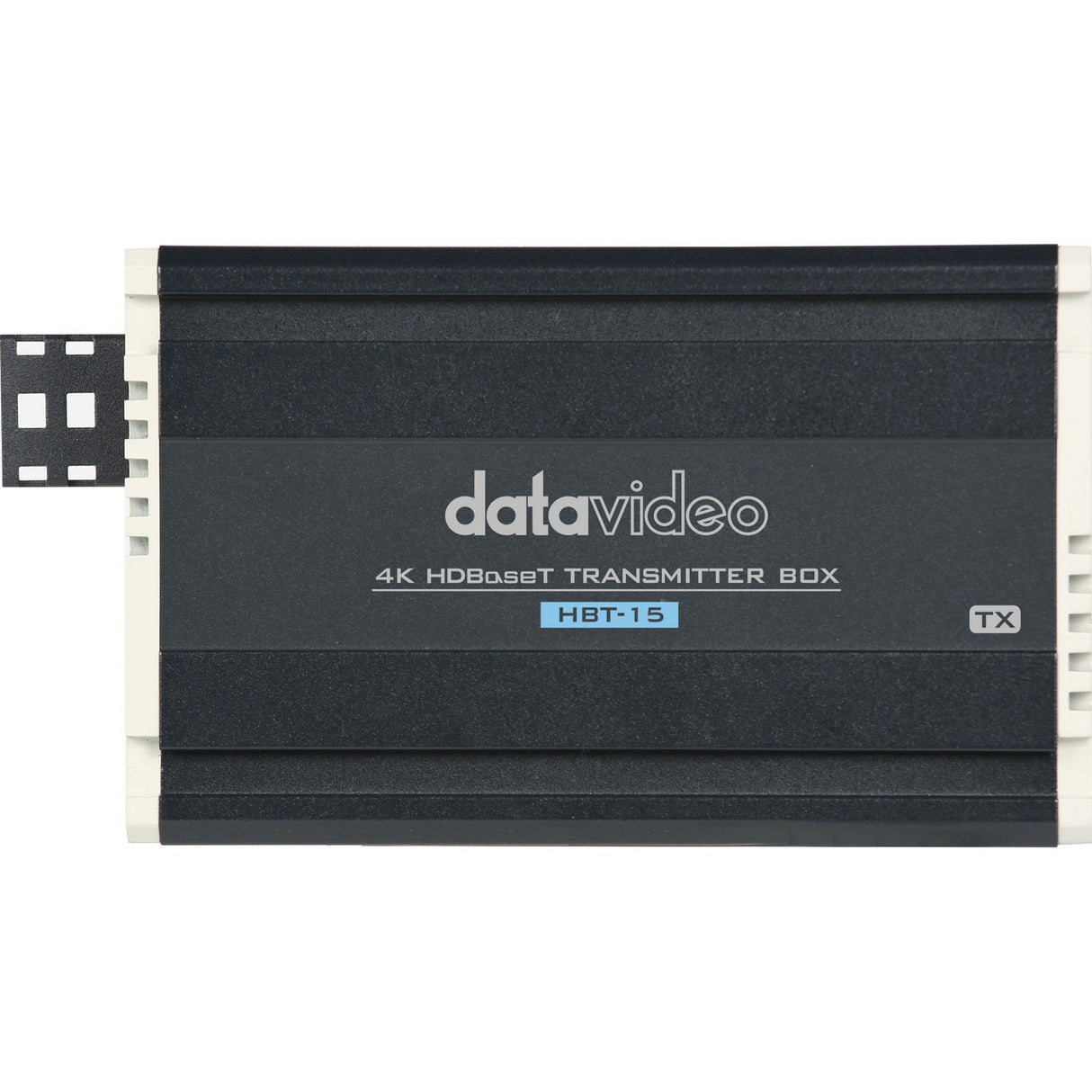

Datavideo HBT-15 4K HDBaseT Transmitter Box
Datavideo HBT-15 4K HDBaseT Transmitter Box
Free Shipping
The Datavideo HBT-15 4K HDBaseT Transmitter Box is a powerful 4K HDBaseT transmitter designed to elevate your video transmission capabilities. This innovative device transmits high-definition video, control signals, and even power over a single Ethernet cable, making it ideal for long-distance applications.
With the HBT-15, you can transmit crystal-clear 4K resolution visuals at up to 100 meters using Cat 6A or higher cables. This eliminates the need for multiple cables, simplifying installation and reducing cable clutter. The HBT-15 boasts extensive compatibility, supporting Ultra HD and Full HD resolutions, along with Dolby TrueHD and DTS-HD Master Audio for an immersive audiovisual experience. Additionally, it seamlessly integrates with various devices thanks to its support for DVIP, RS-232, and RS-422 control protocols.

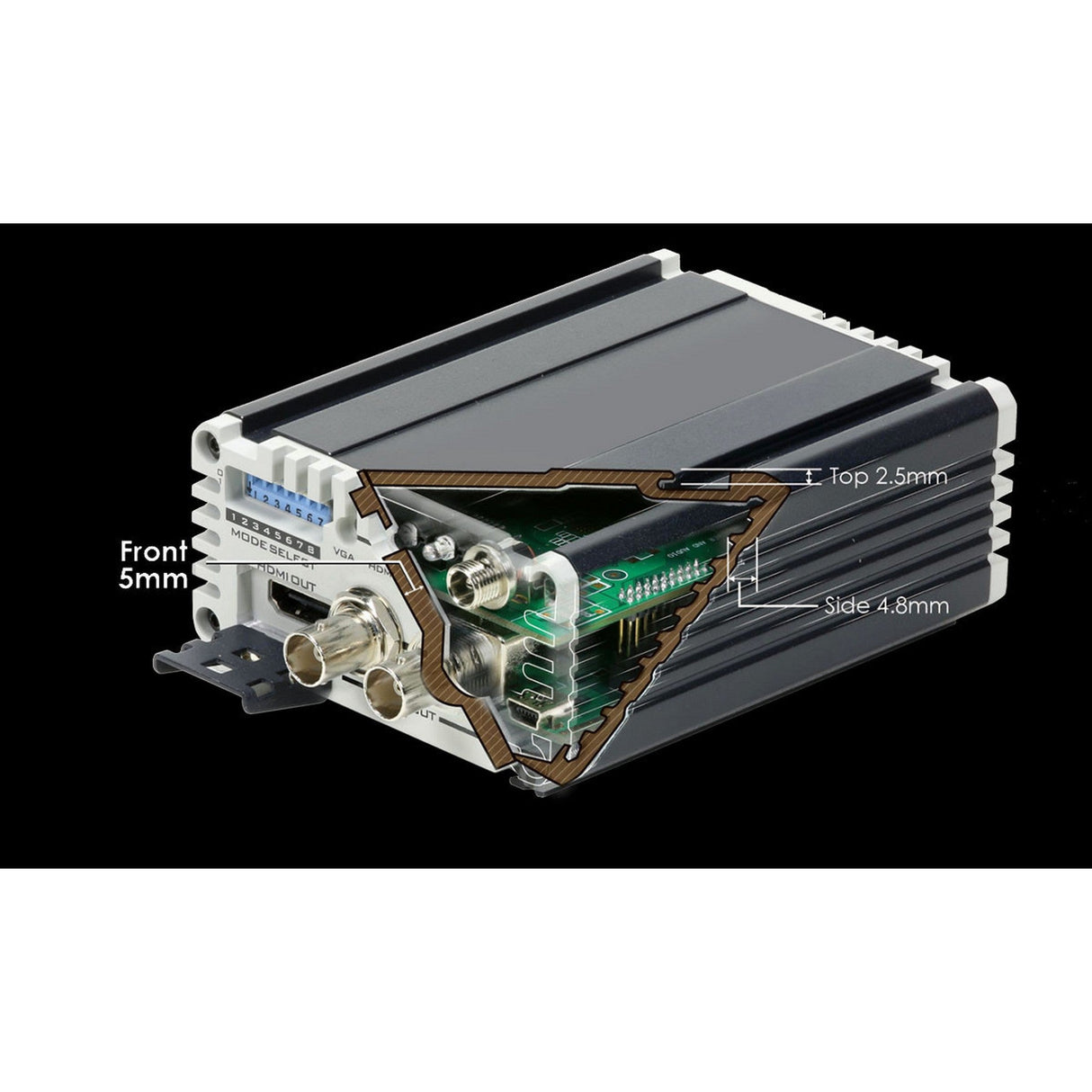

The HBT-15 offers flexible powering options with support for both local power supply and Power over Ethernet (PoE+). It can even provide 12V power for connected equipment. Ensuring secure transmission of high-definition content without interruption, the HBT-15 is HDCP compliant. Built to withstand demanding environments, the HBT-15 features a rugged aluminum alloy casing for long-lasting performance.
The HBT-15 is the perfect solution for conference rooms, lecture halls, digital signage applications, home theaters, and any other scenario requiring long-distance, high-quality video transmission.
Technical Specifications
Model Number
HBT-15

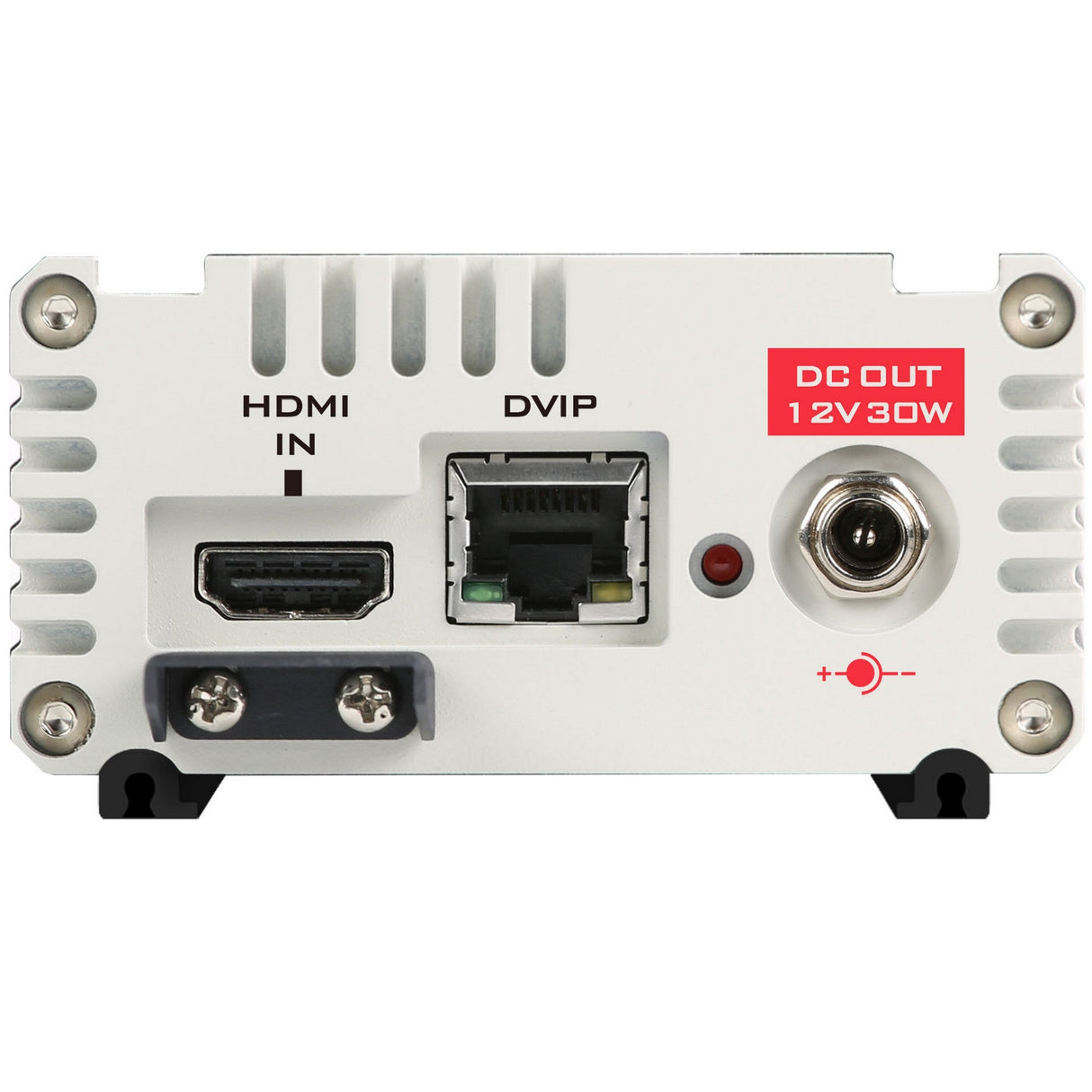

Video/Audio Input
HDMI 2.0 x1
Video/Audio Output
HDBaseT RJ-45 x1
Supported Video Format
2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process
4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth
Single-link 600MHz [18Gbps]
DVIP
RJ-45 x1(output)

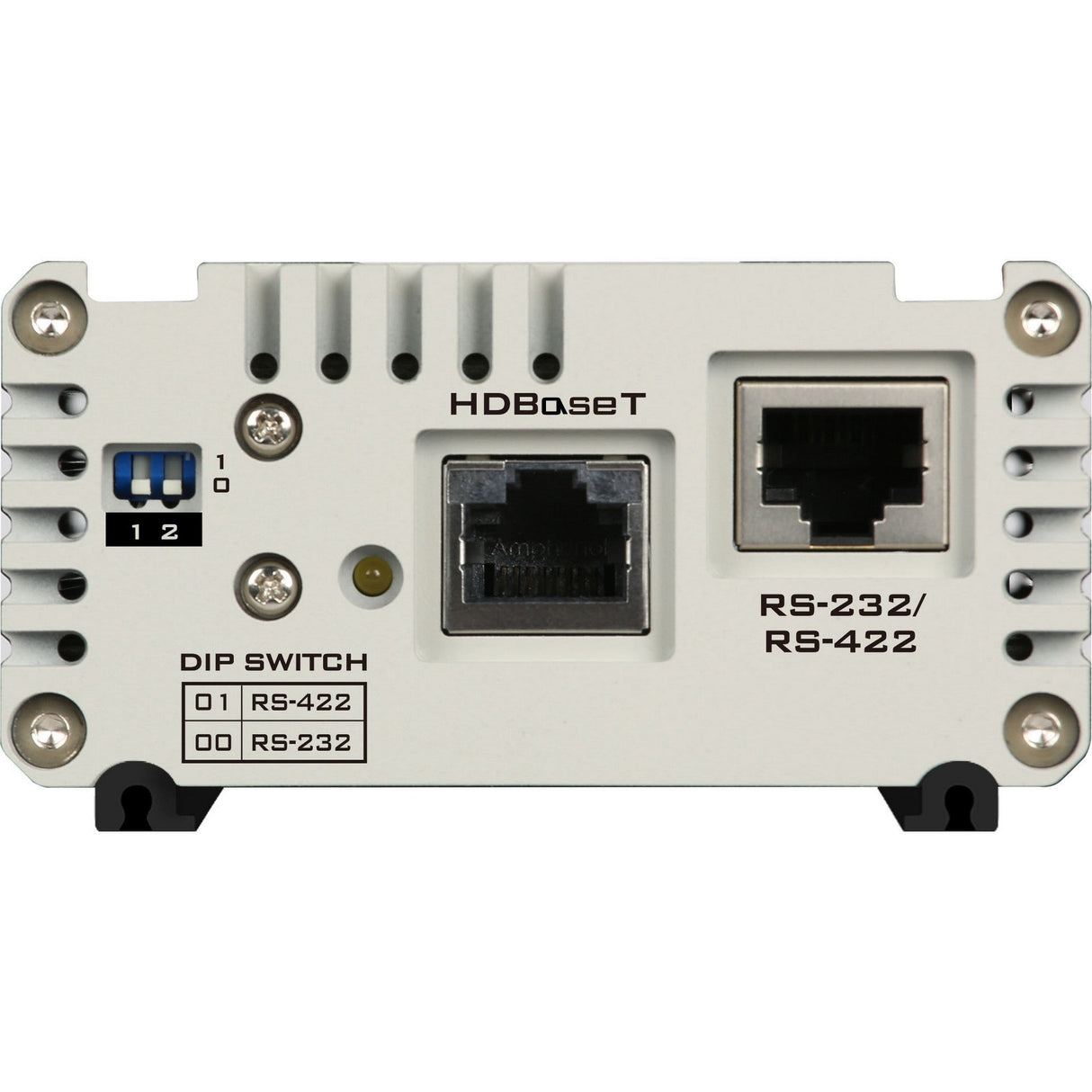

RS-422/ RS-232
RJ-45 x1
Power
DC Out: 12V 30W
PoE Output
---
HDBaseT Distance
2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance
HDMI 2.0
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround sound (up to 7.1ch)
Dimension (LxWxH)
157 x 85 x 46mm
Weight
474 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-15 main unit
1 x DC to DC cable
