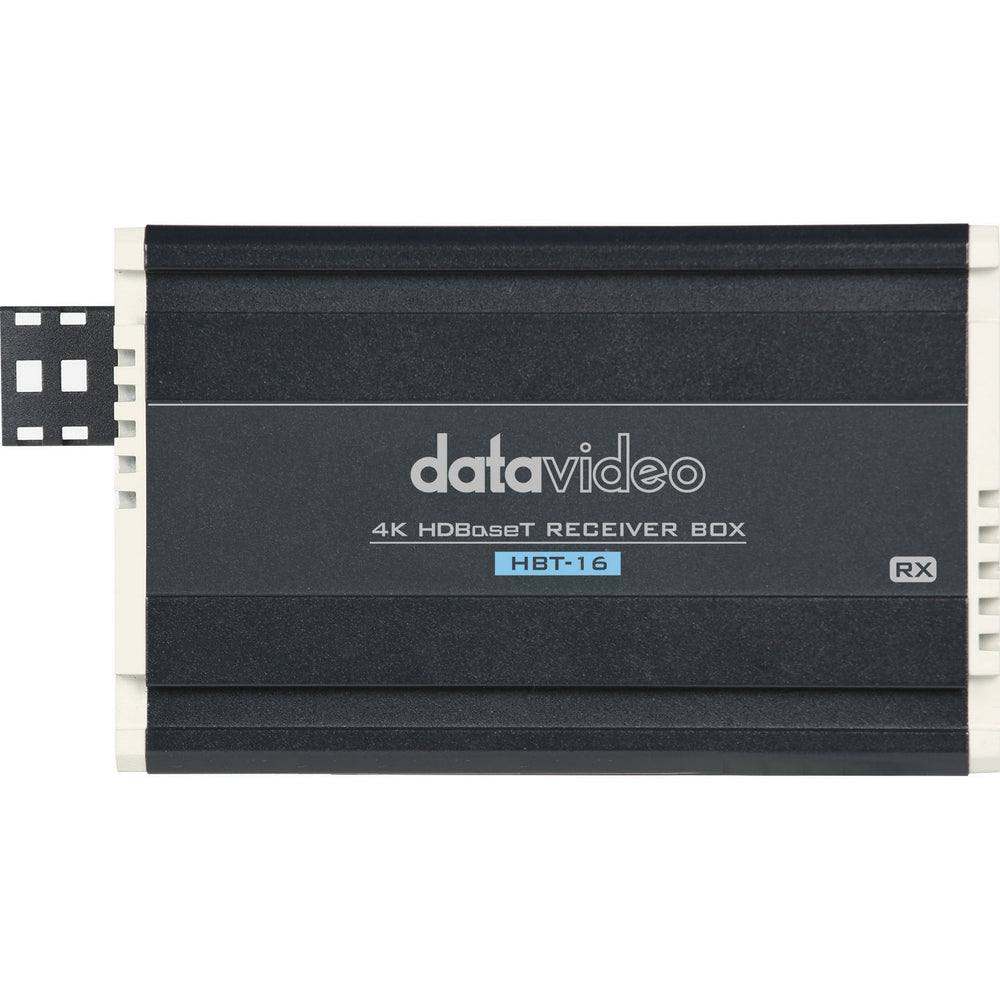

Datavideo HBT-16 4K HDBaseT Receiver Box
Datavideo HBT-16 4K HDBaseT Receiver Box
The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video. Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
The HBT-16 will thus be able to power the transmitting device by PoE plus technology (PoE++). HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
HDMI Deep Color supports better color depths. To giving your display device a great image. Long distance 4K solution. Support up to 4K 50/59.94/60p and receives up to 4K2160P video from the transmitter. Can perfectly display the video source with HDCP in high clarity with zero interruption. HBT-16 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location. EDID pass-through passes signal between the source and display.
Super sturdy and durable. HBT-16 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Key Features
- Extends 4K50/59.94/60 video transmission up to 100m from HBT15 Transmitter Box to HBT-16 Receiver Box.
- Transmits video, audio, DVIP Ethernet control, RS-422/232 and PoE by a single Cat.6A cable
- 56V PoE Power supply from the HBT-16 Receiver end.
- 12V 30W DC output at the HBT-15 Transmitter Box end.
- Supports DVIP Control Protocol
- Supports RS-422/232 Control Protocol
Technical Specifications
Model Number
HBT-16
Video/Audio Input
HDBaseT RJ-45 x1

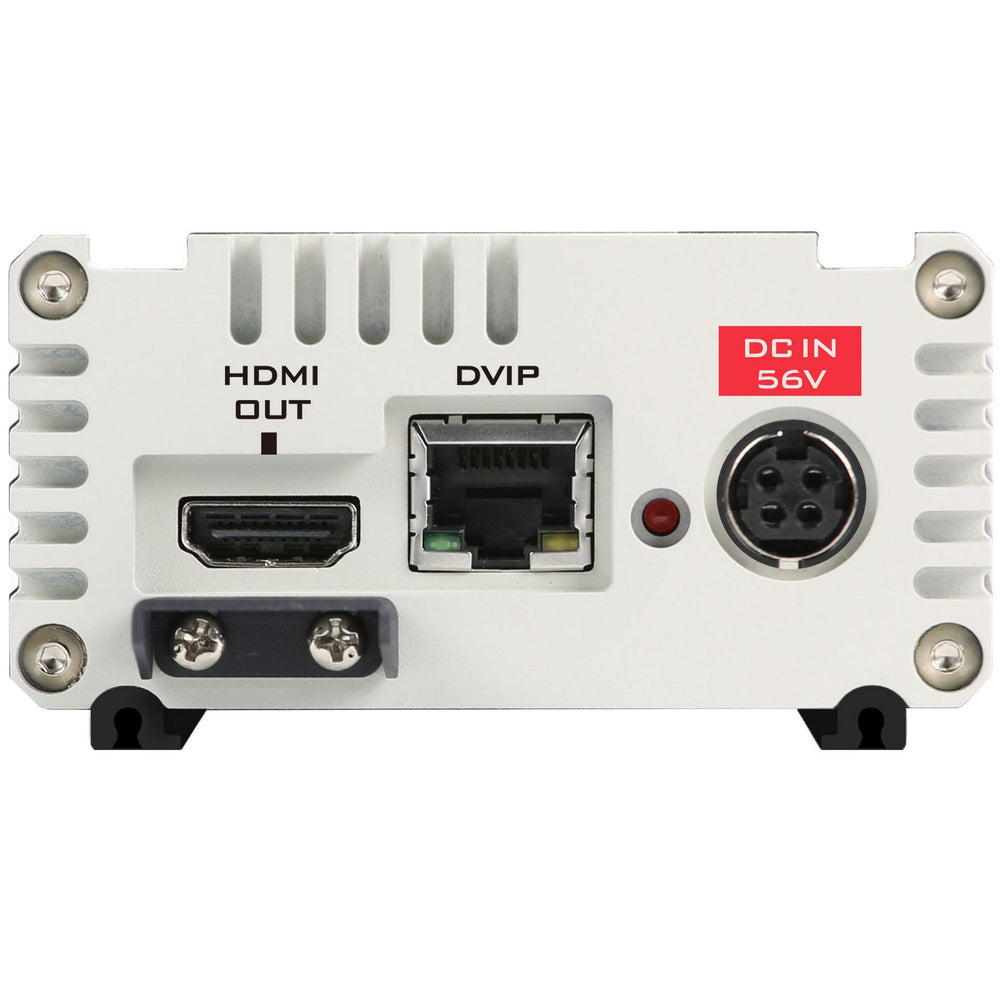

Video/Audio Output
HDMI 2.0 x1
Supported Video Format
2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process
4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth
Single-link 600MHz <18Gbps>
DVIP
RJ-45 x1(input)

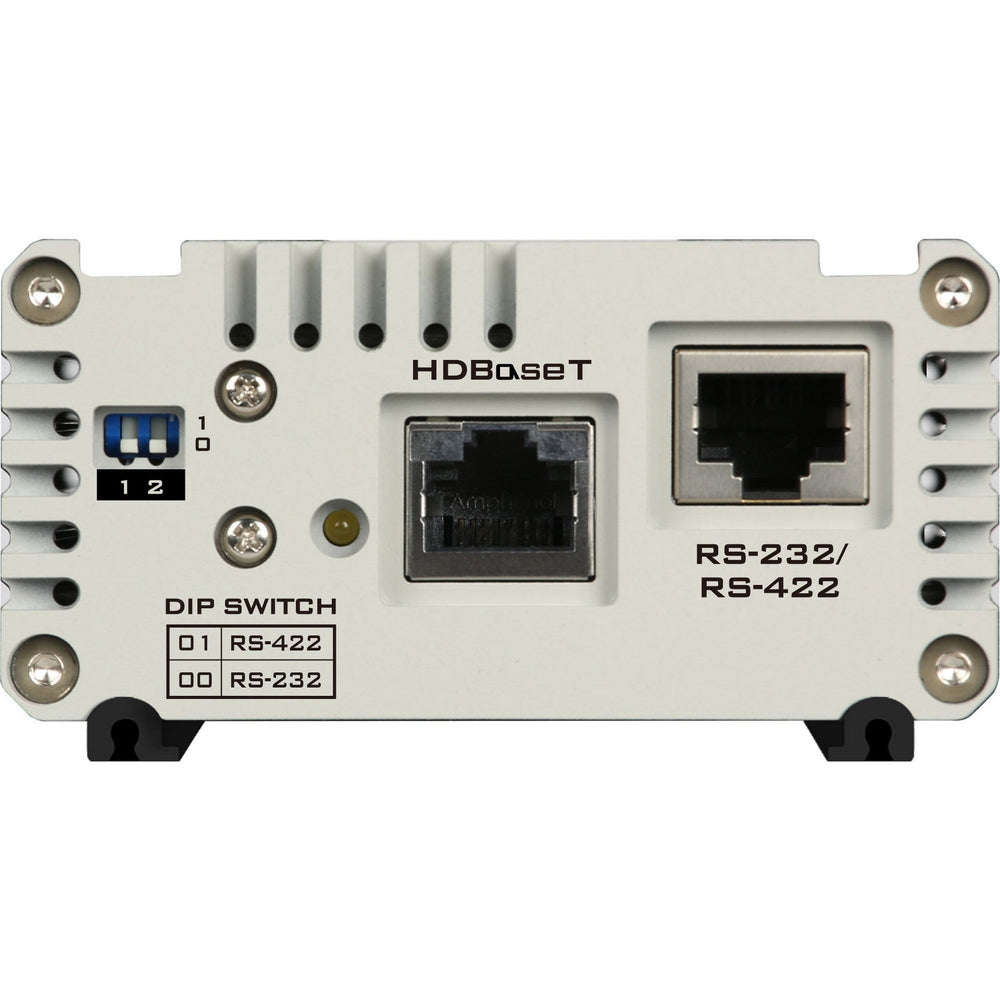

RS-422/ RS-232
RJ-45 x1
Power
DC IN: DC 56V
PoE Output
65W
HDBaseT Distance
2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance
HDMI 2.0
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround sound (up to 7.1ch)
Dimension (LxWxH)
157 x 85 x 46mm
Weight
450 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-16 main unit
1 x AC cord
1 x DC 56V power adaptor
