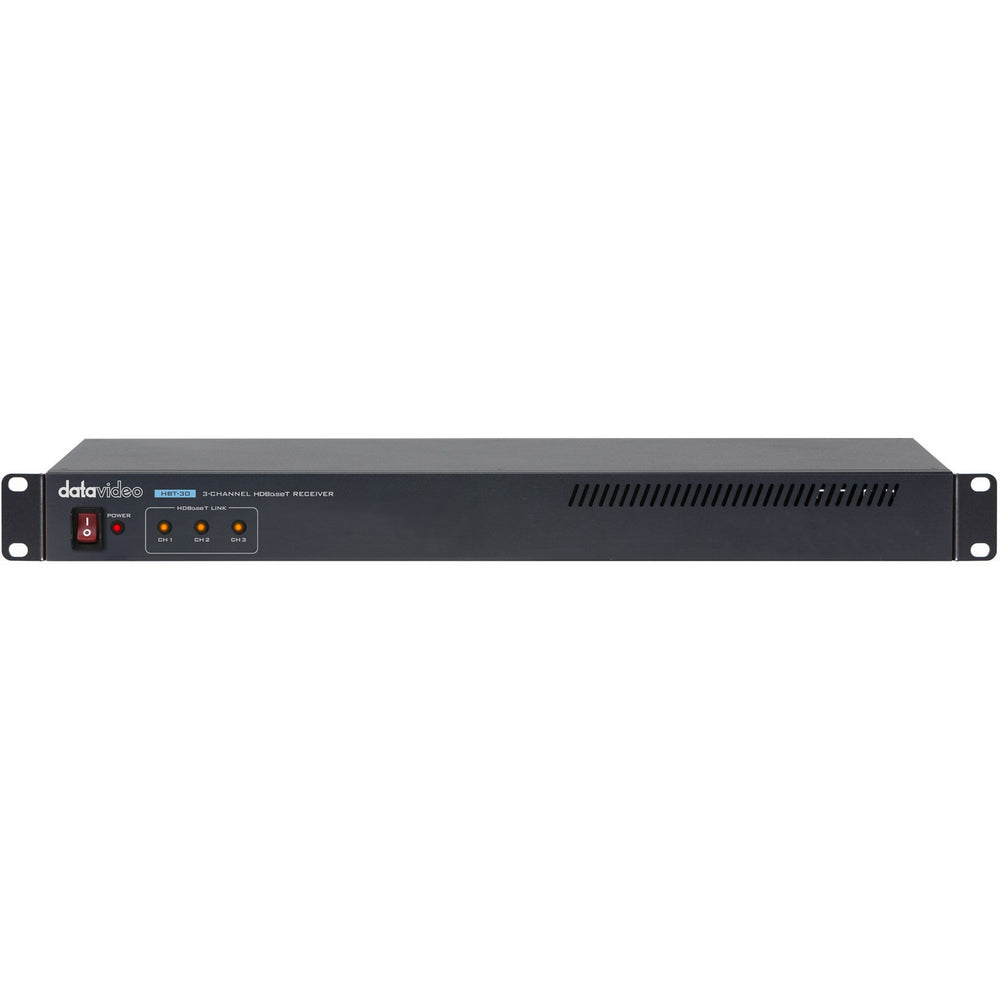

Datavideo HBT-30 3-Channel HDBaseT Receiver
The HBT-30 supplies power, Ultra HD 4K50/60 video signal, and camera control up to 3 devices up to 100 meters distance. It'simultaneously outputs HDMI, RS-422 and IP control signals. HBT-30 can power the PTZ video cameras via PoE, transmIt'signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output HDMI signal to your switcher. HBT-30 transmits HDMI signal (up to Ultra HD 4K 50/60) as well as camera control. With the HBT-30, the system can be integrated as a camera controller, video switcher, and ISO recorder.
Remote control of camera functions via RS-422 or DVIP with HDMI video transmission (up to Ultra HD 4K 50/60) up to 3 cameras simultaneously up to 100 meters. Control up to three HDBaseT cameras from a single receiver. With HBT-30, you no longer need individual HDBaseT receiver boxes per camera.
Key Features
- Supports up to HD 4K50/60 video formats.
- Supports single Ethernet cable video transmission by the HDBaseT technology.
- Supports long distance transmission up to 100m at 4K50/60 using a CAT 6A Ethernet cable.
- Supports PoE technology for powering up to three cameras.
- Supports DVIP, RS-422/RS-232 control protocols.
- Provides three HDMI 2.0 output interfaces.
- Supports HDMI DeepColor and 4K50/60.
Technical Specifications
Model Number
HBT-30
Video/Audio Input
HDBaseT (RJ-45) x 3
Video/Audio Output
HDMI 2.0 x 3
Supported Video Format
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
525i: 59.94 NTSC
625i: 50 PAL
Video Process
4K60 4:4:4, 8bit
4K60 4:2:2 10bit
4K60 4:2:0 10bit
Video bandwidth
Single-link 594MHz <18Gbps>
DVIP
RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x 3 (RS-232/RS-422)
Power
DC IN: DC 56V
PoE Output
65W per channel
HDBaseT Distance
1080p@60 up to 100M by CAT. 6A cable
4K@60 up to 100M by CAT. 6A cable
HDMI compliance
HDMI Deep Color & 4K@60
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround Sound [up to 7.1 Channel) or Stereo Digital Audio
Dimension (LxWxH)
440 x 125 x 44.5 mm
Weight
1.8Kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-30 main unit
1 x AC cord
1 x DC 56V power adaptor
