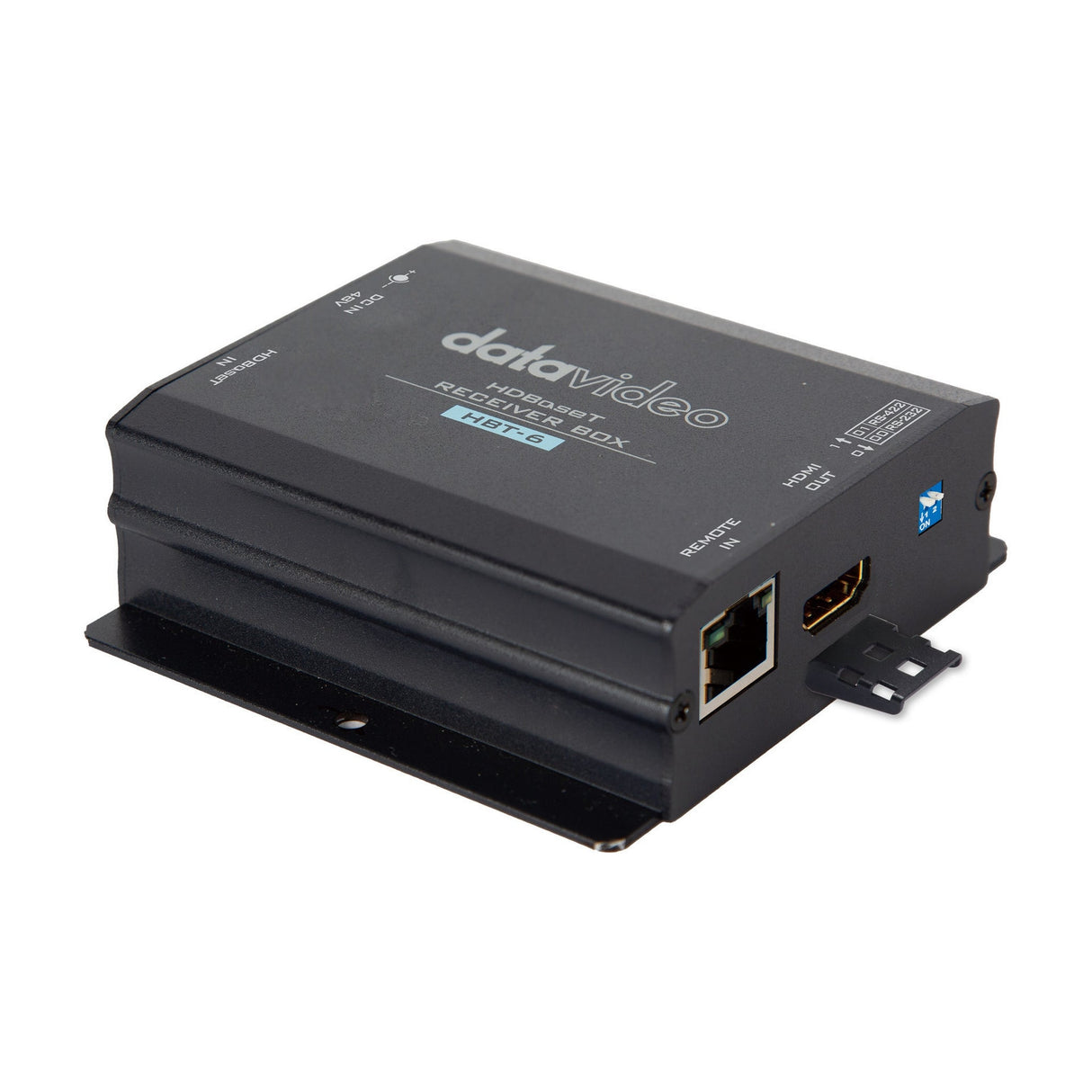

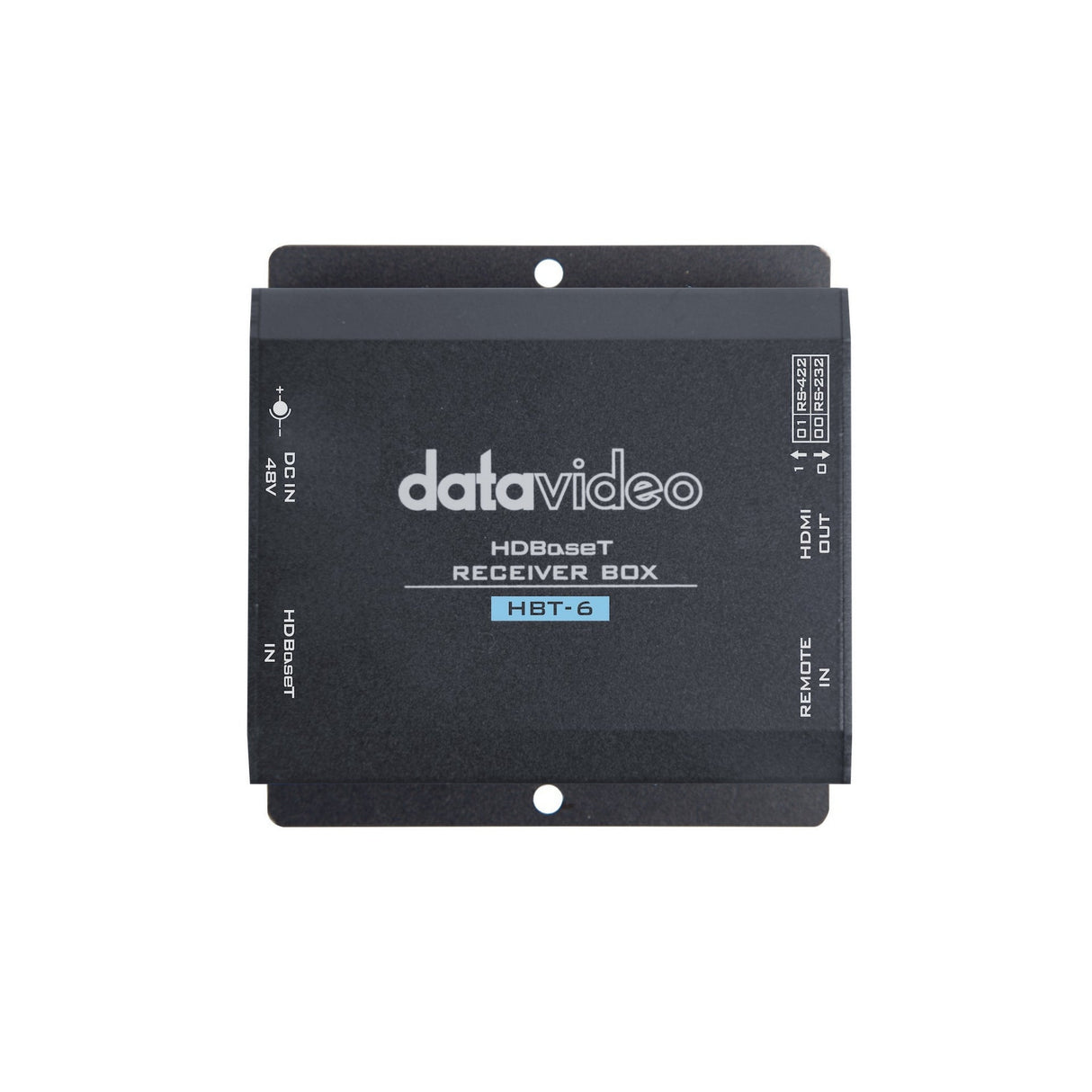

The Datavideo HBT-6 HDBaseT Receiver Box is a HDBaseT receiver that can extend HDMI signals up to 60 meters at 1080p and 35 meters at 4K resolution over a single Cat 6 cable. It supports Deep Color for richer colors, Ultra HD and Full HD resolutions, and transmits digital audio along with the video.

Key Features

• Supports HDMI Deep Color for better color depth

• Extends HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

• Supports Ultra HD and Full HD resolution

• Power over Ethernet (PoE) for easy installation

• HDCP compliant for secure content protection

• RS-232/RS-422 control allows you to control the source device from the display location

• Supports default EDID and EDID learning from the display for optimal compatibility

• Dolby TrueHD & DTS Master audio support

Technical Specifications

Video/Audio Input
HDBaseT RJ-45 x1
Video/Audio Output
HDMI x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process
4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth
Single-link 340MHz [10.2Gbps]
DVIP
---
RS-422/ RS-232
YES
Power
DC IN: DC 48V
PoE Output
30W
HDBaseT Distance
1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance
HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance
HDCP 2.2/1.4
Audio support
Surround sound [up to 7.1ch) or stereo digital audio
Dimension (LxWxH)
88 x 76 x 30 mm
Weight
154 g
Operating Temp. Range
0~40 °C
Included
1 x HBT-6 main unit
1 x AC cord
1 x DC 48V power adaptor
2 x Screw
