Datavideo HRS-30 | 10 inch Screen HD/SD SDI Input HDMI Output 1080i HD Portable Recorder Monitor

Datavideo HRS-30 10 inch Screen HD/SD SDI Input HDMI Output 1080i HD Portable Recorder Monitor

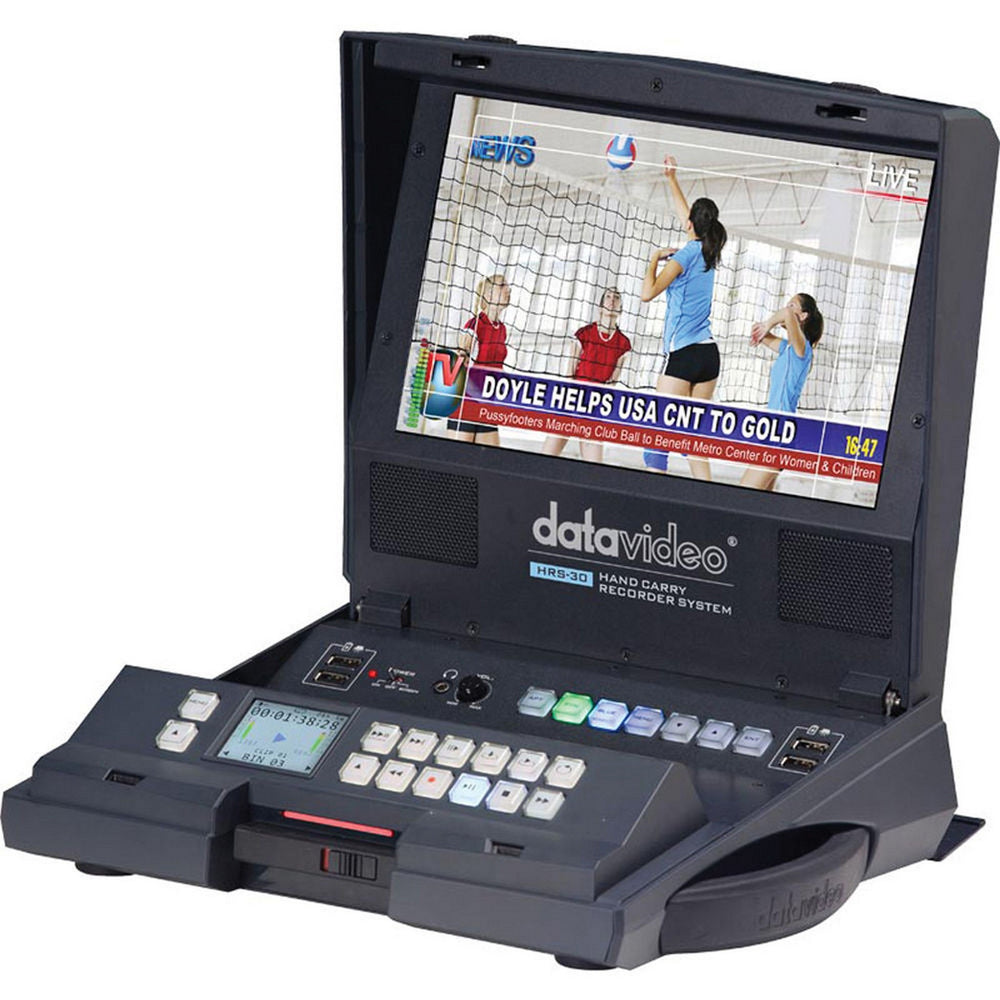

The HRS-30 is a portable recorder with an integrated 10.1" monitor that can be used as a field recorder and also a playback system.

The HRS-30 records from both HD and SD video equipment via HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats, providing a choice of recording formats in MEPG-II Long-GOP or intra-frame (i-frame) with 4:2:2 colour sampling.

The recorded MXF/OP1A file format is compatible with a wide range of NLE and play out systems.

Recorded files are stored to a removable caddy which is compatible with 2.5" HDD & SSD drives.

Key Features

• Removable hard drive
• Support NTFS format, no 2GB/4GB file limitation
• HD/SD SDI input, output and loop thru with embedded audio
• HDMI output with embedded audio
• Video resolutions:
  - 1920x1080 23.97p/24p
  - 1920x1080 50i/59.94i/60i
  - 1280x720 50P/59.94P/60P
  - 720x576i or 720x480i
• SD mode recording:
  - Selectable 8,15,30 or 50 Mbps Long GOP 4:2:0 or 4:2:2
  - 100/125Mbps i-frame 8-bit 4:2:2
• Recording file formats: MXF/OP1A, MOV quick time*
• V mount Battery and Anton Bauer battery support.
• Wide view angle colour TFT LCD display for OSD operation
• 10.1” 16:9 monitor resolution : 1280 x 800 dots.
• 10.1” Dot pitch: 0.0565 (W) x 0.1695 (H) mm
• Internal color bar
• Blue only
• Audio indicator
• Safe area
• Time code display
• Colour temperature adjustment
• NTSC/PAL auto switching

Technical Specifications

Video Standard
HD/SD
Video Format
1080P 23.97/24Hz
1080i 50/59.94/60Hz
720P 50/59.94/60Hz
480i / 576i
Storage Medium
2.5" HDD / SSD, Max capacity 1T GB
*Note: SSD is recommended
Estimated Record Time (min per 10GB)
SD:22 (50Mbps) ~75 (8Mbps)
HD: 10 (125Mbps) ~68 (10Mbps)
How to retrieve Recorded Content
Removable HDD/SSD, transfer data via USB 3.0
Recorded File Format
MXF OP1A, MOV
Video Recording Bit Rate / Color Sampling
MPEG2 Long GOP HD:
1. 10Mbps 4:2:0 1440x1080/1280x720,
2. 25Mbps 4:2:0 1440x1080/1280x720,
3. 35Mbps 4:2:2 1920x1080/1280x720,
4. 50Mbps 4:2:2 1920x1080/1280x720,
5. 65Mbps 4:2:2 1920x1080/1280x720,
6. 120Mbps 4:2:2 1920x1080/1280x720,
MPEG2 Long GOP SD:
1. 8Mbps 4:2:0 720x480/720x576
2. 15Mbps 4:2:2 720x480/720x576
3. 30Mbps 4:2:2 720x480/720x576
4. 50Mbps 4:2:2 720x480/720x576
MPEG2 I-Frame Only HD:
1. 100Mbps 4:2:2 1920x1080/1280x720
2. 125Mbps 4:2:2 1920x1080/1280x720
MPEG2 I-Frame Only SD:
1. 25Mbps 4:2:2 720x480/720x576
2. 50Mbps 4:2:2 720x480/720x576
Audio Recording Format
Uncompressed PCM
Time Code
Yes
External Sync/Genlock
Yes, Black Burst & Tri-level w/loop thru
Power Failure Protection
Content saved up to last second before power failure
Screen Size
10.1”
Resolution 1280 (H) x 800 (V)
Dot pitch 0.0565 (W) x 0.1695 (H) mm
Active Area 216.96 (W) x 135.60 (H) mm

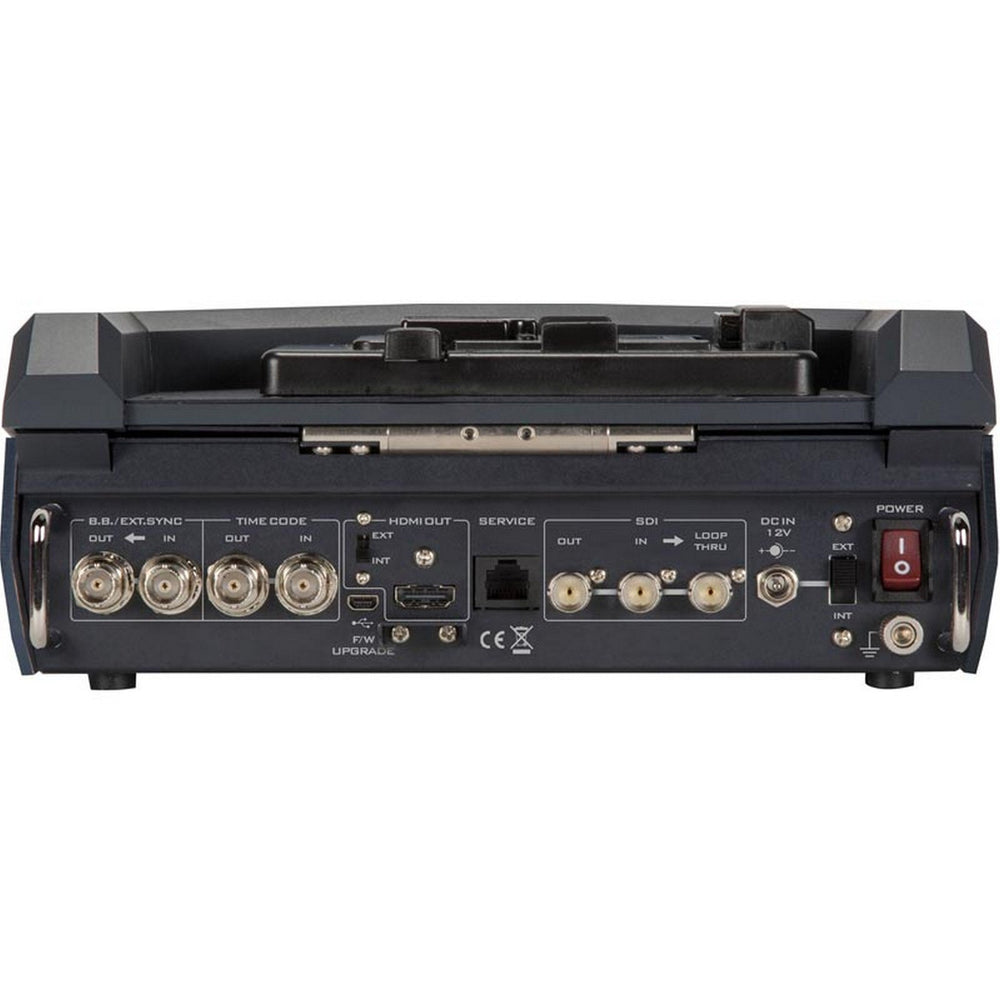

Support Video Input Signal
1 x SDI
Monitoring/ Playback Output
1 x SDI(input loop thru)
1 x HDMI ; 1 x SDI (Out)
Analog Audio Input
N/A
Audio Output
1 x 3.5mm jack for external speaker
Speakers 2 x 3W
Earphone: 3.5mm standard interface
Embedded Audio
SDI Input / Output (8CH )
HDMI Output (8CH)
Time Code
1 x Input (BNC)
1 x Output (BNC)
Sync Reference
1 x Input (BNC)
1 x Output (BNC)
Phone Charger and Light
4 x USB
F/W Upgrade
1 x USB
Power
- 1 x DC In 12V
- External Battery (V-Mount / anton bauer): 14.4V
*Note: does not support 7.2V battery
Power Switch
- Main power switch on the rear
On: system on / Off: system off
- Monitor power switch:
On: monitor on / Off: monitor off
