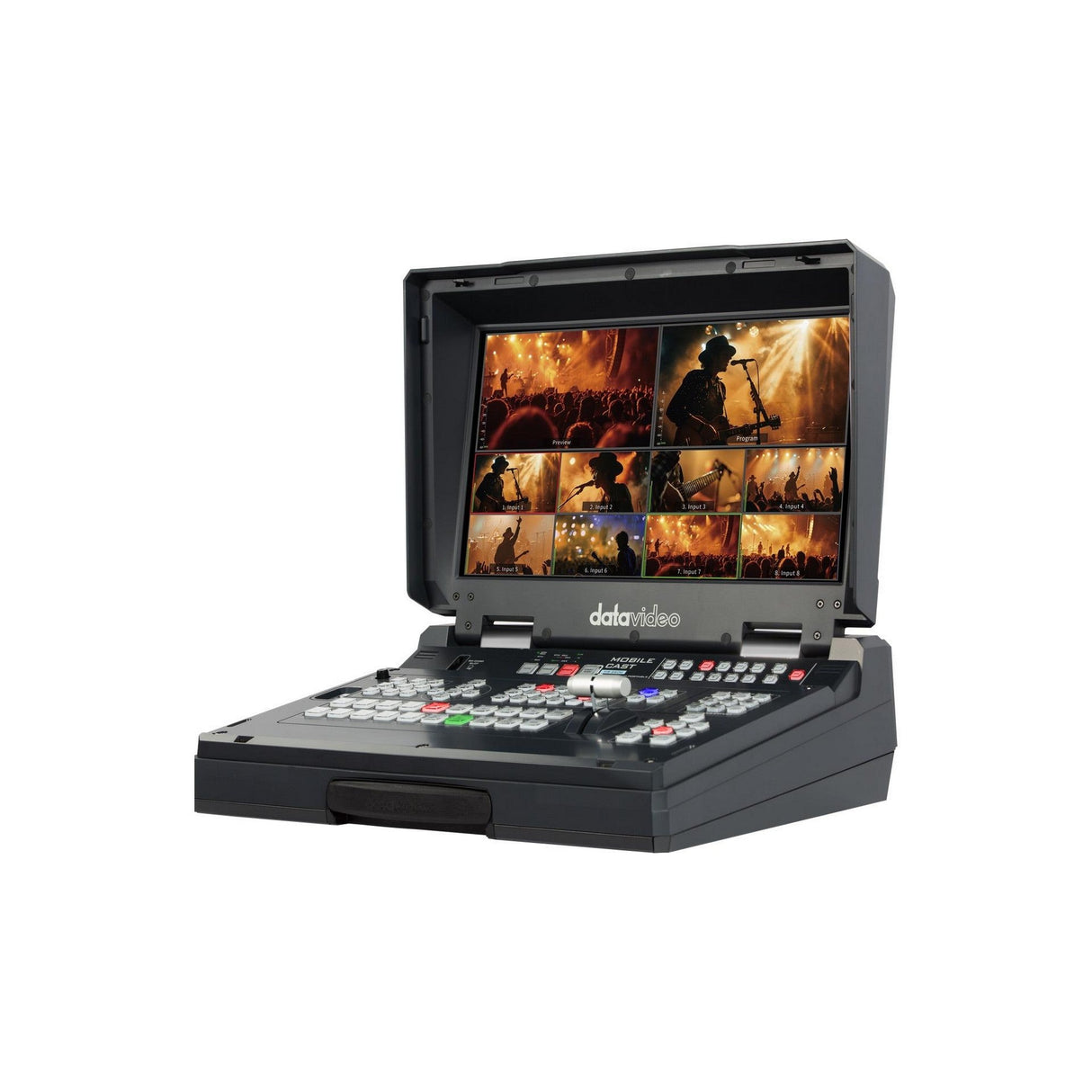

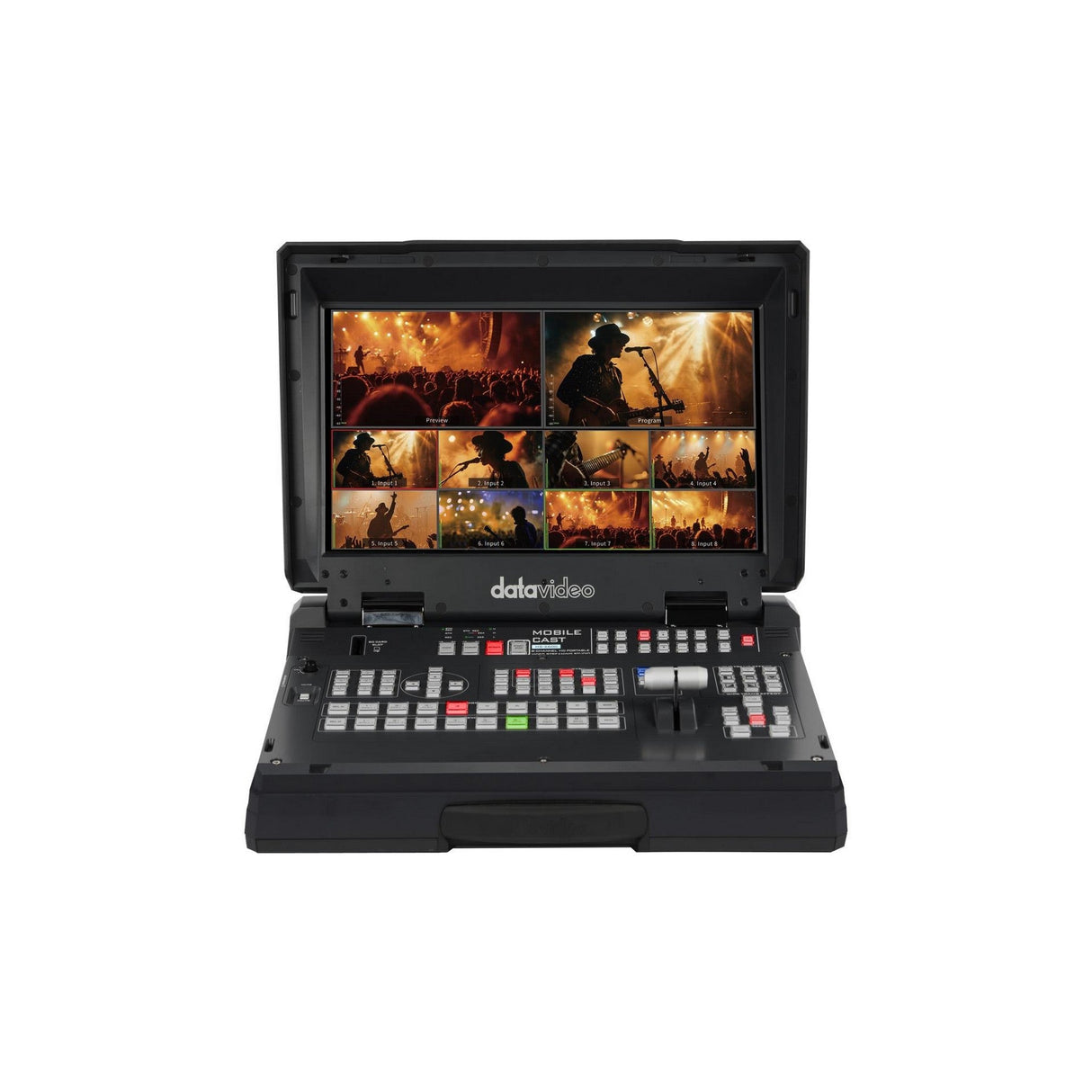

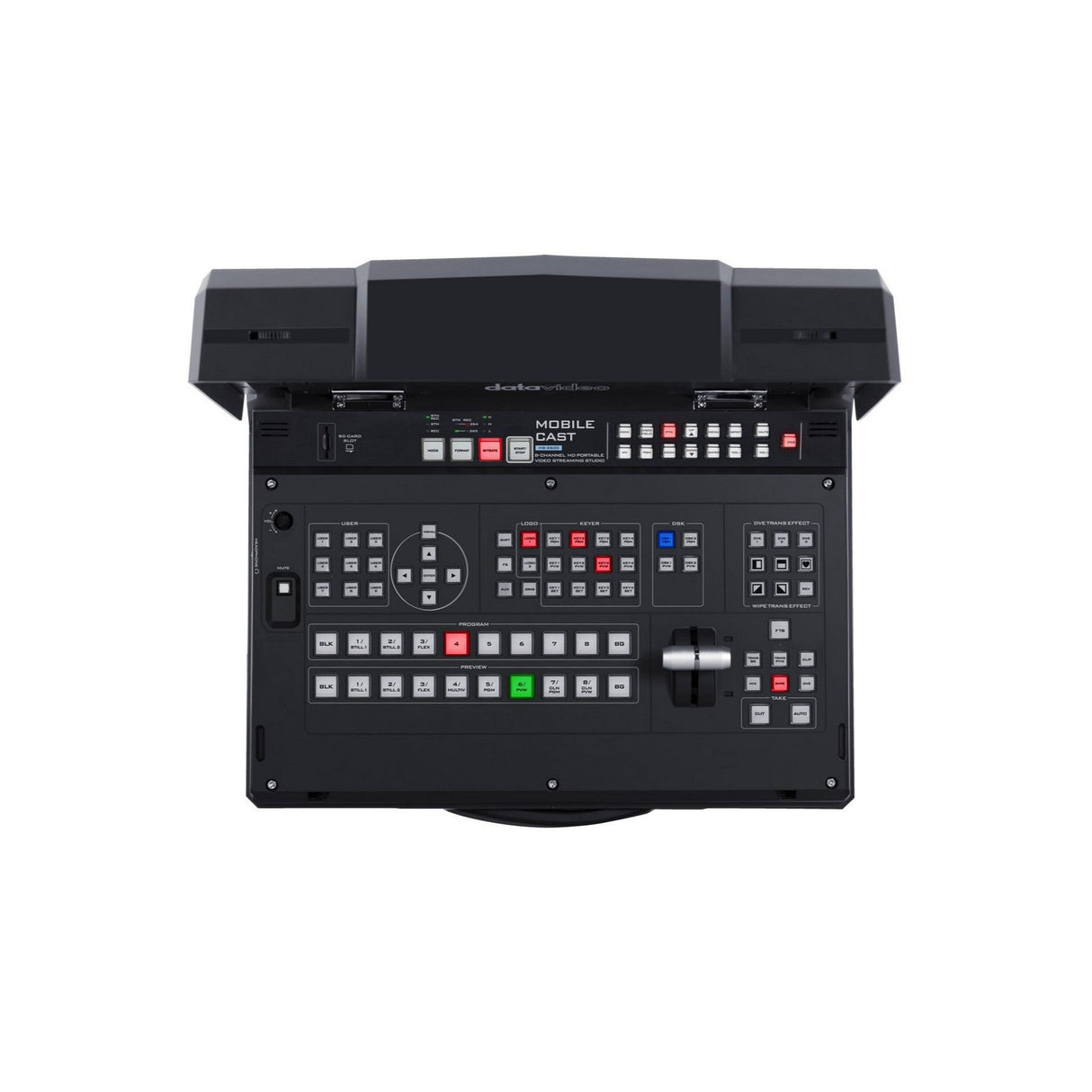

Datavideo HS-2600 HD 8-Channel Portable Video Streaming Studio
The Datavideo HS-2600 is a powerful all-in-one mobile production studio designed for professional multi-camera switching, live streaming, and on-site broadcasting. Built for producers who need a compact yet fully capable switcher system, the HS-2600 combines 8 video inputs, advanced keying, HD streaming, and built-in monitoring into a single portable workstation. Its clean, ergonomic control layout and rock-solid performance make it ideal for live events, corporate productions, education, worship broadcasting, and field operations where space and reliability are critical.
Equipped with four 3G-SDI and four HDMI inputs, the HS-2600 accommodates a wide range of cameras and computer sources. All inputs are fully routable, giving operators the flexibility to organize sources exactly how the production requires. The built-in 17.3" full HD LED monitor displays a crisp 1920x1080 multiview and program output, eliminating the need for external displays. With advanced features such as 4 chroma-key engines, picture-in-picture capability, 2 downstream keyers, logo insertion, and a complete CG title overlay system, this unit delivers broadcast-grade results in any environment.
The HS-2600 also integrates a high-quality streaming and recording engine, supporting both H.264 and H.265 in up to 1080p resolution. Streaming protocols include RTSP, RTMP, and SRT, offering compatibility with virtually all major live-streaming platforms and professional contribution workflows. Recording is supported in MP4 format using FAT32 or exFAT storage media. Configuration and control are available through a convenient web-based UI, making remote operation simple and efficient. With its rugged reinforced plastic housing, professional audio inputs, and flexible power design, the HS-2600 is built for real-world production demands.
Key Features
- 8-channel HD switching with 4 x 3G-SDI and 4 x HDMI inputs
- All 8 inputs are fully routable and repeatable
- Supports 1080p, 1080i, and 720p formats at 50 / 59.94 / 60 Hz
- Integrated 17.3" 1920x1080 HD TFT LED backlit monitor
- Multiple outputs including 3 x 3G-SDI PGM/AUX and up to 4 x HDMI
- 4 chroma-key engines and 4 picture-in-picture configurations
- 2 downstream keyers and 2 logo insertion channels
- Built-in CG title overlay system
- Integrated streaming encoder (H.264/H.265 up to 1080p)
- RTSP, RTMP, and SRT live-streaming support
- AAC 2-channel audio streaming at 16-bit / 48 kHz / 192 kbps
- Recording in MP4 format using FAT32 or exFAT media
- Audio delay calibration up to 16 frames
- Reinforced portable housing ideal for field production
Technical Specifications
Model Number: HS-2600
Video Standard: HD
Video Format: 1080p 50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz
Input Routable / Crosspoint: All 8 inputs, repeatable

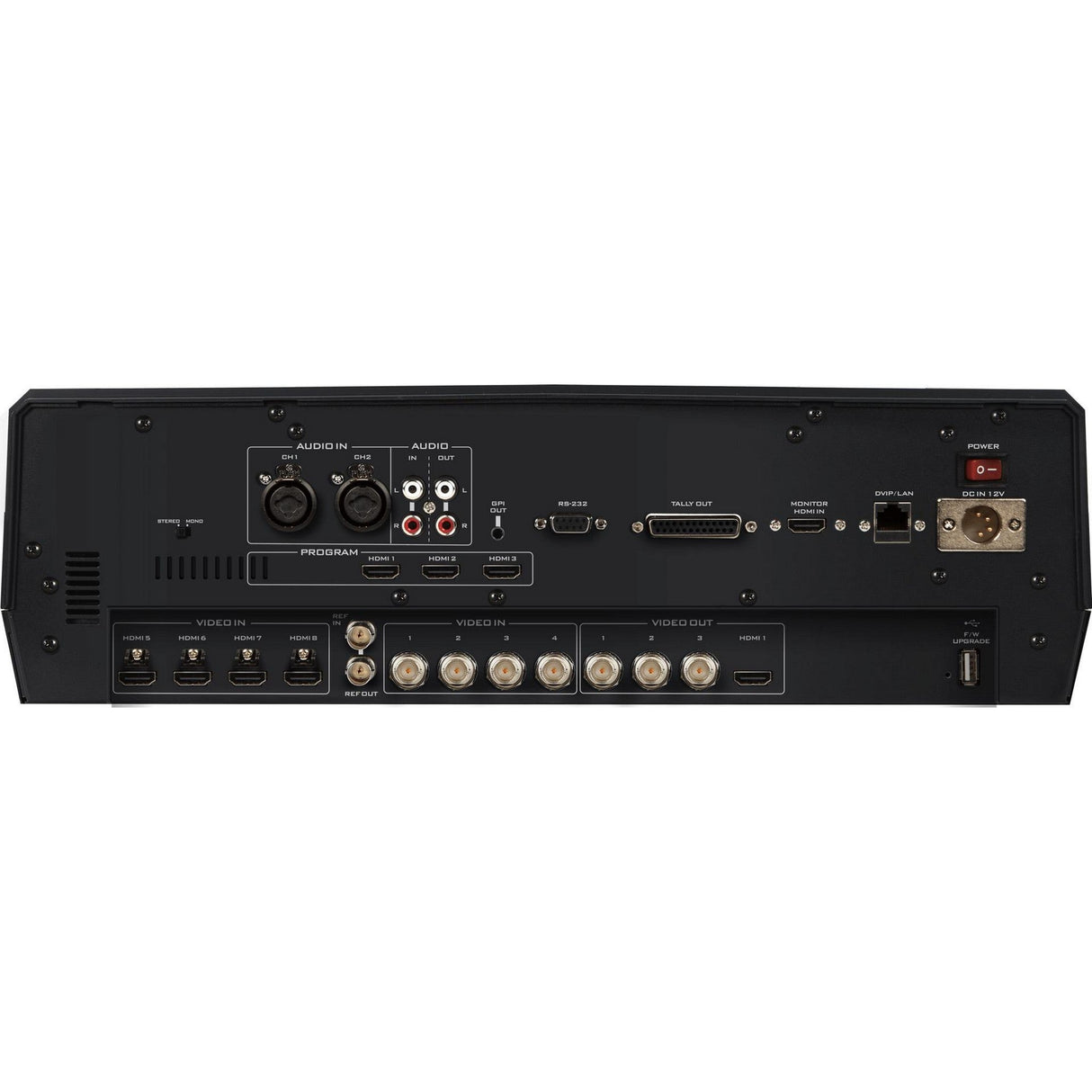

Video Input: 4 x 3G-SDI, 4 x HDMI
Computer Graphic Interface: 4 via HDMI
Video Output:
3 x 3G-SDI for PGM (AUX assignable)
1 x HDMI 1.4 for PGM (AUX assignable)
3 x HDMI 1.4 for PGM
Analogue Audio Input: 2 x XLR/MIC (6.3mm) Combo, 1 x Stereo RCA
Analogue Audio Output: 1 x Stereo RCA
Digital Embedded Audio Support: SDI Input/Output: 4 channels, HDMI Input/Output: 2 channels
Audio Delay Calibration: Up to 16 frames
A+V Switching: Yes
USK: 4
DSK: 2
Picture in Picture: 4
Logo Insertion: 2
Title Creator: Yes
Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920 x 1080 pixels
Streaming: H.264 (Max 1080p), H.265 (Max 1080p)
Streaming Audio Encode: AAC 2CH, 16-bit, 48kHz, 192kbps
Streaming Protocol: RTSP, RTMP, SRT
Streaming Control: Web browser UI, Socket control
Recording File System: FAT32, exFAT
Recording File Format: MP4 (H.265 + AAC) or (H.264 + AAC)
Streaming & Recording Control: Web UI for system configuration and control
Special Features:
4 Chroma-Key Virtual Studio
9 Stinger Transitions + 4 User Presets
Built-in CG Title Overlay System
Integrated Streaming Encoder and Recorder
Dimensions (L x W x H): 17.91" x 13.98" x 5.28"
Weight: 18.7 lbs (Reinforced Plastic Case)
Power: DC 12V, 11A
Operating Temp. Range: 32°F - 104°F
What’s Included
- 1 x HS-2600 Unit
- 1 x AD Switch DC 12V Power Supply with AC Cord
