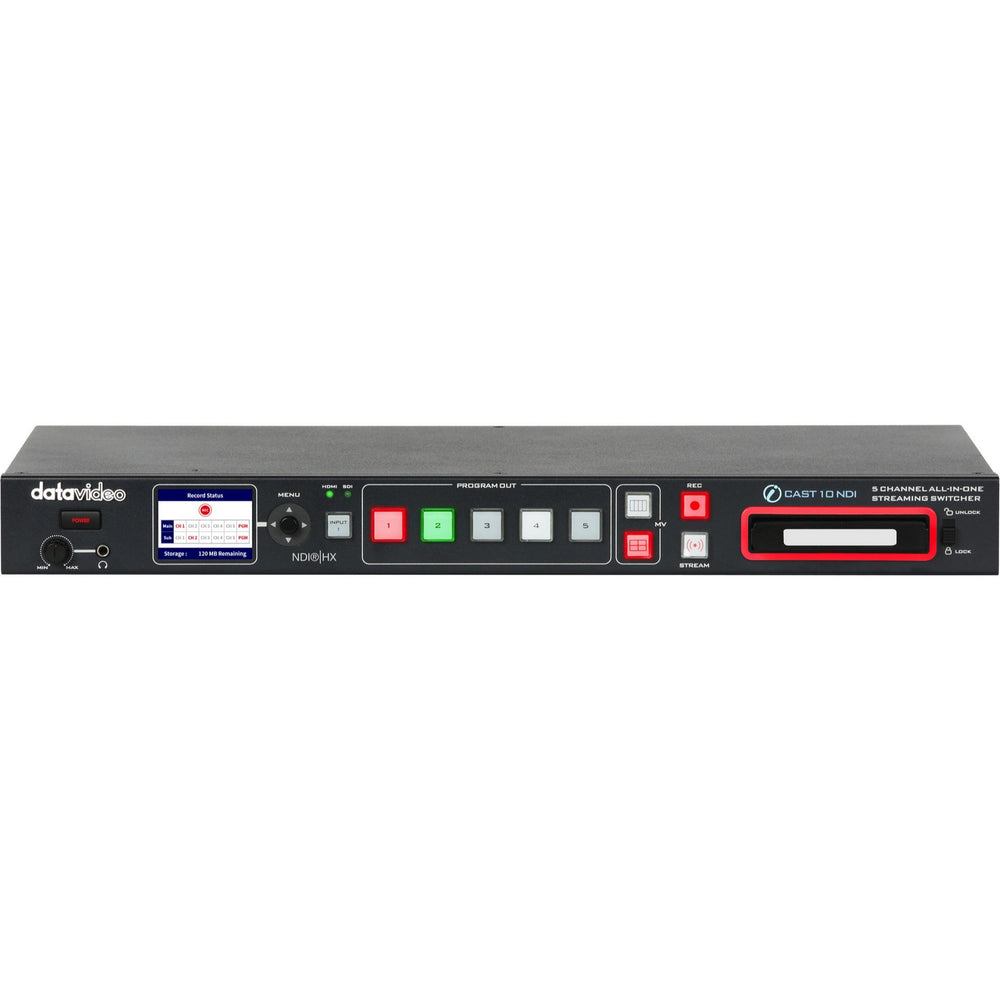

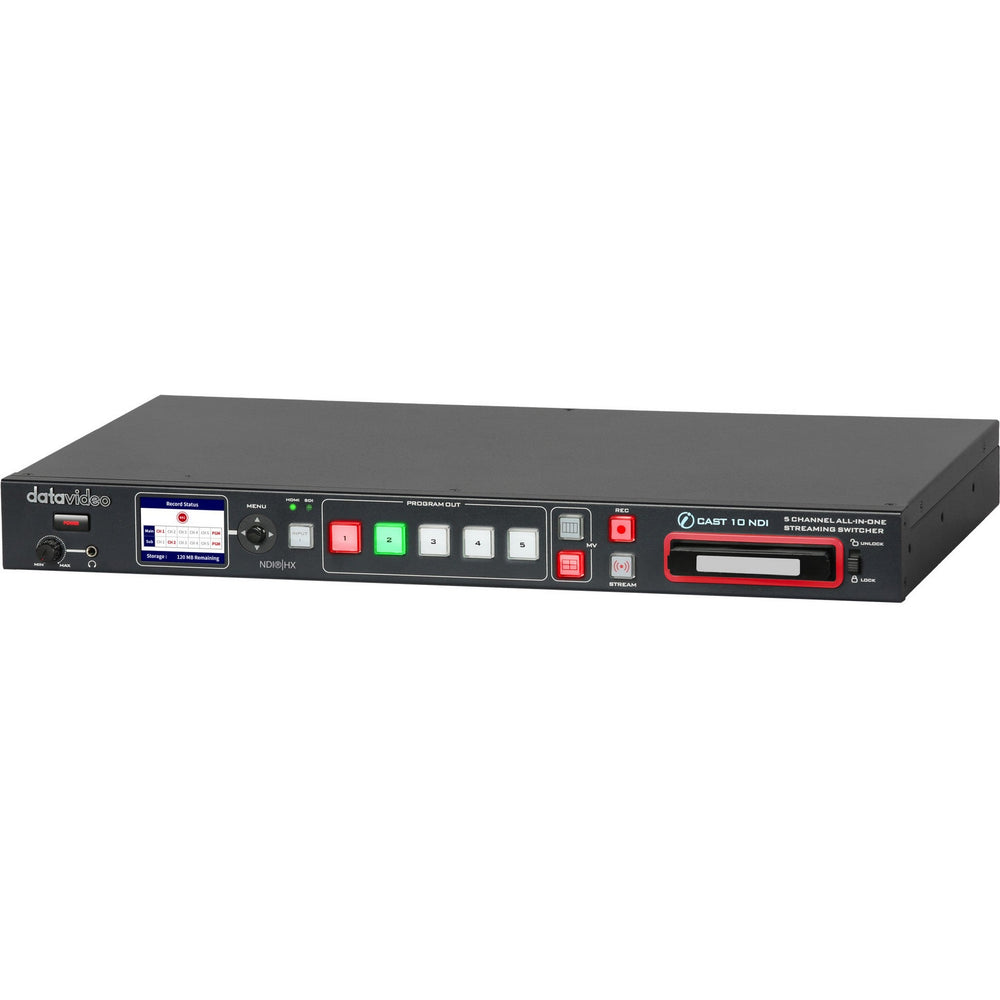

Datavideo iCast 10NDI 5-Channel All-In-One Streaming Switcher

Datavideo iCast 10NDI 5-Channel All-In-One Streaming Switcher

Produce Hybrid Events Using an All-in-one Switcher
iCAST 10NDI is a new and innovative live production equipment that houses a switcher, camera controller and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye-catching presentation with different video sources, such as PTZ and document cameras, and a laptop for your presentation slides.

Using the built-in streaming encoder and recorder. You can easily live stream to multiple platforms and record your show to an SD card. Six video channels can be ISO recorded at the same time in order to provide you with more program materials for post-production.

iCAST 10NDI is definitely a highly efficient and easy-to-use solution for video streaming and recording.

A hybrid event switcher designed for classroom, lecture capture, conferencing with all the I/O needed for producing, streaming, recording, and conferencing with Zoom, MS Teams, and other platforms. An intuitive touch screen interface with presets for screen layout settings, camera angles, and buttons for activating the stream and recording of your event.

Multiple video input interfaces
iCAST 10NDI has five video inputs with one SDI/HDMI selectable port, three HDMI only ports and one USB 3.0 port. iCAST 10NDI accepts videos from various professional cameras, laptops and document cameras.

You can also receive IP videos via an RJ-45 port. IP videos are streamed using RTMP(S) or SRT protocol. With a variety of video interfaces, you no longer need to worry about compatibility of different video devices.

Dual Multiview Modes
iCAST 10NDI provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.

Multiple PGM Modes
In addition to displaying a full screen view of the program out video, you can also stream the four input videos live to your audience.

The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.

Key Features

• Seamless switching
• Multichannel audio mixing
• Video Streaming
• Multi-Camera Video Recording
• Character Generation
• System Control

Technical Specifications

Model Number
iCAST 10NDI
Video Standard
HD & SD
Video Format
Input
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i59.94, 576i50
Output
1080p60/59.94/50→1080p60/59.94/50
1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
1080i60/59.94/50→1080p30/29.97/25
720p60/59.94/50→720p60/59.94/50
480i59.94, 576i50→480p29.97, 576p25
(not supporting interlace)

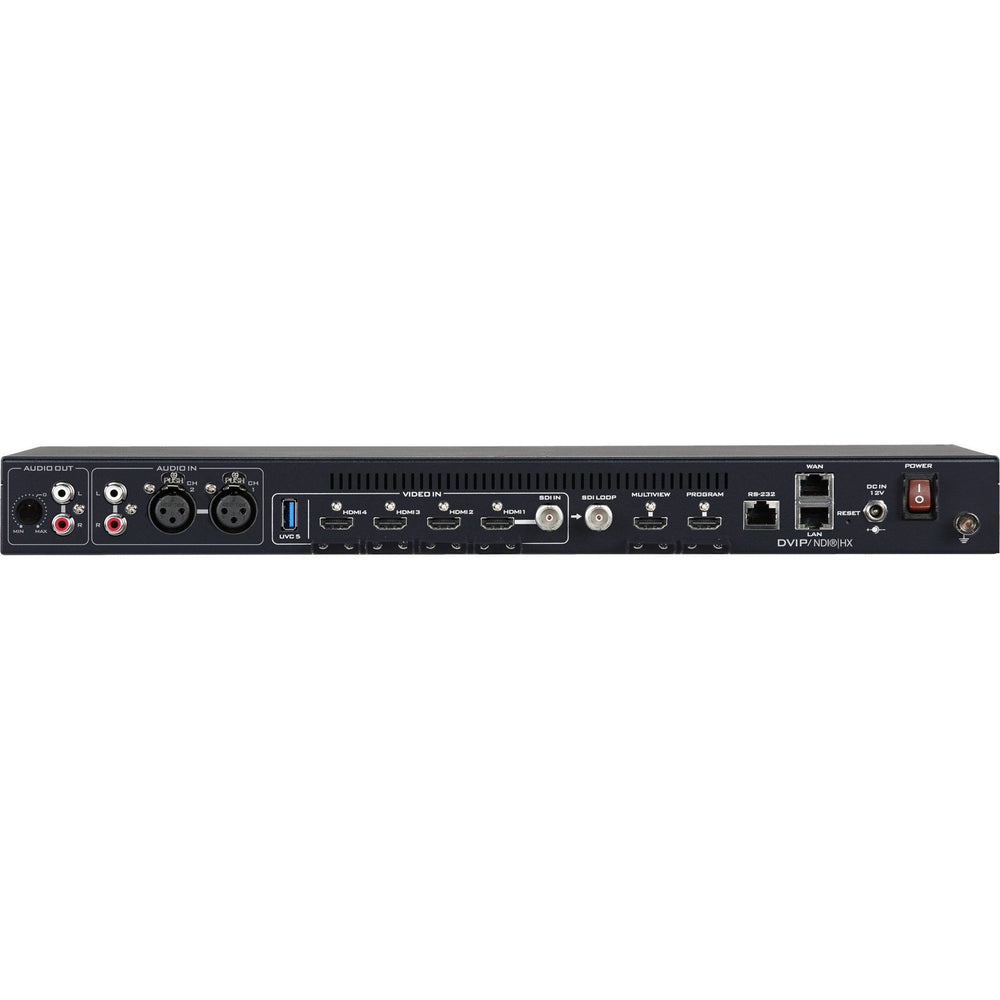

Video Input
3G/HD/SD-SDI x1 (BNC 75 ohm)
HDMI 1.4 x4
(Channel 1 as SDI/HDMI selectable)
USB 3.0 x1
Mix HD & SD Source
Yes
Computer Graphic Interface
4 via HDMI
Video Output
3G/HD/SD-SDI loop-through x1
HDMI 1.4 x1 (PGM)
HDMI 1.4 x1 (Multiview)
RJ-45 female x2 (10/100/1000M Ethernet) (LAN & WAN)
Down-converted Output
1080p output
Built-in Multi-view Monitoring Out
HDMI x1
Analogue Audio Input
XLR Balanced audio x2
RCA Unbalanced audio x 1 pair
SDI embedded audio
HDMI embedded audio
IP Audio (RTSP AAC-ADTS, PCM)
(External and embedded audio mixable)
Analogue Audio Output
3.5mm x1 (headphone, PGM audio monitoring)
Audio Delay Calibration
Each channel delay time: 0-3000ms
Title Creator
Web GUI
Picture in Picture
Yes (PGM)
Logo Insertion
Yes
Effects
Cut
PC Remote Control
Web UI for system configuration and control
Serial Port Control: RS-232 (RJ-45)
Built-in Audio Mixer
Yes
Storage
SATA (6Gb/s)
Recording File System
FAT, NTFS, exFAT
Recording File Format
MP4
Video Encode
H.264
Audio Encode
AAC-LC
Sample rate: 48KHz, 16bit
AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Streaming Protocol
l DHCP client
l TS over UDP (unicast & multicast)
l RTSP over HTTP/TCP/UDP
l RTMP (Publish)/RTMPS
l HLS
l SRT Caller and Listener
l Web RTC (encode/decode)
l NDI | Hx
Firmware Update
Web UI (network)
Special Features
Vertical video: crop or rotate
Vertical video Multiview
Chassis
1RU rack-mount mainframe
Dimension (LxWxH)
440 x 284 x 44mm
Weight
2.9 kg
Power
DC 12V 24W
Operating Temp. Range
0~40 Degrees C
What's in the Box
1 x iCast 10NDI main unit
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable
