Datavideo ITC-100 Rackmount 8-Channel Intercom System
Rackmountable 8 channels Intercom System
The ITC-100 provides 8-Way talkback and bi-colour tally indicators.
Communication distance up to 200 meters
Selectable channel talk, broadcast to all or mute
The director can select to talk to an individual channel or to all channels simultaneously.
Technical Specifications
Power
DC 12V, 8W
Tally
2 x 15 Pin DSub Sockets for Tally A and B
MIC / Headset
3.5 mm Stereo Jack Socket for Headphone /Microphone combination
Headset Impedance 8-600 Ohms 100 mW (min)
Headphone
1/4ā (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)
Light Socket (DC 12 V)
3 PIN XLR Connector
PIN 2: 12V
PIN 3: GND
Light Power Consumption: 12 V / 100 mA (MAX.)
Microphone
3 PIN XLR / 1/4ā (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dB
Frequency Response
550-3.6 kHz, <+/- 3dB
THD
< 3%
S/N
> 50dB
Built-in Speaker
70mm x 30mm 32 Ohm 3 Watts
Operating Range
Up to 200 meters between base station and slave
Operating Temp. Range
0~40 C
Dimension (LxWxH)
482 x 127 x 46 mm
Weight
1.9 kg

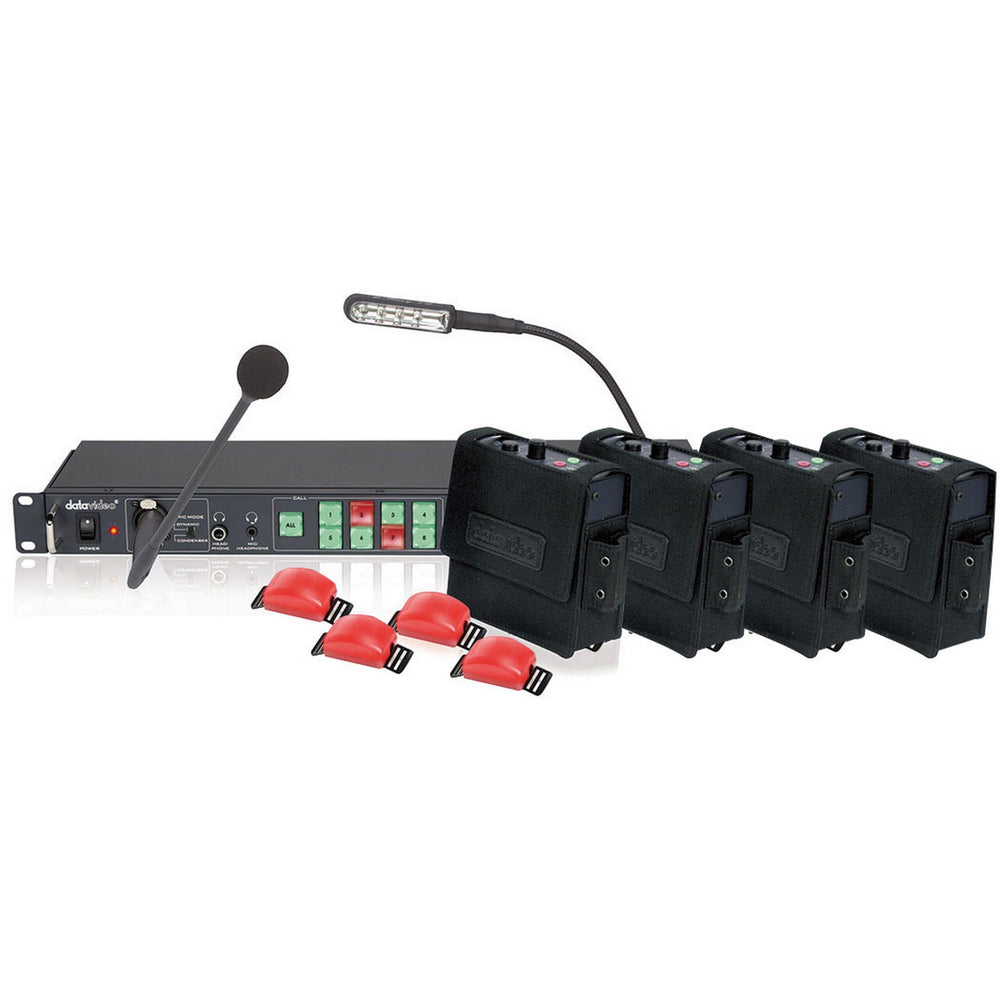

What's in the Box
1 x ITC-100 Base Unit
4 x ITC-100SL Belt Pack
4 x ITC-100SL Carry Case
4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone
4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply Unit
1 x Thank You Card
