Datavideo ITC-300 Digital Intercom System
Datavideo ITC-300 Digital Intercom System
Intercom system evolution and innovation
Single CAT cable for everything
The ITC-300 is a single wired communication system, featuring power over Ethernet to 8 belt packs.

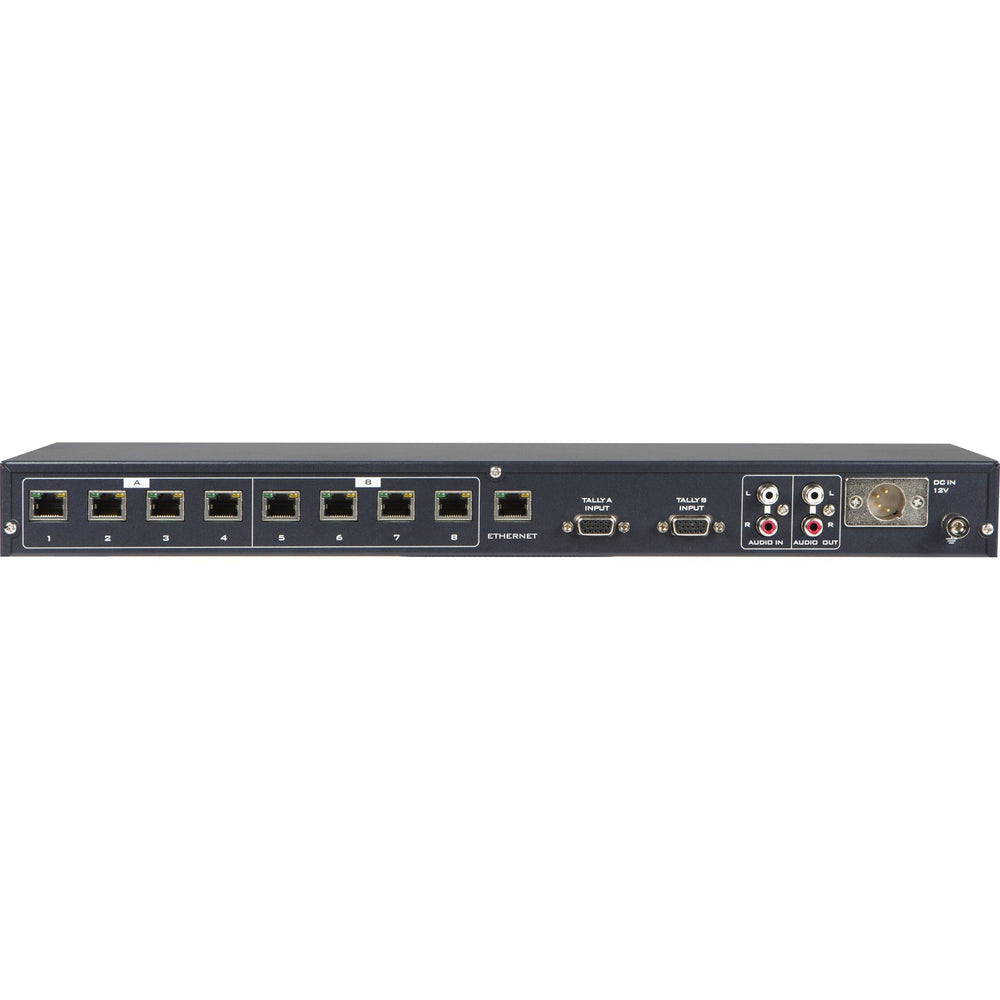

Rackmountable 8 channels Intercom System
The ITC-300 provides 8-Way talkback and bi-colour tally indicators.
Selectable channel talk, broadcast to all or mute
The director can select to talk to an individual channel or to all channels simultaneously.

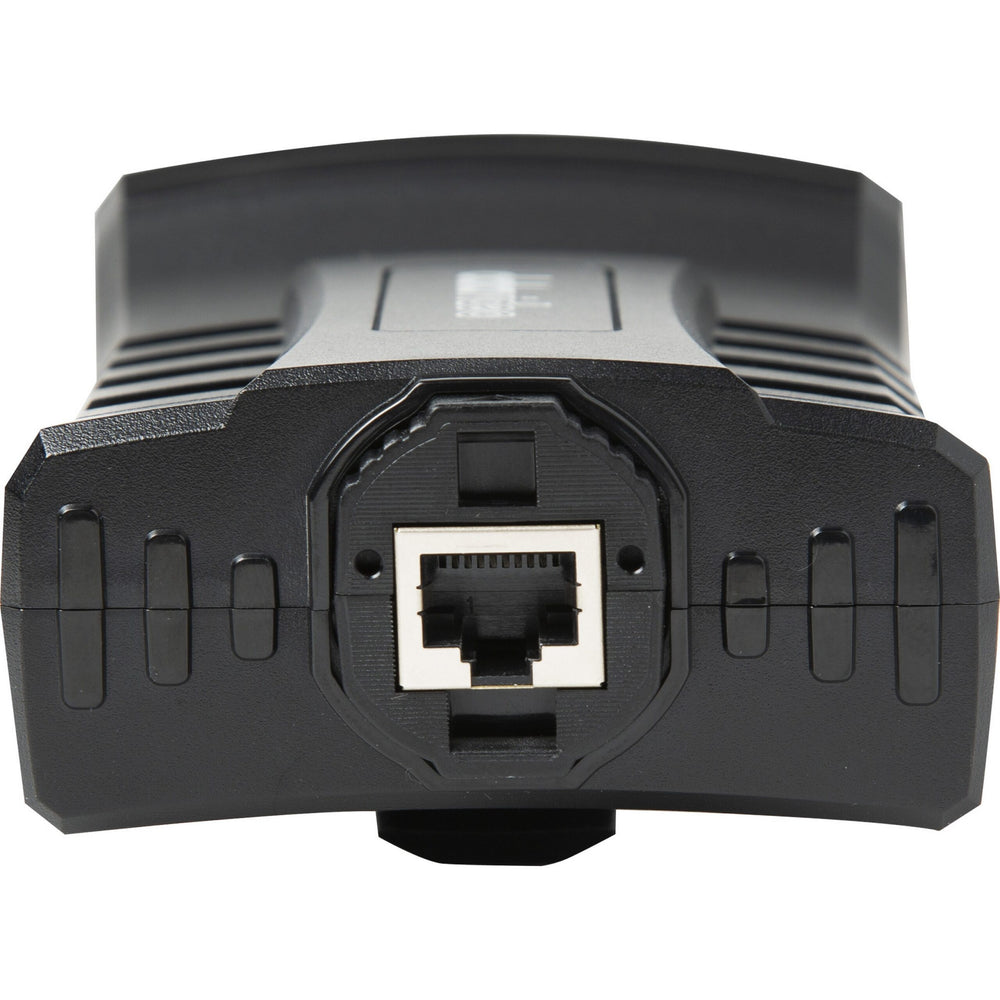

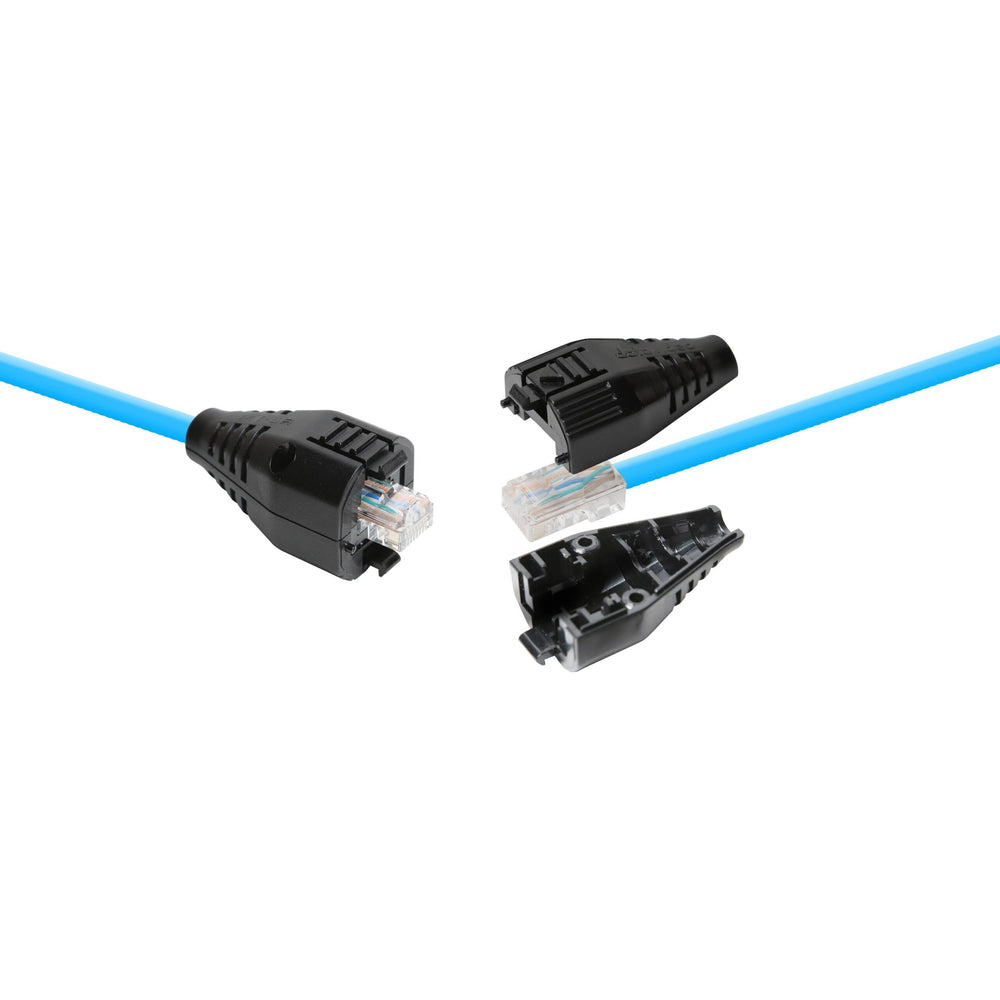

Special design for your RJ-45 connector
The ITC-300SL has a special CAT-6 connector shield to prevent the cable lost when used.

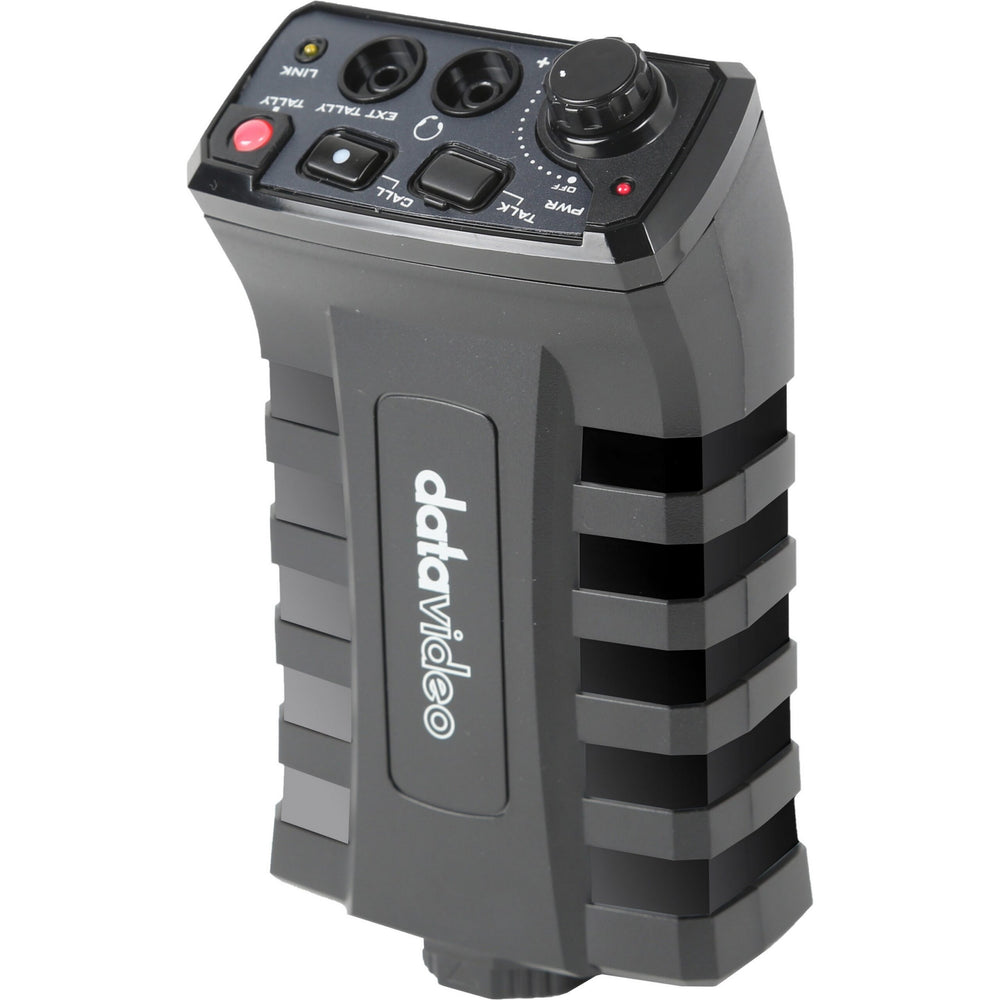

ITC-300SL Belt Packs included
TD-3 - Camera Tally Light
MC-1 - Headset / Microphone
1 x GPI Cable
1 x Ethernet Cable
1 x Earphone Cable
1 x Black Velcro
1 x Velcro
4 x Ethernet Cable Connector Set
Technical Specifications
Power
DC 12V, 3A
Tally
2 x 15 Pin D-Sub Female Sockets for Tally A and Tally B
MIC / Headset
1 x 3.5mm Stereo Jack Socket
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic, Ring: Phone, Sleeve: GND)
Headphone
1 x 1/4" (6.3mm) Stereo Headphone Socket
(Tip: Phone, Ring: Phone, Sleeve: GND)
Light Socket (DC 12 V)
Light Power Consumption: +5 V / 500 mA
Microphone
3 Pin XLR / 1/4” (6.3mm) Socket x 1
Switchable Condenser / Dynamic
Input Microphone Level -67dB
PIN1:N/A,PIN2:MIC,PIN3:GND
Frequency Response
300 Hz-7 KHz, < +/-3dB
THD
< 0.1% @1KHz
S/N
>70dB
Built-in Speaker
3W
Speaker is mute when headphones or mic / headset are connected to the ITC-300
Operating Range
Up to 100m between Base Station and Slave
Operating Temp. Range
0~40 C
Dimension (LxWxH)
440 x 126 x 44mm
Weight
1.9 kg

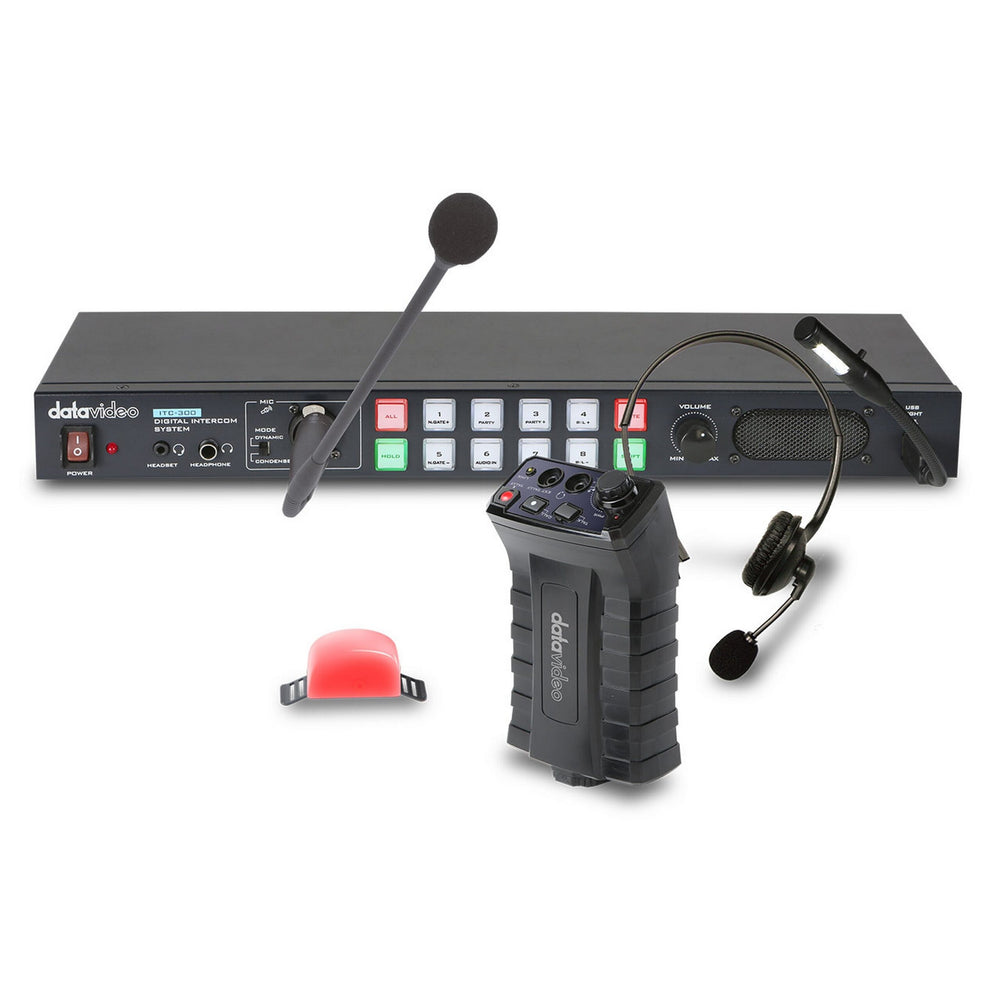

What's in the Box
1 x ITC-300 Base Unit
4 x ITC-300SL Belt Pack
4 x Ethernet Cable (70ft. / 21m)
4 x Earphone Cable
4 x Headset with microphone
1 x Gooseneck Microphone
4 x Tally LED Indicator
4 x Velcro
1 x USB Gooseneck Light
1 x Adaptor + AC Cord
2 x Rack Ears for mounting
1 x Thank You Card
